Default Cluster flex circuit screws

Anyone know the threading/pitch? I'm talking about the screws which complete the circuit between gauge and flex circuit.



I took apart my cluster to modify the gauge faces so that the OEM gauges and the AEMs matched. I also wired up LEDs warning lights and a shift light while I was at it.



Anyway, I had a box with the gauge hardware under my desk and the cleaning crew at work tossed it (along with 50 bucks worth of 8mm inconel studs for my downpipe)

I'm looking to order replacements off Mc-Carr, however, they don't thread into any of the thread checkers I have in the shop. I'm assuming it's a pretty standard screw.

Anybody know what the hell these screws are and/or have 6-8 they want to mail me for a price?

-Zach
Attached Thumbnails

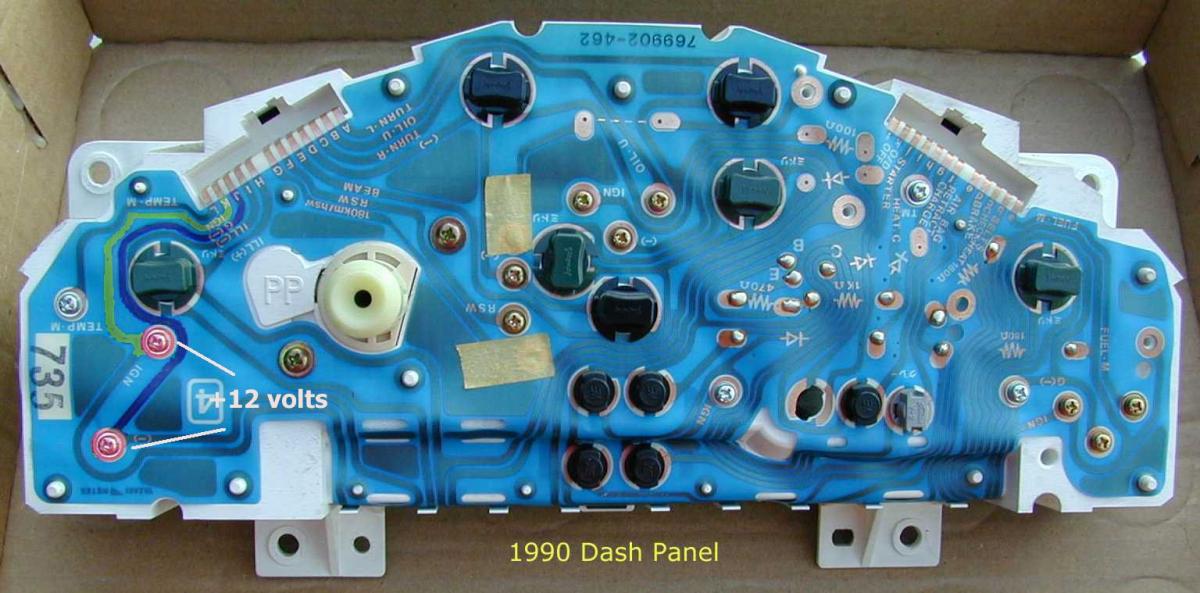

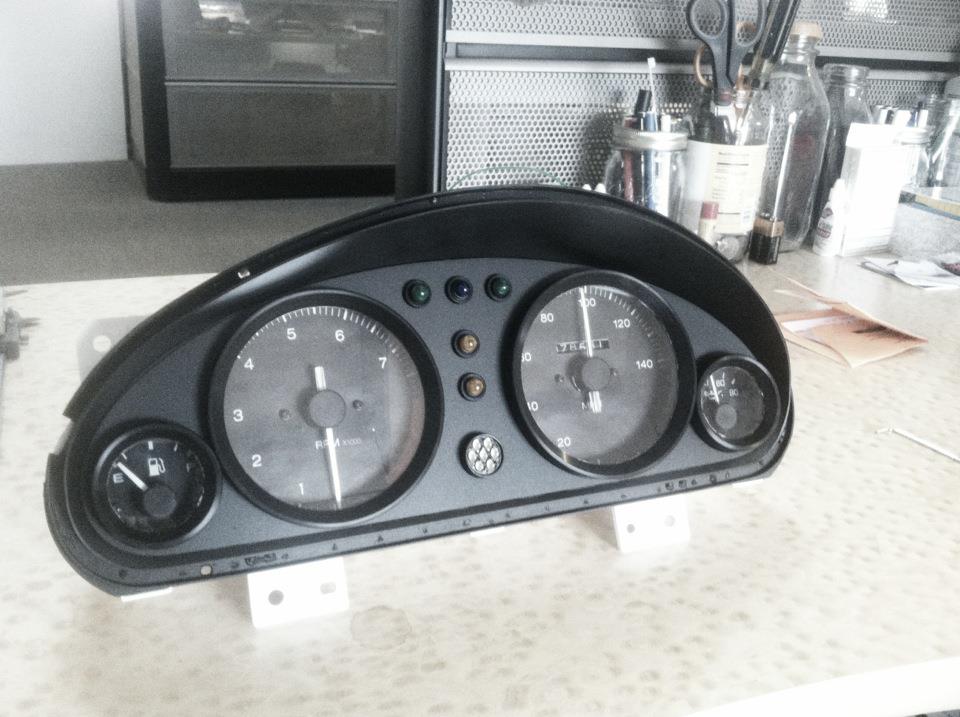

Cluster flex circuit screws-dashalooer.jpg   Cluster flex circuit screws-390377_561077365922_691270158_n.jpg
thasac is offline   Reply With Quote
Old 03-25-2013, 11:49 AM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

If they're anything like the other million screws on the car, they're m6x1.
curly is offline   Reply With Quote
Old 03-25-2013, 12:12 PM   #3
Senior Member
Thread Starter
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by curly View Post
If they're anything like the other million screws on the car, they're m6x1.
Definitely not m6.

I'm leaning towards m3 or possibly m4. Fortunately, we have some left over hardware from a project at work so I can see if m3/m4 nuts will match. It's a shame all the good metric hardware stores are defunct.

-Zach
thasac is offline   Reply With Quote
Old 03-25-2013, 12:33 PM   #4
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

At least on the NB gauge cluster they are definitely not metric - they are tapping screws as they go into the plastic housing.
Zaphod is offline   Reply With Quote
Old 03-25-2013, 12:53 PM   #5
Senior Member
Thread Starter
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by Zaphod View Post
At least on the NB gauge cluster they are definitely not metric - they are tapping screws as they go into the plastic housing.
There's a few tapping screws for certain components. However, the ones used for the gauge circuit connects are machine screws (not self tapping).

-Zach
