Default Connector Identification

Working on wiring up my tail lights and there are two connectors in the rear that I can't identify.

Top one is a three wire, heavy red, black and small violet wire that is capped. I seem to remember something about the roll over sensor in the tank or something? Just leave it accessible?

The bottom has heavy red, red/black and blue wires. Couldn't find anything in the wiring schematic but might be to power the rear defroster?

Attached Thumbnails

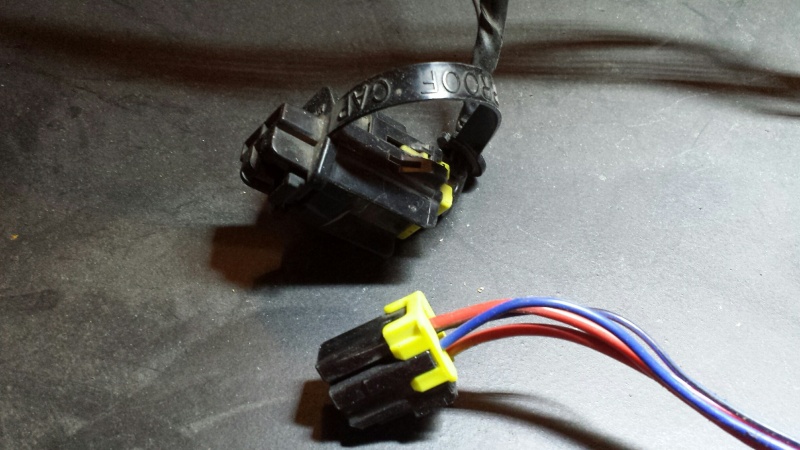

Connector Identification-20150419_142515_resized_zpsbcfbeb84.jpg
Stein is offline   Reply With Quote
Old 04-19-2015, 08:27 PM   #2
Senior Member
Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23

Power antenna?
Miater is offline   Reply With Quote
Old 04-23-2015, 01:57 PM   #3
Junior Member
iTrader: (1)
Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18

Top one with cap is for rear window defrost.
BarbyCar is offline   Reply With Quote
