Default Coolant Leak

I posted this a good while back but I haven't had any chance to work on the car & it isn't fully diagnosed but I have been given some pointers. Is there a temperature sensor on the back of the engine on a 1.6 miata? I was told there is and that the seal on it commonly fails. My car is not keeping pressure in the coolant system & is allowing coolant to leak out from the back of the engine on the passenger side. If this is the problem, I want to make sure I get or ask for the right part so if anyone can steer me in the right direction there I would really appreciate it. Really need to get this bad boy back on the road so I can take my truck out of service & fix it. Thanks in advance.
fastnfurious7 is offline   Reply With Quote
Old 02-16-2011, 06:20 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by fastnfurious7 View Post
Is there a temperature sensor on the back of the engine on a 1.6 miata? I was told there is and that the seal on it commonly fails.
Yes, there are two CLT sensors on the back of the head. They are not leaking, but they are right next to the rubber cap which is.

It's the one labelled "cursed water plug":

Joe Perez is online now   Reply With Quote
Old 02-16-2011, 09:09 PM   #3
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

The guys at mazda cursed it for a reason - unfortunately, the last guy who knew that reason mysteriously disappeared in the vicinity of Rider's backyard about a year and a half ago...???
fooger03 is offline   Reply With Quote
Old 02-16-2011, 09:58 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

If you want to replace it with another OEM part (guaranteed to start leaking again no later than the year 2029) it's FEA7-13-104: http://www.finishlineperformance.com...cat=319&page=3
Joe Perez is online now   Reply With Quote
Old 02-18-2011, 08:48 AM   #5
Junior Member
Thread Starter
iTrader: (10)

Join Date: May 2010
Location: Gainesville, GA
Posts: 106
Total Cats: -3
Default

Joe...that's the culprit. Once I put the car up in the air I could see it coming out of that very spot. First I will ask if there is any permanent fix this problem and second I would like to request if there is a link to a procedure on how to get to this POS to replace it. That thing is in the worst spot ever & I can't figure out how the heck I'm going to R&R that bad boy without having to pull the engine. Thanks again, guys, your helping a ton!
fastnfurious7 is offline   Reply With Quote
Old 02-18-2011, 10:12 AM   #6
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

It's cursed - there isn't an easy way to get to it - every way to get to it is difficult.

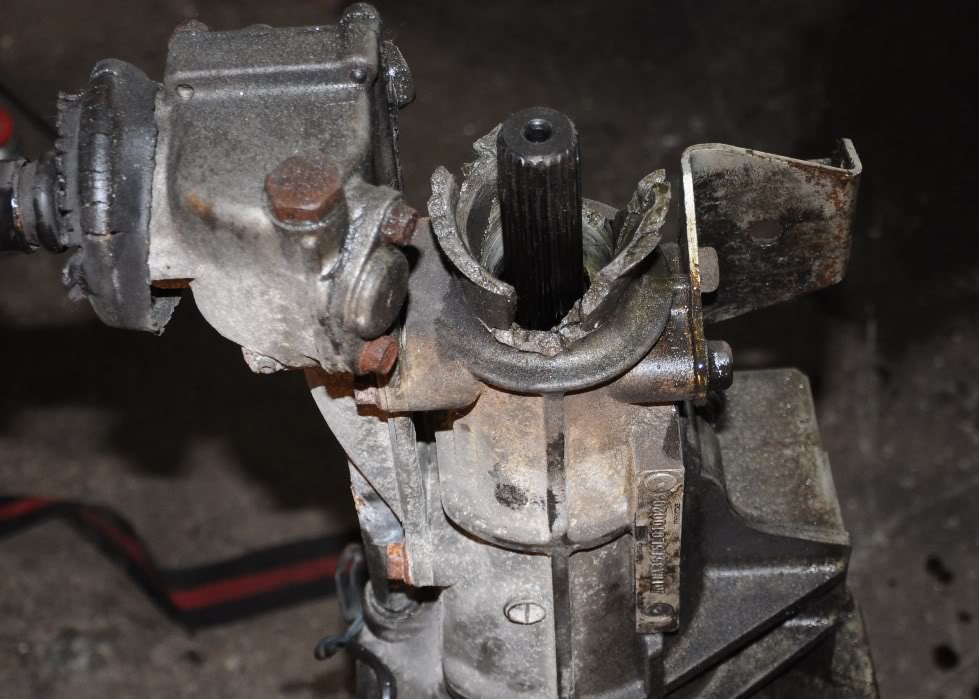

I took the transmission out to get to it...but I was also replacing the transmission...
Name:  DSC_0185.jpg
Views: 6
Size:  139.6 KB

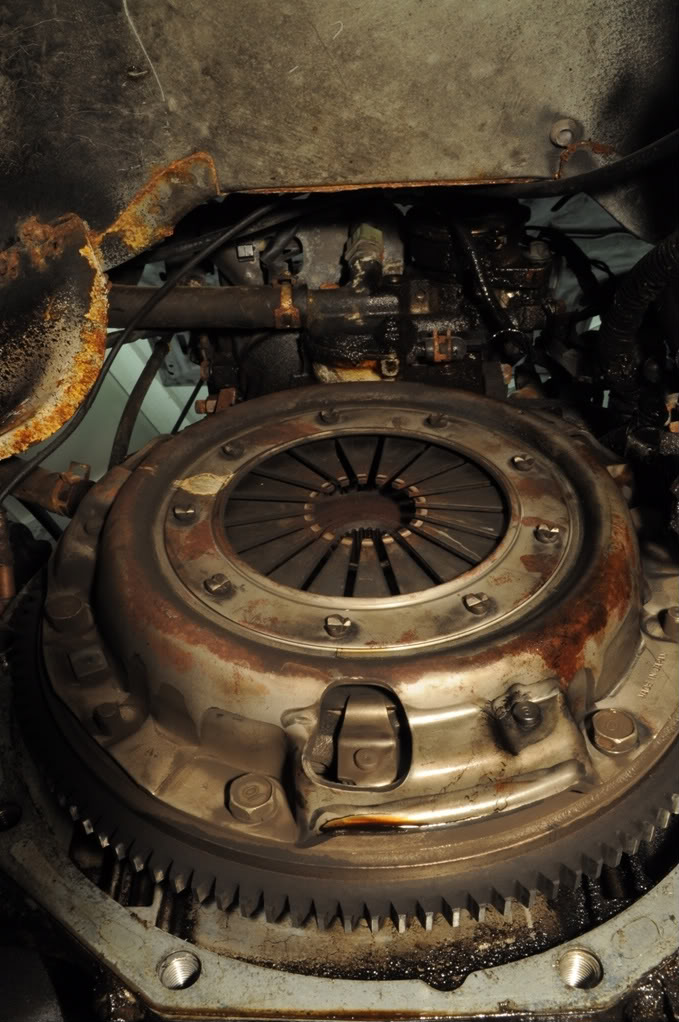

Name:  DSC_0193.jpg
Views: 5
Size:  136.5 KB
It just so happened that I decided to replace the rubber bits while I had the opportunity

If you put the stock piece in there, it should last you another 15 years or so...

Alternatively, you could tap the hole and put a bolt in there.

Make sure to drain coolant before you get underneath and start prying at that rubber plug!!!
fooger03 is offline   Reply With Quote
Old 02-18-2011, 11:31 AM   #7
Junior Member
Thread Starter
iTrader: (10)

Join Date: May 2010
Location: Gainesville, GA
Posts: 106
Total Cats: -3
Default

Great. I was afraid that I was going to have to do major surgery just to fix this problem. Why the snickering after saying the OEM part will last 15 years? Is this the line of the bull the manufacturer likes to lay on but it really lasts only about 2 years or so? I really don't feel like dealing with this problem every couple of years.
fastnfurious7 is offline   Reply With Quote
Old 02-18-2011, 11:50 AM   #8
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

You should just do a reroute while you are in there.
Gotpsi? is offline   Reply With Quote
Old 02-18-2011, 11:51 AM   #9
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Mazda would have you believe that it lasts forever.

A new cap will give you 15 years + or - a few. Replace it whenever you do a clutch job.

You might be able to get to it easier by taking the cam sensor off of the back of the head. 2 12mm bolts and it slides out. Make sure you mark the exact position with a paint marker first (by cleaning and then drawing a single line across the joint at two different locations), or else make sure you can adjust it with a timing light when you put it back. The sensor slides out but you will likely have to do some wiggling to get it all the way off and out from between the engine/firewall. The spinny piece only goes back in one way, so you don't have to worry about it going in 180 degrees off. Get a new o-ring for this piece while you have it out - doesn't have to be an OEM part, a NAPA 49 cent special does the job just fine. Put a little bit of oil on the o-ring before you put it back into place so it slides in nice and sexy like. If it doesn't go in all the way, you'll need to twist it a little bit and eventually you'll get it lined up with the camshaft. If all else fails as far as removing/replacing it, removing the valve cover is your next option, and that is not exactly a painful process either. By removing the valve cover, you'll get access to an aluminum cover over the camshaft/sensor joint and you'll be able to lift the sensor straight up instead of back towards the firewall - you'll also be able to directly manipulate the spinny thing with your fingers, so there's no guesswork involved in getting it back in.
fooger03 is offline   Reply With Quote
Old 02-18-2011, 12:17 PM   #10
Junior Member
Thread Starter
iTrader: (10)

Join Date: May 2010
Location: Gainesville, GA
Posts: 106
Total Cats: -3
Default

Thanks, man. I am tackling this project on Tuesday with a buddy's help. Sounds like coming in from the top & trying to work down to it will be the route of choice. I will let you know how it goes. Any idea what size o-ring so I will have all parts on hand when we start working? Hate having to stop & make parts runs...especially since I don't live near parts places @ all.
fastnfurious7 is offline   Reply With Quote
Old 02-18-2011, 12:19 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

lol. mine failed twice, just had to remove the CAS. easy fix.
Braineack is offline   Reply With Quote
Old 02-18-2011, 12:24 PM   #12
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

No idea on o-ring size. When I needed one, I took the CAS to NAPA and said "I need an o-ring for this"
fooger03 is offline   Reply With Quote
Old 02-18-2011, 12:28 PM   #13
Junior Member
Thread Starter
iTrader: (10)

Join Date: May 2010
Location: Gainesville, GA
Posts: 106
Total Cats: -3
Default

Yeah, no problem...one parts run it is. You've been a great help for sure. My first buddy put a pressure tester on the coolant system & said I had blown the head gasket. Glad I did some further investigation before jumping in and changing that for no reason.
fastnfurious7 is offline   Reply With Quote
Old 02-18-2011, 12:33 PM   #14
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

If you would have done that you would have been flamed for you name even more than I'm sure you already have.
Gotpsi? is offline   Reply With Quote
Old 02-18-2011, 12:39 PM   #15
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 128
Default

Make your girlfriend/kid do it, small hands help a lot, seriously. I spent probably 30 minutes trying to swap the thing on my old car, my girlfriend ended up swapping it for me in 30 seconds.
pdexta is offline   Reply With Quote
Old 02-18-2011, 12:42 PM   #16
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by fooger03 View Post
The guys at mazda cursed it for a reason - unfortunately, the last guy who knew that reason mysteriously disappeared in the vicinity of Rider's backyard about a year and a half ago...???
watts?
rider384 is offline   Reply With Quote
Old 02-19-2011, 11:42 PM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by fastnfurious7 View Post
Joe...that's the culprit.
Yes, I know.

Quote:
Originally Posted by fastnfurious7 View Post
I would like to request if there is a link to a procedure on how to get to this POS to replace it.
When I did mine, step was was "remove head", although the head was already coming off for unrelated reasons. I've heard that they're pretty easy to reach if you have the transmission out as well, so some folks make it a part of their clutch-job routine. It's one of those things that's just not easy to do, like convincing the judge that the 14-year-old looked 21, or convincing your father that the same 14-year-old looked like a girl (and that it's really his fault anyway for not providing a positive male role-model.)

Quote:
Originally Posted by fastnfurious7 View Post
Why the snickering after saying the OEM part will last 15 years?
No, in all seriousness, if you replace it with an OEM part and don't damage it, I would realistically expect the replacement to last for 15 years. That seems to be about the age at which the OEM ones started hitting the tail end of the bathtub curve the first time around.

Quote:
Originally Posted by rider384 View Post
watts?
Which word didn't you understand?
Joe Perez is online now   Reply With Quote
Old 02-20-2011, 03:03 AM   #18
Junior Member
Thread Starter
iTrader: (10)

Join Date: May 2010
Location: Gainesville, GA
Posts: 106
Total Cats: -3
Default

For many reasons I have to say that my screen name was formulated long before the movies and that it was originated on a motorcycle forum so it wouldn't even make sense for me to lie about it. These miatas have nothing on the 137 rwhp 515 lbs Yamaha FZ1 that is my pride and joy. It is super modified & bad *** so this miata is just a fun way for me to enjoy myself when four wheels are necessary. When gas mileage is king, which seems to be the case lately, I will ride my bike because 40 MPG is impossible to come by even with a miata. Anyway, sometimes I need a little room & the bike can't provide that so I would love to get the miata in working order so I can use it in place of the bike when bad weather comes around. Thanks again, my friends, you have been such a great help indeed. Keep the advice coming.
fastnfurious7 is offline   Reply With Quote
Old 02-24-2011, 09:04 AM   #19
Junior Member
Thread Starter
iTrader: (10)

Join Date: May 2010
Location: Gainesville, GA
Posts: 106
Total Cats: -3
Default

Quote:
Originally Posted by pdexta View Post
Make your girlfriend/kid do it, small hands help a lot, seriously. I spent probably 30 minutes trying to swap the thing on my old car, my girlfriend ended up swapping it for me in 30 seconds.
Great idea. My son should be able to get in there once I get some of the parts out of the way. Went ahead & got an o-ring, the cursed water plug, and a valve cover gasket. Tuesday got canceled so maybe tomorrow I can knock this job out. Then I gotta try to get the emissions place to dumb down the Miata Link Engine Management System in order to get it to pass. Then, restore the old settings & get my dang tag. Drive & enjoy.
fastnfurious7 is offline   Reply With Quote
Old 02-27-2011, 08:28 AM   #20
Junior Member
Thread Starter
iTrader: (10)

Join Date: May 2010
Location: Gainesville, GA
Posts: 106
Total Cats: -3
Default

Thanks again for all of your help here, fellas. I changed that thing out on Friday. If you take off the valve cover as described & then remove the CAS it isn't really too hard to get to & swap out. You guys saved me a bundle.

Last edited by fastnfurious7; 02-27-2011 at 08:42 AM.
fastnfurious7 is offline   Reply With Quote
