Default Cooling system "leak" (river)

1990 Greddy Turbo 5-Spd....

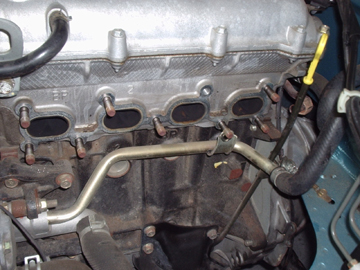

If you look at yoour heater hoses where they are coming out of the firewall....the hose on the drier's side is my problem. Where it finally connects into the engine (after it goes through the metal tubing in the attached picture) has popped out somehow...i'm just wondering how the hell this tubing is suppost to stay in the water pump since there are no fittings or anything there to speak of. Any help as soon as possible would be greatly appreciated.

Thanks,
Brian
Attached Thumbnails
Cooling system "leak" (river)-02_miata_exhaust_stock1.jpg
  Reply With Quote
Old 07-31-2006, 09:13 AM   #2
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,437
Total Cats: 84
Default

There is an O'Ring on the tube diameter and the tube is held forced into the water manifold by the bracket that attaches to your exhaust manifold bolt.
olderguy is offline   Reply With Quote
Old 07-31-2006, 09:32 AM   #3
ruger988
Guest

Posts: n/a
Total Cats: 0
Default

Knew that tube looked familiar, must've forgotten to put it under the turbo manifold when we did the install about a week ago (i've driven over 550 miles since then so why did it just now pop out?
  Reply With Quote
Old 07-31-2006, 09:34 AM   #4
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,437
Total Cats: 84
Default

Must have been a strong O'ring. Check it closely for nicks if you are going to try to re-use it. The clamp goes on top of the manifold, under the nut.
olderguy is offline   Reply With Quote
Old 07-31-2006, 09:37 AM   #5
ruger988
Guest

Posts: n/a
Total Cats: 0
Default

Top of the manifold? i thought i remembered it being on the botome row of nuts.
  Reply With Quote
Old 07-31-2006, 09:42 AM   #6
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,437
Total Cats: 84
Default

Bottom row of nuts, but on top of the manifold, under the nut. There is only one location it can go, but there is a member that put it between the block and manifold and had a "little" exhaust leak.
olderguy is offline   Reply With Quote
Old 07-31-2006, 10:00 AM   #7
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by olderguy
there is a member that put it between the block and manifold and had a "little" exhaust leak.
Gosh, who would be STUPID enough to do THAT! What an IDIOT!

Oh, wait....that would be me. (After taking the manifold/turbo off about 10 times when working on a larger DP fab.)

To actually add something of value, make sure you get an OEM gasket if you get a new one as I replaced it with one from NAPA in a crunch and it continued to ooze until I replaced it with an OEM gasket.
brgracer is offline   Reply With Quote
Old 07-31-2006, 10:12 AM   #8
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,437
Total Cats: 84
Default

Quote:
Originally Posted by brgracer
Gosh, who would be STUPID enough to do THAT! What an IDIOT!

Oh, wait....that would be me. (After taking the manifold/turbo off about 10 times when working on a larger DP fab.)

To actually add something of value, make sure you get an OEM gasket if you get a new one as I replaced it with one from NAPA in a crunch and it continued to ooze until I replaced it with an OEM gasket.
Shoulda kept quiet. I knew somebody did, but I forgot who

Gotta take advantage of my dead brain cells when you can.
olderguy is offline   Reply With Quote
Old 07-31-2006, 10:37 AM   #9
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by olderguy
Shoulda kept quiet. I knew somebody did, but I forgot who

Gotta take advantage of my dead brain cells when you can.
Trust me Bruce, I guarantee that Phil and John were chomping at the bit to ridicule me back then, but they held back because they saw that I was at my wits end at the time.

Plus, everyone need a good ribbing and humbling experience now and again. Such as how to make full power at the dyno...

At least I can laugh about it now that the car is up and running.
brgracer is offline   Reply With Quote
Old 07-31-2006, 03:25 PM   #10
ruger988
Guest

Posts: n/a
Total Cats: 0
Default

You know what's even stupider than him putting it under the manifold? me rushing into "fixing" things and not waiting to hear all the replies and doing the same damn thing.....atleast i only got four of the manifold nuts back on before i realized "oh ****, i'm gonna have one hell of an exhaust leak this way" oh well, i din't have much else to do today, all's good now, thanks again guys.

P.S. fell free to laugh at me, i don't mind, i'm still laughing at myself.
  Reply With Quote
Old 07-31-2006, 07:05 PM   #11
Junior Member

Join Date: Oct 2004
Location: Spring Hill, FL
Posts: 90
Total Cats: 0
Default

The tube probably popped apart because the mounting bracket did not fit properly over the exhaust manifold bolt. Prior to assembly suggest a bit of grinding on the bracket for a better fit.
Pop VII is offline   Reply With Quote
Old 07-31-2006, 10:39 PM   #12
ruger988
Guest

Posts: n/a
Total Cats: 0
Default

Quote:
Originally Posted by Pop VII
The tube probably popped apart because the mounting bracket did not fit properly over the exhaust manifold bolt. Prior to assembly suggest a bit of grinding on the bracket for a better fit.

Nope....we just never put it back on, LOL
