Default Cracked tranny turret

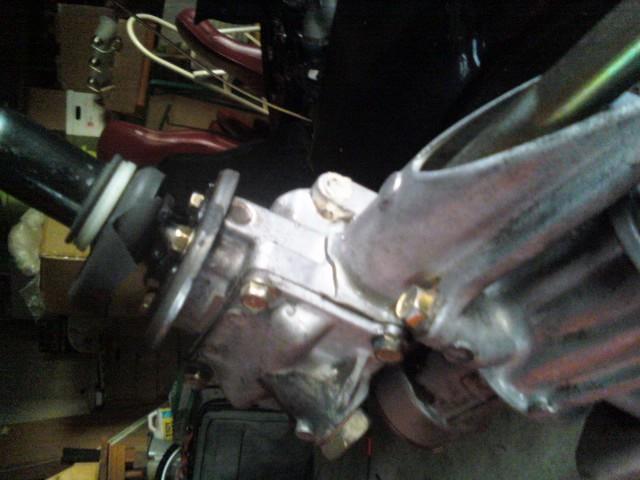

As i was installing the engine today in my 90 project car. I was in the process of lining up the shifter turret and the opening in the cab. As i was doing this there was stress put on the turret and i saw fluid leaking . Grabbed a flashlight and saw this ( i pulled the engine out and snapped a pic )

SO basically i need to take off the turret and replace it with a new one from another transmission.

Is there a writeup on how to?

Do i have to take off the transmission tail?

Help please!
Attached Thumbnails
Cracked tranny turret-transmissionturret.jpg
SKMetalworks is offline   Reply With Quote
Old 02-22-2009, 12:16 AM   #2
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Can't help with that, but here's a tip.... Take the shifter off for installing the tranny
crashnscar is offline   Reply With Quote
Old 02-22-2009, 12:32 AM   #3
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

i learned the hard way
SKMetalworks is offline   Reply With Quote
Old 02-22-2009, 12:40 AM   #4
Junior Member
iTrader: (1)

Join Date: Dec 2008
Location: Land down Under
Posts: 73
Total Cats: 0
Default

you should be able to remove it without taking the tail section off
Attached Thumbnails

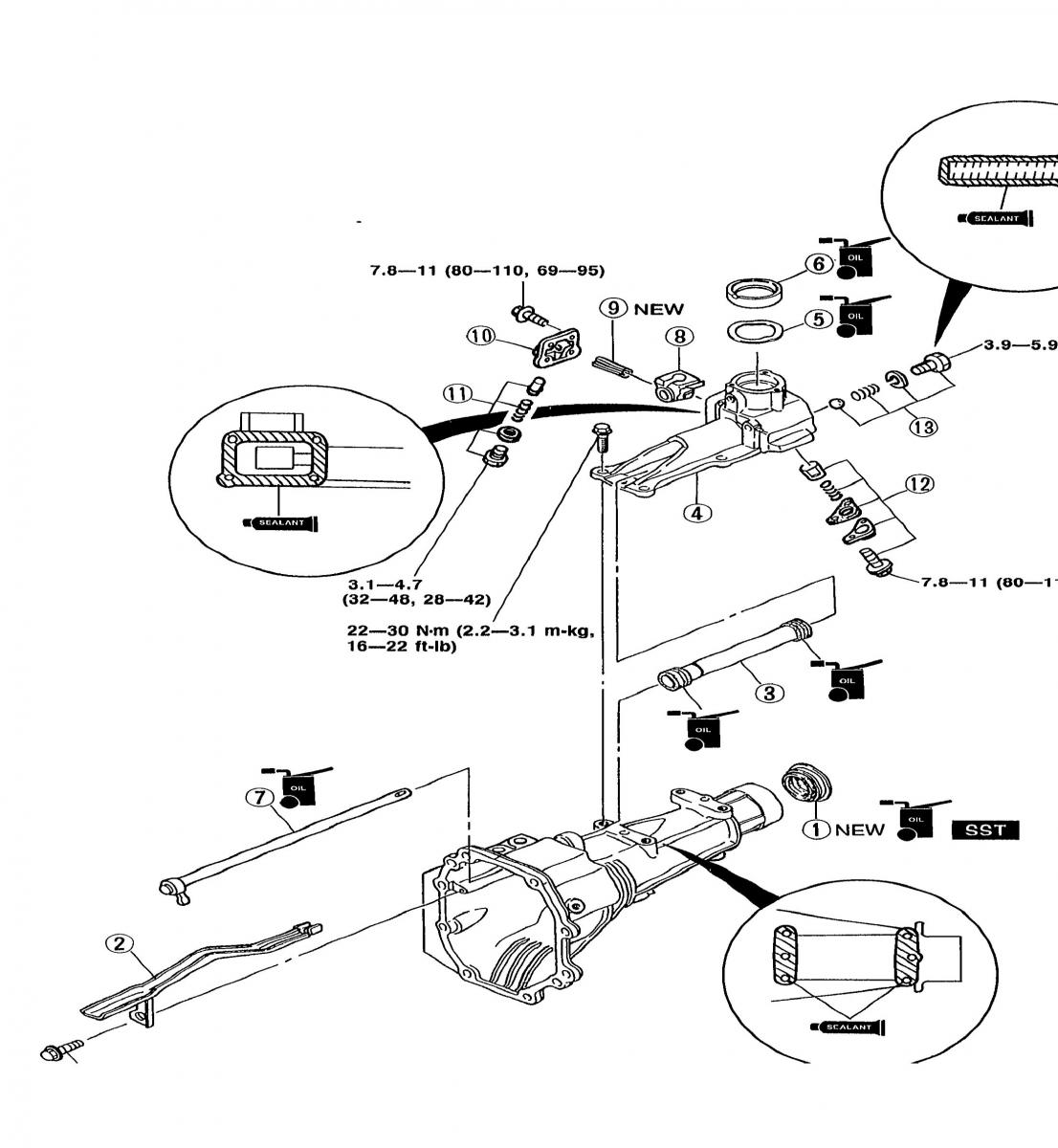

Cracked tranny turret-trans-remote.jpg
drbogg is offline   Reply With Quote
Old 02-22-2009, 12:44 AM   #5
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

i got the bolts off but i dont know how to get the shaft out... any ideas?
SKMetalworks is offline   Reply With Quote
Old 02-22-2009, 12:59 AM   #6
Junior Member
iTrader: (1)

Join Date: Dec 2008
Location: Land down Under
Posts: 73
Total Cats: 0
Default

Quote:
Originally Posted by sbkcocker499 View Post
i got the bolts off but i dont know how to get the shaft out... any ideas?
mate look at the diagram i posted see where it say New (9) you have to remove the pin in the shaft then the housing should slide off

Dr.
drbogg is offline   Reply With Quote
Old 02-26-2009, 12:29 AM   #7
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

hey how do i remove (9) i tried for about 10 minuets and could not figure it out . I wanna get the motor in this saturday but i gotta get the tailshaft fixed help a nub out
SKMetalworks is offline   Reply With Quote
Old 02-26-2009, 01:50 AM   #8
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

trying to put the engine in with the shifter attached win
SKMetalworks is offline   Reply With Quote
Old 02-26-2009, 08:07 AM   #9
Junior Member
iTrader: (1)

Join Date: Dec 2008
Location: Land down Under
Posts: 73
Total Cats: 0
Default

sorry mate, but that pin is a knock out type, get a puch or bar of the same size as the pin and knock it threw, i did a test run on a spare box and it turns out you need to pull the whole remote housing off, once you have undone the bolts and cracked the gasket you need to twist the housing clock wise to release the shaft. once that done you can remove the shaft and then the shifter housing should come away (remember the oil)

i hope this helps

Cheers
Dr.
