Default Critique this Intake Manifold

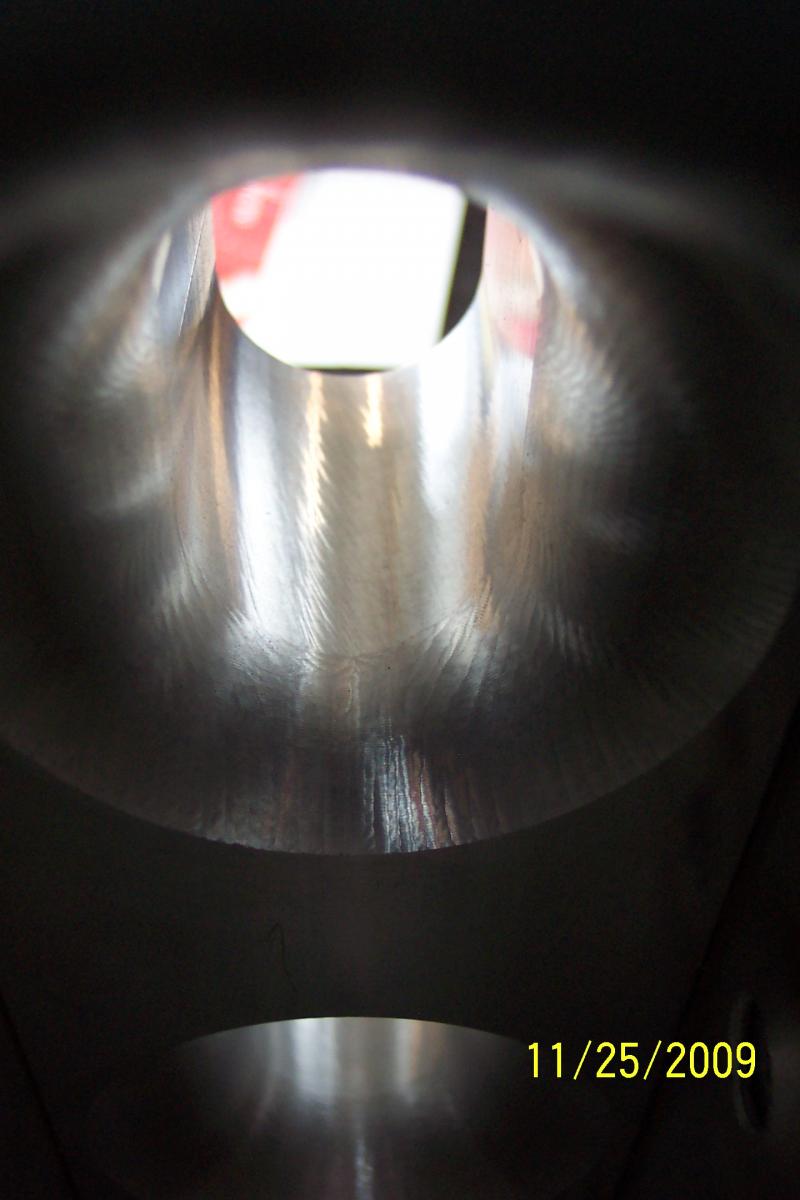

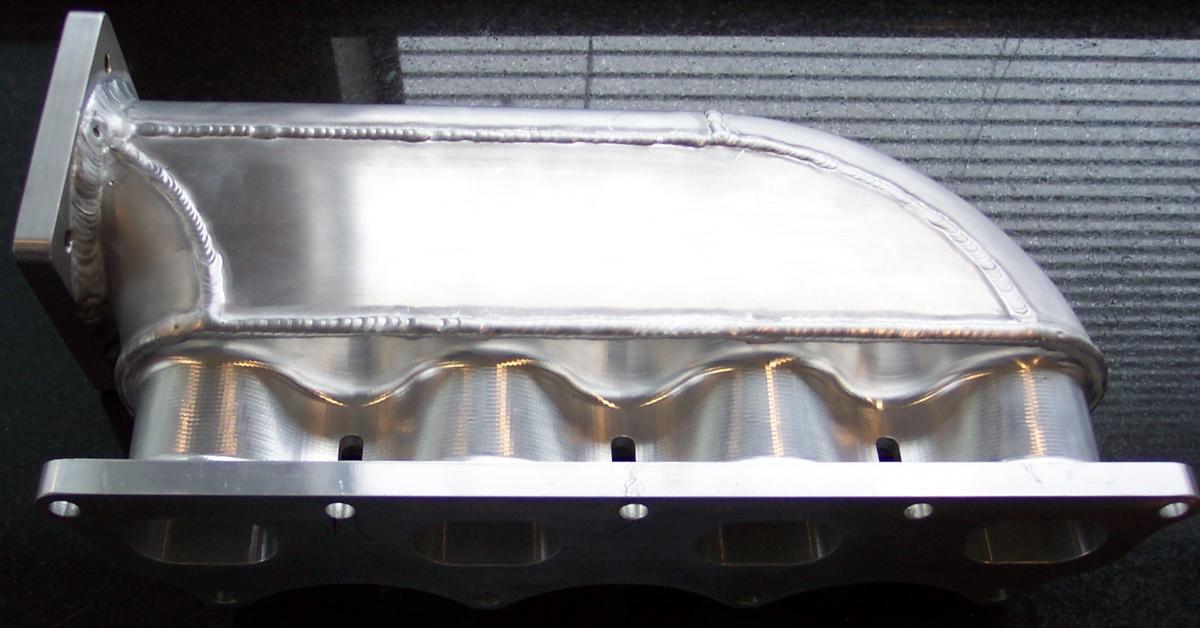

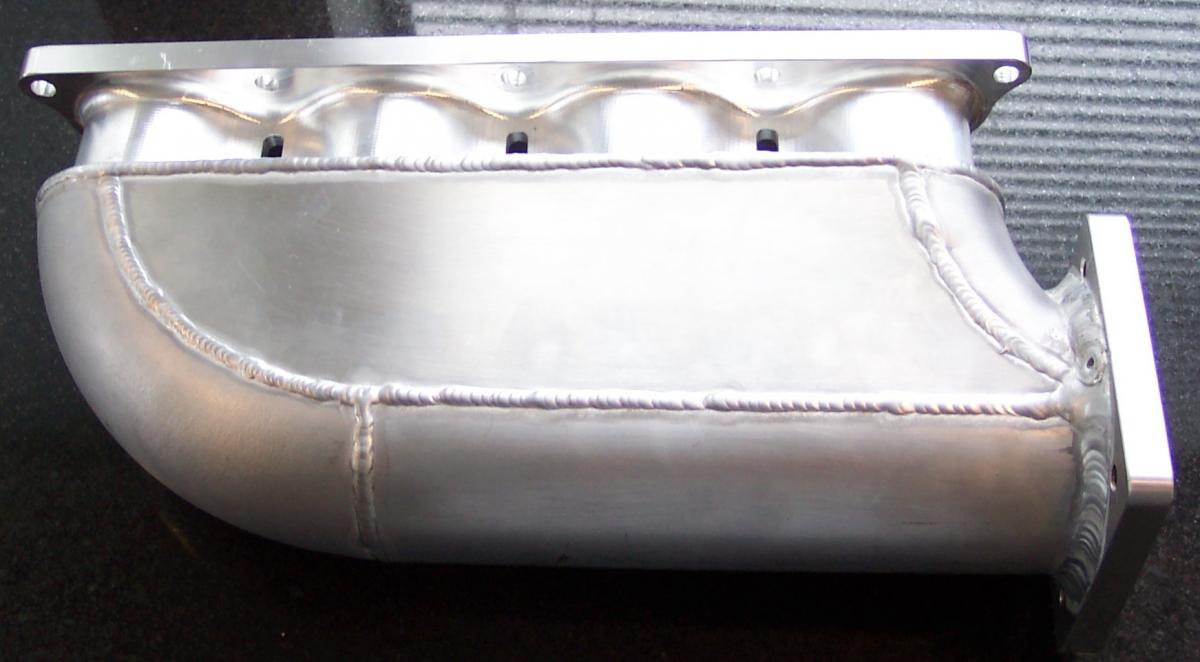

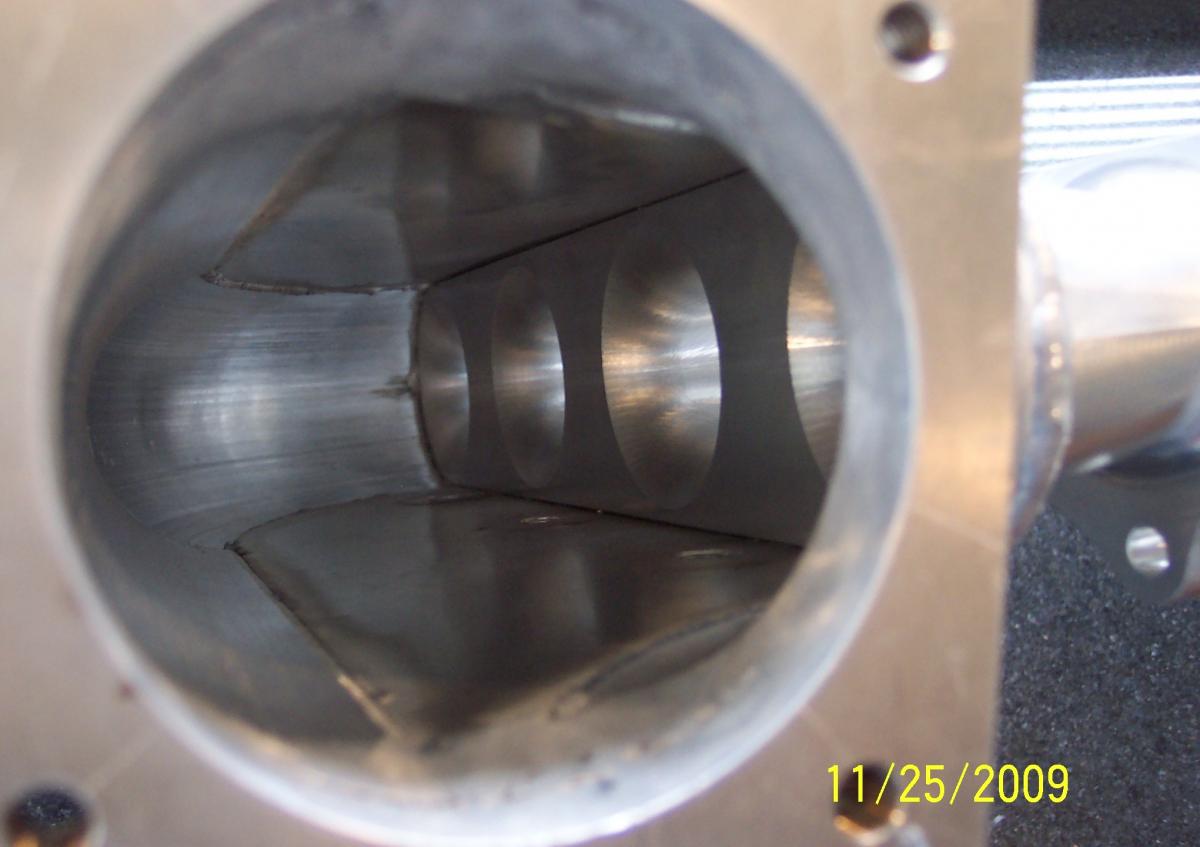

A few months ago I had an intake manifold made. Rob at Flipside Customs based it on the one he's currently offering. It has a larger plenum and a custom flange to allow me to use a specific throttle body. I would like to hear some honest feedback on what others think of the manifold itself as well as the logic behind those thoughts. Thanks.
Attached Thumbnails
Critique this Intake Manifold-flipside1.jpg   Critique this Intake Manifold-flipside2.jpg   Critique this Intake Manifold-flipside3.jpg   Critique this Intake Manifold-flipside4.jpg   Critique this Intake Manifold-intake-manifold-test-fit.jpg

JayL is offline   Reply With Quote
Old 11-25-2009, 07:00 PM   #2
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Disclaimer: I am no expert in fluid dynamics, etc.

But, it looks like cyl#1 would be starved for air with most of it going to the cylinders furthest from the throttle body . This is just by going with how *I* imagine the air flowing. I think runner#1 is too close to the TB.

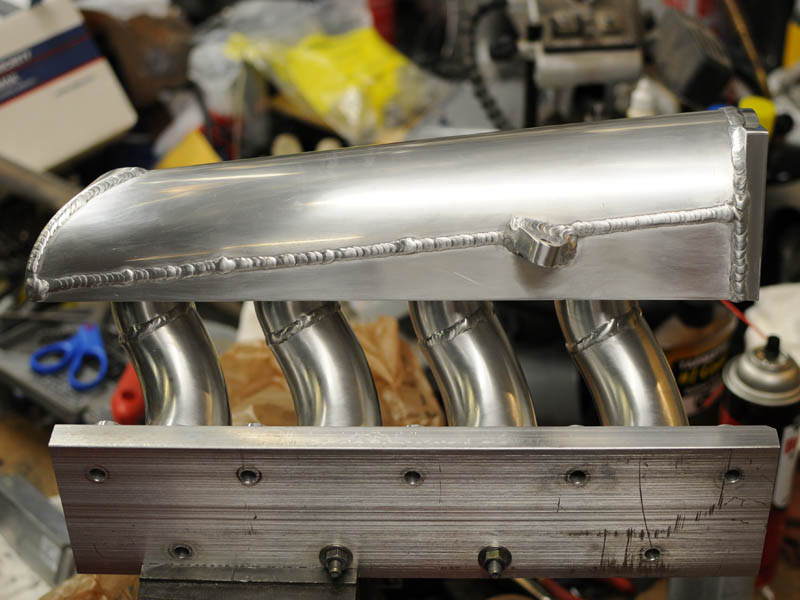

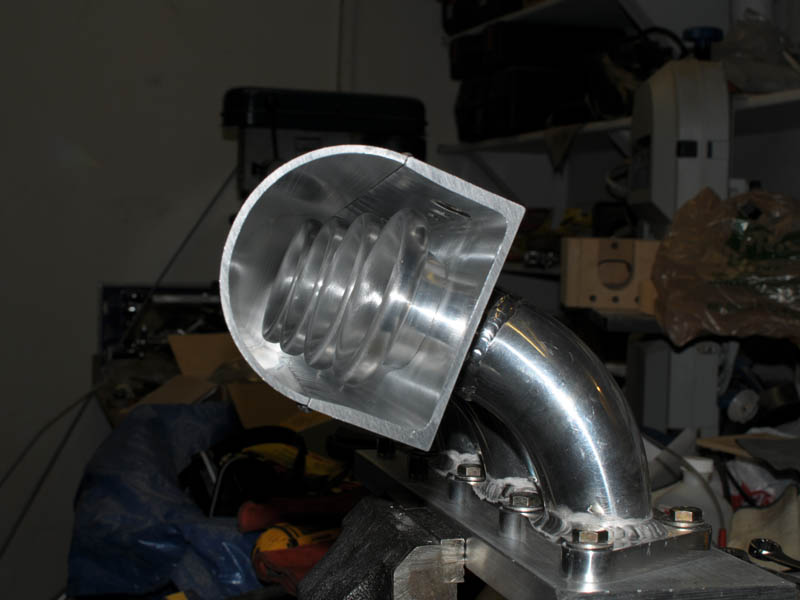

I went through the same thing while making my own manifold. That's one of the reasons I had the velocity stack protrude into the 'flow'. But, who knows, yours might be awesome while mine completely sucks...

--Ferdi
Attached Thumbnails
Critique this Intake Manifold-progress_12.jpg   Critique this Intake Manifold-progress_11.jpg
ftjandra is offline   Reply With Quote
Old 11-25-2009, 07:04 PM   #3
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

It looks good, I have one of the intakes for the 1.6L still have not had the chance to fully install it nor tune it. It looks expensive though lol
jtothawhat is offline   Reply With Quote
Old 11-25-2009, 07:09 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

Critique it??
I want to make love to it
18psi is offline   Reply With Quote
Old 11-25-2009, 08:02 PM   #5
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

I would have to agree that it has an issue withCyl.#1 not having sufficient airflow.Also the finish of the velocity stacks could be smoother.I dont have pics of mine,The v-stack is a smooth,polished transition all the way to the head.
(G)
Reverend Greg is offline   Reply With Quote
Old 11-25-2009, 08:03 PM   #6
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I would like to see a fluid dynamics expert on the subject because I will be starting my mani build soon. I would have to go with ftjandra on this one, from all I have read up on the subject and talked to others that make them as well.
Gotpsi? is offline   Reply With Quote
Old 11-25-2009, 08:04 PM   #7
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

I'm curious about the transition between the plenum and the runners. It looks like there's a sharp lip that could be smoothed out.
mgeoffriau is offline   Reply With Quote
Old 11-25-2009, 08:16 PM   #8
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Friends-ftjandra is one sharp cat,and If I was building a first intakeyou could do alot worse from stealing a design.(G)
Reverend Greg is offline   Reply With Quote
Old 11-25-2009, 08:19 PM   #9
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I bet this manifold will work better than the stock one for you, but Im sure there are better ones out there.
Gotpsi? is offline   Reply With Quote
Old 11-25-2009, 09:44 PM   #10
Junior Member

Join Date: Jan 2008
Location: Sparta, NJ
Posts: 96
Total Cats: 0
Default

So more importantly, what do the before and after dyno charts look like?
avante43 is offline   Reply With Quote
Old 11-25-2009, 10:17 PM   #11
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Without CFD numbers, our opinions are worth about as much as the machining debris. But IMO the runners are way too short.
Savington is offline   Reply With Quote
Old 11-25-2009, 10:25 PM   #12
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Quote:
Originally Posted by Savington View Post
Without CFD numbers, our opinions are worth about as much as the machining debris. But IMO the runners are way too short.
This.
But FWIW, I also think flow to #1 might be kinda odd..
MartinezA92 is offline   Reply With Quote
Old 11-25-2009, 10:30 PM   #13
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

i'm just curious, how would an intake manifold work if its same design as a twisty exhaust? Perhaps even more it so its pointing up and its in the middle and have the throttle body up there as well?





i donno just trying to think outside the box on something new..
triple88a is offline   Reply With Quote
Old 11-25-2009, 10:34 PM   #14
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Im fairly certain the reason behind that manifold is to have fairly equal length runners, with an intake it must have equal length runners to have equal distribution to all cylinders, while this is a good thing on the exhaust side it is a must on the intake side. also exhaust manifolds do not need a plenum, intakes do.
Gotpsi? is offline   Reply With Quote
Old 11-25-2009, 10:38 PM   #15
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Anybody have access to a flowbench for free/cheap?

--Ferdi
ftjandra is offline   Reply With Quote
Old 11-25-2009, 10:38 PM   #16
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Yeah, not sure you need to introduce that kind of complexity as long as the plenum is comfortably larger than the volume of a single cylinder and flows well. That's why I'd be interested in smoothing out the transition between the plenum and runners.
mgeoffriau is offline   Reply With Quote
Old 11-25-2009, 10:41 PM   #17
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

if thats the case then why not make one with very short runners and a lot of empty space as a plenum?

again i'm not being ignorant or anything of that kind, i'm just trying to think of a way to improve the traditional way.
triple88a is offline   Reply With Quote
Old 11-25-2009, 10:44 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

just dyno it and find out.

as dont forget the air flows in wavezzzzzzzzz
Braineack is offline   Reply With Quote
Old 11-25-2009, 10:44 PM   #19
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Not trying to shoot it down, symmetry is good if packaging allows.
mgeoffriau is offline   Reply With Quote
Old 11-25-2009, 10:52 PM   #20
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by triple88a View Post
if thats the case then why not make one with very short runners and a lot of empty space as a plenum?

again i'm not being ignorant or anything of that kind, i'm just trying to think of a way to improve the traditional way.
Toyota does it on some of their corolla engines.



Edit: Looking at it, this faces the proper direction to have the flange cut off and a b6/bp flange welded on.... Only problem would be clearing the shelf/shock tower.
Jeff_Ciesielski is offline   Reply With Quote
