Old 02-16-2010, 12:18 AM   #81
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

...............

Last edited by JayL; 02-16-2010 at 08:06 PM.
JayL is offline   Reply With Quote
Old 02-16-2010, 12:44 AM   #82
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

I like the stock mani dyno better
dc2696 is offline   Reply With Quote
Old 02-16-2010, 09:55 AM   #83
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Do you have your soft cut set at 7000RPM?
Braineack is offline   Reply With Quote
Old 02-16-2010, 09:58 AM   #84
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Knock threshold set too low so it was pulling timing and adding fuel, oops.
JayL is offline   Reply With Quote
Old 02-16-2010, 10:04 AM   #85
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Look like it has potential up top if you can sort that out. I'm actually surprised with the comparison, I wonder how much the gearing comes into play? I'm sure the extra 30 lbs at before 4K feels nice driving around on the street, but I'm not sure there's any benefit for your particular application.
Braineack is offline   Reply With Quote
Old 02-16-2010, 10:16 AM   #86
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

When I switched to 3.63 gears and started to run the Mickey Thompson tires it felt noticeably faster because I had traction in every gear, but on the dyno there was a huge loss in power. I'm going to see if I can find a run after the change, but before the meth and get a print out today.

As for it feeling better, not really. I'm back to running RS2s and I don't have any traction until 4th gear. Those Mickey Thompsons really spoiled me.
JayL is offline   Reply With Quote
Old 02-16-2010, 10:16 AM   #87
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I would have thought torque would keep climbing, or atleast stay level, up top.

Thanks for the real world proof though.
gospeed81 is offline   Reply With Quote
Old 02-16-2010, 01:30 PM   #88
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by JayL View Post
As for it feeling better, not really. I'm back to running RS2s and I don't have any traction until 4th gear. Those Mickey Thompsons really spoiled me.

Sucks to be you!

Got a low boost map to use for the street? You might want a low boost map too if you decide to take some of the corners Pacific Raceway offers instead of just running the 1/4.
cueball1 is offline   Reply With Quote
Old 02-16-2010, 08:05 PM   #89
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

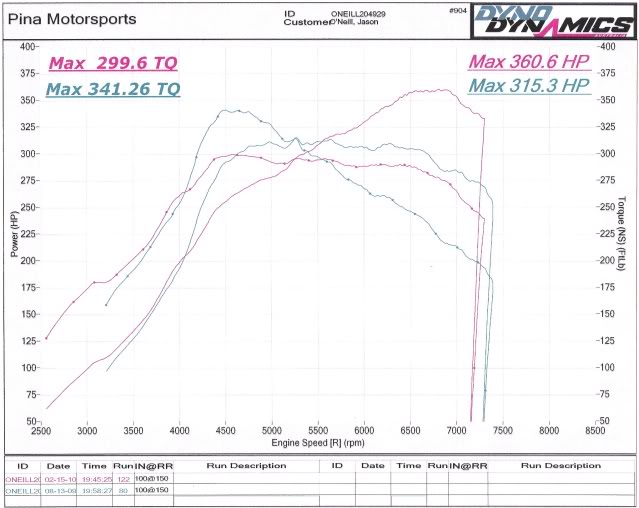

Ok, last night I went through a ton of old logs and dyno charts to find one that would be a better comparison. This afternoon I came across run number 80 and it is going to be as close as I can get so we printed run 80 with run 122 from yesterday. The only changes between the runs are the intake manifold, q45 throttle body, and tires. My knock threshold intruded after 6800 and pulled timing and added fuel on run 122. Besides this, the timing was identical and both pulls were with 3.63 gears. This is as close as it will get for a comparison and better represents the differences this particular setup made.

Name:  manifolddynosheet2.jpg
Views: 7
Size:  52.1 KB
JayL is offline   Reply With Quote
Old 02-16-2010, 08:08 PM   #90
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by cueball1 View Post
Got a low boost map to use for the street? You might want a low boost map too if you decide to take some of the corners Pacific Raceway offers instead of just running the 1/4.
This is the low boost map.
JayL is offline   Reply With Quote
Old 02-16-2010, 08:20 PM   #91
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Ah, that looks better.
dc2696 is offline   Reply With Quote
Old 02-16-2010, 09:30 PM   #92
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

That is a huge gain. Woot woot!
cueball1 is offline   Reply With Quote
Old 02-16-2010, 10:09 PM   #93
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

WOW!

Way to hold on to that torque...
gospeed81 is offline   Reply With Quote
