Old 09-18-2015, 10:16 PM   #21
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Engine specs are:

2006 TSX Long Block
50 degree VTC Gear
Kmiata / RSX Type S Oil Pump with KJ Built Spring
HTP Lower Chain Guide
Modified Double Keyed Lower Timing Gear
Skunk 2 Ultra Race Manifold (port matched to stock ports)
RDX 410cc Injectors
Ktuned 90mm Throttle Body
Kmiata Big Tube Header
3" Custom Exhaust(15" resonator,Borla XR-1 Muffler)

Was tuned on Xenocrons Mainline Dyno, Those numbers are converted from mainline dyne to dynojet. Something that the mainline software can do. Chris told me the mainline reads 18% lower than the typical dynojet.

The reason I bought the race intake and big tube header was to cover my bases, Obviously i don't intend on leaving the car as is. So weather i decide to Build it all motor, or turbo or supercharge i will have the parts i need. The GE manifold that K miata sells would make a bit better torque, I liked the S2 manifold because of the CNC porting options available and if i were to go roots blower its easier to sell the S2 manifold back to the honda community.

Im very very happy with the setup, it rips pretty hard. I have a few house keeping things i want to do on the car, some small details to straighten out. But all in all it runs pretty bad ***.

Things i plan to add are a aem oil pressure sensor to data log the oil pressure and a Xenocron/racespec ground speed setup, so i can input actual vehicle speed and use launch control.
ctdrftna is offline   Reply With Quote
Old 09-20-2015, 03:28 PM   #22
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

A quick pull from today, i short shifted into 3rd pretty bad.

ctdrftna is offline   Reply With Quote
Old 09-20-2015, 07:22 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,173
Total Cats: 2,575
Default

win
18psi is offline   Reply With Quote
Old 09-20-2015, 08:47 PM   #24
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Damn, sounds really really good as well. I wish I was aware of the K swap a year ago.
Jeffbucc is offline   Reply With Quote
Old 09-22-2015, 04:22 PM   #25
Junior Member

Join Date: Sep 2008
Location: Chicago, IL
Posts: 234
Total Cats: 4
Default

Wow that thing rips through the gears, what transmission/rear end are you using?
Slider is offline   Reply With Quote
Old 09-22-2015, 04:44 PM   #26
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

6spd with 3.636
ctdrftna is offline   Reply With Quote
Old 09-22-2015, 05:16 PM   #27
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by ctdrftna View Post
6spd with 3.636
You should try it with a 4.10 like my car

Perfect road race gearing, but your 3.6 will be especially nice once you add more power.
KMiata is offline   Reply With Quote
Old 09-22-2015, 05:34 PM   #28
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,173
Total Cats: 2,575
Default

with the 3.6 revving all the way to 8+ those must be some lonnnnnng gears
18psi is offline   Reply With Quote
Old 09-22-2015, 06:00 PM   #29
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

I really like the gearing, i had 6spd and 4.10s before these gears, i felt it was way to short. They were to short for drifting (to much shifting) and made 1st to short for drag racing. The K24 makes serious torque for naturally aspirated 4cyl.
ctdrftna is offline   Reply With Quote
Old 09-23-2015, 07:19 AM   #30
Junior Member
iTrader: (1)

Join Date: Aug 2010
Posts: 86
Total Cats: 15
Default

Sweet swap.
Joker is offline   Reply With Quote
Old 10-01-2015, 11:30 PM   #31
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

So from your build... any oem parts to pay key attention to gathering?

Parting out an '04 TSX next week...
Splitime is offline   Reply With Quote
Old 10-02-2015, 06:49 AM   #32
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Motor, with everything attached, this includes alternator and starter. Wiring and charge harness to strip for little plugs and bullshit ( you will need 02-04 rsx-s harness) if its a manual, keep the flywheel bolts. Thats about it really.

You will need some stuff from rsx-s and EP3 civic for the swap.
ctdrftna is offline   Reply With Quote
Old 10-02-2015, 11:18 AM   #33
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Sounds good
Splitime is offline   Reply With Quote
Old 10-08-2015, 12:59 PM   #34
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

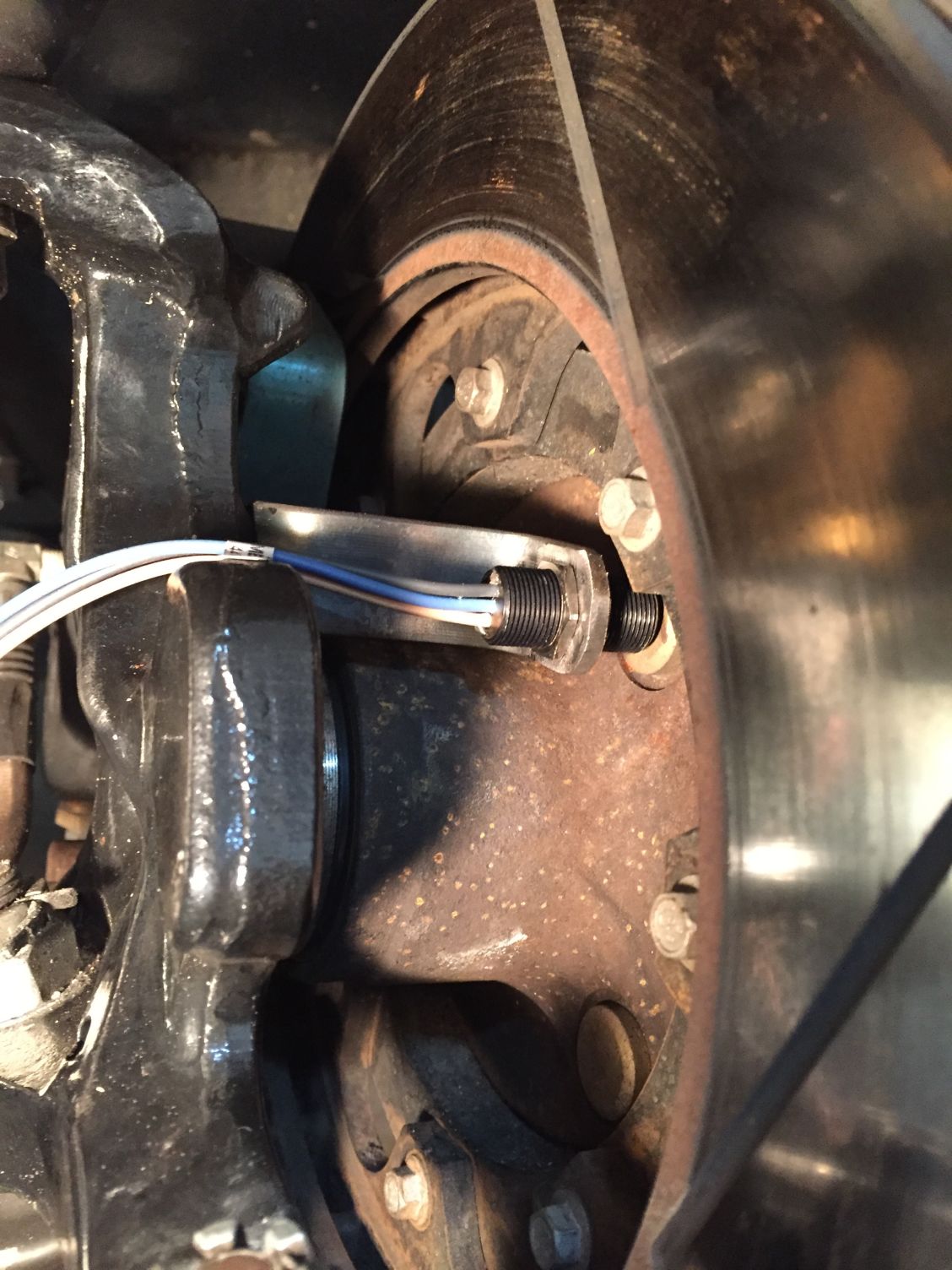

Added a xenocron wheel speed sensor on the front wheel, this lets me input speed into the kpro for gear based stuff and launch control.

I also added a aem oil pressure sensor to log that, and braced the differential by tying it into the 6point brace.

Next week it's going to the strip to see what it's got.
Attached Thumbnails
CTDRFT's K-Miata-80-image_7a2bcee2e7e9780ae01e06a19af4fcd73f0c4215.jpeg
ctdrftna is offline   Reply With Quote
Old 10-08-2015, 01:53 PM   #35
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by ctdrftna View Post

Next week it's going to the strip to see what it's got.
I can't wait. What's your prediction?
thirdgen is offline   Reply With Quote
Old 10-08-2015, 01:53 PM   #36
Junior Member

Join Date: Sep 2008
Location: Chicago, IL
Posts: 234
Total Cats: 4
Default

What sort of gear based stuff?
Slider is offline   Reply With Quote
Old 10-08-2015, 02:42 PM   #37
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Low 13's on street tires.

Boost by gear mainly (if I boost)
I wanted 2step before going to the track.

There are gear based fuel and ignition correction too.
ctdrftna is offline   Reply With Quote
Old 10-22-2015, 07:33 AM   #38
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Next week came and went. Where's the time slip?
thirdgen is offline   Reply With Quote
Old 10-22-2015, 09:23 AM   #39
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Event got cancelled due to rain. Rain date it tommorow. So expect numbers Tomorrow night.
ctdrftna is offline   Reply With Quote
Old 10-22-2015, 10:19 PM   #40
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Can't wait.
