Old 04-18-2016, 12:48 AM   #61
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by ctdrftna View Post
Had a chance to go have some fun yesterday.

Car exceeded expectations.

https://instagram.com/p/BERizb_C26k/
nice, any video?
KMiata is offline   Reply With Quote
Old 04-18-2016, 06:19 AM   #62
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

That was a video, it should play if you click it, if not click the link
ctdrftna is offline   Reply With Quote
Old 04-18-2016, 02:36 PM   #63
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by ctdrftna View Post
That was a video, it should play if you click it, if not click the link
ah, worked on the computer, not on my phone. Love it, first K Miata I've seen drifting.
KMiata is offline   Reply With Quote
Old 04-18-2016, 04:06 PM   #64
Junior Member

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by K Miata View Post
ah, worked on the computer, not on my phone. Love it, first K Miata I've seen drifting.
love this if i ever do another miata swap and want low power i may have to go this route

time to start doing more research on these
Shortpersonbk is offline   Reply With Quote
Old 04-18-2016, 04:20 PM   #65
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Want low power eh?
turbofan is offline   Reply With Quote
Old 04-18-2016, 04:45 PM   #66
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

I posted this because I think it gives a good idea of what this swap is like, it really is the ultimate fun. To me it blows away my old 450+whp BP.

It's the best platform you can have. Even if you want big power, this is still the better platform.

I have the 245 15x10 combo waiting to go on. That's gonna need more power to bring the fun level to this level. So I have a gt3076 lined up, at 12psi I will be pushing close to 400whp
ctdrftna is offline   Reply With Quote
Old 04-18-2016, 04:46 PM   #67
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 672
Total Cats: 29
Default

I can't wait to see your updated quarter mile times. Great work so far!
vteckiller2000 is offline   Reply With Quote
Old 04-18-2016, 06:32 PM   #68
Junior Member

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by ctdrftna View Post
I posted this because I think it gives a good idea of what this swap is like, it really is the ultimate fun. To me it blows away my old 450+whp BP.

It's the best platform you can have. Even if you want big power, this is still the better platform.

I have the 245 15x10 combo waiting to go on. That's gonna need more power to bring the fun level to this level. So I have a gt3076 lined up, at 12psi I will be pushing close to 400whp

Adding boost now....now this i want to see even more.
Shortpersonbk is offline   Reply With Quote
Old 04-18-2016, 06:50 PM   #69
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Boost is a bit down the road but it's on the cards for sure.

No plans on going back to the strip, I just installed my new tomei diff the other weekend, when I got under the car I had a cracked diff housing. No doubt happened at the drag strip. The wheel hop is murder, and to eliminate it is a lot of custom suspension and drivetrain work that would render the Miata unless for anything else.
ctdrftna is offline   Reply With Quote
Old 04-18-2016, 06:53 PM   #70
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 672
Total Cats: 29
Default

Quote:
Originally Posted by ctdrftna View Post
Boost is a bit down the road but it's on the cards for sure.

No plans on going back to the strip, I just installed my new tomei diff the other weekend, when I got under the car I had a cracked diff housing. No doubt happened at the drag strip. The wheel hop is murder, and to eliminate it is a lot of custom suspension and drivetrain work that would render the Miata unless for anything else.
Or just let out of it if it happens...

Where was it cracked?
vteckiller2000 is offline   Reply With Quote
Old 04-18-2016, 07:28 PM   #71
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Cracked at the notch where they are designed to crack. I upgraded to a RX7 housing.

There really is no use trying for a better time if I can't warm the tires and launch it harder. I sold the slicks to buy my new wheels.

And I already need a 6pt roll bar per nhra rules.
ctdrftna is offline   Reply With Quote
Old 04-18-2016, 07:48 PM   #72
Junior Member

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

The trick to the track rules are to be a one hit wonder and never make a full pass till you have your 1/8th mile down.

They also will generally not kick you after one pass, at least at any of my local tracks. Shoot one let me make back to back to back mid/low 10 second passes without even a firejacket but i was asked not to return till i had one at the very least.

Obviously not the safest idea.
Shortpersonbk is offline   Reply With Quote
Old 01-07-2017, 12:33 PM   #73
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

So for 2017 I'm building a new motor, adding some more safety and hopefully painting the car. I decided to stay naturally aspirated after seriously considering turbocharging. This car is a blast to drive and it takes a beating like a champ, I don't want to ruin reliability for a bunch of power that won't be to useful on the street .

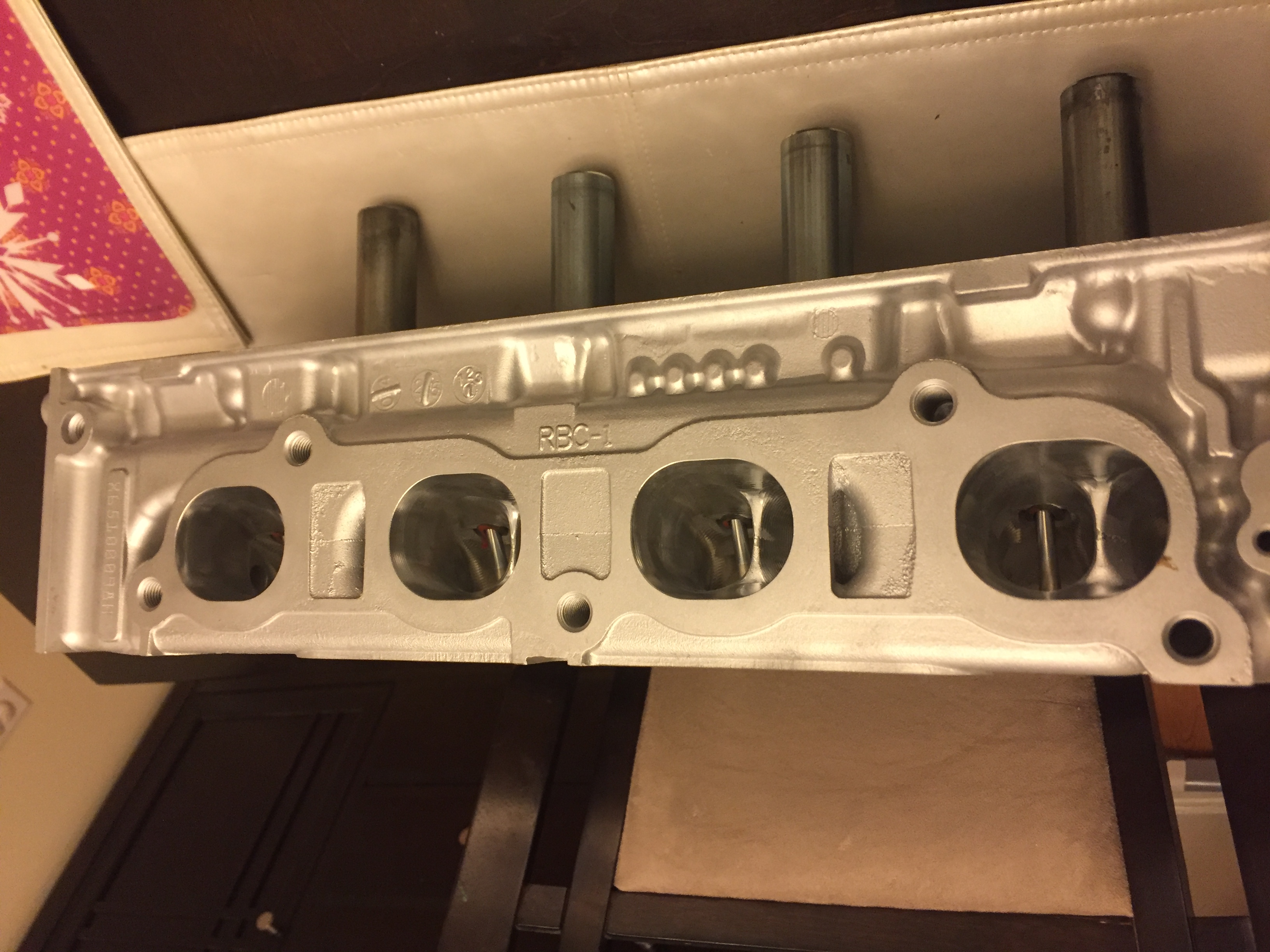

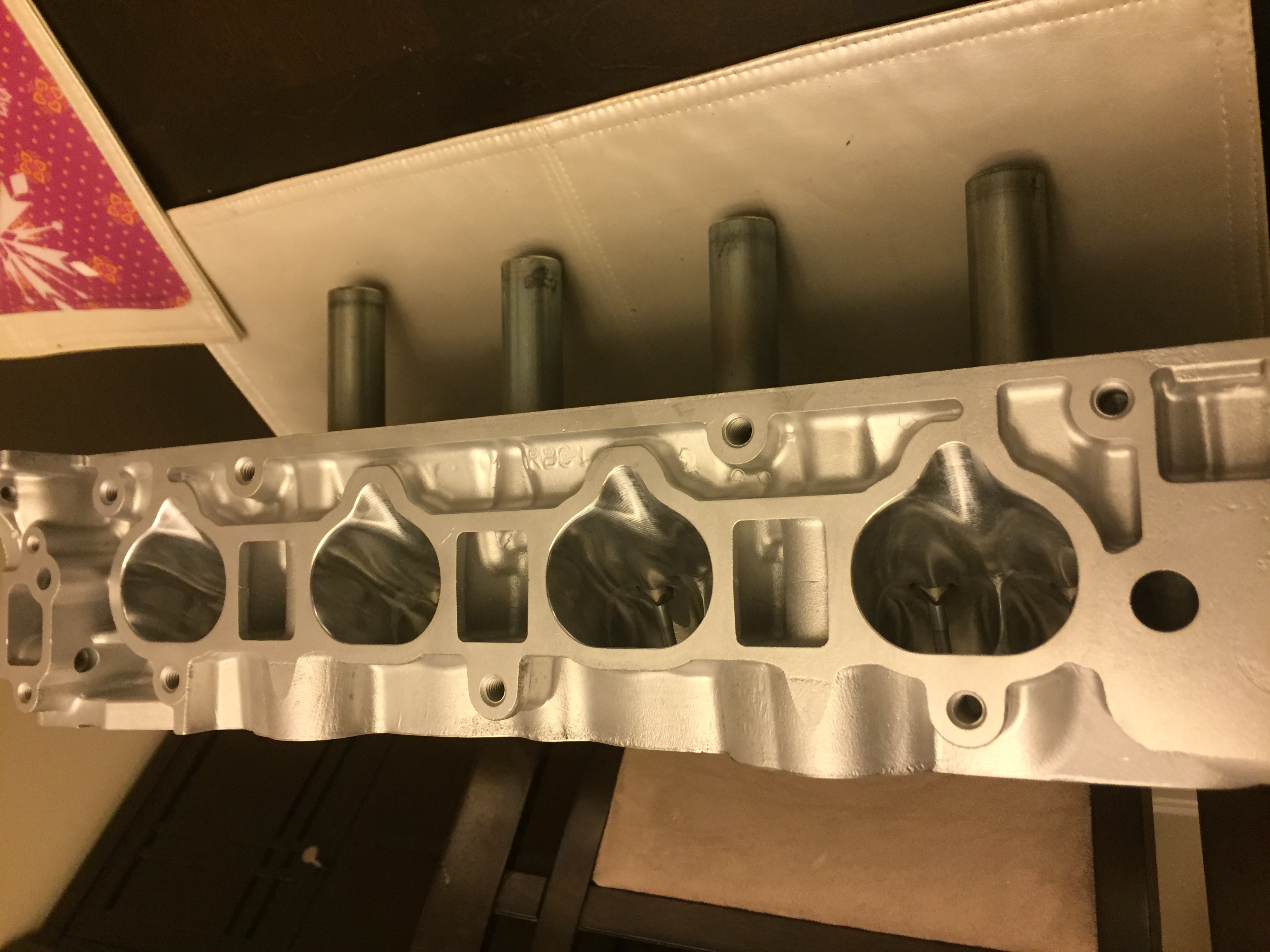

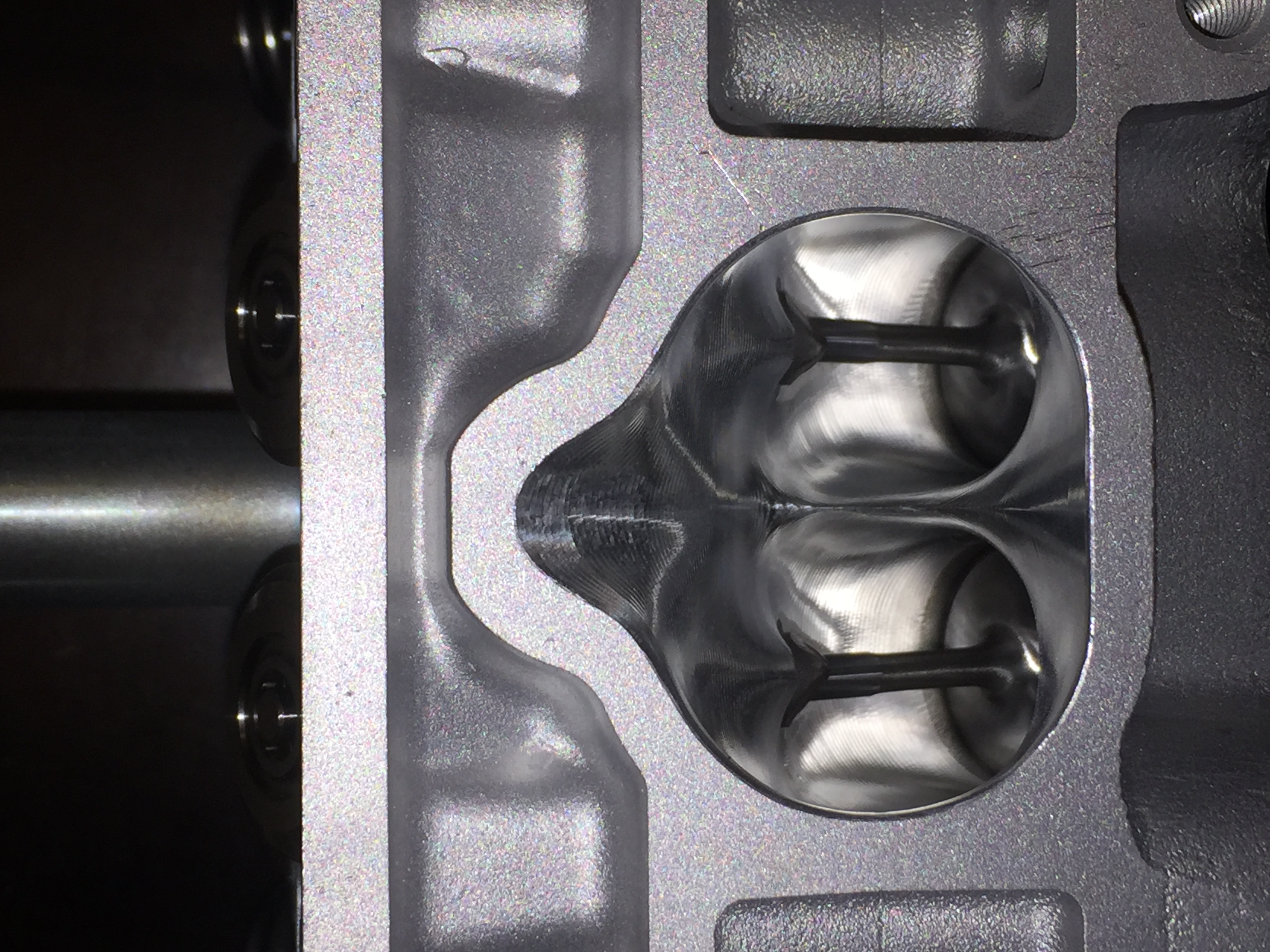

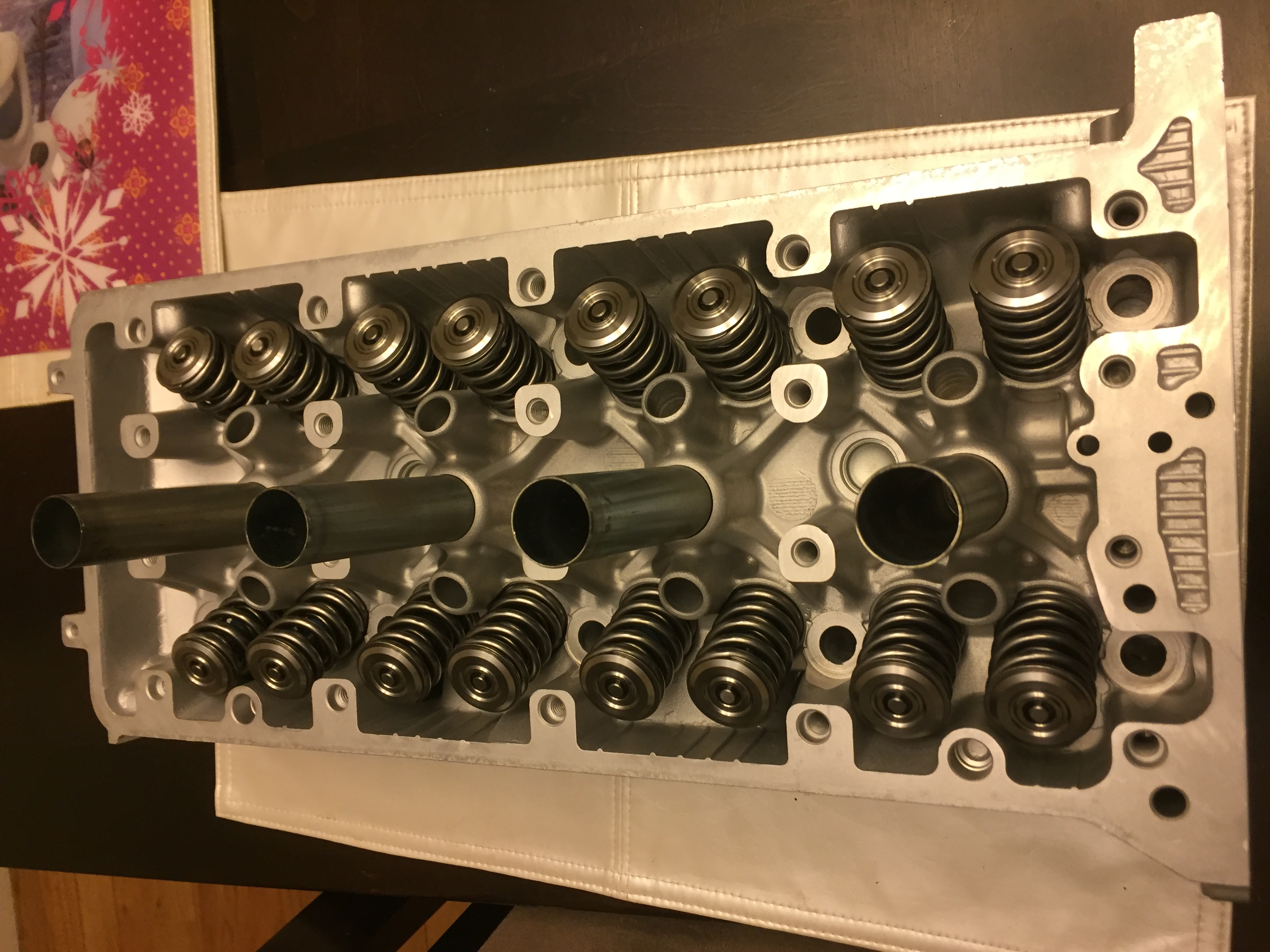

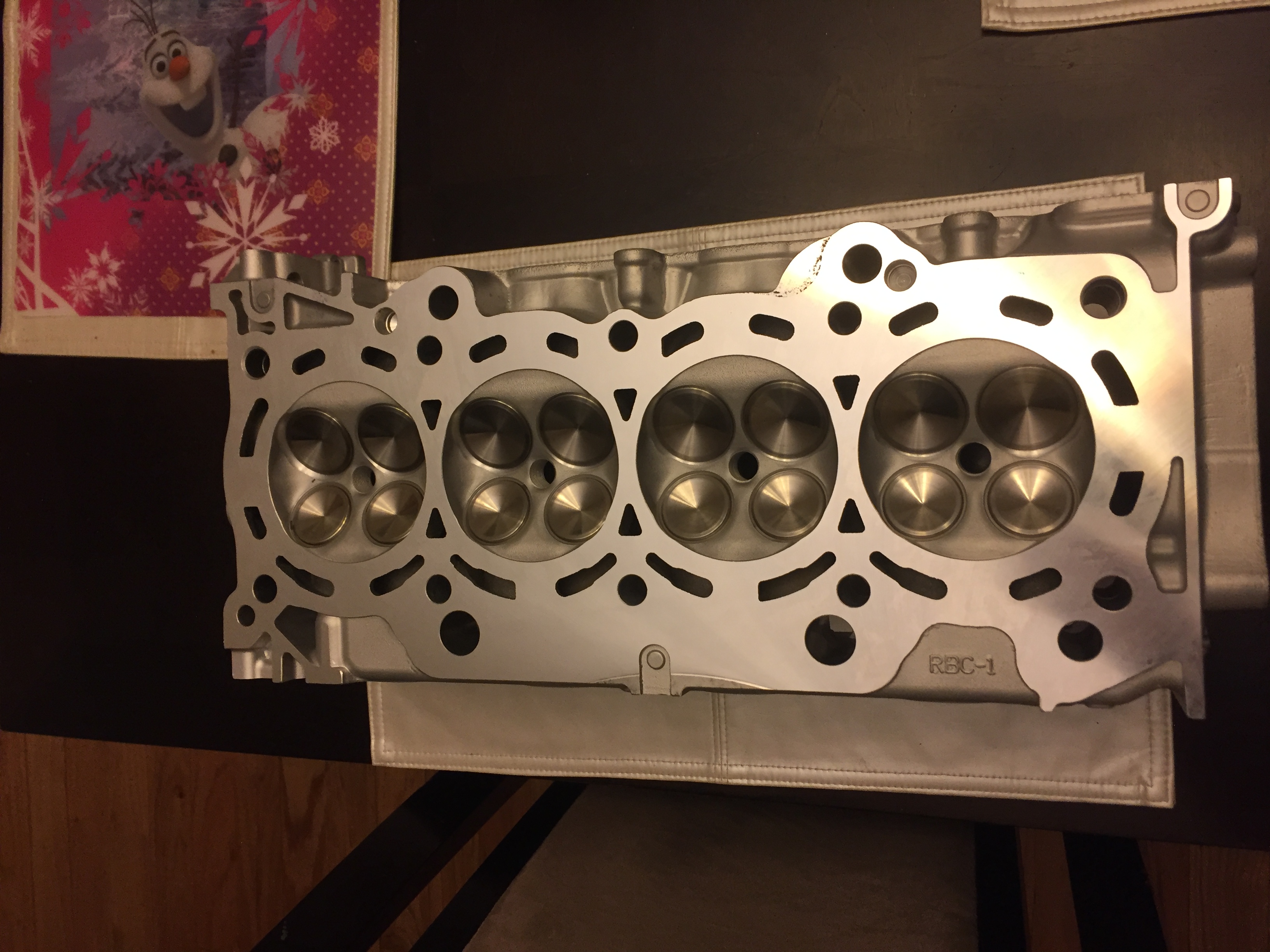

So so here is the first piece of the puzzle, this is a 4piston Racing Pro156V2 , pictures don't do it justice this is one beautiful cylinder head. 156cc port volume, Ferrea 6000 series stainless valves (35mm intake 30mm exhaust) , Supertech 92lb dual springs and Ti Retainers. This head flows 360 CFM according to 4Piston

Next week I will be ordering camshafts (4piston RR4 aggressive road race cams for 2.4L)

The goal is a 300whp 93 pump gas motor. It will be 12.5:1 Compression and Rev to 8500-9000

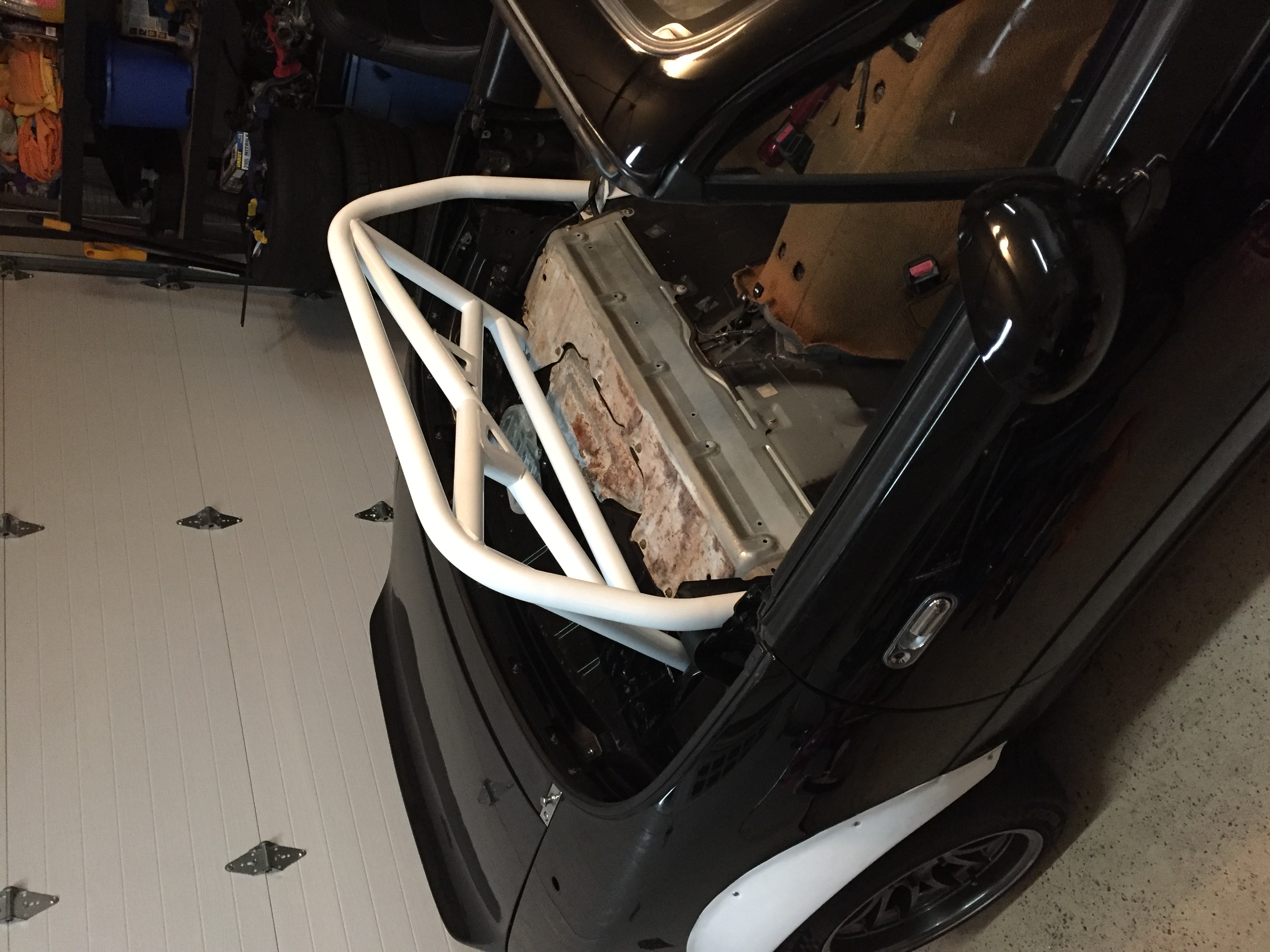

Im also working on a black interior swap, I just installed my Zerek Fab roll bar and I have a Gforce harness going in.
Attached Thumbnails
CTDRFT's K-Miata-img_3250.jpg   CTDRFT's K-Miata-img_3253.jpg   CTDRFT's K-Miata-img_3251.jpg   CTDRFT's K-Miata-img_3252.jpg   CTDRFT's K-Miata-img_3243.jpg

CTDRFT's K-Miata-img_3228.jpg

Last edited by ctdrftna; 01-07-2017 at 08:32 PM.
ctdrftna is offline   Reply With Quote
Old 01-08-2017, 09:40 PM   #74
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

Color me interested in this engine build. I may be building a K24 soon...similar specs but with 12.0:1 compression.

What intake manifold / throttle body?
Efini~FC3S is offline   Reply With Quote
Old 01-08-2017, 10:09 PM   #75
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Well what I have currently is a skunk 2 ultra race manifold and ktuned 90mm.

I also have a cnc ported ultra street manifold on the way.

The plenum volume and max throttle body opening on the street version will not be adequate for this motor, I would love to use the longer runners
so I'm going to fit up the runners and see if I can fit a custom 3 liter plenum with my 90mm. If that looks like a major pain in the *** then I will stay with the ultra race.
ctdrftna is offline   Reply With Quote
Old 01-09-2017, 09:38 AM   #76
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

What injectors and fuel pressure? In my experience, higher horsepower (uhhh...260+) n/a K24s like higher FPs.
Efini~FC3S is offline   Reply With Quote
Old 01-09-2017, 11:31 AM   #77
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Looks awesome Josh, when do you expect to have it completed and in the car?

We have an engine build planned for early 2017 too. Stock Type S head, big cams, 12.5:1 bottom end, and will be tuned on e85. I'll be sure to point people to your thread here for good info as well.
KMiata is offline   Reply With Quote
Old 01-09-2017, 01:56 PM   #78
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

I'm thinking I will run the new Injectir Dynanics 1050cc stainless injector so that I can do a dual tune of 93 pump and C85, pressure will be at what ever my tuner wants.
ctdrftna is offline   Reply With Quote
Old 01-09-2017, 01:57 PM   #79
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Quote:
Originally Posted by KMiata View Post
Looks awesome Josh, when do you expect to have it completed and in the car?

We have an engine build planned for early 2017 too. Stock Type S head, big cams, 12.5:1 bottom end, and will be tuned on e85. I'll be sure to point people to your thread here for good info as well.


shooting to pull the motor and start building in the spring
ctdrftna is offline   Reply With Quote
Old 01-21-2017, 08:24 PM   #80
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default



Cams came in, 4Piston Racing RR4 spec made from 8620 billet by Web Cams


IN .590" 265 @ .050"
EX .552 [email protected] .050"
