Default Custom Aluminum Intake

Hey guys I am terrible at getting on here and posting to the forum, so i figured id share the little intake project i just built. So heres the deal i could buy an aftermarket one for 200$, find a stock one which most people were asking over 90$ or build my own. I went about finding some aluminum online and ordered some 2 3/4 inch 1/8 in wall 6060 aluminum. I got a 90 and 45 to complete the project, below are some pictures....

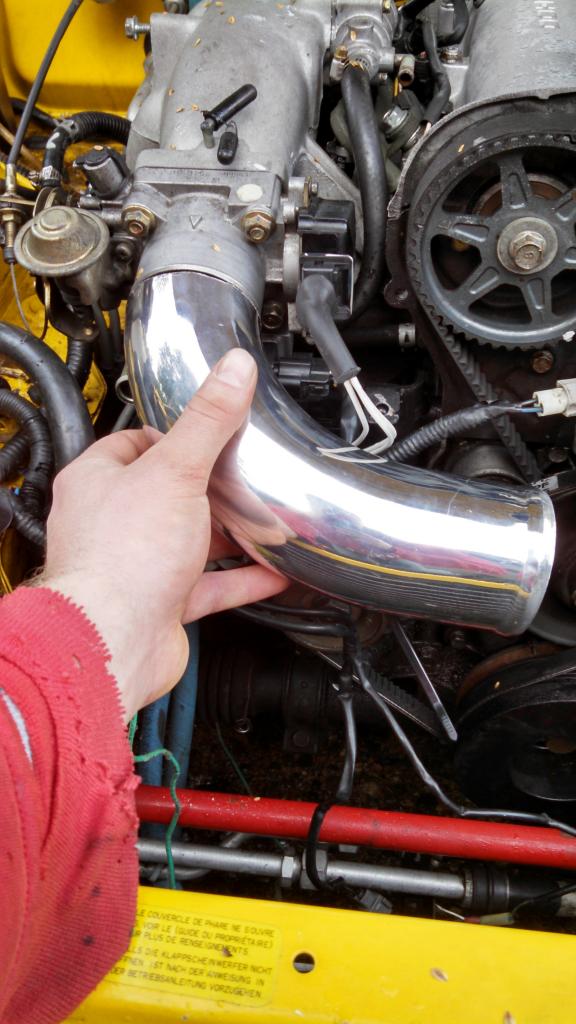

Started with sizing up the first piece to the TB, cut about 3.5 inch off.

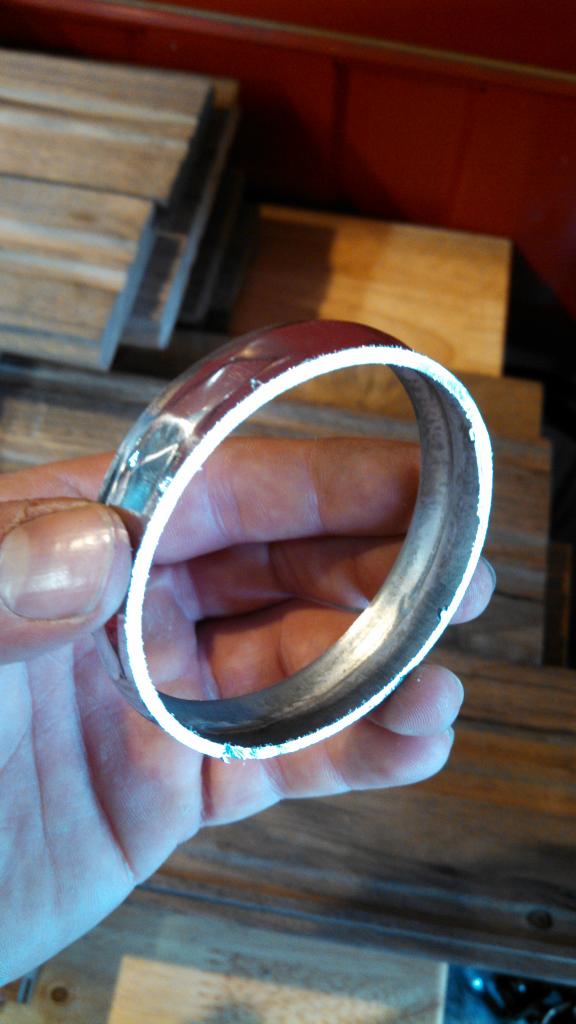

Prepping the lip to be welded back on.

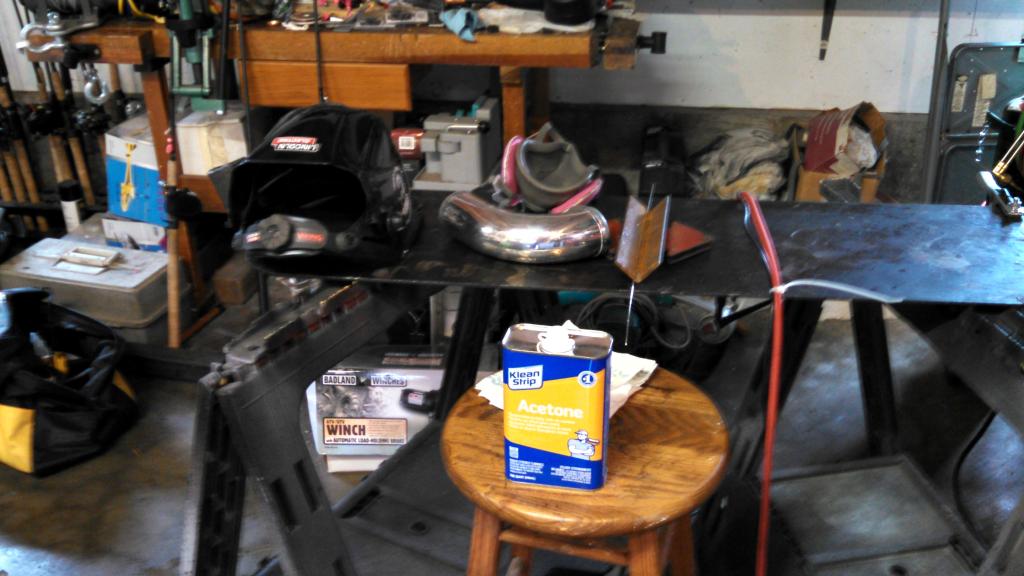

Didnt want to scratch the aluminum with wire brush to remove oxidation but instead cleaned it thoroughly with acetone. Aluminum is extremely sensitive to contaminants and wont weld well if not clean.

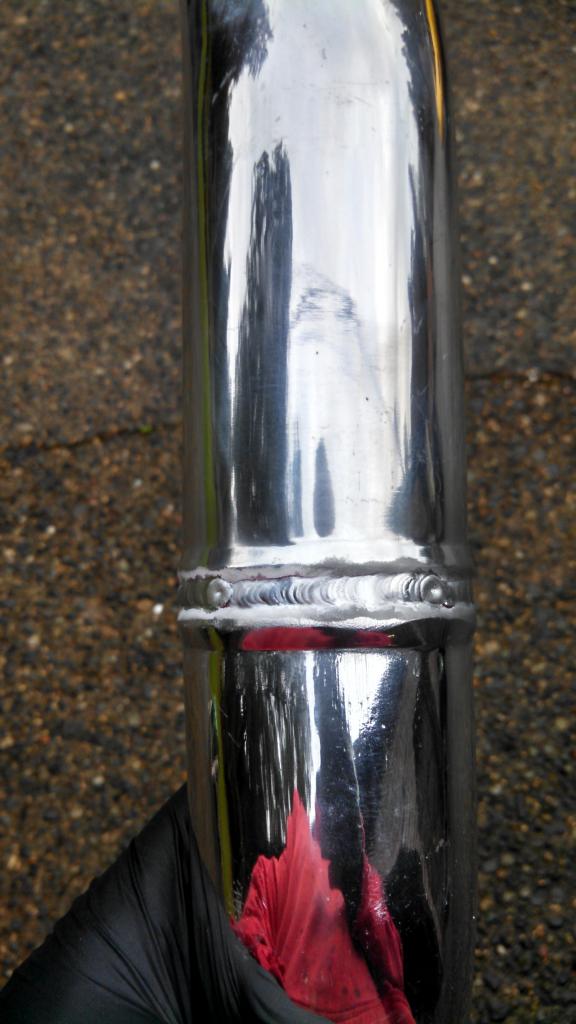

Bead welded back on

Prepping the 45 to go in that will attach to the MAF box.

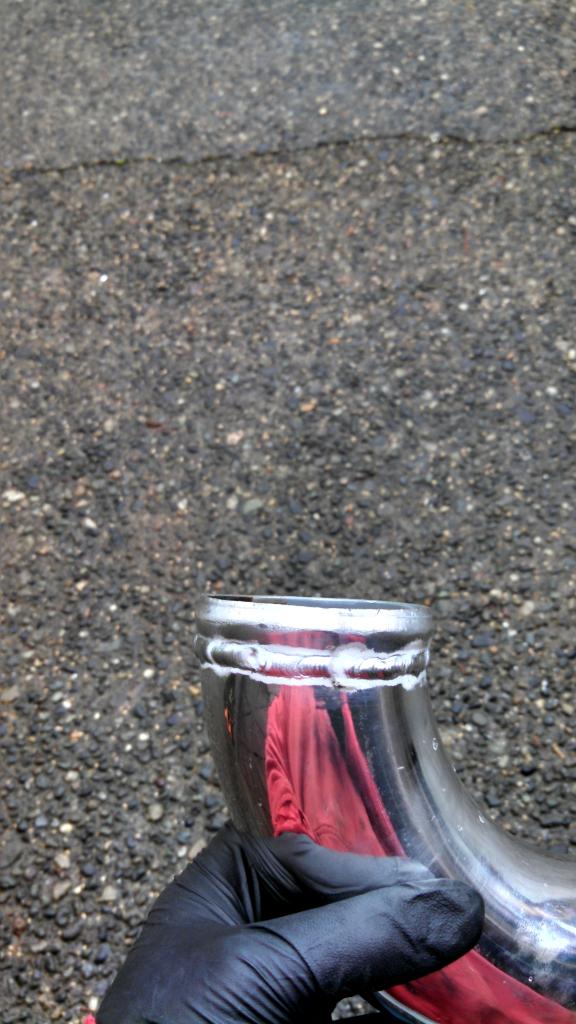

Welded Out

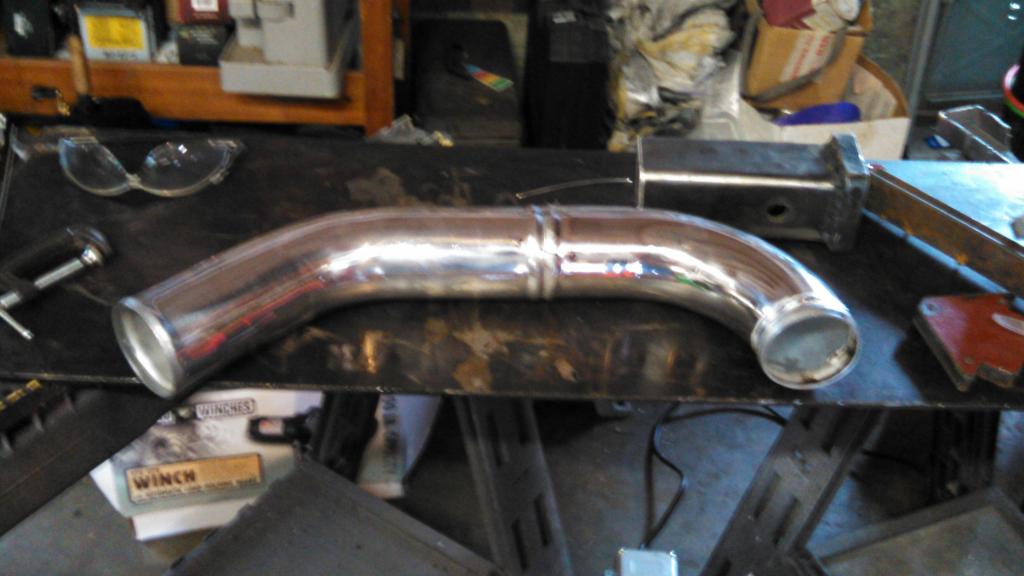

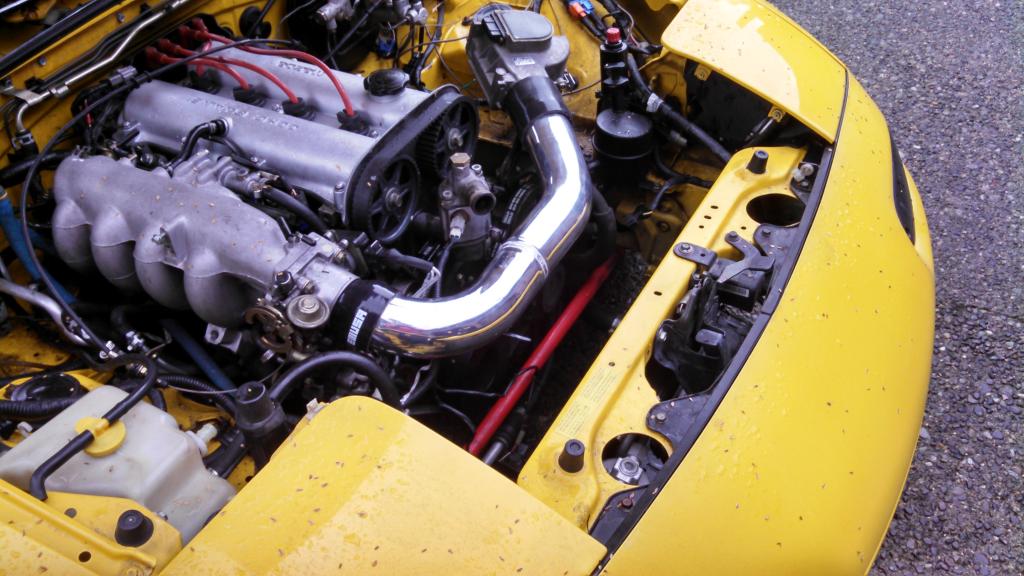

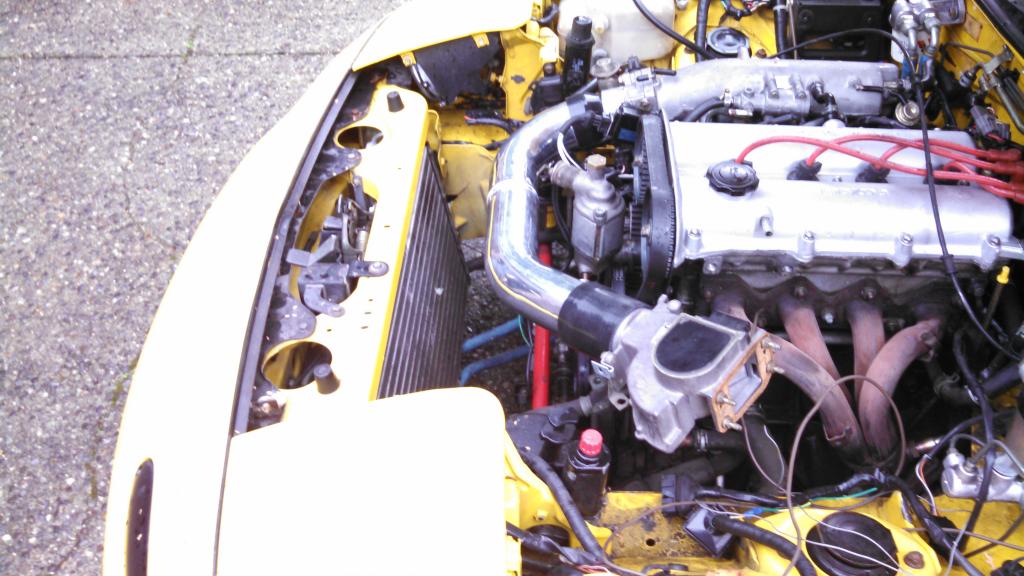

Finish Product



I will next be making a stand to hold the MAF box up and attach it to the body right below. Fun little project and saved a lot of money compared to buying an aftermarket one. I will continue to upload my fab projects as i go along on this miata.
Attached Thumbnails
Custom Aluminum Intake-img_20141205_130359_909_zpsaf342de2.jpg   Custom Aluminum Intake-img_20141205_130424_931_zpsb104c3fe.jpg   Custom Aluminum Intake-img_20141205_132938_747_zpsca6f39d9.jpg   Custom Aluminum Intake-img_20141205_140357_925_zps7cea3e30.jpg   Custom Aluminum Intake-img_20141205_141232_502_zpsa66114b1.jpg

Custom Aluminum Intake-img_20141205_143609_189_zpsdc68763e.jpg   Custom Aluminum Intake-img_20141205_144512_280_zpsb405ef68.jpg   Custom Aluminum Intake-img_20141205_144520_123_zps03e6c1d6.jpg

Last edited by vanilla.gorilla; 12-08-2014 at 09:04 PM.
vanilla.gorilla is offline   Reply With Quote
Old 12-05-2014, 10:47 PM   #2
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Nice aluminium welding.
cyotani is offline   Reply With Quote
Old 12-07-2014, 12:54 AM   #3
Newb
Thread Starter

Join Date: Jul 2014
Posts: 25
Total Cats: -43
Default

I will be making these for sale at somepoint if anybodies interested. I can also do custom set ups for turbos amongst any other thing in your engine bay related to aluminum or steel. PM me if interested.
vanilla.gorilla is offline   Reply With Quote
Old 12-07-2014, 03:14 AM   #4
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

I think you're doing the whole coolant reroute thing wrong.
furrycurry33 is offline   Reply With Quote
Old 12-07-2014, 03:30 AM   #5
Newb
Thread Starter

Join Date: Jul 2014
Posts: 25
Total Cats: -43
Default

What do you mean? I am going from the thermostat housing to the radiator.... its gonna be no different than the factory location where it already was. I tested the hose to make sure it would fit.
vanilla.gorilla is offline   Reply With Quote
Old 12-07-2014, 11:15 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

this is miataturbo.net not: miataspendinglotsoftimeandeffortkeepingitslowcar.c om
Braineack is offline   Reply With Quote
Old 12-07-2014, 11:18 AM   #7
Newb
Thread Starter

Join Date: Jul 2014
Posts: 25
Total Cats: -43
Default

Thanks just trying to show some work i did but i guess you wouldnt understand considering you couldnt do this yourself.
vanilla.gorilla is offline   Reply With Quote
Old 12-07-2014, 12:19 PM   #8
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

This would be perfect as part of the fabrication thread. Here I came in expecting a custom aluminum intake...manifold :(
TurboTim is offline   Reply With Quote
Old 12-07-2014, 12:31 PM   #9
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

I also came here expecting a manifold. I have a sad now
BoostedSmurf is offline   Reply With Quote
Old 12-07-2014, 02:29 PM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Might wanna throw up some dyno results before trying to sell?
curly is online now   Reply With Quote
Old 12-07-2014, 04:24 PM   #11
Newb
Thread Starter

Join Date: Jul 2014
Posts: 25
Total Cats: -43
Default

Thanks, maybe i should build a custom manifold. Ill consider it. As far as power gains i doubt your going to see too much from an air intake. Maybe an extra 2-3 hp would be all id expect.
vanilla.gorilla is offline   Reply With Quote
Old 12-08-2014, 12:04 AM   #12
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

The front thermostat housing location is typically blocked off on turbo applications because it promotes uneven cooling of the engine. It won't effect you if you are naturally aspirated because you won't make enough power, and therefore heat, to have it matter.
sixshooter is online now   Reply With Quote
Old 12-08-2014, 08:43 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by furrycurry33 View Post
I think you're doing the whole coolant reroute thing wrong.
That's a JR spacer so it can clear an intake crossover like that.

Quote:
Thanks just trying to show some work i did but i guess you wouldnt understand considering you couldnt do this yourself.
Oh I completely understand. But it's not a matter of if I could do this myself or not, it's a matter of I wouldn't want to.

I could make this happen without welding--to spend more time with my boyfriend--for $50 in parts from siliconeintakes.com. Specifically (1) 135 pipe, (3) couplers, and a silicone port for a 1/2 NPT fitting.

Last edited by Braineack; 12-08-2014 at 08:54 AM.
Braineack is offline   Reply With Quote
Old 12-08-2014, 12:44 PM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Quote:
Originally Posted by vanilla.gorilla View Post
Thanks, maybe i should build a custom manifold. Ill consider it. As far as power gains i doubt your going to see too much from an air intake. Maybe an extra 2-3 hp would be all id expect.
Right, I'm just saying even with a 3d printed, flow-designed intake, we've had members test their intake to make sure there's any gain. I've had intakes restrict as much as 8hp due to their design, and I did one muffler test that by putting a giant quiet magnaflow on with a 90* bend on the end, I gained 3hp and 2ft/lbs.

It all kinda means nothing though, since you're corking the end of the intake with an AFM.
curly is online now   Reply With Quote
Old 12-08-2014, 08:22 PM   #15
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by curly View Post
Right, I'm just saying even with a 3d printed, flow-designed intake, we've had members test their intake to make sure there's any gain. I've had intakes restrict as much as 8hp due to their design, and I did one muffler test that by putting a giant quiet magnaflow on with a 90* bend on the end, I gained 3hp and 2ft/lbs.

It all kinda means nothing though, since you're corking the end of the intake with an AFM.
The 1.6 cross over tube isn't a great flowing piece (too many tight radius bends). This will flow better in just a tube to tube comparison. But I agree that as long as the stock vane style MAF is used there will be very minimal (if any) gains.
cyotani is offline   Reply With Quote
Old 12-08-2014, 08:57 PM   #16
Newb
Thread Starter

Join Date: Jul 2014
Posts: 25
Total Cats: -43
Default

Exactly haha, but i didnt build it for flow gains. If i wanted power id go forced induction. Stock mods never do much for miatas. The only way to get real power is to turbo or supercharge.
vanilla.gorilla is offline   Reply With Quote
Old 12-08-2014, 09:24 PM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Well, although 124rwhp isn't "real power", but achievable on a 1.6, and a significant upgrade from the 116 crank hp. So yes, "stock mods" do quite a bit for miatas. You just have to know what you're doing.
curly is online now   Reply With Quote
Old 12-08-2014, 10:16 PM   #18
Junior Member
iTrader: (3)

Join Date: Apr 2011
Location: Bay Area- East Bay
Posts: 290
Total Cats: 1
Default

You just lost around 4 ft lbs of torque by eliminating the helmholtz chamber. The box up near the TB on the crossover tube. Should have incorporated that in with a 1.25" aluminum tube welded on your new tuubularrrr intake.
brainzata is offline   Reply With Quote
Old 12-08-2014, 11:04 PM   #19
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by brainzata View Post
You just lost around 4 ft lbs of torque by eliminating the helmholtz chamber. The box up near the TB on the crossover tube. Should have incorporated that in with a 1.25" aluminum tube welded on your new tuubularrrr intake.
The resonator?

Attached Thumbnails
Custom Aluminum Intake-futurama-fry-meme-generator-can-t-tell-if-sarcasm-serious-905246.jpg
cyotani is offline   Reply With Quote
Old 12-08-2014, 11:19 PM   #20
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Quote:
Originally Posted by cyotani View Post
The resonator?

Quote:
Originally Posted by TargaMiata.com
March 4, 2008 - Despite the problems, we did get a chance for some comparative testing on the dyno.
My temporary intake pulled hot air from behind the radiator. That's one reason it was temporary, and why it was mounted upside down in the previous picture of the car on the dyno.
For interest's sake, we pulled out a stock 1994 intake tract that includes a resonating Heimholtz chamber. It's not perfectly sized for my engine - I believe the theory says it should be equivalent to 1.5 cylinders worth of displacement - but it was worth trying. And whaddya know, it did something! Nothing major, but 4 lb-ft at 4000 rpm for free is nothing to complain about. The red graph is the stock setup.
http://www.targamiata.com/images_lrg...take_tract.pdf
Using the stock crossover tube will also let me put the filter in a cooler place than right behind the rad, which will reap benefits in the real world where having a filter sticking through the hood is awkward to arrange.
In the picture, you can see the filter from my original intake resting inside the engine bay. Don't be fooled, we don't have some sort of bizarre dual-filter setup going here.
There are definitely a few torques in there over ~1500 rpm.
