Old 07-27-2009, 01:54 AM   #21
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

i wish i knew about that little thing from flyin miata, but i already got the catch can, so i want to use it and if it does fill up with oil i will know for sure that i have a lot of blow by.
Rushin is offline   Reply With Quote
Old 07-27-2009, 01:54 AM   #22
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

pressure builds up in the crankcase as a little blowby seeps past the piston rings. the stock setup takes this positive pressure (along with oil vapor) out of the crankcase and reroutes it back into the intake stream to conform to EPA regulations since venting to the atmosphere is considered harmful to the environment. this oil vapor can cause detonation as mentioned. thats why we use catch cans to trap it. venting the catch can to the atmoshpere is the sure way to take the positive pressure out of the crankcase and make sure none of the vapors make it back into the intake. Actually, you could technically just leave the two ports on the valve cover open, uncapped, but you'd have oil all over you engine bay.

Yes, I was talking about the little filter on the catch can. you need to replace it when it gets saturated in oil because if the pressure can't escape it'll build up in the crankcase and blow your oil seals.
ARTech is offline   Reply With Quote
Old 07-27-2009, 01:57 AM   #23
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Quote:
Originally Posted by sprayed View Post
pressure builds up in the crankcase as a little blowby seeps past the piston rings. the stock setup takes this positive pressure (along with oil vapor) out of the crankcase and reroutes it back into the intake stream to conform to EPA regulations since venting to the atmosphere is considered harmful to the environment. this oil vapor can cause detonation as mentioned. thats why we use catch cans to trap it. venting the catch can to the atmoshpere is the sure way to take the positive pressure out of the crankcase and make sure none of the vapors make it back into the intake. Actually, you could technically just leave the two ports on the valve cover open, uncapped, but you'd have oil all over you engine bay.

Yes, I was talking about the little filter on the catch can. you need to replace it when it gets saturated in oil because if the pressure can't escape it'll build up in the crankcase and blow your oil seals.
Thanks for this good explanation. Sooo, i will drill a hole in the PCV valve and route both of the port on the valve cover into the catch can and cap the port on the intake.
Rushin is offline   Reply With Quote
Old 07-27-2009, 01:59 AM   #24
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

that should work
ARTech is offline   Reply With Quote
Old 07-27-2009, 02:04 AM   #25
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,320
Total Cats: 1,918
Default

Quote:
Originally Posted by hustler View Post
Anyone who tells you to pull vacuum off the motor wants you to fail with detonation. In a daily driver turbo car, you're fine, in a track toy you're going to detonate.
Quote:
Originally Posted by sprayed View Post
this oil vapor can cause detonation as mentioned. thats why we use catch cans to trap it.
Really?

In all seriousness, I've never considered this, nor can I recall hearing it before now. Is the basis of the argument that oil vapor is more prone to autoignition or detonation in the combustion chamber than atomized gasoline?
Joe Perez is online now   Reply With Quote
Old 07-27-2009, 02:10 AM   #26
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

the only thing i want to get rid of is possible smoking.
Rushin is offline   Reply With Quote
Old 07-27-2009, 02:18 AM   #27
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

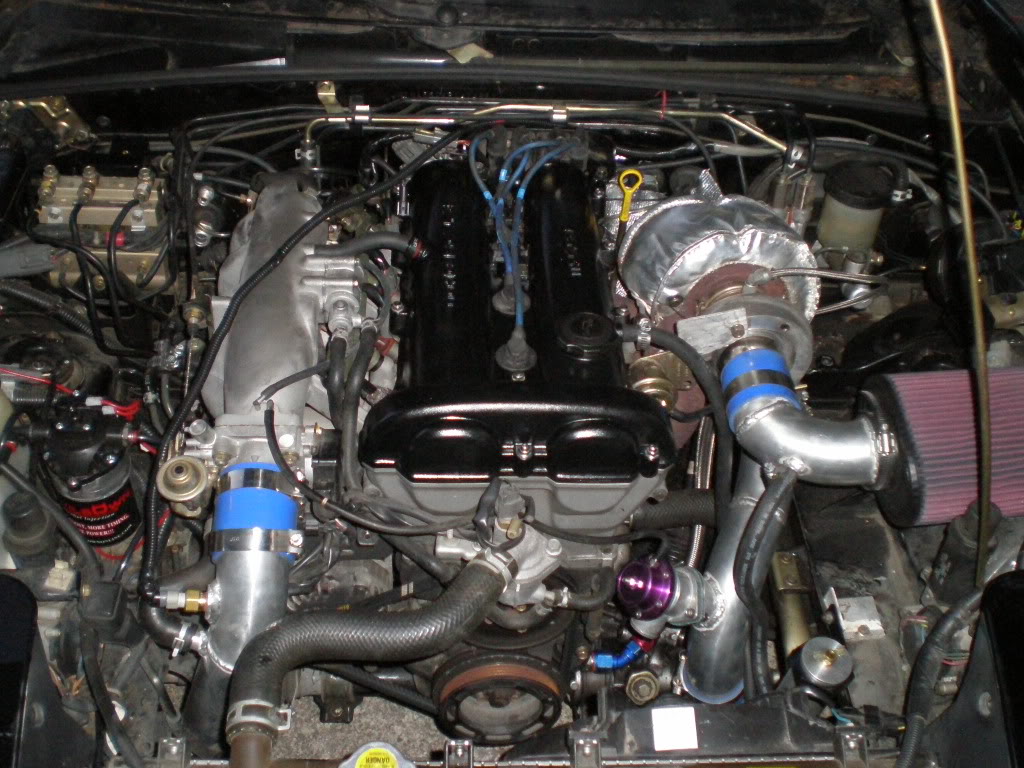

This is how i have mine setup.

Name:  P7190098.jpg
Views: 29
Size:  180.6 KB
SKMetalworks is offline   Reply With Quote
Old 07-27-2009, 02:29 AM   #28
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Seriously, you never heard it before? That's the reason catch cans exist. Maybe thats why hustler is getting away with more advance compared to others

smoking? from where?
ARTech is offline   Reply With Quote
Old 07-27-2009, 02:31 AM   #29
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by sprayed View Post
smoking? from where?
tailpipe
SKMetalworks is offline   Reply With Quote
Old 07-27-2009, 02:36 AM   #30
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Quote:
Originally Posted by sbkcocker499 View Post
This is how i have mine setup.

i see. so you left the pcv valve intact and only routed the right side of the valve cover into the catch can, right? Do you get much oil accumulation in the can?
Rushin is offline   Reply With Quote
Old 07-27-2009, 02:38 AM   #31
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

if you're smoking at the tailpipe you may have other issues.

sbk, you have one side done, but the pcv valve is still sucking oil into the manifold under vaccum, that eventually makes it to the motor next time you boost.
ARTech is offline   Reply With Quote
Old 07-27-2009, 02:41 AM   #32
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Quote:
Originally Posted by sprayed View Post
if you're smoking at the tailpipe you may have other issues.

sbk, you have one side done, but the pcv valve is still sucking oil into the manifold under vaccum, that eventually makes it to the motor next time you boost.
yeah i know. I bet my rings are worn out a bit. But having a catch can would only help in this case.
Rushin is offline   Reply With Quote
Old 07-27-2009, 09:44 AM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Rushin, leave it how you first had it, but drill out your pcv valve. the end. That's all Hustler was trying to convey.
Braineack is offline   Reply With Quote
Old 07-28-2009, 12:31 PM   #34
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I'd at least take the filter off the top and run a hose to the intake pre-throttle body. This way any crankcase pressure get's sucked out rather than having to be pushed out.
Doppelgänger is offline   Reply With Quote
Old 07-28-2009, 01:31 PM   #35
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

no, that would pressurize the crankcase. for the venturi effect you're speaking of, the hose would be routed from where the filter is, to the turbo intake hose
ARTech is offline   Reply With Quote
Old 07-28-2009, 02:06 PM   #36
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Oops, I meant to say pre-turbo.
Doppelgänger is offline   Reply With Quote
Old 07-28-2009, 02:28 PM   #37
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

if you're hardcore, you can get the same venturi with no drawbacks venting at the exhaust

ARTech is offline   Reply With Quote
Old 07-29-2009, 02:14 AM   #38
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

I ended up getting a 1/2 inch to 3/8 reducer instead of the PCV valve and routed the hose to the catch can. I am still thinking if instead of the filter i should route a hose to the pre-turbo nipple i have on right after the intake filter.
Rushin is offline   Reply With Quote
Old 07-29-2009, 12:34 PM   #39
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

i tried it that way (drilled out pcv) but the car had a little stumble when pulling away from a stop. felt fine when accelerating etc.. but i just switched it back to sbk's style and it's smooth again. my catch can does get alot of oily/watery discharge in it after a trackday though.
spoolin2bars is offline   Reply With Quote
Old 07-29-2009, 12:55 PM   #40
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by spoolin2bars View Post
i tried it that way (drilled out pcv) but the car had a little stumble when pulling away from a stop. felt fine when accelerating etc..

did you do it like this?



if this causes stumble you have either an airflow meter or you did it wrong.
Braineack is offline   Reply With Quote
