Old 07-29-2009, 02:24 PM   #41
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Quote:
Originally Posted by Rushin View Post
I ended up getting a 1/2 inch to 3/8 reducer instead of the PCV valve and routed the hose to the catch can. I am still thinking if instead of the filter i should route a hose to the pre-turbo nipple i have on right after the intake filter.
is there anything inside the catch can?
ARTech is offline   Reply With Quote
Old 07-29-2009, 03:00 PM   #42
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Nothing yet. Just condensation. So should I add a hose from the preturbo nipple instead of the filter or leave it as is?
Rushin is offline   Reply With Quote
Old 07-29-2009, 03:52 PM   #43
Junior Member

Join Date: Nov 2005
Location: Athens
Posts: 197
Total Cats: 0
Default

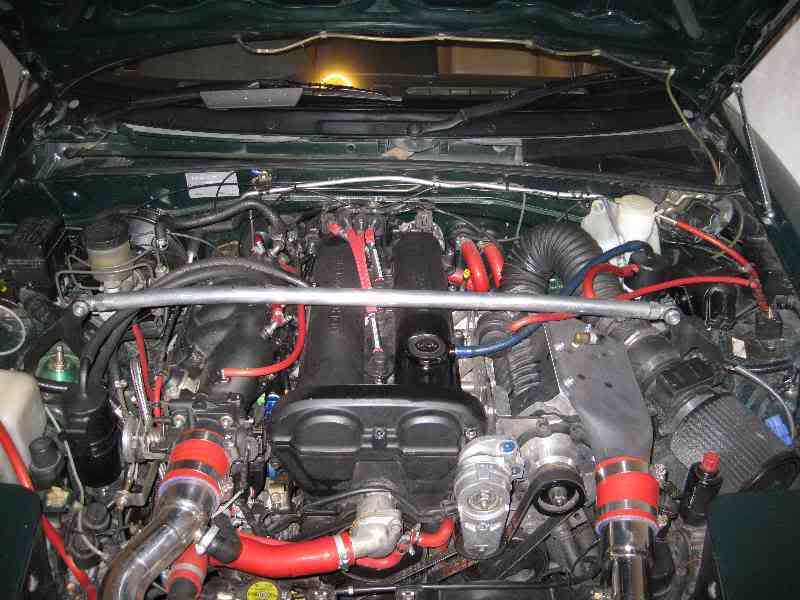

I looked at various setup's in the end i just said bollox to it and bought 2 catch cans.

The coldside has a 1 way valve as well as the PCV to stop the boost pre cam cover.
The other catch can is just connected in between the cam cover and filter.


Name:  IMG_1349.jpg
Views: 20
Size:  59.2 KB



Cheers
Mark
eunos1800 is offline   Reply With Quote
Old 07-29-2009, 04:20 PM   #44
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

if you want to route it back, fill the can with something to catch the vapors. I've used used steel wool in the past, but be warned it may make its way into your motor.

if it was my setup I would leave it as it
ARTech is offline   Reply With Quote
Old 07-30-2009, 01:00 PM   #45
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

xveganxcowboyx and I did both the compresson and leak down test yesterday.

Dry 2nd cylinder was 205psi, third cylinder was 170psi.

Oil in 2nd cylinder bumped the psi to like 235psi, if I remember correcty.
The third(bad cylinder) went up to 250psi with oil in it.

Leak down test showed moderate leaking on both 2nd and 3rd cylinders, a bit more on the 3rd.

We could not hear the air in either the exhaust or the intake. The only place we heard the air was through the oil filler cap.

However I noticed that the car smokes a lot only after hard boosting and only at idle after hard driving. When I drive nice and don't boost there is hardly any smoke. And we noticed that my drain line on the turbo goes horizontal for a while before it enters the oil pan.

I am going to remove my ac compressor that is in the way of the line an see if making the line go totally straight down will help.
Rushin is offline   Reply With Quote
Old 07-30-2009, 01:16 PM   #46
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

nothing's going to fix that bad ring...
Braineack is offline   Reply With Quote
Old 07-30-2009, 02:15 PM   #47
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

I know but I don't think it would be smoking tag bad with one ring bering bad. And 170 is still pretty good compression.
Rushin is offline   Reply With Quote
Old 07-31-2009, 01:02 AM   #48
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Had my friend drive behind my at night and the car smokes a lot! How would I check if my turbo seals are bad? I know my cold side is not leaking. The intercooler is dry.
Rushin is offline   Reply With Quote
Old 07-31-2009, 02:17 AM   #49
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

took the DP off to see if there is any oil on the hot side: no oil, no shaft play, just a lot of carbon build up.
Rushin is offline   Reply With Quote
Old 07-31-2009, 06:23 PM   #50
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

I wouldnt think youd see much blowby from 170psi either, but 250 wet sounds suspiciously high. I'd be willing to bet the gauge is bad and all your readings are are off by 40-50psi.

Is there a lot of smoke coming out of the oil cap?
ARTech is offline   Reply With Quote
Old 07-31-2009, 07:24 PM   #51
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Quote:
Originally Posted by sprayed View Post
I wouldnt think youd see much blowby from 170psi either, but 250 wet sounds suspiciously high. I'd be willing to bet the gauge is bad and all your readings are are off by 40-50psi.

Is there a lot of smoke coming out of the oil cap?
no smoke out of the oil cap. We used two different gauges. high readings are probably because of the oil collecting in the pistons. I am going to redo my catch can and see if that helps.
Rushin is offline   Reply With Quote
