Well, we started pulling the Roadster apart this Saturday. I'll just caption the photos for the sake of avoiding prolonged reading.

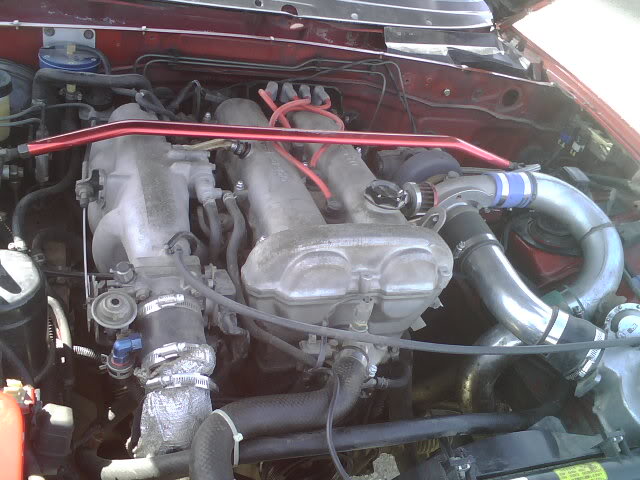

Total time was 1 hour 53 minutes (unfortunately I forgot to buy beer, which is why it went so smoothly) to go from this:
Name:  IMG00220.jpg
Views: 7
Size:  61.0 KB

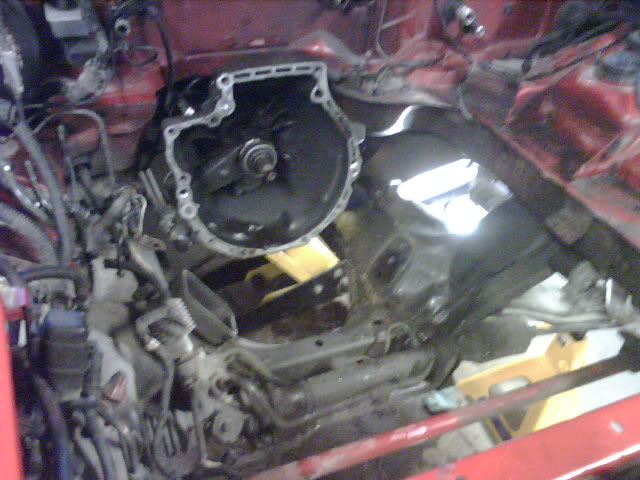

to this:
Name:  IMG00252.jpg
Views: 5
Size:  54.3 KB.

We would have been done a lot sooner but the guy with the engine hoist figured he'd play an extra two holes at the course first. Here's the gist of our two-hour day. Oh, and my bad for the shitty pictures. My BlackBerry is not meant to be a camera.

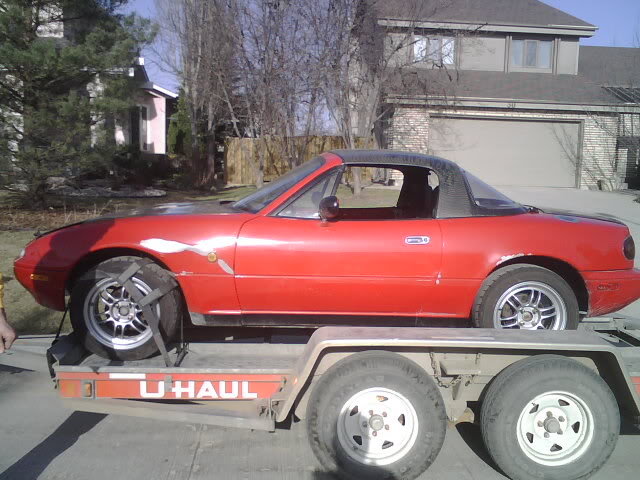

Just rolled out of storage and it's dirty as Eff! Loaded up. Easiest step of the day....

Name:  IMG00255.jpg
Views: 5
Size:  68.1 KB
Apparently the side of the container was closer to my car than I thought. Now new skin is required. FML (FYI, engine is out in this picture, which is why it is sitting so high)

Name:  IMG00224.jpg
Views: 5
Size:  46.9 KB

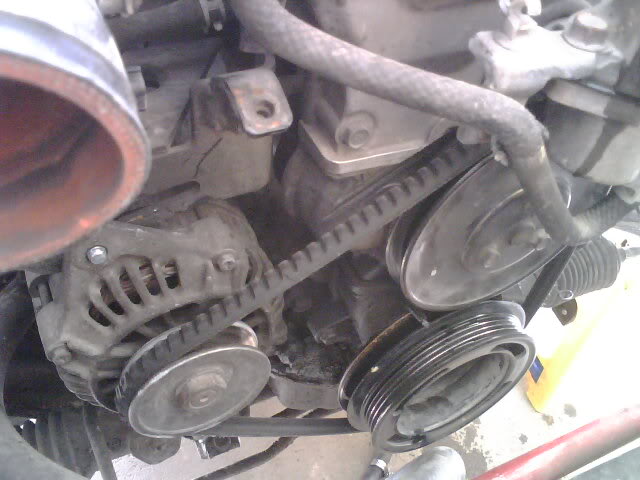

We revved the **** out of this crap 1.6 trying to break it about 3 seconds after it was started for the first time in 7 months and this is the worst that happened. How the belt became inverted is a mystery. Why that type of belt was even on there is another mystery.


By the time I managed to yank the one-piece exhaust from the back of my car, my friend Aaron had already pulled the IC plumbing off, the rad/fan shroud and dropped my SSQV and bent the vacuum port.

Name:  IMG00234.jpg
Views: 6
Size:  42.7 KB

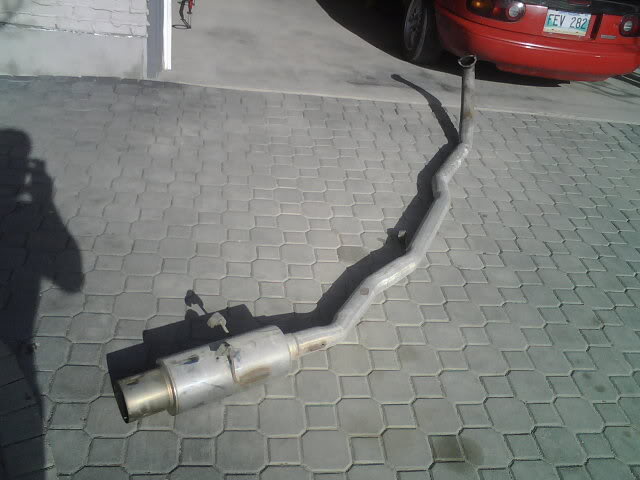

A massive section of exhaust, which weighed a lot less than you would think.

Name:  IMG00223.jpg
Views: 5
Size:  27.6 KB

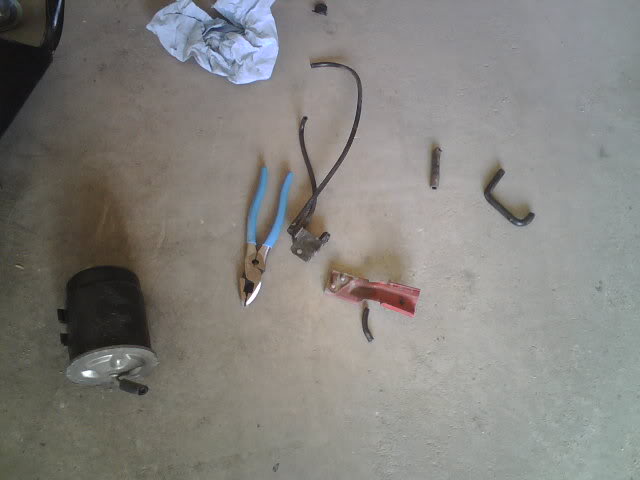

Goodbye, charcoal canister. You are ugly and do nothing useful.

Name:  IMG00236.jpg
Views: 5
Size:  43.8 KB

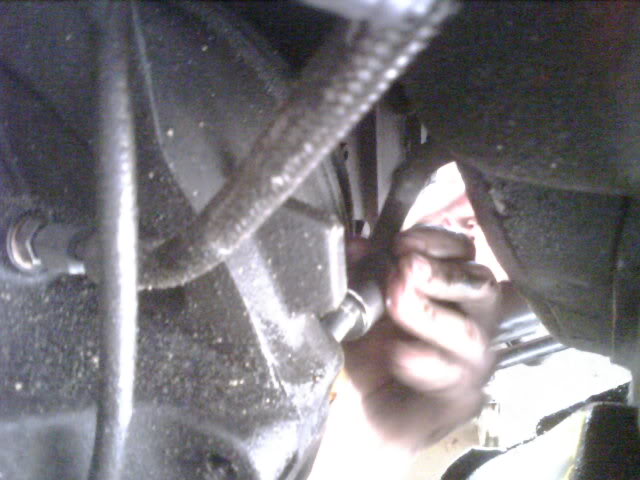

The first of many dirty, dirty bolts to come out of the housing.

Name:  IMG00240.jpg
Views: 5
Size:  37.9 KB

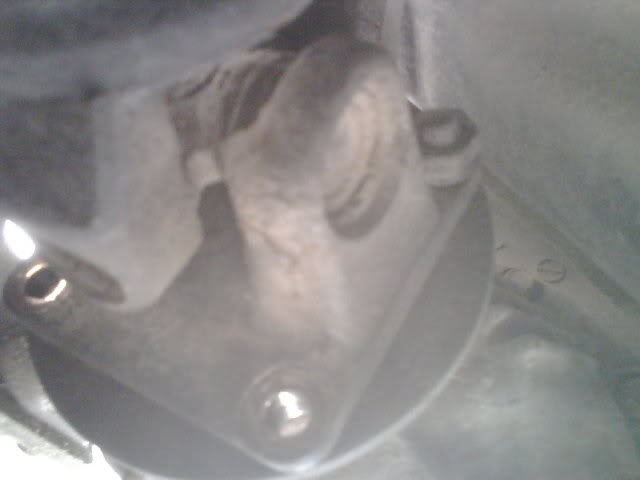

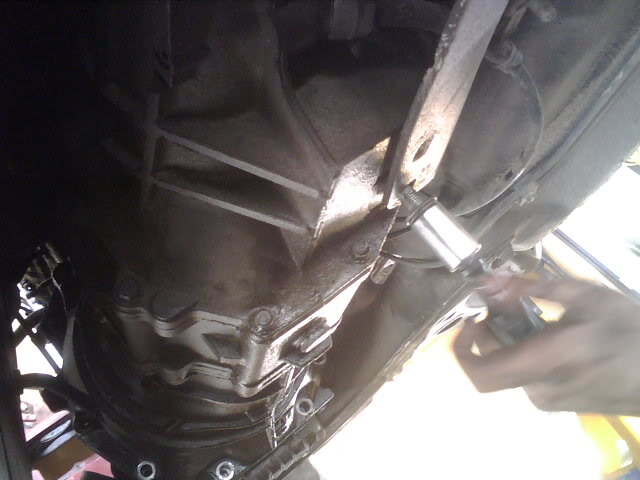

Don't touch those! I had to bolt the transmission back to the driveline brace. This is when he's undoing them.

Name:  IMG00241.jpg
Views: 5
Size:  18.4 KB

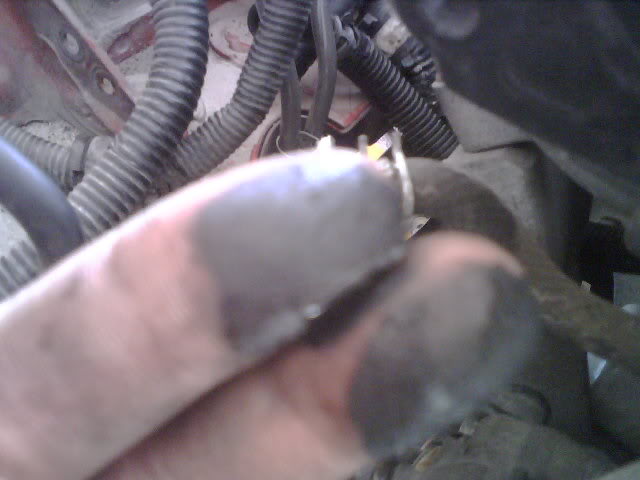

I also had to put these back. Don't ask.

Name:  IMG00244.jpg
Views: 5
Size:  32.6 KB
Name:  IMG00243.jpg
Views: 5
Size:  27.5 KB

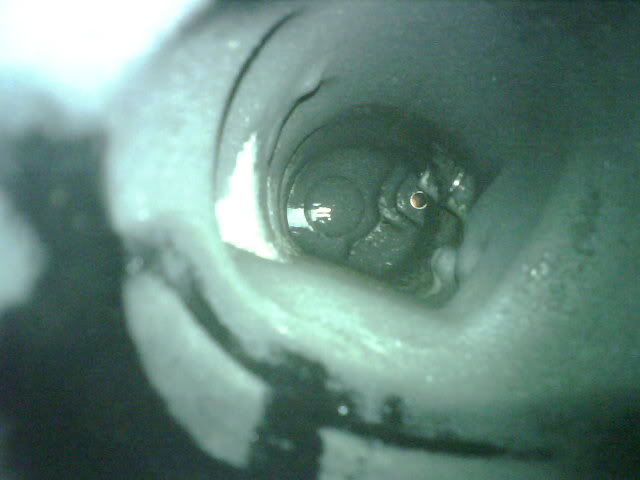

Good thing I don't like my women the same as my intake manifold...

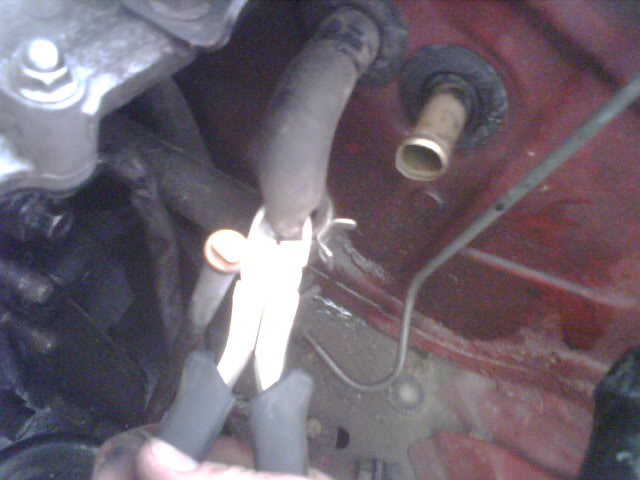

I fought with this ******' clip for 12 minutes because the stupid lever for the clip release was broken. I was swearing quite a bit.

Name:  IMG00238.jpg
Views: 5
Size:  35.0 KB
What's that? It won't come off? Here, let me try...

Name:  IMG00251.jpg
Views: 5
Size:  62.7 KB

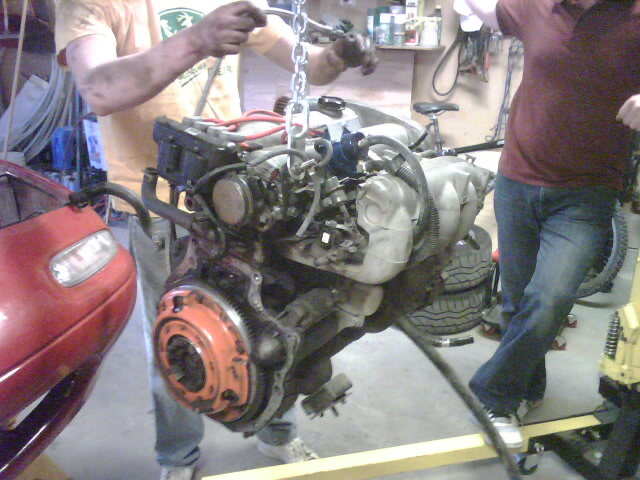

This was the first time an engine has ever come out of this car without us forgetting to detach something. That's Brian on the right, who is responsible for us adding about 40 minutes to the clock while we waited for his slow ***.

Name:  IMG00254.jpg
Views: 5
Size:  57.2 KB

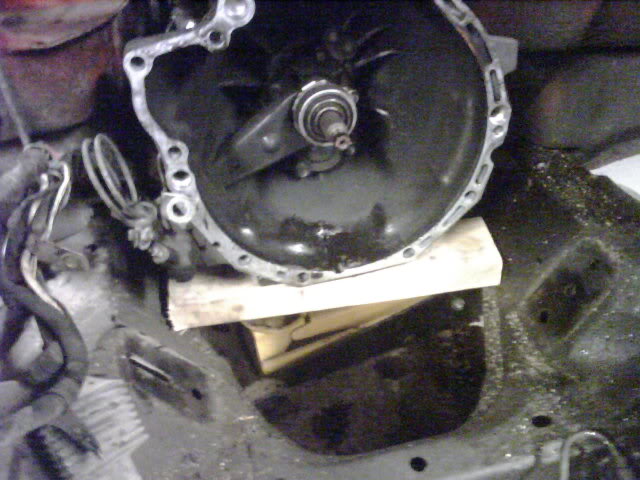

2"x4" blocks of wood solve every supporting problem man can have. Reciprocating saws also help with said wood.

After that we pushed it back on the trailer, got it back to storage and started to unload it.

Brad - "You want to hop in and steer?"
Me - " Nah, the steering column is locked. What's the worst that will happen? It rolls over one of us?"

Well, needless to say the steering column didn't stay locked. All Brad could do was shrug his shoulders while I did a massive .

Name:  IMG00259.jpg
Views: 5
Size:  42.6 KB
Easy fix. We just lifted the car off the ramp. Yes, it is that light now. Yes, my back does hurt. The bumper is crack, but other than that, nothing else got damaged.

Thanks goes out to Aaron (who left half-way through for some reason) and Brad for helping me with it. Photos are respective.

Name:  IMG00230.jpg
Views: 5
Size:  51.6 KB
Name:  IMG00229.jpg
Views: 5
Size:  38.2 KB

I could have documented the transportation of this iron-blocked engine from Point A to Basement, but one of us would have died. Needless to say we destroyed my girlfriend's carpet and put a nice nick in the wall, ha ha ha. I have to buy her hardwood flooring now, which is gay.
