Default Dual feed rail warning!!

I did the diy dual feed rail in Braineacks diy guide. I just wanted to alert everyone to a mistake I made that someone else might make as well.

When putting the rail back in, make sure to put the injectors IN THE RAIL FIRST then into the head. If you put them in the head and put the rail over them you can cut your injector O-rings. Also apply some sort of lube, I used petroleum jelly.

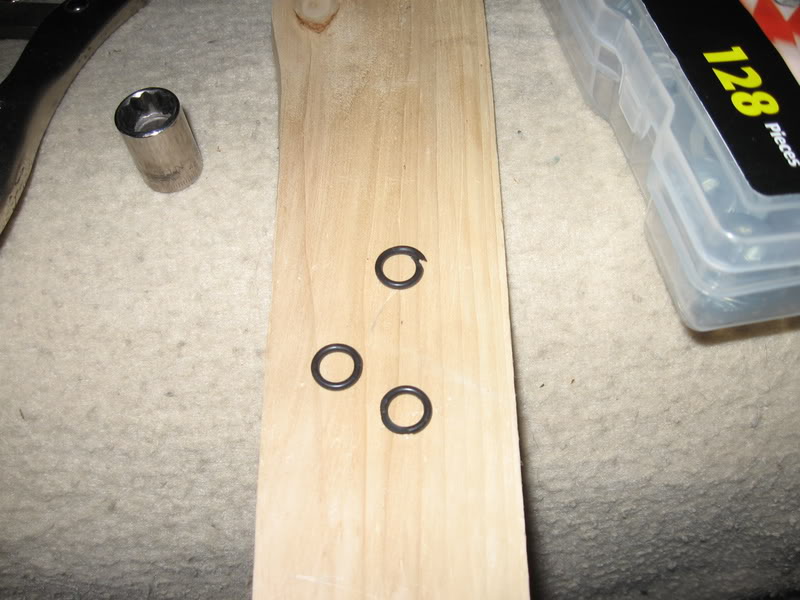

Name:  IMG_0735.jpg
Views: 2
Size:  76.1 KB

I put the injectors into the head first so the little plastic spacer wouldn't fall off. Then I put the rail over them, and there is the outcome. I cut one in half, sheared half the other one off and squished the last. During the first test drive they didn't leak. Today on the way to school they leaked, SCARY drive home. I just wanted to make sure this didn't happen to anyone else. I don't blame the guide, just bringing this to everyones attention.
miataspeed1point6 is offline   Reply With Quote
Old 04-18-2007, 12:27 AM   #2
Junior Member
iTrader: (1)

Join Date: Jan 2007
Location: Canton, GA
Posts: 116
Total Cats: 0
Default

Add a touch of oil to the o-rings. That'll prevent binding, splitting, and tearing.
kcbhiw is offline   Reply With Quote
Old 04-18-2007, 12:33 AM   #3
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by kcbhiw View Post
Add a touch of oil to the o-rings. That'll prevent binding, splitting, and tearing.
Agreed, I usually open the oil cap on the motor and just touch it to grab some oil to lube them up real quick... im lazy.
Splitime is offline   Reply With Quote
Old 04-18-2007, 12:39 AM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I always put the injectors in the rail first. And I always put a little oil on the orings first. And still, 75% of the time I tear the oring on injector 3. It's always injector 3.
Ben is offline   Reply With Quote
Old 04-18-2007, 12:48 AM   #5
Junior Member

Join Date: Apr 2007
Posts: 80
Total Cats: 0
Default

thx for the heads up
FASTERTHANYOU is offline   Reply With Quote
Old 04-18-2007, 12:51 AM   #6
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

yikes...good call.

I'll keep this in mind.
miatamania is offline   Reply With Quote
Old 04-18-2007, 09:28 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

leaking o-rings is like a passage of manhood...i don't see why you are complaining
Braineack is offline   Reply With Quote
Old 04-18-2007, 09:59 AM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i I put mine in the head first to get it all linged up but i also caot it all in vasoline and i am super carefull. No g=failures yet
magnamx-5 is offline   Reply With Quote
Old 04-18-2007, 10:03 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I've did the same, no problems, the forth or five time I've removed the rail I finally nicked an o-ring, but that was from lack of oiling.
Braineack is offline   Reply With Quote
Old 04-18-2007, 10:16 AM   #10
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Damn, I've had mine out a couple times and never gave it a second thought... guess I've been lucky. I'll take precautions next time.
samnavy is offline   Reply With Quote
Old 04-18-2007, 10:45 AM   #11
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
I've did the same, no problems, the forth or five time I've removed the rail I finally nicked an o-ring, but that was from lack of oiling.
me:"Hey whats that sizzling sound?"
brain: "**** turn off the car"
Newbsauce is offline   Reply With Quote
Old 04-18-2007, 10:46 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

hahahah, what are you talking about!?
Braineack is offline   Reply With Quote
Old 04-18-2007, 10:52 AM   #13
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I just don't want this to happen to someone else, it was a really easy mistake to make. I did oil the O-rings when I put them in, and they still tore.
I guess it's hit or miss, but I would still advise snapping them into the rail first, seems alot safer to me.

And yes it is a manhood passage, I lost half a tank of gas between my home and school that are 7 miles apart. I thought I was going to burn up.
miataspeed1point6 is offline   Reply With Quote
Old 04-18-2007, 11:49 AM   #14
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by miataspeed1point6 View Post
I just don't want this to happen to someone else, it was a really easy mistake to make. I did oil the O-rings when I put them in, and they still tore.
I guess it's hit or miss, but I would still advise snapping them into the rail first, seems alot safer to me.

And yes it is a manhood passage, I lost half a tank of gas between my home and school that are 7 miles apart. I thought I was going to burn up.
You ever thing that maybe you shouldn't have driven the car with a leak at the fuel rail? Let me guess, you are running a AFPR with a fuel pressure close to 100psi?

You're lucky you didn't burn up.
jayc72 is offline   Reply With Quote
Old 04-18-2007, 11:51 AM   #15
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I found the easiest for me to do was put the lower isolators into the head first. Then install the injectors into the rail using oil. I was just really careful to wiggle the injector in and stop if it appear to bind at all. I guess I'll see if I did it right in the next day or two.
jayc72 is offline   Reply With Quote
Old 04-18-2007, 12:35 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

btw, did your rail turn out ok?
Braineack is offline   Reply With Quote
Old 04-18-2007, 04:39 PM   #17
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Quote:
Originally Posted by jayc72 View Post
You ever thing that maybe you shouldn't have driven the car with a leak at the fuel rail? Let me guess, you are running a AFPR with a fuel pressure close to 100psi?

You're lucky you didn't burn up.
It's not like I had a choice, I didn't notice the leak until I was at school. I took the freeway to get there, and I figured if it was going to catch fire it would have already done it. I thought if I shut it off and let the gas evaporate on the hot intake it was more likely to catch fire. I called a tow truck and they said it would be about 2 hours (I needed the non flat bed kind, my car didn't fit on the last one we tried) and I figured it was a gamble either way.

Smartest idea? No, but then again I never claimed to be all that smart .
miataspeed1point6 is offline   Reply With Quote
Old 04-18-2007, 04:59 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

you did drive around without a hood for a while since you couldn't fit the filter in right :gay:
Braineack is offline   Reply With Quote
Old 04-18-2007, 05:16 PM   #19
Senior Member

steelrat's Avatar

Join Date: Jul 2005
Posts: 514
Total Cats: 0
Default

I've always had the stupid o-rings split on me....

First test after doing anything with the injectors, is to use the FP / GND in the diagnostics box, to make sure the fuel system is primed. That way you can check before actually "going" anywhere if you have split one.

Never fails, it's always one of them, and Brain's right... usually #3. <G>

Dave,
steelrat is offline   Reply With Quote
Old 04-18-2007, 05:19 PM   #20
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

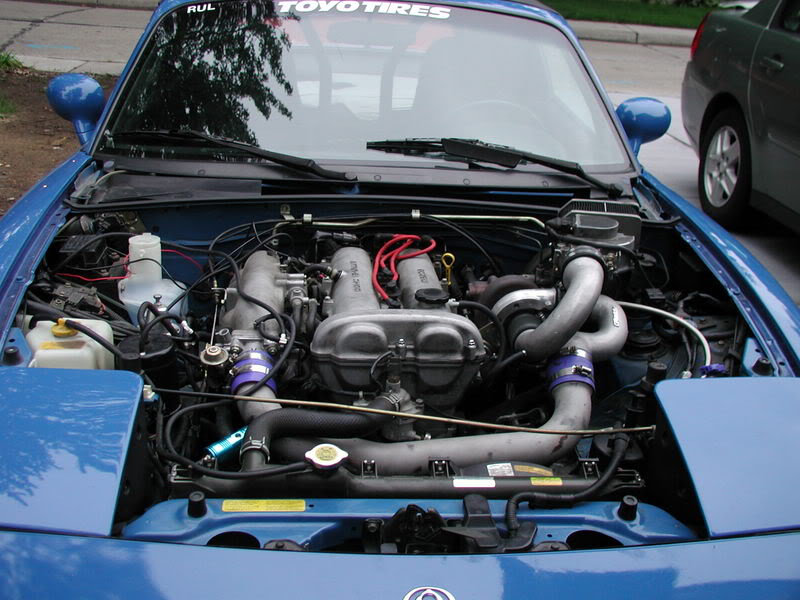

Yep that was me, and it rained every day I had it off too. I had to bring my car cover to work and lay trash bags over my engine.

Name:  P1010031.jpg
Views: 2
Size:  91.4 KB

I do alot of stupid ****, that looking back on it I can't beleive I did. It will catch up to me one day and then I will learn my lesson, but until then heres to being young and stupid!
