Old 05-31-2013, 02:35 PM   #21
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

MS1 ftw! In for dyno graphs.
Fireindc is offline   Reply With Quote
Old 06-04-2013, 10:25 AM   #22
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

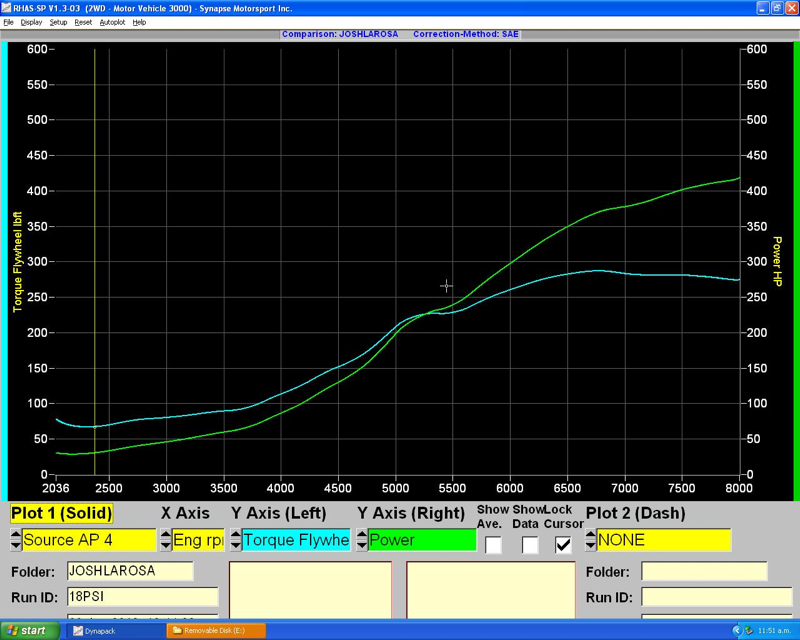

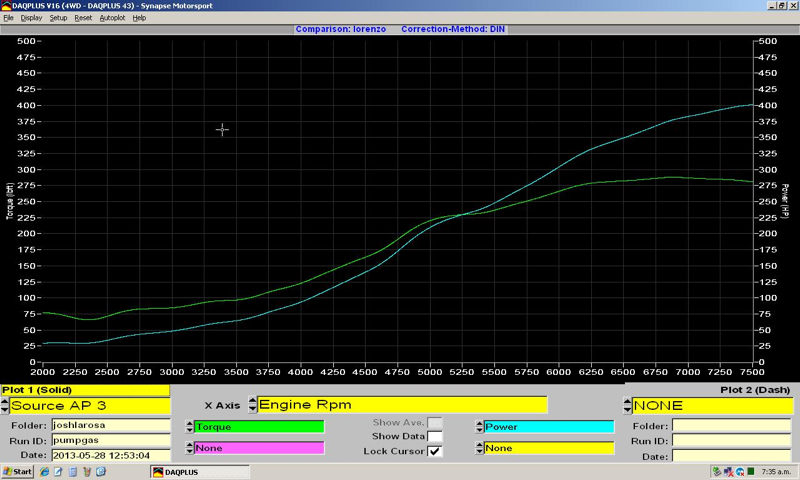

My race and pump tune+ my old race tune
Attached Thumbnails
Dyno-Re-tune results-image-4986551.jpg   Dyno-Re-tune results-image-1383683464.jpg   Dyno-Re-tune results-image-1794607258.jpg
ctdrftna is offline   Reply With Quote
Old 06-04-2013, 12:02 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Great peak power. Not so great powerband. 200tq @ 5k yikes
18psi is offline   Reply With Quote
Old 06-04-2013, 12:18 PM   #24
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Old race tune vs New race tune:
Name:  newrace_v_oldrace_zpscd344de4.png
Views: 3
Size:  228.6 KB

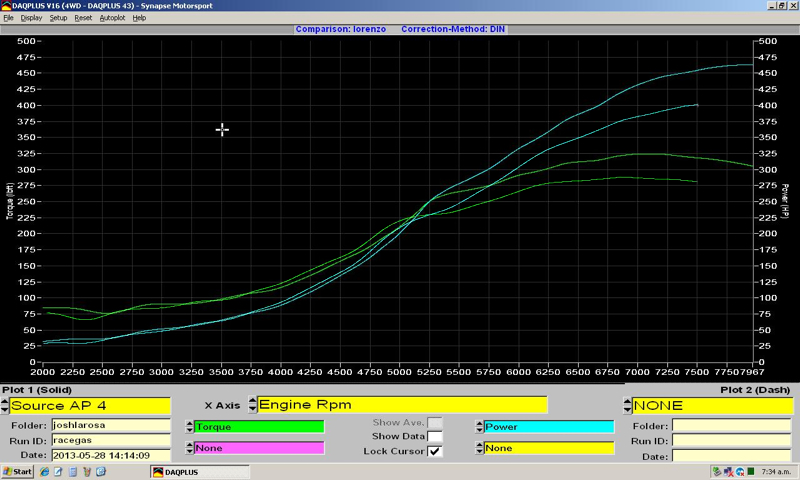

Race tune vs pump gas tune:
Name:  newrace_v_newpump_zpsb33f1f6b.png
Views: 3
Size:  226.5 KB
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-04-2013, 12:36 PM   #25
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Thanks FTB! , unfortunately I'm not gonna get more mid range with the cams I have and a gt 3071r. It's the nature of the beast. Knowing what I know now, I would have told integral different goals. When I ordered cams I told them my specs and sent them my flow sheets and have them a hp goal and a redline of 9k . My fault for doing that, also keep in mind that there was no gtx or EFR turbos when I started the build. So there are alot of things I would have done differently if I started over right now. But I'm happy it's still a beast
ctdrftna is offline   Reply With Quote
Old 06-04-2013, 12:50 PM   #26
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 257
Default

damn what's the boost curve like? that top end is insane o_O TQ rising all the way to redline lol
soviet is offline   Reply With Quote
Old 06-04-2013, 03:19 PM   #27
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

I'll have to look at my data logs again but if I recall, I'm hitting full boost around 5k
ctdrftna is offline   Reply With Quote
Old 06-04-2013, 04:25 PM   #28
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 257
Default

Quote:
Originally Posted by ctdrftna View Post
I'll have to look at my data logs again but if I recall, I'm hitting full boost around 5k
I can tell that. But for TQ to keep rising past 5k you either have some wild cams or your boost is creeping.
soviet is offline   Reply With Quote
Old 06-04-2013, 04:38 PM   #29
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Boost is solid
ctdrftna is offline   Reply With Quote
Old 06-04-2013, 04:40 PM   #30
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Also the runner length on the intake mani is tuned to 6500-9000, it's hard to fit longer runners without bending them. But that's the rpm range that the hermholts frequencys calculated out to
ctdrftna is offline   Reply With Quote
Old 06-04-2013, 05:09 PM   #31
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

What are the specs on your cams?
aaronc7 is offline   Reply With Quote
Old 06-04-2013, 06:40 PM   #32
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Advertised duration
295 intake
282 exhaust

Lift
.490 intake
.455 exhaust

Don't quote me on them. That's off the top of my head . When I get home I will edit this with more specs
ctdrftna is offline   Reply With Quote
Old 06-04-2013, 06:49 PM   #33
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

That is a GOD DAMN CAM!

Aren't you concerned about motor longevity? They seem more like cams that would be best for drag racing, some other short sprint racing, or for a racer with deep pockets. Edit: Or for a motor with more cubes.

I bet it sounds glorious.
miata2fast is offline   Reply With Quote
Old 06-04-2013, 07:06 PM   #34
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Well it's a race car, but I have no real concerns. It would make a hell of a drag engine. I built the car for serious drifting, so when it's on the race tune at the track it's for less than two min at a clip. But it's registered so I do drive it on the street from time to time
ctdrftna is offline   Reply With Quote
Old 06-04-2013, 07:13 PM   #35
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Man it definitely would make for a screamin drag car.

You should hit the drag strip at least once and see what it will put down.
18psi is offline   Reply With Quote
Old 06-04-2013, 07:28 PM   #36
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

That's how I blew my diff last year lol , ran a 14.2 @121 . Couldn't launch for **** with street tires and 4.10s, I may go back later in the year but I need to make new lexan windows
ctdrftna is offline   Reply With Quote
Old 06-04-2013, 08:58 PM   #37
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

now way HHAHHAAHAHHAHAHH 14.2 @ 121 is hilarious did you spin literally the whole way?
18psi is offline   Reply With Quote
Old 06-04-2013, 09:48 PM   #38
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

i was bogging down, trying to launch in 2nd (4.10s + 6spd) and slip the clutch. should have just launched in 1st and let it spin. But i broke before i could try. 1st was so so short before the 3.636's. The power hits so hard at 6k that 1st is almost not there
ctdrftna is offline   Reply With Quote
Old 06-09-2013, 10:34 PM   #39
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Quote:
Originally Posted by 18psi View Post
Your dyno operator isn't Australian is he?
People get better numbers thanuyou expected so It must be a aussie dyno guy thing?
nitrodann is offline   Reply With Quote
Old 06-10-2013, 02:30 AM   #40
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

??

Not sure what that means. I never expected OP to get lower numbers than he did. His build/setup is pretty extreme.

You missed the joke.
18psi is offline   Reply With Quote
