Old 06-10-2013, 04:52 AM   #41
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Sure did.
nitrodann is offline   Reply With Quote
Old 06-10-2013, 04:19 PM   #42
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Instant mid range :-)

http://www.zex.com/zx/turbo-nitrous-system.html

Seriously thinking about it
ctdrftna is offline   Reply With Quote
Old 06-12-2013, 12:47 PM   #43
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

And... The nitrous is purchased
ctdrftna is offline   Reply With Quote
Old 06-12-2013, 12:53 PM   #44
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

oh snap hahaha

WINNING!!
18psi is offline   Reply With Quote
Old 06-12-2013, 03:07 PM   #45
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

Don't blow the welds off the intake manifold
Attached Thumbnails
Dyno-Re-tune results-vin.jpg
soviet is offline   Reply With Quote
Old 06-12-2013, 03:21 PM   #46
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Lol, that could happen. It should be relatively safe. Gonna run a 45 shot and it shuts off it the boost level I set. I'm thinking 12-15 psi. This should thicken up the midrange a bit. And it only runs at wot
ctdrftna is offline   Reply With Quote
Old 06-12-2013, 03:23 PM   #47
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

did you post a plot?
Braineack is offline   Reply With Quote
Old 06-12-2013, 03:25 PM   #48
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Yeah look back a page or two
ctdrftna is offline   Reply With Quote
Old 06-12-2013, 04:39 PM   #49
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,894
Total Cats: 109
Default

Quote:
Originally Posted by ctdrftna View Post
Lol, that could happen. It should be relatively safe. Gonna run a 45 shot and it shuts off it the boost level I set. I'm thinking 12-15 psi. This should thicken up the midrange a bit and give everyone a massive hard on. And it only runs at wot


I am thinking you should set the nitrous cut to about 30 psi. That way it never shuts off.
miata2fast is online now   Reply With Quote
Old 06-12-2013, 04:40 PM   #50
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

allofit

allthetime

do it
18psi is offline   Reply With Quote
Old 06-12-2013, 05:06 PM   #51
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

I would like to keep my $10000 engine intact
ctdrftna is offline   Reply With Quote
Old 06-12-2013, 05:23 PM   #52
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,701
Total Cats: 236
Default

You have ten thousand dollars into that motor?

holy ****.
Fireindc is offline   Reply With Quote
Old 06-12-2013, 05:36 PM   #53
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Fireindc View Post
You have ten thousand dollars into that motor?

holy ****.
That makes complete sense. Thats about double what my engine cost, and its full of non-baller but still capable parts. AND if he paid for assembly here in New England that makes total sense. I got quoted 5-6grand for a stockish rebuild from multiple places around here that were recommended to me by miata shops as people who know how to build miata engines. Which is why I ended up with a built engine from trackspeed for the same money. I could totally see a carbon copy of my engine costing 8 grand in New England, change to more expensive rods and pistons, throw in SUBs and mild port work and you've hit 10 grand. What I learned from all of that is next time I'm building my own damn engine.
Leafy is offline   Reply With Quote
Old 06-12-2013, 05:41 PM   #54
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Well that's what I'm getting at, I have 6k in parts in my long block. But I had the benefit of working in a machine shop and building/ machining my own ****. Add on my turbo setup and intake mani and stuff and your at 10k my cost . More like 15k if I had to pay a machinist



EDIT- more like 4500 in long block parts

Last edited by ctdrftna; 06-12-2013 at 06:00 PM.
ctdrftna is offline   Reply With Quote
Old 06-12-2013, 06:06 PM   #55
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,701
Total Cats: 236
Default

Damn guys. Guess I have not really researched building a serious motor like that. I was assuming pistons + rods + bearings + oil pump + headstuds/hardware + machine work + assembly.
Fireindc is offline   Reply With Quote
Old 06-12-2013, 06:17 PM   #56
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

or you can be a cheapskate like me!

$500 used wiseco pistons and eagle rods
$200 used boundary pump
$60 used main studs
$180 head, intake, throttle body from junk yard
$120 new head studs
$120 new rings
$150 new bearings
$320 machine work

actually, damn that's still about $1700 before all the little things ;_;
soviet is offline   Reply With Quote
Old 06-12-2013, 06:20 PM   #57
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

rought breakdown (aprox prices)

weisco pistons $550
carrillo rods $700
Miata roadster pump gears $300
ATI balancer $500
ARP main studs $80
Gasket set $175
bearings $125
ARP head studs $125
Supertech valve train $500 (valves,springs,retainers,seats)
Bronze guides $60
Integral billet cams $700
Fidanza cam gears $225
Gates belt and timing ****+ water pump $250
Shim under buckets $250
lash caps $100


Now think of machine with involved

strip + clean
shot peen block
line hone
bore and hone cyl
deck
balance rotating assembly
gap rings
race port + polish
race valve job
install and size bronze guides
setup SUB
machine clearance for cams to spin
blueprinting and assembly
ctdrftna is offline   Reply With Quote
Old 06-12-2013, 11:17 PM   #58
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

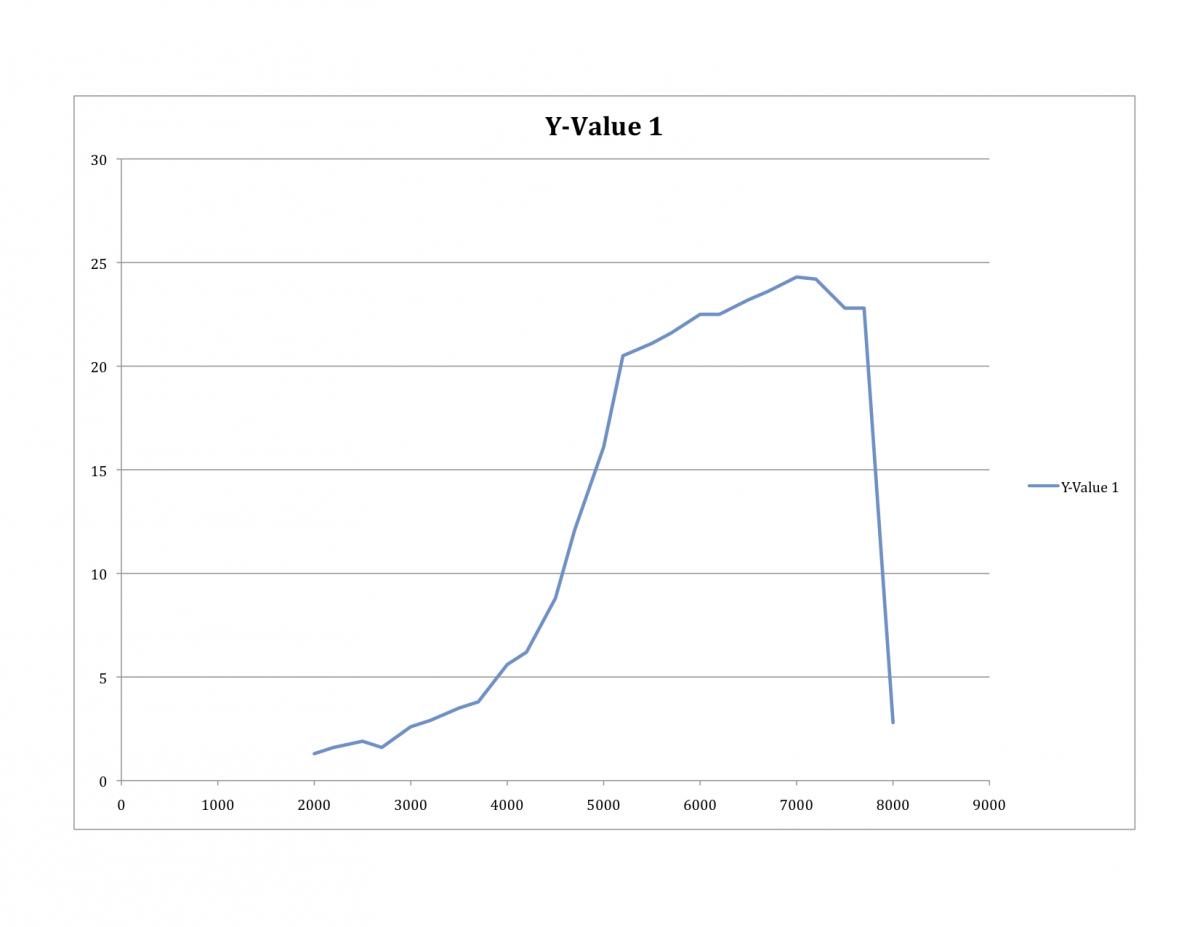

put together a boost plot based off a data log from the dyno
Attached Thumbnails
Dyno-Re-tune results-boost-plot.jpg
ctdrftna is offline   Reply With Quote
Old 06-13-2013, 01:42 AM   #59
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

At least your plots aren't like a supras.
I would think you'd want a better power curve for drifting though. I know most the time your in high rpms but what about those corners where it's too fast for 2nd but to show for 3rd? especially with the 3.63s.

Not bashing the build or anything. I agree that you way want to go a little less ALLOFIT on the cams.

What's the price of c16 where you're at by the way?
Impuls is offline   Reply With Quote
Old 06-13-2013, 06:15 AM   #60
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

im paying $95 for a 5 gal pale. So like $18-$19 a gallon.

yeah i agree that i need more low/mid power. When i built the motor i didnt think it would be an issue. But after my 1st event i realized that i was wrong. I dont wanna be shifting all the time to keep it in the power band. This is why i have the nitrous coming to give it a big boost down low.
ctdrftna is offline   Reply With Quote
