Old 05-07-2015, 09:48 AM   #81
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

The continental ones seem like a decent deal. I'll see how mine is when I get it.
aidandj is offline   Reply With Quote
Old 05-07-2015, 10:04 AM   #82
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

GD we got some smart folks in this bunch.

Serious question: are there any other online communities that are this technical and knowledgeable about this kinds of ****? Seems like other forums I go to, changing an intake tube or swapping your own trans fluid is a really big deal. But I'm not real deep into like national subaru or anything, I think that's smart folks too.

---

In other news, I siphoned my tank, dumped 4 gallons of e85 in, bumped req fuel by 40% and started the car... fired right up... WBO2 warmed up and showed ~.0.65 lambda (like 10:1 on the gas scale) loool.

Shut it down, set req fuel back, fired it up, let it idle for a bit, it slowly leaned out to 15-16:1 on the gas scale, so I flipped my "rich switch" (flips to a fuel table 20% richer across the board for hot restarts) and waited until that was at 15.5:1 on the gas scale, then shut it down, flipped the switch back, bumped req fuel again, and fired it up again.

Got it idling at 15:1 on the gas scale with req fuel 40% above "normal" so I think that means it's all e85 in there now.

Then it started POURING rain, so I went inside.
mlev is offline   Reply With Quote
Old 05-07-2015, 01:08 PM   #83
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

So the MS3x potato schematics are useless but I've been told that it is a direct connection to the MS3 input pin. Which according to this already has a 10k pullup. I need to double check on the pull-up but otherwise the filter circuit should still be added.
aidandj is offline   Reply With Quote
Old 05-08-2015, 09:54 AM   #84
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Up and running and driving around on corn.

Ohhh the smell!

Still running my 460cc injectors for now, just tuning my NA fuel cells and low boost low RPM (spools quicker!) while monitoring my duty cycle (keeping it below 50% because I'm a ***** bitch).

775ccs go in today after work, and then it's time for real-tuning!

Also, with my super open exhaust, and the increased exhaust flow, my car is louder now. Like, it sounds like previous WOT at about 50% throttle. I'm curious if I'll be under my autox noise limit now...
mlev is offline   Reply With Quote
Old 05-08-2015, 10:26 AM   #85
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

That's weird cause I've always noticed my cars get quieter with e85
18psi is offline   Reply With Quote
Old 05-08-2015, 10:31 AM   #86
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

It also may have been because my entire parcel shelf is still torn apart from the fuel pump job haha.

I just assumed it was due to exhaust flow.
mlev is offline   Reply With Quote
Old 05-10-2015, 01:10 AM   #87
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Been a few days on e85 now. Fuel map is getting close to dialed in, going to start tuning timing soon.

I went 2 steps colder on plugs when I went turbo with gas. Should I go back to stock heat plugs? Something different? Leave them colder?

Ev14 4 lyf btw
mlev is offline   Reply With Quote
Old 05-10-2015, 01:59 AM   #88
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

why even bother unless you're having issues

congrats.

I love love love love corn. And EV14
18psi is offline   Reply With Quote
Old 05-11-2015, 01:11 AM   #89
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 256
Default

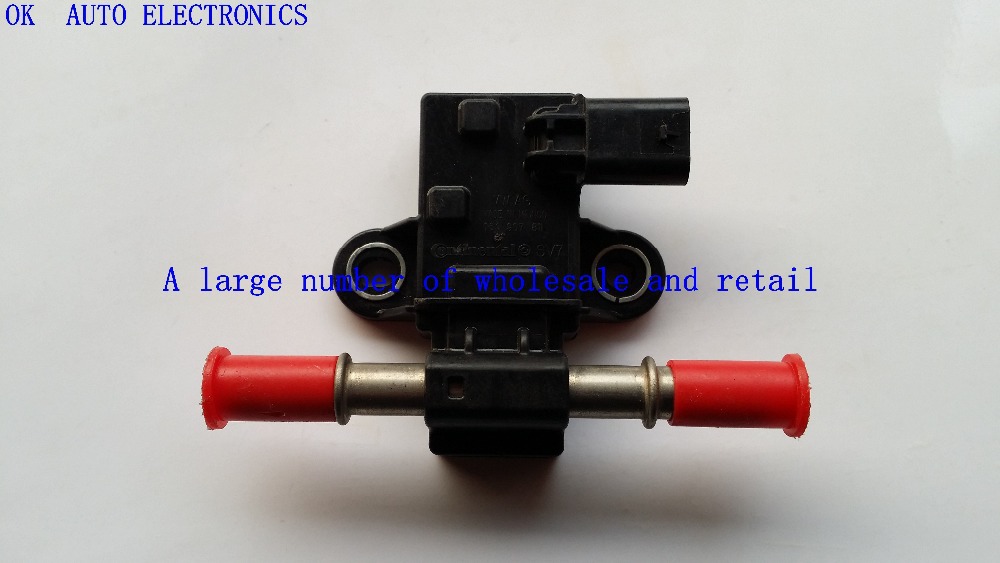

Also found this

VW part 06K907811
Attached Thumbnails
E85 Checklist-vw-mixed-fuel-sensor-fuel-composition-sensor-flex-fuel-sensor-volkswagen-vw-06k907811-contin.jpg
soviet is offline   Reply With Quote
Old 05-11-2015, 01:15 AM   #90
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

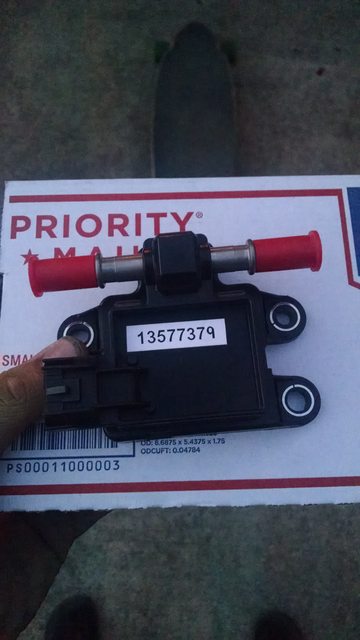

Just got a present in the mail

Attached Thumbnails
E85 Checklist-paazrrml.jpg
aidandj is offline   Reply With Quote
Old 05-11-2015, 01:10 PM   #91
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Interesting behavior since going to e85: car backfires like crazy when I fire it up. I tried dropping cranking pulse, and it helped a bit, but now the car seems like it's barely getting enough gas to start.

If I just crank the key, the car goes BOOM, i'm talking like duck-and-cover-oh-****-who's-got-the-gun.

If I turn the key, let it prime, and then wait about 5 seconds before firing the car up, there's no bang.

If I wait about 2 seconds, there's a much smaller bang.

Seems to me I'm possibly pumping too much gas on prime.. I tried lowering priming pulse and it seems to have helped a bit more, but I think I need to drop it even further.

Is this normal?
Is it okay to make my priming pulse practically zero, and then just give the car it needs during cranking?
Is there some other fix?
mlev is offline   Reply With Quote
Old 05-11-2015, 01:14 PM   #92
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

its not normal. IMO, the trick to proper startup is that ALL of the affected/affecting areas need to be just right.

that means: VE map, Spark map, prime, crank, ase, wue, etc.

I struggled with this for EVERRRR until I figured this out. I think I messed with cranking fuel for like a week or two on the previous car
18psi is offline   Reply With Quote
Old 05-11-2015, 01:16 PM   #93
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

aside from the typical startup menu's/settings, your ve map and spark map in the 100kpa to 25kpa and 0 rpm to 1000rpm area need to be spot on.

when I finally achieved perfect OEM-like startup on e85 on this current car, I was so happy I nearly cried
18psi is offline   Reply With Quote
Old 05-11-2015, 01:59 PM   #94
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Quote:
Originally Posted by 18psi View Post
aside from the typical startup menu's/settings, your ve map and spark map in the 100kpa to 25kpa and 0 rpm to 1000rpm area need to be spot on.

when I finally achieved perfect OEM-like startup on e85 on this current car, I was so happy I nearly cried
Thanks Vlad, that all makes sense. I felt similarly when I finally got my car up and running on ms2 (took nearly 4 hours of tinkering). Then I got my ms3 basic from rev and the car just... Started. Such a love hate relationship with that.
mlev is offline   Reply With Quote
Old 05-11-2015, 02:01 PM   #95
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

I still remember when I got the car running and was out tuning and stopped by a Miata buddy's house to show it off and he was like "it's idling a little high, isn't it?" and I nearly throat chopped him..
mlev is offline   Reply With Quote
Old 05-12-2015, 10:58 PM   #96
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Just bought one of these hehe: badge
aidandj is offline   Reply With Quote
Old 05-12-2015, 11:22 PM   #97
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by aidandj View Post
Just bought one of these hehe: badge
Oo! Kind of want. It'll look good next to this. Blacked out of course.
EO2K is offline   Reply With Quote
Old 05-12-2015, 11:24 PM   #98
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

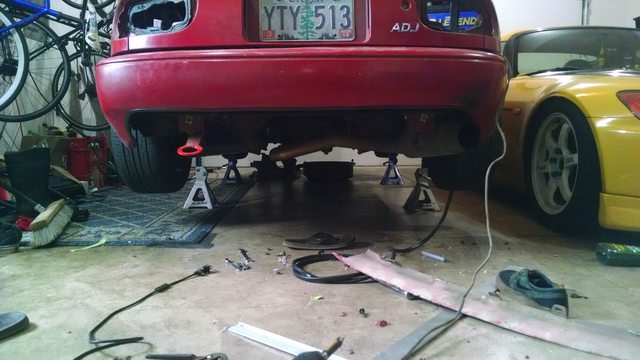

Mine is going opposite of this one:
Attached Thumbnails
E85 Checklist-c3ephhll.jpg
aidandj is offline   Reply With Quote
Old 05-12-2015, 11:26 PM   #99
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Now I want one of these.
aidandj is offline   Reply With Quote
Old 05-13-2015, 11:28 AM   #100
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 397
Total Cats: 23
Default

Quote:
Originally Posted by aidandj View Post
Now I want one of these.
That 1.6T badge is .... MINT!
ofspunk7 is offline   Reply With Quote
