Default Engine removal n00b

Hey guys,

I was disconnecting all the electronics in the engine bay required to pull the engine. I have the whole upper engine harness disconnected and most of the stuff under the IM.

I turned the ignition on to push the car back into the garage with steering. I noticed my fuel pump would not shut off when the key out and I was able to use the HVAC still. Is this normal? I don't know why I put the key in the run position.
dgmorr is offline   Reply With Quote
Old 11-21-2010, 05:07 PM   #2
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

why wasn't disconnecting the battery the first step?
Oscar is offline   Reply With Quote
Old 11-21-2010, 05:16 PM   #3
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Im surprised the + battery on the starter or alt didnt short out on something.
240_to_miata is offline   Reply With Quote
Old 11-21-2010, 07:26 PM   #4
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Because I'm a n00b. I was only separating connectors anyway. So, back to the original question.
dgmorr is offline   Reply With Quote
Old 11-21-2010, 08:12 PM   #5
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Unless you unplug the three connectors at the pcm, your pump and accessories will still be powered even if you've unplugged most of the **** under the hood.

Disconnect your battery.
flounder is offline   Reply With Quote
Old 11-21-2010, 08:42 PM   #6
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Is it normal to have the pump and accessories still run while the key is out?

Battery has already been removed
dgmorr is offline   Reply With Quote
Old 11-21-2010, 08:55 PM   #7
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by dgmorr View Post
Is it normal to have the pump and accessories still run while the key is out?

Battery has already been removed
No, and good. Disconnecting the battery should always be the first step, one that should be common sense also... you wouldn't try to disassemble the engine with it running would you? So why would you work on anything electronic that is still getting power?
NA6C-Guy is offline   Reply With Quote
Old 11-21-2010, 09:28 PM   #8
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Yes yes moms I took your advice and disconnected the battery. I simply forgot - very extreme analogy. Last I checked there is no power going to things like TPS, EGR, VVT while the car is off...I have not removed the main leads to the starter yet. This is more like working on a light fixture with the breaker on and switch off
Thanks for the answer on this.
dgmorr is offline   Reply With Quote
Old 11-21-2010, 10:03 PM   #9
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Wouldn't want to touch that starter wire.
timk is offline   Reply With Quote
Old 11-21-2010, 10:20 PM   #10
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

I might as well as for any other useful tips since I've never done this before. Thanks for the additional feedback
dgmorr is offline   Reply With Quote
Old 11-21-2010, 11:38 PM   #11
Senior Member
iTrader: (1)

Join Date: Jul 2009
Location: Batavia, IL
Posts: 604
Total Cats: 0
Default

Don't forget to disconnect the electrical connections on the top of the transmission. The harness is bolted (10mm) on the bell-housing. I almost ripped mine out.

If the transmission is coming out too, don't forget to drain it.

This is probably the easiest EFI engine to pull... don't sweat it.
Cococarbine3 is offline   Reply With Quote
Old 11-22-2010, 01:12 AM   #12
Junior Member

Join Date: Aug 2010
Location: SoCal
Posts: 94
Total Cats: 0
Default

Battery? What's that?
dwood11 is offline   Reply With Quote
Old 11-22-2010, 01:43 AM   #13
Junior Member

kday's Avatar

Join Date: Aug 2008
Location: Boston
Posts: 223
Total Cats: 0
Default

Quote:
Originally Posted by Cococarbine3 View Post
If the transmission is coming out too, don't forget to drain it.
Indeed...

kday is offline   Reply With Quote
Old 11-22-2010, 04:36 AM   #14
Newb

Join Date: Sep 2010
Posts: 30
Total Cats: 0
Default

Quote:
Originally Posted by dgmorr View Post
Hey guys,

I was disconnecting all the electronics in the engine bay required to pull the engine. I have the whole upper engine harness disconnected and most of the stuff under the IM.

I turned the ignition on to push the car back into the garage with steering. I noticed my fuel pump would not shut off when the key out and I was able to use the HVAC still. Is this normal? I don't know why I put the key in the run position.


your pump was running still because....

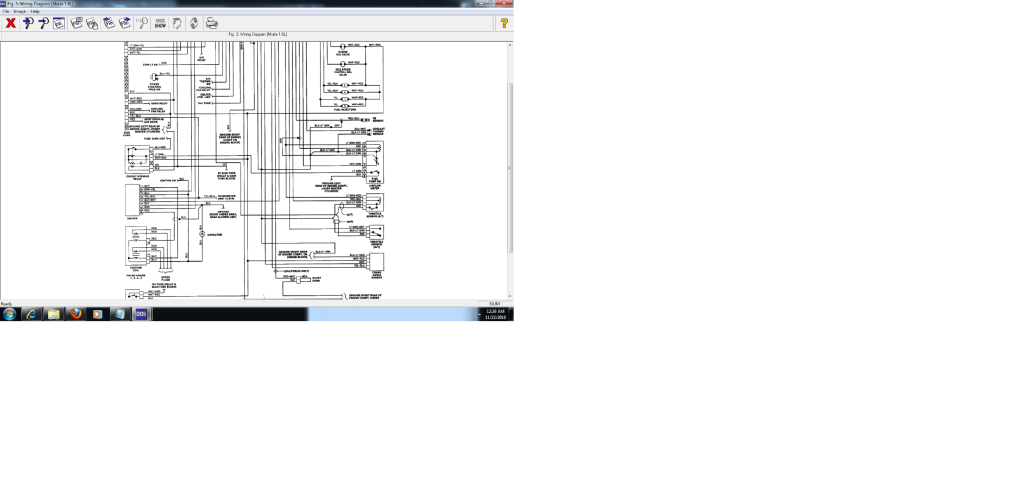

the AFM has a kill switch for the fuel pump built in to it so if the circit is open from it being disconnected the pump will not shut off. yes it dose not make sense but look at the wiring diagram that switch runs to a relay that is supposed to kill the pump.

Name:  miatawiringdiagram-1.png
Views: 1
Size:  76.5 KB

but you should disconect the battery befoer you start working on removing the engine..
