Default Epoxy for throttle plate screw?

Hi,

I keep reading about throttle plate screws coming loose. What type of epoxy are people using to secure the screw?

Is it as simple as putting a dab over the head of the screw?

Sorry if this seems like an obvious question, but it isn't something I want to get wrong!!

Cheers
timk is offline   Reply With Quote
Old 05-14-2015, 07:31 PM   #2
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

You *keep* hearing about it? How many times have you heard about it? I don't think I've heard about it for at least 2-3 years.

Just apply loctite red to the threads and be done with it. - Or don't remove the screws in the first place?
fooger03 is offline   Reply With Quote
Old 05-14-2015, 07:36 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

see cordus' buid thread.
this is a real thing. not just hearsay
18psi is offline   Reply With Quote
Old 05-14-2015, 07:36 PM   #4
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Well I make assumptions, but it is playing on my mind. The guy on here with the chopped up compressor wheel, and another post today on the Adaptronic forum showing an MX-5 with ingestion damage.

Are you saying it's only a problem if the screw has been removed before?

Thanks
timk is offline   Reply With Quote
Old 05-14-2015, 08:10 PM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Why? So the epoxy can go through the engine too when the throttle shaft breaks and sticks the throttle wide open?

Shameless plug for actual solution to actual problem
Savington is offline   Reply With Quote
Old 05-14-2015, 08:28 PM   #6
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 387
Total Cats: 38
Default

I'm not sure if I love this solution, but my throttle plate screws were staked... It looks like someone set the butterfly on a die of some kind and staked a crosshatch in the backside of the protruding screw.
At least I know they're not going to fall out... or be easily removed
leboeuf is offline   Reply With Quote
Old 05-14-2015, 08:33 PM   #7
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

If you do epoxy it, make sure you prepare the surfaces correctly. At the bare minimum give everything a good wipe down with acetone or some other solvent that will flash off quickly.

Hysol e120hp is a good all purpose structural epoxy but you need to buy an applicator gun and mixing nozzles to use it.
asmasm is offline   Reply With Quote
Old 05-14-2015, 09:16 PM   #8
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Why the hell would you use epoxy at all? As stated before, Loctite red is what is called for here. High strength threadlocker. Epoxy is a ****-poor substitute.
rleete is offline   Reply With Quote
Old 05-14-2015, 09:41 PM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

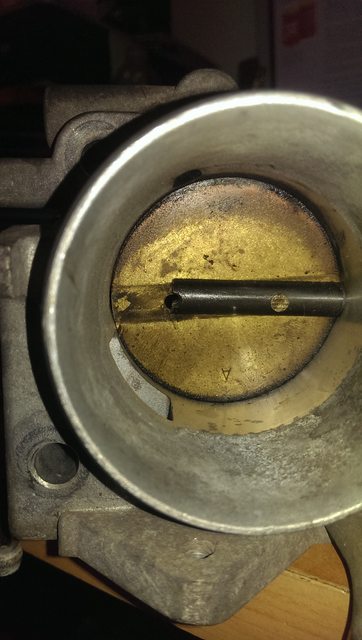

I'd like one of you to explain how loctite does anything when the problem is this:

Savington is offline   Reply With Quote
Old 05-14-2015, 09:50 PM   #10
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

I'd like to know how the throttle screw got into the compressor wheel?
williams805 is offline   Reply With Quote
Old 05-14-2015, 09:53 PM   #11
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

As Andrew is pointing out the epoxy doesn't keep the shaft from breaking. The skunk2 TB is the only true fix for BP's that see extended high rpm usage.
Mobius is offline   Reply With Quote
Old 05-14-2015, 09:56 PM   #12
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Attached Thumbnails
Epoxy for throttle plate screw?-73aa26af-73c5-49bb-b087-adf31ff46547.jpg
williams805 is offline   Reply With Quote
Old 05-15-2015, 01:16 AM   #13
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Henry (Team DNR) JUST had his built F-Prod motor eat a screw from a BROKEN throttle shaft in Savannah. The screws backing out are not nearly as threatening of a problem as the shaft breaking, in my opinion.
Schuyler is offline   Reply With Quote
Old 05-15-2015, 01:48 AM   #14
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

From what I remember reading, all the epoxy really does is change the natural resonant frequency to move it away from whatever rpm/vibration is causing the shaft to break.

I have not done any searching, but has there actually been a case of a screw coming loose, but the shaft staying intact?

--Ferdi
ftjandra is offline   Reply With Quote
Old 05-15-2015, 04:22 AM   #15
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by Schuyler View Post
Henry (Team DNR) JUST had his built F-Prod motor eat a screw from a BROKEN throttle shaft in Savannah. The screws backing out are not nearly as threatening of a problem as the shaft breaking, in my opinion.
In my case, the shaft was fine, it's the SCREW that broke. It didn't back out, the head of the screw broke off. Look at the hole -- you can still see the other half of the screw in there.



That screw chewed up the pistons, the head, and trashed the turbine.



--Ian
codrus is offline   Reply With Quote
Old 05-15-2015, 06:52 AM   #16
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Damn that sucks Ian. Are you now running the Skunk2 item?

If so does the increased opening make the throttle really sensitive?

Out of interest I used to have a Jap import track car and it had a rubber damper fitted to the throttle body (OE), I wonder if this is relevant as the car had a slightly higher rev limit?
timk is offline   Reply With Quote
Old 05-15-2015, 11:09 AM   #17
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

My skunk2 tb didn't change my throttle response that I could tell.
Mobius is offline   Reply With Quote
Old 05-15-2015, 01:30 PM   #18
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

All the junk2 throttle body did for me was make the throttle touchier. I'm 100% only running one to prevent small bits from destroying $6500 worth of bits and things.
Leafy is offline   Reply With Quote
Old 05-15-2015, 03:09 PM   #19
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

I have a Skunk2 now, yes. I didn't notice any throttle touchiness when switching, though.

--Ian
codrus is offline   Reply With Quote
Old 05-15-2015, 03:14 PM   #20
Senior Member

Join Date: Sep 2013
Posts: 903
Total Cats: 59
Default

Quote:
Originally Posted by Leafy View Post
All the junk2 throttle body did for me was make the throttle touchier. I'm 100% only running one to prevent small bits from destroying $6500 worth of bits and things.
Braineack: please make a "Race Prep" forum (note the quotes) and banish all autotossers there.
Dunning Kruger Affect is offline   Reply With Quote
