Default Erratic AFR readings with Innovate LC-1?

I've had this thing installed since 2008, and it has always done this. I just didn't ever figure this was a problem because the car drives well when tuned using VEanalyze.

LC-1 has been recently calibrated, out of the pipe. <1600 miles ago

Sensor and heater grounds are soldered at the ECU connector's sensor and general ground wires respectively. This fixed a ground offset, but did not fix the noise, which I wasn't trying to fix anyway. Previously, it was grounded at the intake manifold on separate lugs.

Logworks shows the same noise. MS and the DB gauge agree.

This Screenshot is with the engine off and key on after idling 5 minutes earlier. I set a 1/6th Second aggregation delay in LM programmer for this pic. It didn't improve things.



Here are some running logs for you.
http://www.mediafire.com/file/vg4sb9...oisy%20AFR.msl
http://www.mediafire.com/file/f6kawo...ttering.56.msl

And my tune.
http://www.mediafire.com/file/uzvbm1...urrentTune.msq


The same variation is shown in logworks and while the engine is running. Is this abnormal? How can I fix it?
What do?

Last edited by Bryce; 05-04-2011 at 06:18 AM.
Bryce is offline   Reply With Quote
Old 05-04-2011, 11:29 PM   #2
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Am I too confusing?

After 1600 miles on this motor, I got a code 8 a few times today. I'm going.to do a full recalibration of the heater circuit.

Do me a favor and take a log with your engine off after running for a minute. How much does your afr reading waiver?
Bryce is offline   Reply With Quote
Old 05-05-2011, 10:05 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

whats with all the error 8s lately?
Braineack is online now   Reply With Quote
Old 05-05-2011, 10:26 AM   #4
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Solar flares?
richyvrlimited is offline   Reply With Quote
Old 05-06-2011, 10:09 AM   #5
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I did a full recalibration, but it keeps spitting out a code 8 after a few minutes of operation. I guess this means my sensor is dead. Correct?
Bryce is offline   Reply With Quote
Old 05-06-2011, 10:35 AM   #6
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Not necessarly, you can try downgrading the firmware from v1.1 to v1.0.

v1.1 can be rather sensitive/buggy to sensor overheats.
richyvrlimited is offline   Reply With Quote
Old 05-06-2011, 11:10 AM   #7
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Awesome. I'll do that first.
Bryce is offline   Reply With Quote
Old 05-08-2011, 03:13 AM   #8
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

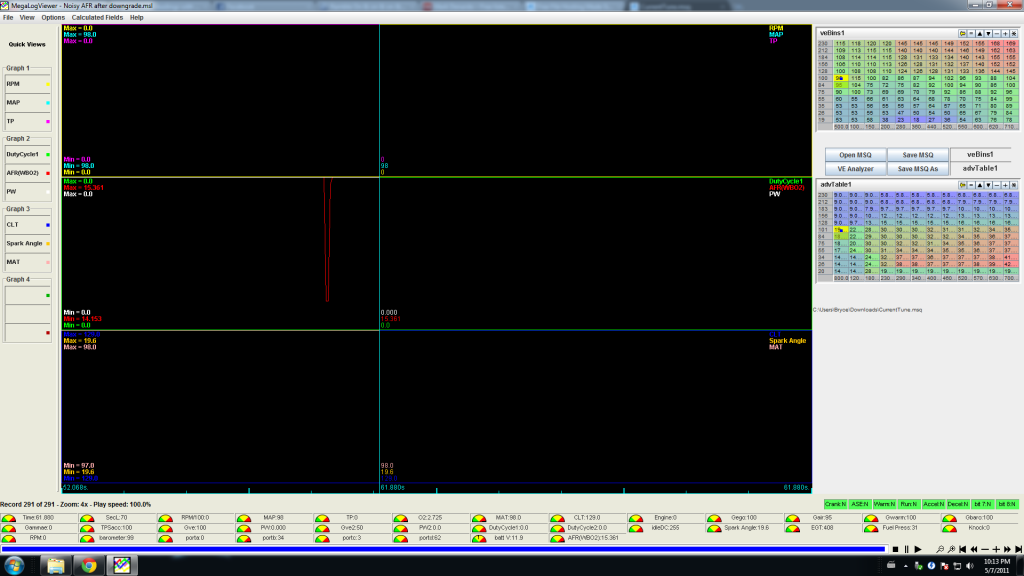

Downgrading to V1.0 fixed the error code. For some reason which I do not know, my AFR is much more stable with the engine off, but it still varies greatly while running.

Name:  non-noisyafr.png
Views: 6
Size:  123.8 KB
