Default Is this gear usable?

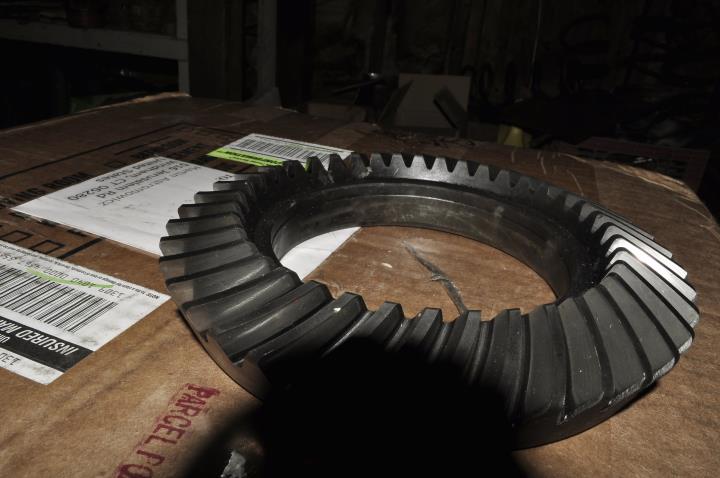

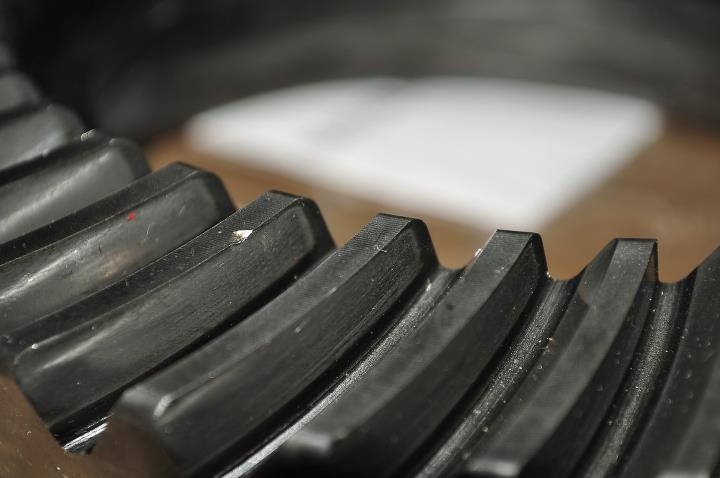

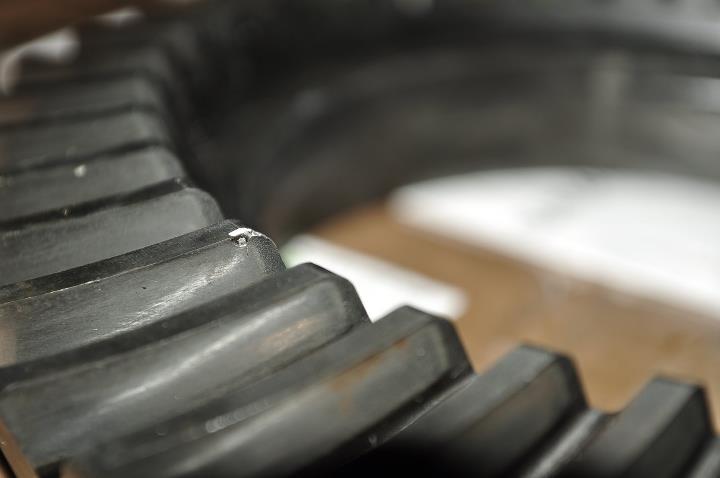

Damaged in shipping. 2 SMALL chips but nevertheless they are chips in teeth, so they would be the weak point.

It will have a torsen bolted to it, be autoxing, seeing track days, and hopefully have 300hp channeled through it.







Thanks for the input.
Attached Thumbnails
Is this gear usable?-281528_216513501729330_100001120466954_597104_2879529_n.jpg   Is this gear usable?-285187_216514268395920_100001120466954_597105_5056477_n.jpg   Is this gear usable?-184169_216514288395918_100001120466954_597106_304105_n.jpg
astroboy is offline   Reply With Quote
Old 08-04-2011, 12:33 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Coming from a professional gear cutter, yes it's fine. However you need to deburr the gear before using it. No part of that tooth should be sticking out, only in from the chip. Make sure when you rotate past the teeth you've deburred, it makes no noise and doesn't catch. All this hinges on a properly measured installation, not just a bolt in hack job.
curly is offline   Reply With Quote
Old 08-04-2011, 12:44 PM   #3
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Well I am screwed, bolt in hack jobs is how I roll. But I will make sure I deburr it and pay special attention to potential engagement noises from those two teeth.

A jeeper was saying it may or may not fall apart, I was doubtful but thought it would be better to get opinions of people "in the know" if you will.
astroboy is offline   Reply With Quote
Old 08-04-2011, 12:51 PM   #4
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Just file it all smooth and nail the install tolerances. It'll be fine.
sjmarcy is offline   Reply With Quote
Old 08-04-2011, 01:20 PM   #5
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

As long as there are no sharp edges to create stress risers, you are fine. I would use that gear without hesitation.
rleete is offline   Reply With Quote
Old 08-04-2011, 07:00 PM   #6
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

How does that happen during shipping? Did they use it as a Frisbee?
