Old 04-06-2008, 11:31 AM   #1
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default GS rad and shroud install problemo

Finally made my fan shroud yesterday 40$ for a piece of lexan 1/4" thick and 16/26". Got it all in wired up the fans to stock fan harness took it for a boot fans go on at 180. I then noticed they never shut off. I look under the hood the wire for the thermo-switch for the fans got blown off or something. I thought that switch was to make the fans come on? Does it make them go off to? My temp guage was staying at 190 even though the fans were on for about 10min while i was driving. So im asking is it that since its broken my car wont cool down and the fans wont go off? And if i get a 160deg thermostat will my temps be cooler? Thanks Mike

Here are some pics

switch isnt actually like that i rigged it so i could connect it but no luck.

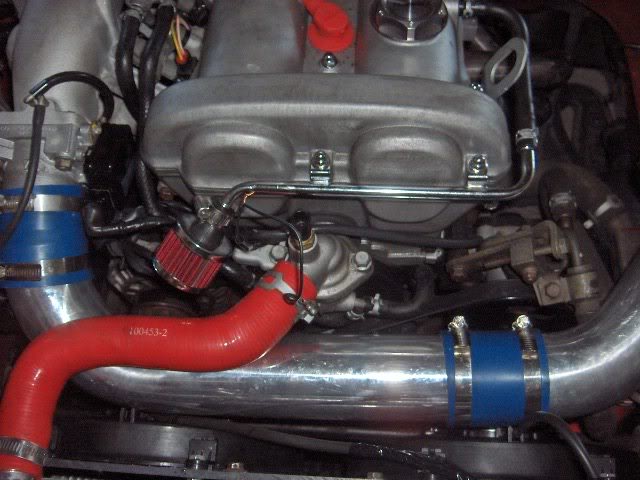

Name:  015-3.jpg
Views: 1
Size:  55.1 KB

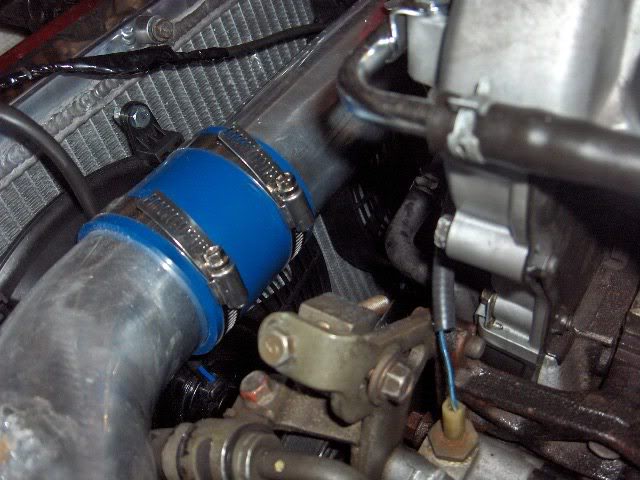

Name:  014-2.jpg
Views: 1
Size:  57.3 KB

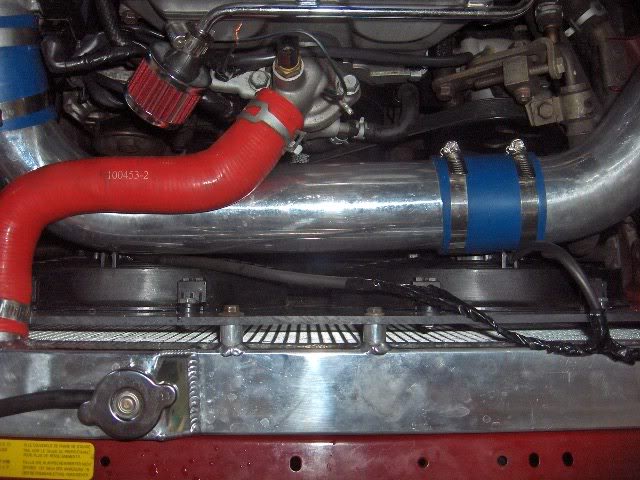

Name:  010-5.jpg
Views: 1
Size:  66.1 KB

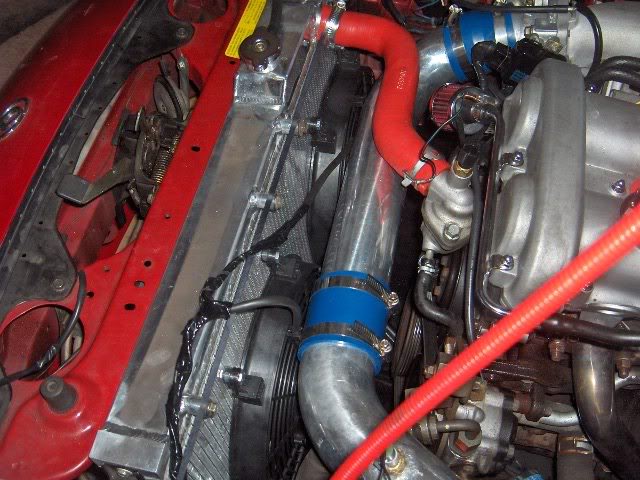

Name:  008-4.jpg
Views: 1
Size:  72.5 KB

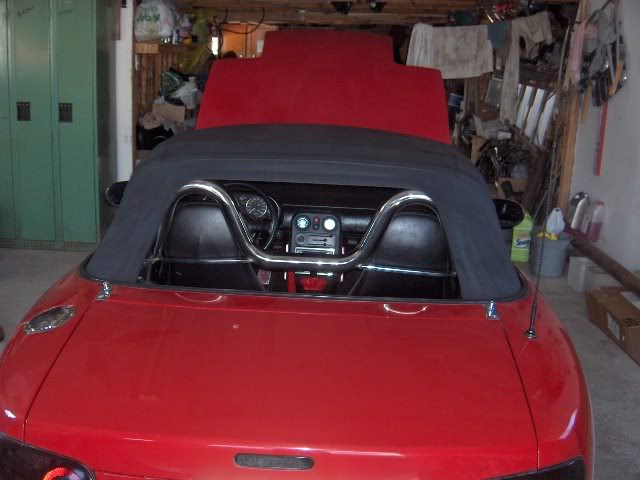

and style bar and chrome gas cap install lol i know i know
Name:  016-3.jpg
Views: 1
Size:  43.2 KB
miataz is offline   Reply With Quote
Old 04-06-2008, 11:46 AM   #2
Junior Member

Join Date: Mar 2008
Location: Charleston, S.C.
Posts: 159
Total Cats: 0
Default

Does the MS run the fans off the switch like the stock ECU?

On the stock ECU the fans get turned on by the switch and if the wire is off the switch they don't turn on. Did you have your AC on?? That turns on the fans and keeps them on.

Going to a lower temp thermostat will only circulate the water sooner. You will still get as hot it will just take longer to get there and if you need heat in the winter it will affect the heater.
04 Miata is offline   Reply With Quote
Old 04-06-2008, 12:03 PM   #3
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by 04 Miata View Post
Does the MS run the fans off the switch like the stock ECU?

On the stock ECU the fans get turned on by the switch and if the wire is off the switch they don't turn on. Did you have your AC on?? That turns on the fans and keeps them on.

Going to a lower temp thermostat will only circulate the water sooner. You will still get as hot it will just take longer to get there and if you need heat in the winter it will affect the heater.
Umm i have no clue about that for the MS running the fans, anyone know can they chime in. I dont have A/C. I dont drive in the winter so i dont need heat. And is 190deg a normal temp or is it to high cause my switch is fucked cause usually it cools down then goes back up and the fans go off. How do i fix it do i have to set something on the MS?
miataz is offline   Reply With Quote
Old 04-06-2008, 12:52 PM   #4
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Does anyone know what to do? Do i have to wire my fans into the output on the MS my cars not cooling down and the fans are not shutting off...
miataz is offline   Reply With Quote
Old 04-06-2008, 01:05 PM   #5
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default

What type of MS are you running? If it's a standalone configuration, you need to mod the MS to control fans. If it's parallel, then the stock ecu should still be controlling the fans. If it's a MSPNP from DIYAT, it should control the fans no problem.
jasonrobo02 is offline   Reply With Quote
Old 04-06-2008, 01:17 PM   #6
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Its a MS PNP from DIYAT, but it does control them but they never turn off...it reaches 180 turns on, they stay on and my coolant temp still stays the same. And my thermo switch isnt even hooked up and they still turn on but never turn off.
miataz is offline   Reply With Quote
Old 04-06-2008, 02:42 PM   #7
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

You need to seal the sides of the fan shroud.get some weather stripping and seal the gaps around the entire shroud.
spike is offline   Reply With Quote
Old 04-06-2008, 03:23 PM   #8
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by spike View Post
You need to seal the sides of the fan shroud.get some weather stripping and seal the gaps around the entire shroud.
Alright thanks. But why do the fans still come on if the thermo-switch isnt connected?
miataz is offline   Reply With Quote
Old 04-06-2008, 03:29 PM   #9
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Because you probably don't have them hooked up correctly with MS. Post a screen shot of the settings your running for fan control, and explain how you wired them up in DETAIL. Nobody here knows how you set this up but YOU.
patsmx5 is offline   Reply With Quote
Old 04-06-2008, 04:27 PM   #10
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Because you probably don't have them hooked up correctly with MS. Post a screen shot of the settings your running for fan control, and explain how you wired them up in DETAIL. Nobody here knows how you set this up but YOU.

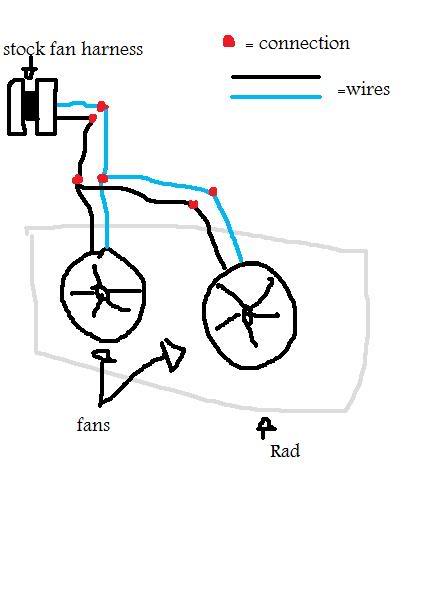

I cut the harness from the stock fan and connected the 2 10 inch fans to it. Heres a pic i made on paint not that great Name:  Untitled.jpg
Views: 1
Size:  21.0 KB

but you get the idea, for the MS part i haven't touched any settings for fan control what ever came with the MS i left the only things i touched on MS were timing and req fuel and some tuning thats it.
miataz is offline   Reply With Quote
Old 04-06-2008, 04:30 PM   #11
Junior Member

Join Date: Mar 2008
Location: Charleston, S.C.
Posts: 159
Total Cats: 0
Default

You say you don't have A/C but did you?? Why I'm asking is did you hook both fans up to the main fan harness. You diagram shows them hooked up to one lug, fine, but was it the main fan plug?
04 Miata is offline   Reply With Quote
Old 04-06-2008, 04:32 PM   #12
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by 04 Miata View Post
You say you don't have AC but did you?? Why I'm asking is did you hook both fans up to the main fan harness. You diagram shows them hooked up to one lug, fine, but was it the main fan plug?
No i did not have A/C before i just wanted to rad fans so it could cool off faster. And yes i do have both hooked up to the main harness and yes it is the main fan plug.
miataz is offline   Reply With Quote
Old 04-06-2008, 04:36 PM   #13
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

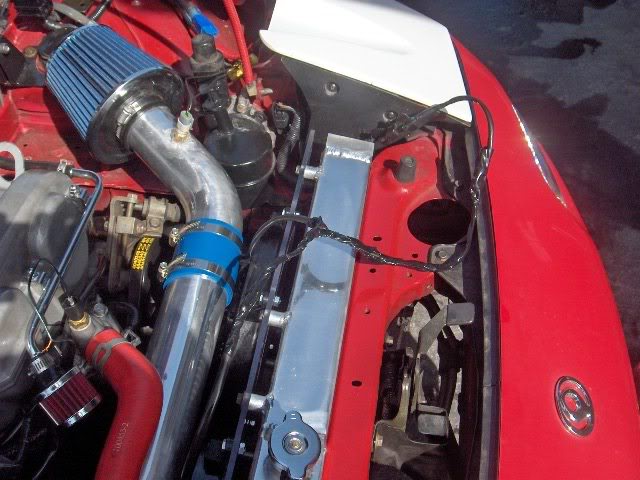

hopefully these pics help you out

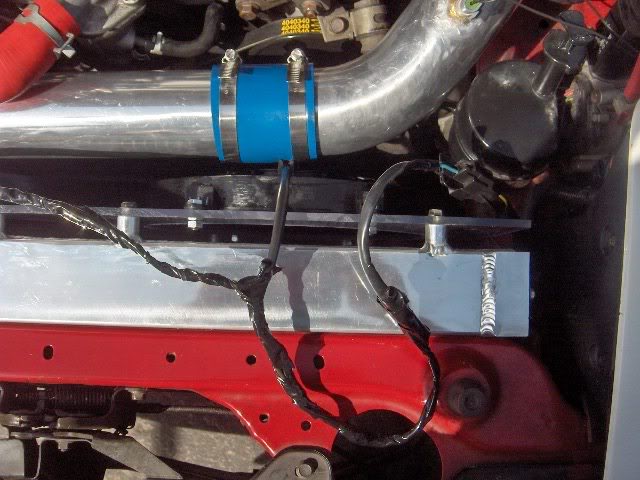

Name:  019-3.jpg
Views: 1
Size:  59.8 KB

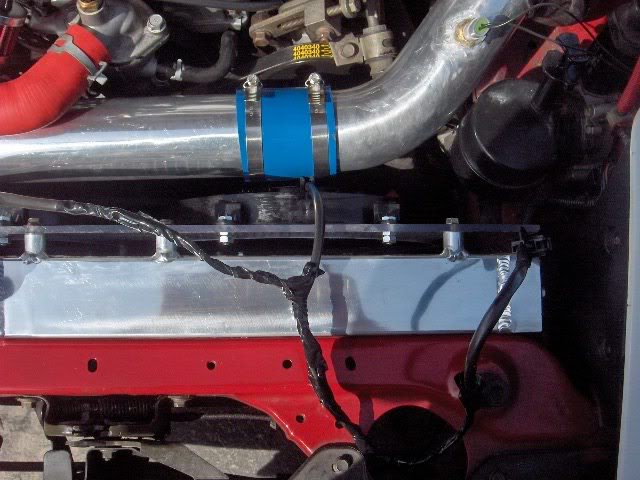

Name:  018-1.jpg
Views: 1
Size:  60.5 KB
Name:  017-1.jpg
Views: 1
Size:  62.8 KB
miataz is offline   Reply With Quote
Old 04-06-2008, 06:39 PM   #14
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

You still didn't post your MS settings.

So the fans come on at 180* per megatune guage but they never go off? Try puting it to 200*F or so. You need to see what the settings are.
patsmx5 is offline   Reply With Quote
Old 04-06-2008, 07:07 PM   #15
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
You still didn't post your MS settings.

So the fans come on at 180* per megatune guage but they never go off Try puting it to 200*F or so. You need to see what the settings are.
What settings? Where do i go to get them? The shift light-fan-output thing? Im nood at MS help me out here where i find these settings.
miataz is offline   Reply With Quote
Old 04-06-2008, 07:17 PM   #16
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Sorry, I don't know MSI, I use MS II. I go to MT, then Exteded, then Output Port. Their, I can select different outputs to be controlled by various inputs, such as fans controlled by coolant temp.
patsmx5 is offline   Reply With Quote
Old 04-06-2008, 07:52 PM   #17
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

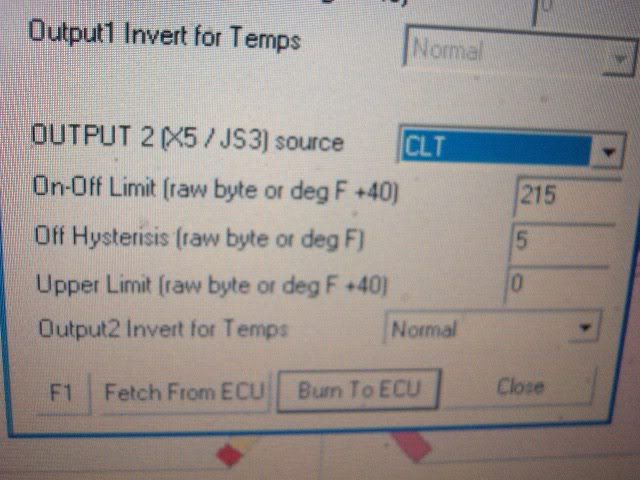

Alright i think i know what your talking about...if this is it here it is:

Name:  023.jpg
Views: 1
Size:  48.6 KB

one of those i think it is? And do you think its not cooling down cause its not sealed?
miataz is offline   Reply With Quote
Old 04-06-2008, 07:59 PM   #18
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Damnit, answer my questions. Do the fans come on at 180 or do they come on all the time? I already asked you this. Right now, your screen shot shows they come on at 215 and have to go down to 210 (hence the 5*F hysteria) to shut off. That means they 'should' come on at 215, off at 210, and repeat. Do they run all the time as in key on the fans are on? Jeezus, answer the questions. Do they run all the time? Ok, I asked the same thing 3 times, maybe you'll get it this time.
patsmx5 is offline   Reply With Quote
Old 04-06-2008, 08:38 PM   #19
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Lmao alright they come on at 180. And the thermo switch isnt hooked up and my temps dont even go down when there on.
miataz is offline   Reply With Quote
Old 04-06-2008, 08:50 PM   #20
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Well, you have them set to come on at 215 by the pic, so somethings wrong. If MS is running fan control then that thermo switch has no effect. Why don't you try turning the car on when it's cold and varying the setting on fan control and verify you can make them come on and off by changing the on/off temp. For example, put it to 0*F and 1000*F, they should go on and off. Turn your brain on and think, troubleshoot, and eliminate possible problems until you discover the error.
patsmx5 is offline   Reply With Quote
