Old 04-07-2008, 12:08 AM   #21
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Well, you have them set to come on at 215 by the pic, so somethings wrong. If MS is running fan control then that thermo switch has no effect. Why don't you try turning the car on when it's cold and varying the setting on fan control and verify you can make them come on and off by changing the on/off temp. For example, put it to 0*F and 1000*F, they should go on and off. Turn your brain on and think, troubleshoot, and eliminate possible problems until you discover the error.
Yes i know i was fooling around with that and they were going off and on didnt know why. And so thats why the thermo switch is pointless i see. Soo what would i have to set them at then, is it not cooling off cause my fan shroud isnt sealed and its pulling air from anywhere?
miataz is offline   Reply With Quote
Old 04-07-2008, 12:12 AM   #22
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

I don't know, but you should definitely try sealing the shroud. Oh, and please TRY to use a little bit better grammar. I hate being a grammar ****, and yours isn't terrible, just saying I had to read it twice to understand it.
patsmx5 is offline   Reply With Quote
Old 04-07-2008, 12:44 PM   #23
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
I don't know, but you should definitely try sealing the shroud. Oh, and please TRY to use a little bit better grammar. I hate being a grammar ****, and yours isn't terrible, just saying I had to read it twice to understand it.
Sorry i just type so fast sometimes and forget to proof read before i post. Alright im going to use this tape,

I believe its called heat tape, it looks like tinfoil and is very sticky . Its used around your furnace pipes to hold them together and good for heat hence the name, and i have lots of it. So im going to give that a shot and tell you how it works out.
miataz is offline   Reply With Quote
Old 04-07-2008, 12:52 PM   #24
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

That's called duct tape. Anyway, I would suggest using some weather stripping myself to seal it up.
patsmx5 is offline   Reply With Quote
Old 04-07-2008, 06:28 PM   #25
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Ok so i used weather stripping but it was round not rectangular so it sealed better then i put that tape over it. Went for a drive fans went on at 180deg but there always on and the car temp stays at 184deg all the time says megatune is this normal? Or should it be cooling down fans go off then come back on or stay at that current temperature, cause i dont want my car overheating.
miataz is offline   Reply With Quote
Old 04-07-2008, 06:48 PM   #26
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

this does not sound right?
your fans should come on when MS tells them to come on, if your ms is set to turn fans on at 215 and they are coming on at 180, then you may have a problem...
however, think your problem is that your MS looks like it is set to turn fans on at 180 and off at 155, that's not good, your car will never be at 155 while driving, that is way too cold...
Set fans on at 207, of at 197 and see how that goes for ya...(or you can do on at 197 off at 187)
do that, report back
Zabac is offline   Reply With Quote
Old 04-07-2008, 07:26 PM   #27
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by Zabac View Post
this does not sound right?
your fans should come on when MS tells them to come on, if your ms is set to turn fans on at 215 and they are coming on at 180, then you may have a problem...
however, think your problem is that your MS looks like it is set to turn fans on at 180 and off at 155, that's not good, your car will never be at 155 while driving, that is way too cold...
Set fans on at 207, of at 197 and see how that goes for ya...(or you can do on at 197 off at 187)
do that, report back
Alright thats what i was thinking, il bbs lol
miataz is offline   Reply With Quote
Old 04-07-2008, 07:59 PM   #28
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

No go changed it to what you said...fans are still coming on at 180deg. Where it says fan on and fan off temperature i think thats if you wire it to the MS with the pins.

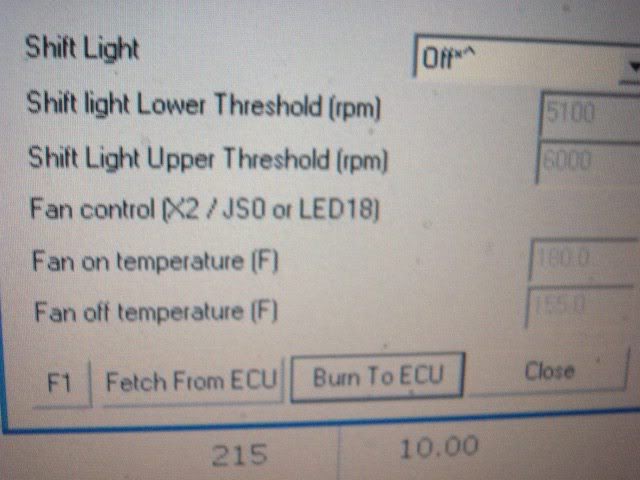

Name:  022-1.jpg
Views: 0
Size:  39.9 KB
And i changed it to inverted on this one on the bottom and they went off...fooled around with the numbers never turned on put it back to normal fooled around with the numbers again and they are still coming on at 180deg

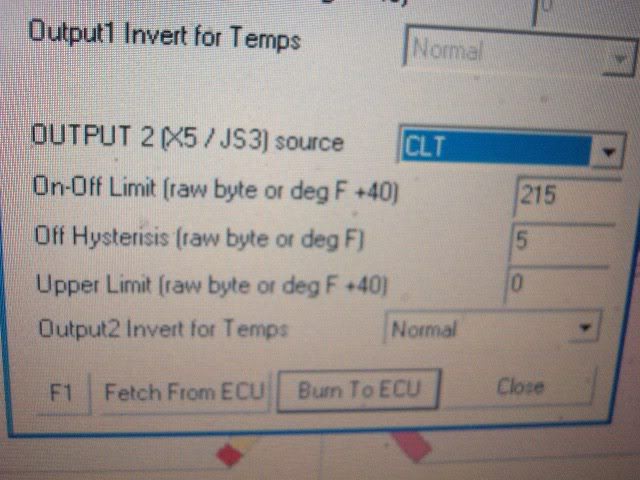

Name:  023.jpg
Views: 0
Size:  48.6 KB
miataz is offline   Reply With Quote
Old 04-07-2008, 08:02 PM   #29
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

****, I dunno. Why the hell would MS turn them on sooner? Turn fan control off and go for a ride and see if they still come on a 180. Do you still have the stock ecu? Is the stock coolant sensor thing maybe cutting in and turning them on? Your settings look fine, you must have some wiring wrong or something.
patsmx5 is offline   Reply With Quote
Old 04-07-2008, 09:08 PM   #30
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

perhaps a sticking relay?
Arkmage is offline   Reply With Quote
Old 04-07-2008, 09:36 PM   #31
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
****, I dunno. Why the hell would MS turn them on sooner? Turn fan control off and go for a ride and see if they still come on a 180. Do you still have the stock ecu? Is the stock coolant sensor thing maybe cutting in and turning them on? Your settings look fine, you must have some wiring wrong or something.
Did that turned them off still come on lol. Nope no stock ecu just the MSPNP. Um the thermo-switch(stock coolant sensor) isnt even hooked up and they still come on and when it is they still come on. And i believe someone said that when you use MS its not even used to control the fans to come on. Pic again of how there hooked up

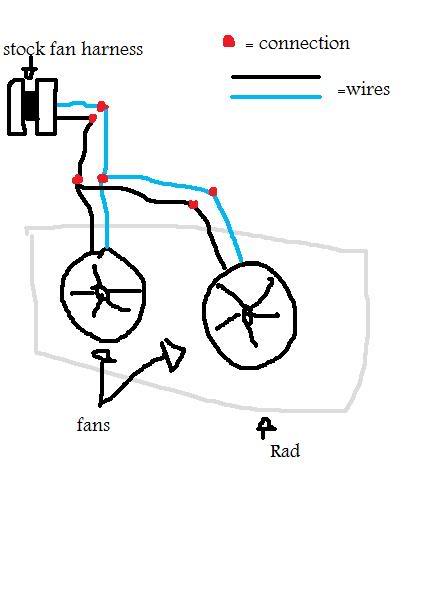

Name:  Untitled.jpg
Views: 0
Size:  21.0 KB

i need this fixed insurance is going to be on this weekend!!!
miataz is offline   Reply With Quote
Old 04-08-2008, 11:04 AM   #32
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

when you got your MSPnP, it came with instructions, no?
if it did, did you follow instructions on how to wire up the fans, did you even install it yourself?
Did your Stock fan come on at 180, or do you even know this.
Describe in proper english the series of events that lead to the problem.
ex: install MS, tune, all good, install fans, problem...etc.
Zabac is offline   Reply With Quote
Old 04-08-2008, 11:11 AM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Here's a brillant idea. I dunno where I come up with this ****:

Email Matt or Jerry and ask them exactly what you change to alter the temp that switches the cooling fans on.
Braineack is offline   Reply With Quote
Old 04-08-2008, 11:20 AM   #34
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

duh duhrer
Zabac is offline   Reply With Quote
Old 04-08-2008, 11:26 AM   #35
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Read, people. Or search. Output 2 controls the fan. On-Off Limit controls the switch temp. Notice that it says, right next to that, in parenthesis, that the value is deg F +40...meaning that a value of 215 means temp switchpoint is 175.

The hysteresis value controls the time/temp variance for on/off control (so that the fan isn't constantly switching on/off right at the switch point).

This is all explained in the MSPNP manual, as well as in previous posts on this forum. READ!
Atlanta93LE is offline   Reply With Quote
Old 04-08-2008, 11:40 AM   #36
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Besides, 180F is just barely warmed up. Take Zapac's advice and set it for ~200 (remember, in stock form, the fan turns on at 207F...so stop freaking the **** out).
Atlanta93LE is offline   Reply With Quote
Old 04-08-2008, 05:32 PM   #37
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Okay i put the on-off limit to 247 cause you said its -40 so that means they go on at 207deg right, and then i put the off hysteresis to 50 so that means they turn off at 197. Am i correct?
miataz is offline   Reply With Quote
Old 04-08-2008, 05:46 PM   #38
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

OMG, he said read. Do what he said. It would be the best thing you could possibly do. I know what you need to do now, I read.
patsmx5 is offline   Reply With Quote
Old 04-08-2008, 05:48 PM   #39
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

I did ******* read cant you just answer the god dam question yes or no is it that hard...
edit:my manual got burnt up
miataz is offline   Reply With Quote
Old 04-08-2008, 05:55 PM   #40
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

We should build a corral for you people. Round you up and beat you with the ******* documentation!

Congrats, you are the second person on my ignore.
jayc72 is offline   Reply With Quote
