Old 07-15-2008, 09:02 PM   #21
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Posts: 84
Total Cats: 0
Default

Thanks for the update Paul, good spool with that 2560! I wish you could post a log with your DD for a better comparison!
compuatic is offline   Reply With Quote
Old 07-15-2008, 09:17 PM   #22
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

i'll try tomorrow. i'm actually letting it sit though since the front pads are so low one started grinding. new are on order.
paul is offline   Reply With Quote
Old 07-15-2008, 09:28 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

NO FEAR: If you aren't living on the edge, you aren't living....
Braineack is offline   Reply With Quote
Old 07-15-2008, 09:51 PM   #24
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

'94 1.8 (8.8:1 comp), GT2554R w/ 7psi can, Bell S3 manifold, SSSG DP, 3" metal core cat, 3" Enthuza

the equivalent of a 4th gear pull on a 5speed/4.1 car (5th gear in my car).

1750rpm: 1.0psi
1870rpm: 2.1psi
2014rpm: 3.3psi
2478rpm: 5.4psi
2626rpm: 6.1psi
2783rpm: 7.3psi
3004rpm: 9.4psi
3188rpm: 11.0psi
3394rpm: 12.5psi
3601rpm: 14.1psi
Savington is online now   Reply With Quote
Old 07-15-2008, 09:52 PM   #25
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by paul View Post
3000rpm 10.4
absurd.

I need real boost control instead of this ball 'n spring.
y8s is offline   Reply With Quote
Old 07-15-2008, 11:48 PM   #26
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

you like?

here's what happened when i pulled from 1750rpm

100% tp @ 1750rpm

2000rpm 2.9psi
2200rpm 4.6psi
2500rpm 6.5psi
2700rpm 8.5psi
3000rpm 11.6psi
3200rpm 14.0psi
paul is offline   Reply With Quote
Old 07-16-2008, 10:16 AM   #27
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Damn. damn damn.

I will datalog my car for sure, but I think the twins can't get to 14psi til after 4000. They make like 5psi really low but then sorta stay there until the revs climb.

Anyone want a TT setup? Maybe Mark will buy one of the 1548's. Partial trade for a VVT head?

I'll use the stainless absurdflow manifold that I'm making and the 2560 off my subaru. I bet artie is getting anxious.
TurboTim is offline   Reply With Quote
Old 07-16-2008, 10:29 AM   #28
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Quote:
Originally Posted by turbotim View Post
I Bet Artie Is Getting Anxious.
Is It Done????
ArtieParty is offline   Reply With Quote
Old 07-16-2008, 10:32 AM   #29
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Sorry buddy, next week. It's close though.
TurboTim is offline   Reply With Quote
Old 07-16-2008, 10:59 AM   #30
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by paul View Post
you like?

here's what happened when i pulled from 1750rpm
ok so mine was from 2300. dyno operator gave me the "hammer down" at that point
y8s is offline   Reply With Quote
Old 07-16-2008, 12:00 PM   #31
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Quote:
Originally Posted by TurboTim View Post
Sorry buddy, next week. It's close though.
It's cool. Perfection needs time. Once its done I can dyno and post my spool numbers here too. Sorry for the thread hijack.
ArtieParty is offline   Reply With Quote
Old 07-16-2008, 12:01 PM   #32
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
plus the gutted stock cat....most definitely.

Man, I guess I need to ditch my RB exhaust as well. The T3 spools a tad late, anything quicker would be nice.
96rdstr is offline   Reply With Quote
Old 07-16-2008, 12:40 PM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I performed some mild headwork and I gained a touch better spool.....this was with a 2.25" borla exhaust.



this is no headwork with a MBC compared to headwork with an open wastegate line.... what can clearly tell is the headwork helped spool the turbo a touch earlier....you can also see my boost creep started to appear


upgraded to a 3" magnaflow....the difference is clear:

Braineack is offline   Reply With Quote
Old 07-16-2008, 07:46 PM   #34
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by paul View Post
Just gotta talk the girlfriend into it now. BRB.
Joe Perez is offline   Reply With Quote
Old 07-17-2008, 01:43 AM   #35
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I'm seeing 14psi just before 4000rpm in 4th gear. I suspect I'll get a boost a couple 100rpm sooner when I change out my exhaust. right now it is 2 1/4" Spec Miata exhaust with an extra glass pack resonator. Ideal it's not. No fancy EBC, just a ball and spring MBC.
jayc72 is offline   Reply With Quote
Old 07-17-2008, 02:05 AM   #36
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
I performed some mild headwork[/img]
Cough cough....
neogenesis2004 is offline   Reply With Quote
Old 07-17-2008, 10:30 AM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by neogenesis2004 View Post
Cough cough....

there was mild work performed on my head....


happy?
Braineack is offline   Reply With Quote
Old 07-17-2008, 04:11 PM   #38
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Just stealing your lime light :P
neogenesis2004 is offline   Reply With Quote
Old 07-17-2008, 04:43 PM   #39
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Posts: 84
Total Cats: 0
Default

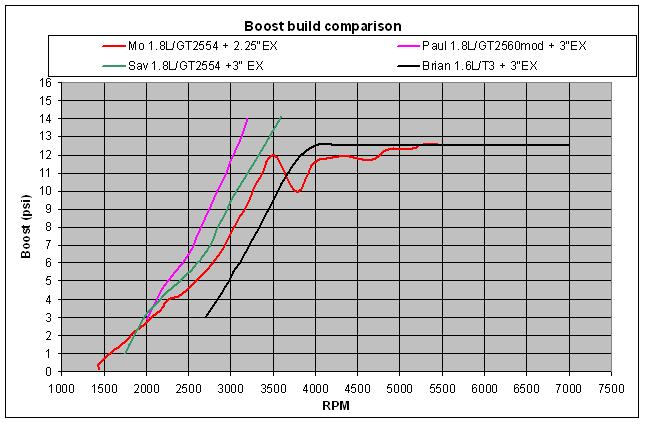

How about this for an interesting comparison? My setup vs paul vs brian vs Sav
Attached Thumbnails
GT2554 spool is horrible-boost.jpg
compuatic is offline   Reply With Quote
Old 07-17-2008, 04:59 PM   #40
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I just found my log here that I took about 2 weeks ago just to record my spool....

RPM PSI

2500 1.5psi
2700 3psi
3000 5psi
3300 7psi
3600 10psi
3767 11.6psi
3788 12.9psi
3861 14.0psi
3900 16.2psi

3rd gear, 70*F morning

in fourth, log shows spool is about 150rpm faster.

can you redo with those numberz please.
Braineack is offline   Reply With Quote
