Old 07-17-2008, 05:08 PM   #41
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

and add mine
y8s is offline   Reply With Quote
Old 07-17-2008, 05:38 PM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by y8s View Post
and add mine

here we go:
Attached Thumbnails
GT2554 spool is horrible-spool.jpg
Braineack is offline   Reply With Quote
Old 07-17-2008, 05:50 PM   #43
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Posts: 84
Total Cats: 0
Default

here we go
Attached Thumbnails

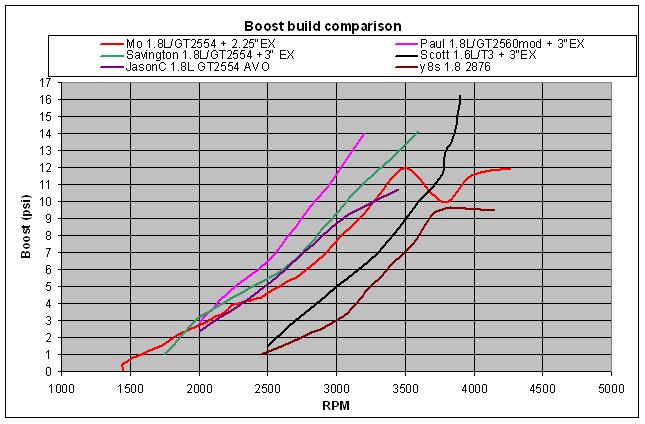

GT2554 spool is horrible-boost2.jpg

Last edited by compuatic; 07-17-2008 at 06:00 PM.
compuatic is offline   Reply With Quote
Old 07-17-2008, 06:12 PM   #44
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

i tried to find a picture of the S3 manifold to compare Savington's to the rest but I gave up on the page when it tried to load 5 megs of thumbnails.
y8s is offline   Reply With Quote
Old 07-17-2008, 06:39 PM   #45
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

mo, if anything, add some timing between 1500 and 30ooRPM and 100-150kpa

curious, what does your timing map look like?
Braineack is offline   Reply With Quote
Old 07-17-2008, 06:43 PM   #46
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Posts: 84
Total Cats: 0
Default

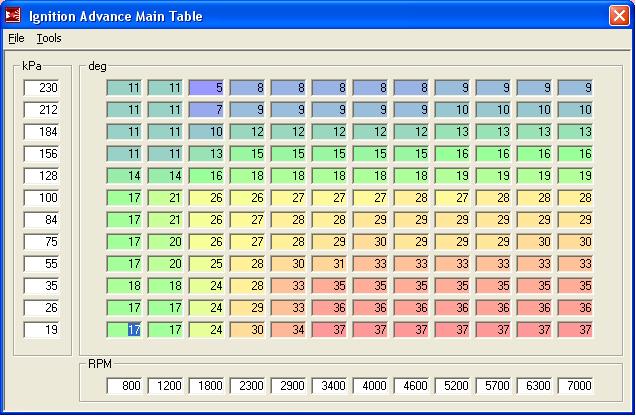

This was also a suggestion made by Corky, This is what i'm using Scott, let me know your opinion...
Attached Thumbnails
GT2554 spool is horrible-timing.jpg
compuatic is offline   Reply With Quote
Old 07-17-2008, 06:48 PM   #47
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Why the **** do i get the pink line?
paul is offline   Reply With Quote
Old 07-17-2008, 07:20 PM   #48
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by paul View Post
Why the **** do i get the pink line?

Cause you're a ------, alright?
Braineack is offline   Reply With Quote
Old 07-17-2008, 07:21 PM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by compuatic View Post
This was also a suggestion made by Corky, This is what i'm using Scott, let me know your opinion...

if you look at FMs default map for a 1.6L turbo, you can see what I mean. This is the area I wanted to play with last weekend on the dyno....

Braineack is offline   Reply With Quote
Old 07-18-2008, 03:50 PM   #50
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Posts: 84
Total Cats: 0
Default

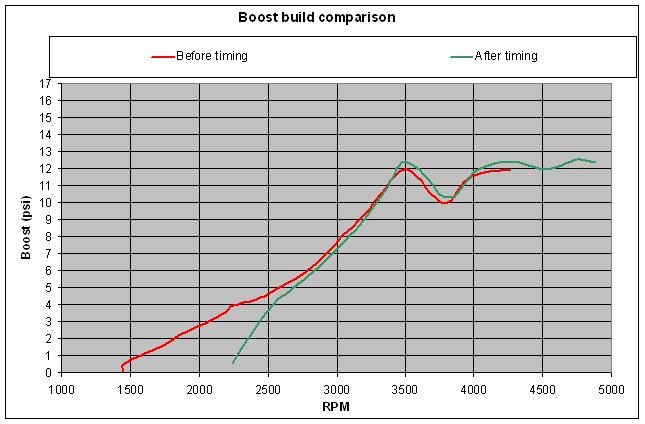

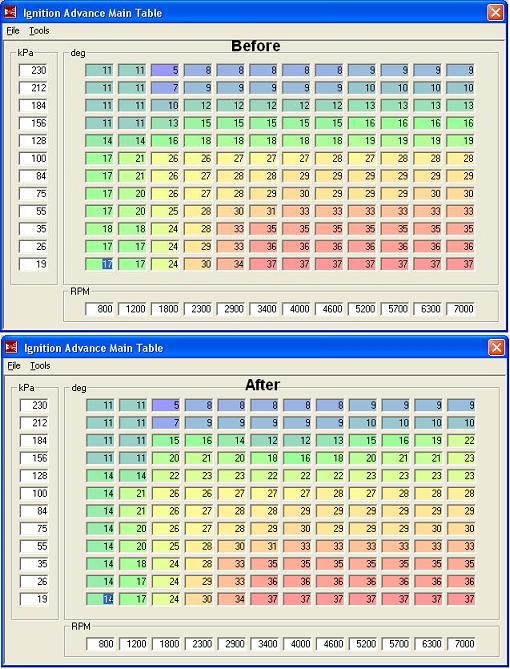

So i went and made changes to my timing map. see the before and after below and then look at the before and after spool improvement. In summary, nothing... any thoughts or theories?
Attached Thumbnails
GT2554 spool is horrible-timingchange.jpg   GT2554 spool is horrible-boostchange.jpg
compuatic is offline   Reply With Quote
Old 07-18-2008, 05:12 PM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

get an ebc.....
Braineack is offline   Reply With Quote
Old 07-18-2008, 06:16 PM   #52
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by y8s View Post
simple test:
1. set overboost cut to 15 psi
2. remove vacuum line from wastegate actuator and plug vac line.
3. log that bish.
Quote:
Originally Posted by Braineack View Post
get an ebc.....
if my test above (he says he did that) doesn't spool it any faster, an EBC wont do it either.
y8s is offline   Reply With Quote
Old 07-18-2008, 06:18 PM   #53
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

true...do that test.
Braineack is offline   Reply With Quote
Old 07-18-2008, 06:53 PM   #54
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I think the only thing to fix is this:

Quote:
hollow stock cat and 2.25" racing beat exhaust.
I have a similar exhaust and similar spool numbers. OP has an EBC already.
jayc72 is offline   Reply With Quote
Old 07-18-2008, 07:13 PM   #55
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Posts: 84
Total Cats: 0
Default

but you also have a smaller engine.
compuatic is offline   Reply With Quote
Old 07-18-2008, 09:12 PM   #56
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by compuatic View Post
but you also have a smaller engine.
I think the exhaust is enough of a restriction. You'll probably see a larger gain than I will from a good exhaust setup.
jayc72 is offline   Reply With Quote
Old 07-18-2008, 09:26 PM   #57
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Sorry I'm late to this party. I'm running the SR20det T25, BegiSS dg downpipe, 2.5" test pipe, 2.25" Borlas. My spool looks exactly like yours comp.
samnavy is offline   Reply With Quote
Old 07-18-2008, 09:56 PM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

here's how sam's looks, compared to mine.

Braineack is offline   Reply With Quote
Old 08-02-2008, 07:28 PM   #59
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

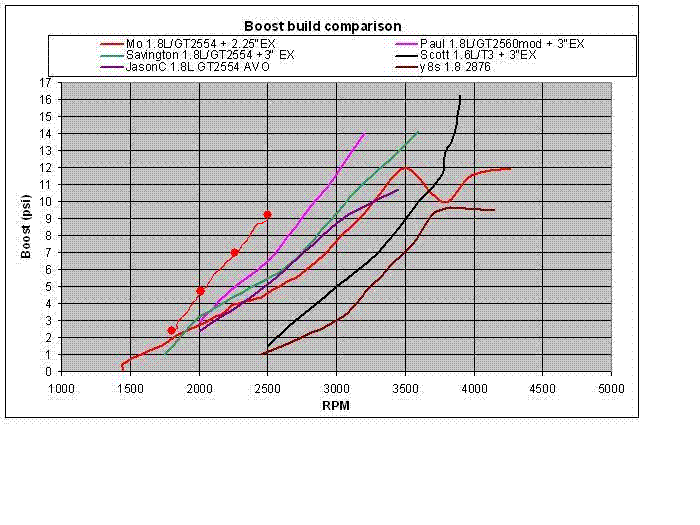

The spoolup data in the above compilation is a 2nd gear pull. Here's the data with my 4th gear data added/
Attached Thumbnails
GT2554 spool is horrible-spool.gif
JasonC SBB is offline   Reply With Quote
Old 08-03-2008, 06:23 PM   #60
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Great thread! Here is another one to add. I just hooked up my EBC today and am still tuning it so there is some overshoot and oscillation. The target boost is about 7.5 psi. This is a 4th gear pull on a hot 102 deg F day.

Setup
GT2560
BEGI cast manifold
BEGI stainless DP
2.5" exhaust: hi-flow metallic cat, straight through resonator, straight through muffler, all magnaflow
MS open loop boost control
GM boost solenoid
RPM Boost (psi)
2136 0.44
2378 3.53
2521 4.56
2864 6.91
3091 8.53
3184 9.11
3445 7.2
3694 8.09
3989 7.35
4294 7.64
4472 8.09

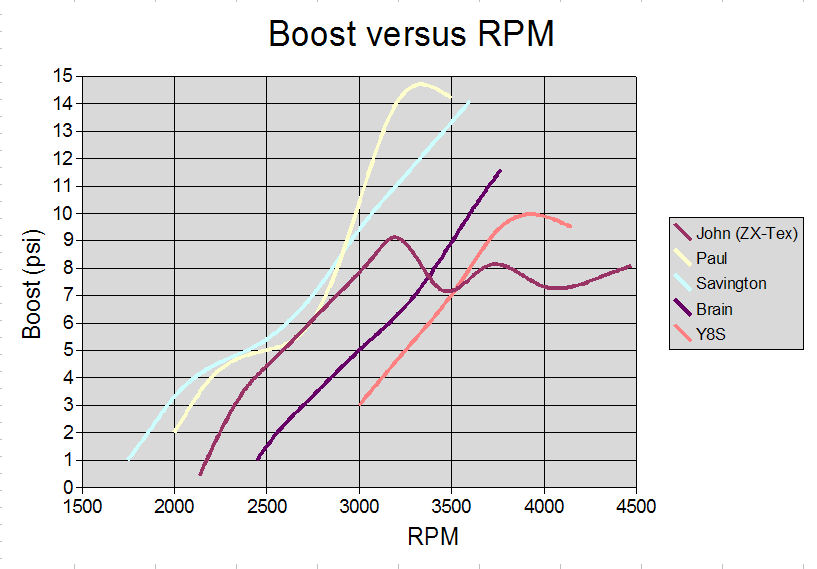

Here is a chart. Paul's spool is, well, absurd. Sav's looks great. Looks like mine is pretty good. I need to get that new clutch in so I can turn up the boost. The stock clutch is slipping fo sho.
Attached Thumbnails
GT2554 spool is horrible-boost-graph-2.jpg

Last edited by ZX-Tex; 08-03-2008 at 07:07 PM.
ZX-Tex is offline   Reply With Quote
