Default half shaft coming out?

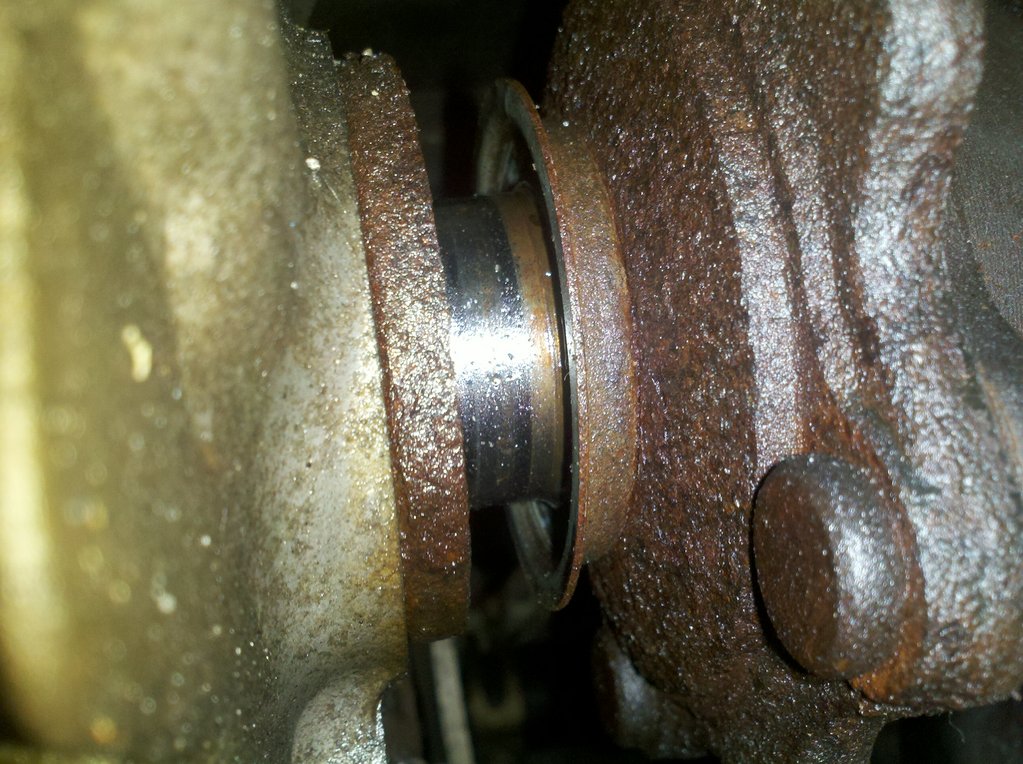

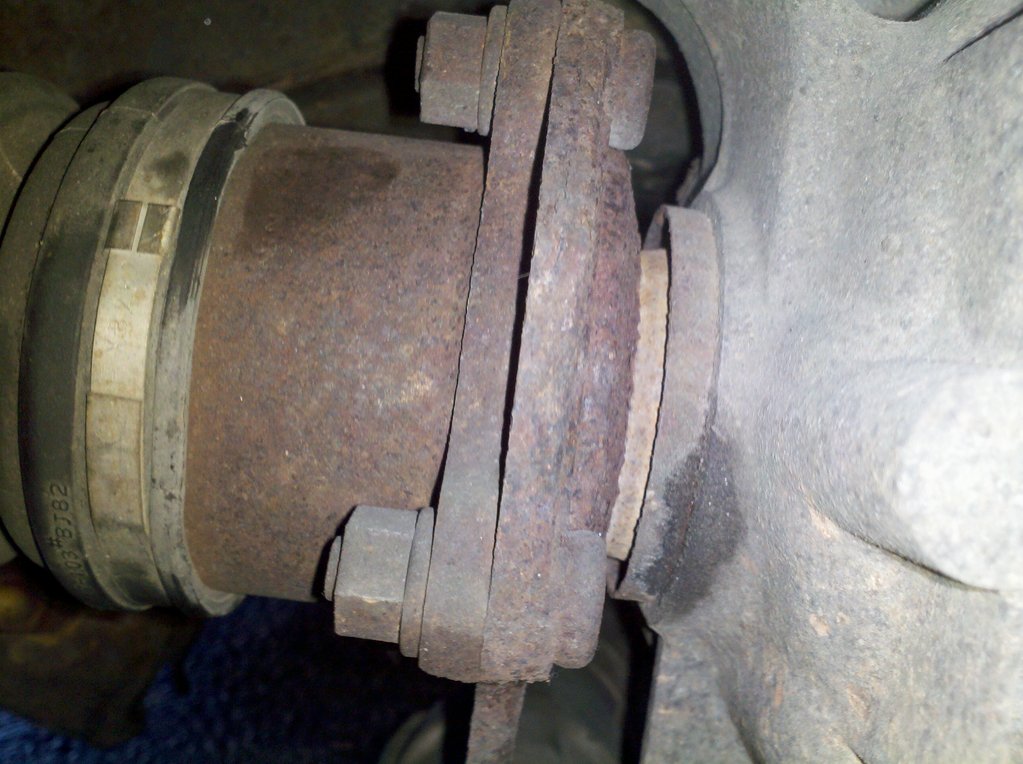

this is what i've got on one side. obviously, fluid is leaking profusely. this is what i've got on the other side:


what can i do?
Attached Thumbnails
half shaft coming out?-491905436_photobucket_44317_.jpg   half shaft coming out?-491905436_photobucket_44318_.jpg
KasbeKZ is offline   Reply With Quote
Old 08-30-2011, 07:56 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

(Posting from my phone.)

Push it back in.
Braineack is offline   Reply With Quote
Old 08-31-2011, 12:53 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Posts: 228
Total Cats: 0
Default

i've been shoving it and whacking it with hammers and all and it just won't go.
KasbeKZ is offline   Reply With Quote
Old 08-31-2011, 09:08 AM   #4
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Pull it the rest of the way out.
fooger03 is offline   Reply With Quote
Old 08-31-2011, 09:18 AM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Posts: 228
Total Cats: 0
Default

what goal will that help me reach? anyway, there is no room to pull it farther out.
KasbeKZ is offline   Reply With Quote
Old 08-31-2011, 09:20 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

unbolt the half shaft. Then you may have to knock out a stud or two to move it out of the way. Then you can pull ot the stub shaft. There should be a circlip on the very end of it that fits into a groove inside the differential (this is what holds it in). Possible it got damages and mangled and why you cant refit it.
Braineack is offline   Reply With Quote
Old 08-31-2011, 09:34 AM   #7
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

OMG...someone knoes how to take a proper close-up picture/use the preview function of their camera before posting a picture that's as easy to view as a billboard in a blizzard. Thank you.
Doppelgänger is offline   Reply With Quote
Old 08-31-2011, 09:35 AM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

Or just remove the outer upper control arm bolt to move the shaft out of the way. My clip was too closed up to snap in place and hold the shaft in. You probably have the same issue, or the clip is missing. If missing you might want to check and make sure it's not inside somewhere.
m2cupcar is offline   Reply With Quote
Old 08-31-2011, 09:43 AM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Posts: 228
Total Cats: 0
Default

good advice. thank you. the idea of knocking the studs out was exactly what i needed. shouldn't be a problem with those out.

as for the ring, the shaft is very hard to get back in at this point. i imagine that the ring is still on there and it'll take a good solid hit straight on with the shaft unbolted to get it to slide in. i'll take it out and take a look though. thanks all.

btw, sarcasm about the pics? my droid just re-sizes them automatically when it sends them usually lol.
KasbeKZ is offline   Reply With Quote
Old 08-31-2011, 10:17 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

No, it was a compliment. Many users don't know what "focus" means.
Braineack is offline   Reply With Quote
Old 08-31-2011, 10:25 AM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Posts: 228
Total Cats: 0
Default

haha thanks. they should get droids. makes posting very easy. 1/4 the time it used to take me with a dumb phone.
KasbeKZ is offline   Reply With Quote
Old 08-31-2011, 11:55 AM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Posts: 228
Total Cats: 0
Default

thanks all. finally got it this morning. the idea about knocking the studs out got it done in a pretty timely fashion. the clip seemed to be in fine shape, so one good whack with a mallet on a piece of wood and it finally clipped right in.
