Default Help me identify this connector! (Pics)

Dear MT.net,

I have searched and searched, and have been thoroughly unable to identify this single-pin connector.

It's from a '90-'93 miata, and it's part of the whole CAS/etc. harness. It is NOT the single connector from the fuel rail!

Pictures included to hopefully help me identify this gorramn thing, I seem to have not properly marked it when I disconnected it.
Attached Thumbnails

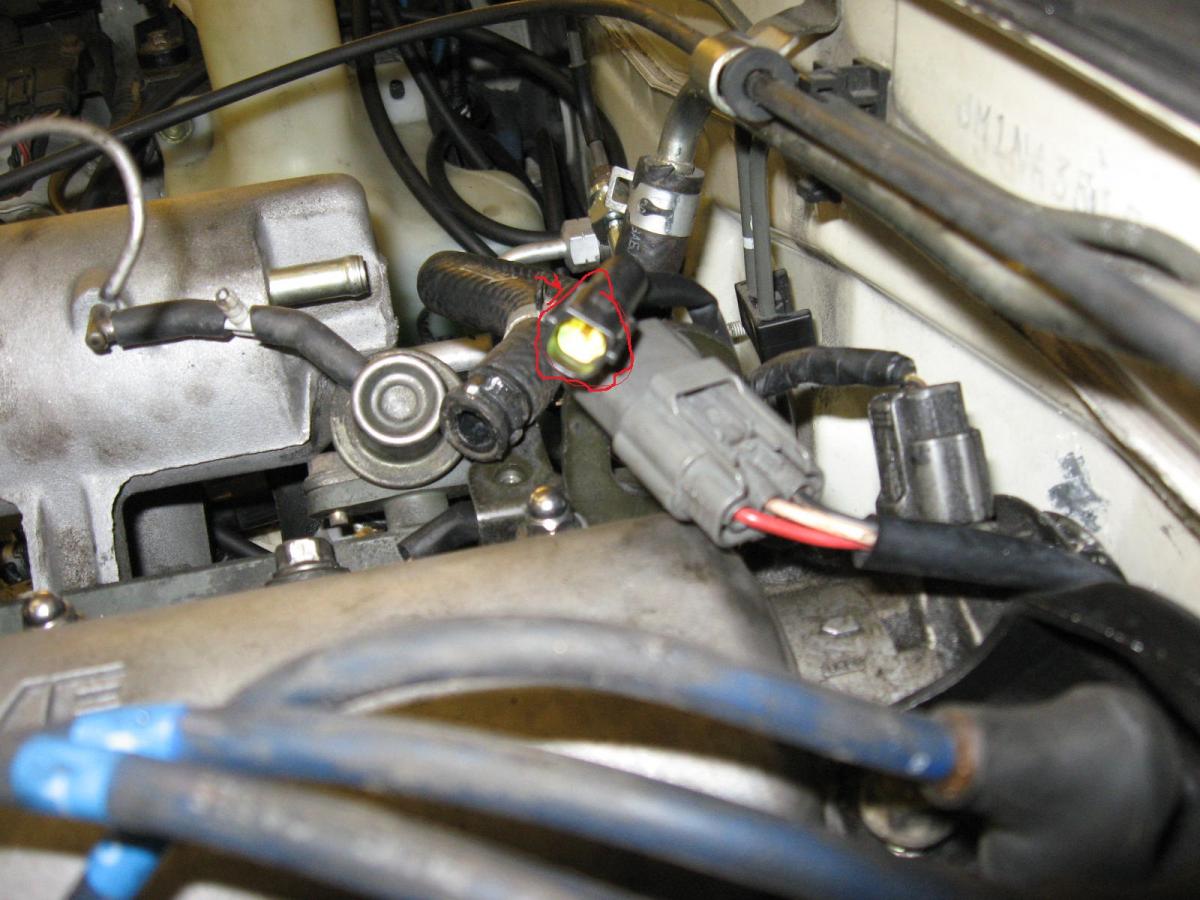

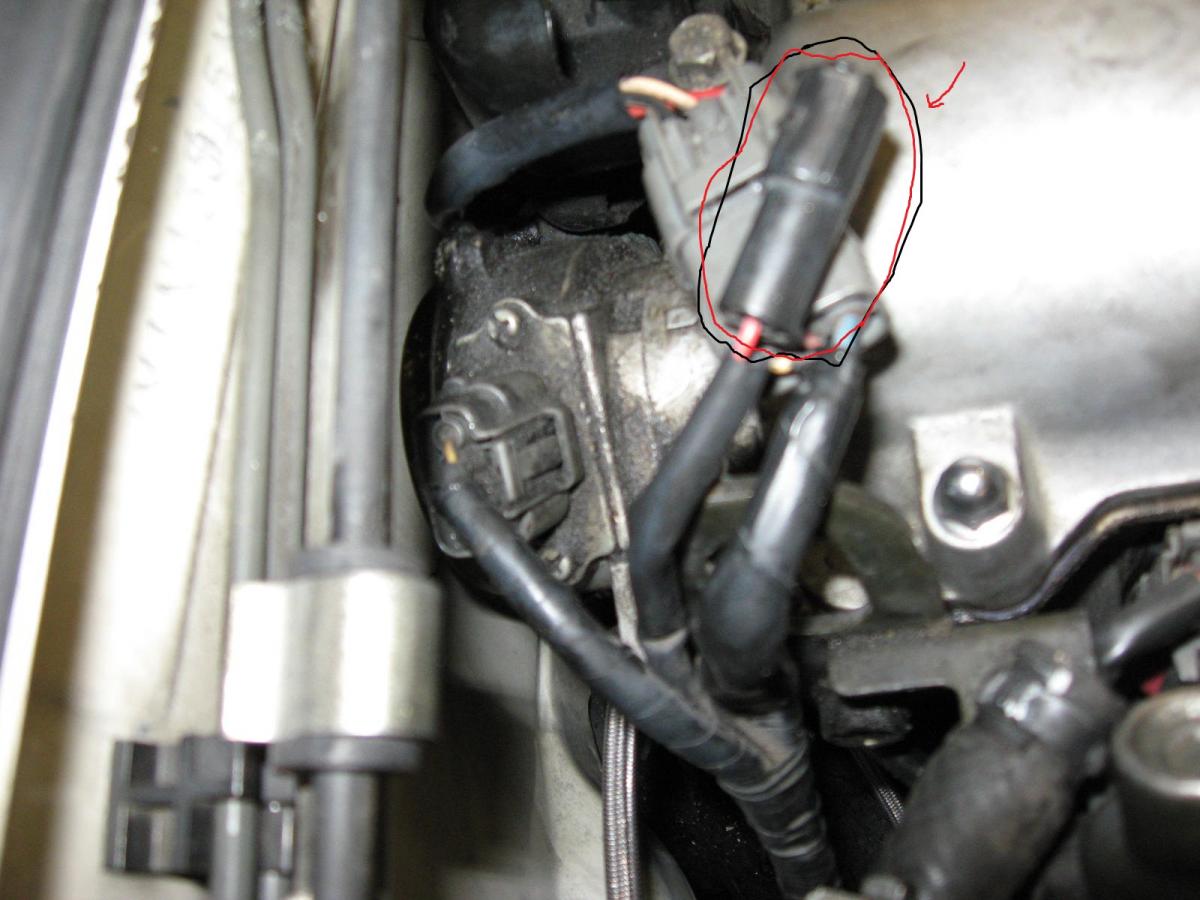

Help me identify this connector! (Pics)-img_0614.jpg   Help me identify this connector! (Pics)-img_0613.jpg
blaen99 is offline   Reply With Quote
Old 07-30-2011, 10:59 PM   #2
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Thats for CA cars (I think)

Its a red and white wire, right?
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-30-2011, 10:59 PM   #3
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default

# and colors of wires?
jasonrobo02 is offline   Reply With Quote
Old 07-30-2011, 11:19 PM   #4
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,437
Total Cats: 84
Default

Single wire O2 connector
olderguy is offline   Reply With Quote
Old 07-30-2011, 11:27 PM   #5
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by olderguy View Post
Single wire O2 connector
Thank you OG! That's exactly why there's no longer a connector there!
blaen99 is offline   Reply With Quote
Old 08-01-2011, 12:14 AM   #6
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

I swear, that connector comes up with "what is this connector" threads more than any other! I even made one a year or so ago.
astroboy is offline   Reply With Quote
