Default Hot While Cranking Ignition Sources (99)

So I'm doing a little wiring project. I'll post some pictures etc when I'm done but the summary is that I'm adding an accessory 6 fuse panel to the car. Anyway I want to power it through a relay, using a hot while cranking source.

Does anyone have any reliable hot while cranking sources. Come to think of it, to make this a resource for others, List what you use as 12 switched sources on the car and list if they are hot while cranking or not.

Thanks in advance!
EErockMiata is offline   Reply With Quote
Old 07-14-2015, 11:50 PM   #2
Boost Pope
iTrader: (8)
Joe Perez's Avatar
Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,913

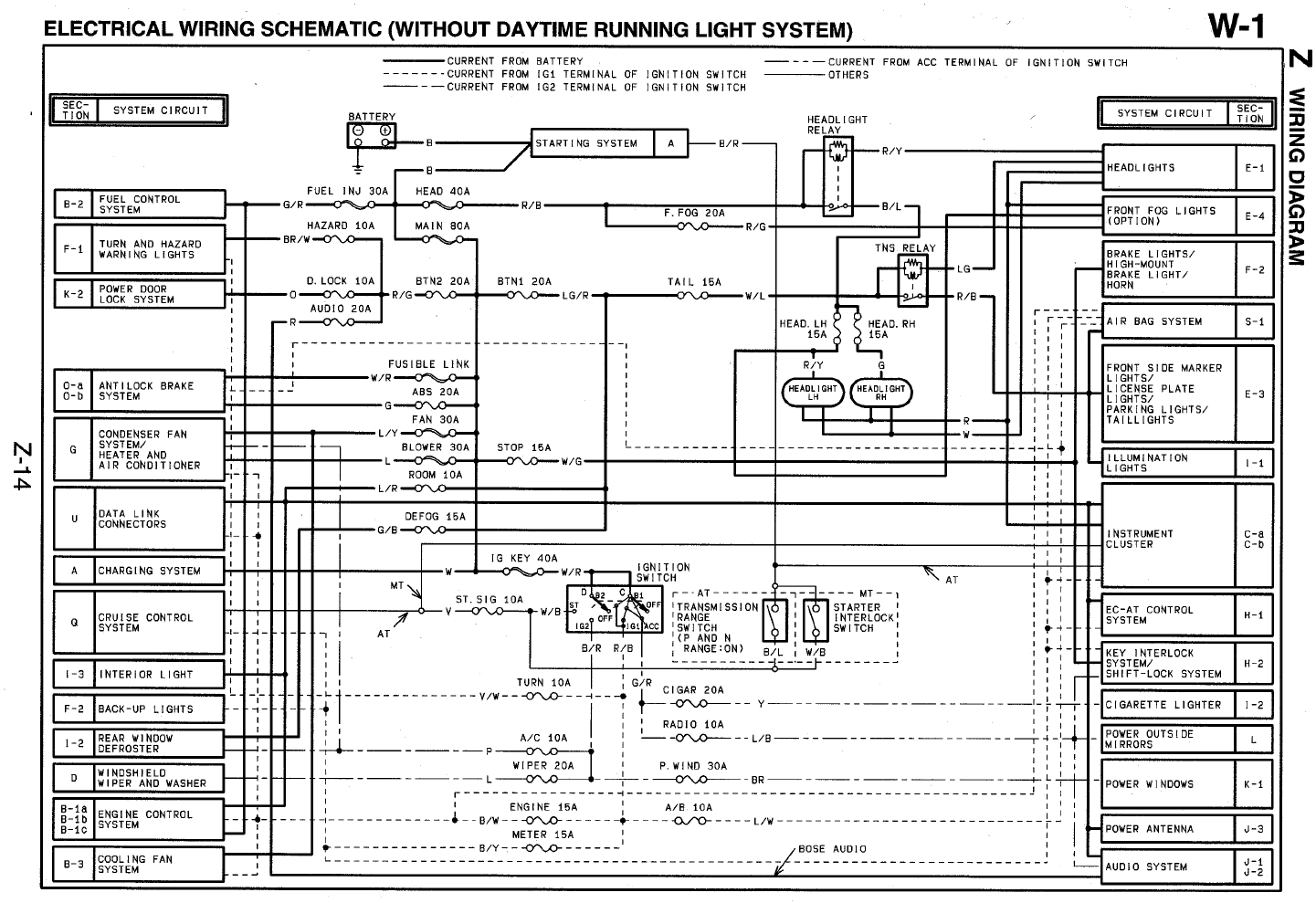

Everything on the dashed R/B wire coming off of IG1 of the ignition switch is hot while cranking:

Attached Thumbnails
Hot While Cranking Ignition Sources (99)-80-hotwhilecranking_8eb9c59ea90886e80c014edfc23b458f8edd9105.gif
Joe Perez is online now   Reply With Quote
