Default How should i ground my oil temp. sender?

I have my autometer oil temperature sender mounted inside a mishimoto oil filter spacer back when I needed a oil feed for my turbo (99 block). Now that I am using a 94 block with the supply port on the driver's side, I have nothing else installed in the spacer. I have been wondering why my oil temp. gauge isn't reading anything, and I think its because now it is fully insulated from the engine. The oil filter spacer has an o-ring where it mates to the block and the oil filter has an o-ring on it. (obviously)

Has anyone had this problem or does everyone tap into the pan/oil drain?

Reference:
Resources - FAQs - Detail
danotakulus is offline   Reply With Quote
Old 05-09-2016, 06:59 PM   #2
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Send it to bed without dinner.
rleete is offline   Reply With Quote
Old 05-09-2016, 07:17 PM   #3
Junior Member
Thread Starter

Join Date: Jan 2009
Location: Freehold nj
Posts: 50
Total Cats: 2
Default

Quote:
Originally Posted by rleete View Post
Send it to bed without dinner.
Do I read it a bedtime story too?
danotakulus is offline   Reply With Quote
Old 05-09-2016, 09:07 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Seems the easy thing would just be to drill and tap a small hole into the body of the spacer for, say, a #10 screw, and then use that to secure a ring terminal to the body, like this one:



Thence, a short wire secured somewhere to the block (try to keep it away from the alternator), and you're good.
Attached Thumbnails
How should i ground my oil temp. sender?-80-ring_e7e4384aec03054b1f348fbbc6bdf17f3d90f5e6.png
Joe Perez is offline   Reply With Quote
Old 05-09-2016, 09:08 PM   #5
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Have you verified connectivity between sender housing and ground with a voltmeter? If it has contact, ground is not your problem.
stefanst is offline   Reply With Quote
Old 05-09-2016, 09:19 PM   #6
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

^ Excellent point.
Joe Perez is offline   Reply With Quote
Old 05-09-2016, 09:23 PM   #7
Junior Member
Thread Starter

Join Date: Jan 2009
Location: Freehold nj
Posts: 50
Total Cats: 2
Default

Quote:
Originally Posted by stefanst View Post
Have you verified connectivity between sender housing and ground with a voltmeter? If it has contact, ground is not your problem.
I'll try this first, thanks.

Quote:
Originally Posted by Joe Perez View Post
Seems the easy thing would just be to drill and tap a small hole into the body of the spacer for, say, a #10 screw, and then use that to secure a ring terminal to the body, like this one:



Thence, a short wire secured somewhere to the block (try to keep it away from the alternator), and you're good.
Good idea, I was thinking about taking the sender out, and tapping a ring terminal to the size of the sender and threading it onto it.
danotakulus is offline   Reply With Quote
Old 05-09-2016, 09:26 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by danotakulus View Post
Good idea, I was thinking about taking the sender out, and tapping a ring terminal to the size of the sender and threading it onto it.
Assuming that the sensor is threaded NPT, it's highly unlikely that the sensor body is bottoming out against the sandwich plate. Thus, you won't get a solid connection by sandwiching a terminal between the sensor and the plate.

Joe Perez is offline   Reply With Quote
Old 05-09-2016, 09:32 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2009
Location: Freehold nj
Posts: 50
Total Cats: 2
Default

Quote:
Originally Posted by Joe Perez View Post
Assuming that the sensor is threaded NPT, it's highly unlikely that the sensor body is bottoming out against the sandwich plate. Thus, you won't get a solid connection by sandwiching a terminal between the sensor and the plate.

I see your point, but if it is not bottoming out, wouldn't I be able to grind/cut a 1/8 brass nut and use that to clamp it to the adapter? The current would then flow out the sensor, through the brass nut, connector, and to earth
danotakulus is offline   Reply With Quote
Old 05-09-2016, 11:10 PM   #10
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,399
Total Cats: 200
Default

Quote:
Originally Posted by Joe Perez View Post
Seems the easy thing would just be to drill and tap a small hole into the body of the spacer for, say, a #10 screw, and then use that to secure a ring terminal to the body, like this one:



Thence, a short wire secured somewhere to the block (try to keep it away from the alternator), and you're good.

This is what I did. Solved world hunger the next day.
ryansmoneypit is offline   Reply With Quote
Old 05-10-2016, 01:20 AM   #11
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

I can't find a picture. But I hose clamped a spade terminal to the body of my sender. It worked great.
aidandj is offline   Reply With Quote
Old 05-10-2016, 03:09 AM   #12
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,511
Total Cats: 142
Default

Quote:
Originally Posted by aidandj View Post
I can't find a picture. But I hose clamped a spade terminal to the body of my sender. It worked great.
Where ever did you get THAT idea?
good2go is offline   Reply With Quote
Old 05-10-2016, 11:29 AM   #13
Newb

Join Date: Jun 2015
Posts: 17
Total Cats: -1
Default

Quote:
Originally Posted by aidandj View Post
I can't find a picture. But I hose clamped a spade terminal to the body of my sender. It worked great.
Wish I read this 24 hours ago. My car is already on the ground. I'll do that next time it's up.
Mazdated is offline   Reply With Quote
Old 05-11-2016, 09:55 PM   #14
hox
Junior Member

Join Date: Feb 2012
Location: Portland,OR
Posts: 53
Total Cats: 1
Default

What Autometer gauge are you using? I would guess that it is the half sweep one that uses the sensor probe with a ground terminal on the end? If you are running the full sweep oil temp gauge, it uses a secondary ground. I used the same connector Joe pointed out adding it to the grounding strap near the oil dipstick (04 MSM). I ran that ground wire through the firewall and used it as the ground for both my oil and water temp gauges.

Aidan's solution is the simplest for the sensor that usually grounds to the engine. One thing to point out, the autometer sensors are usually NPT threading whereas I was under the impression the threaded ports on the miata for oil are BSP. If that is the case you need to add an adapter to make sure you don't introduce a leak.
hox is offline   Reply With Quote
Old 05-12-2016, 01:43 AM   #15
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

The ground path should be:

1. Engine block => Adapter through threaded oil feed thingy;
2. Adapter => Sender through pipe threads.

#1 is the problem due to anodizing. #2 is usually good because the hole gets threaded after anodizing (you should double check). Next time you change your oil, pull the adapter off and hit the area around the center hole with a dremel wire brush attachment to remove the anodizing in that area. It will solve your issue.
hornetball is offline   Reply With Quote
Old 05-12-2016, 10:08 AM   #16
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,399
Total Cats: 200
Default

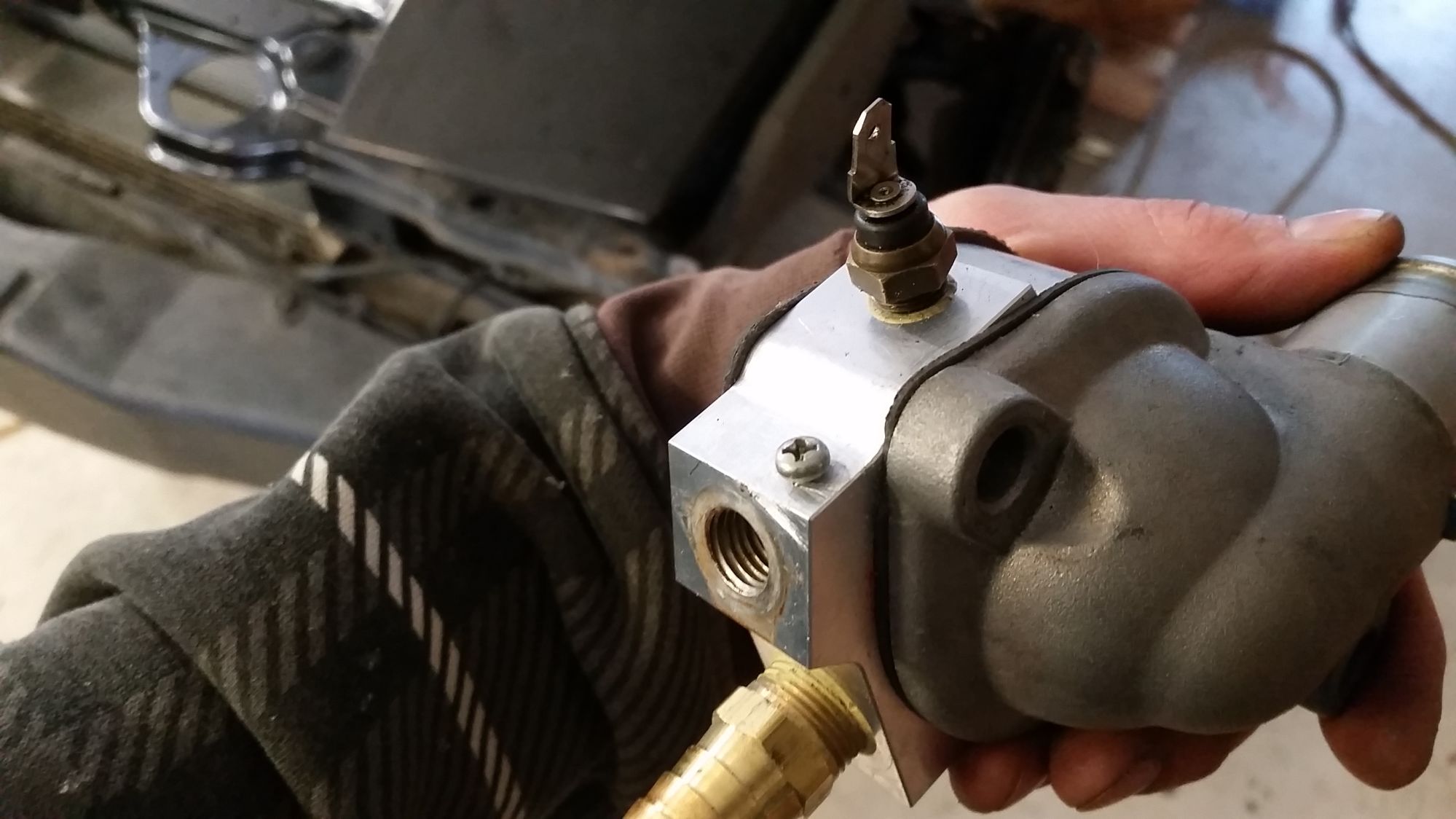

I was losing ground because gaskets on both sides. Lots of gaskets. So I did this:

Attached Thumbnails
How should i ground my oil temp. sender?-80-20151024_161020_a03ab2d9cdbdb7689e686bd29a1c6c95090c4579.jpg
ryansmoneypit is offline   Reply With Quote
Old 05-12-2016, 04:17 PM   #17
Junior Member
Thread Starter

Join Date: Jan 2009
Location: Freehold nj
Posts: 50
Total Cats: 2
Default

Quote:
Originally Posted by hox View Post
What Autometer gauge are you using? I would guess that it is the half sweep one that uses the sensor probe with a ground terminal on the end?
Yes it is a half sweep.
I think i managed a solution. I found a large diameter ring terminal to fit into the sender, and sandwiched that between 2 stainless steel washers. Tied that to a ground and should work. Haven't started it because I'm working on wiring ebc into the evap purge lines.
