Old 06-30-2013, 01:57 PM   #1
Newb
Thread Starter

Join Date: Mar 2013
Posts: 7
Total Cats: 0
Default I keep Blowing trannys

So three weeks ago my transmission went and i replaced it, now it blew up again.....

the Input shaft bearing went ka-boom!

Im running 15-18psi on the 70mm

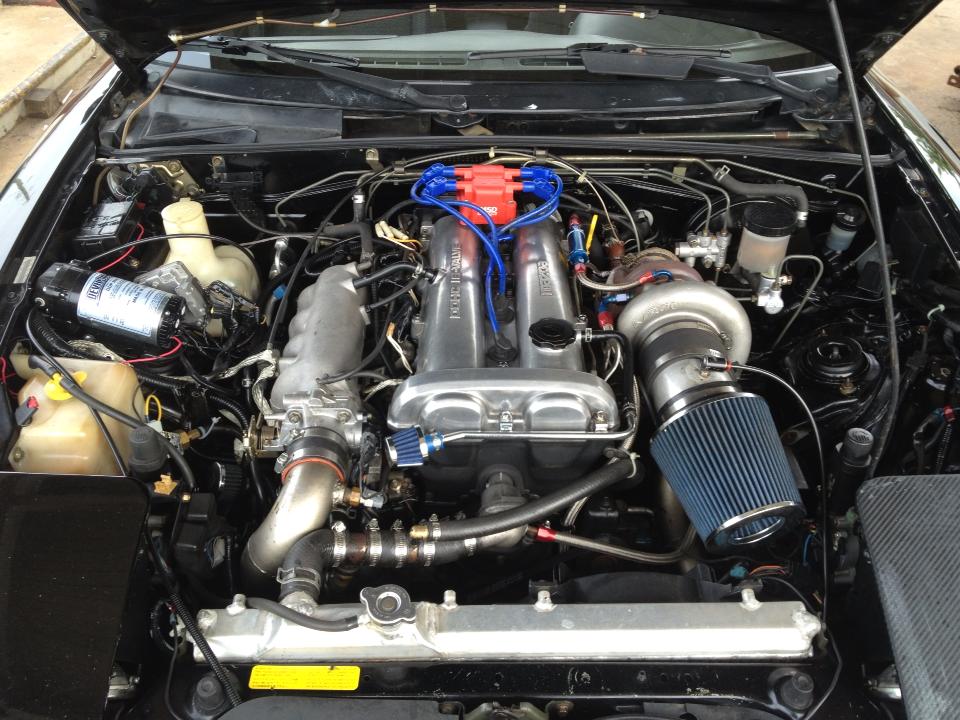

Attached Thumbnails
I keep Blowing trannys-1012181_593417100702390_175045277_n.jpg
Mr.Spiker123 is offline   Reply With Quote
Old 06-30-2013, 02:17 PM   #2
Junior Member

Join Date: Nov 2009
Posts: 202
Total Cats: 12
Default

Buy you a T2 adapter plate and transmission, that may help.
latena is offline   Reply With Quote
Old 06-30-2013, 02:25 PM   #3
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

5spd i assume?
supercooper is offline   Reply With Quote
Old 06-30-2013, 02:27 PM   #4
Newb
Thread Starter

Join Date: Mar 2013
Posts: 7
Total Cats: 0
Default

Quote:
Originally Posted by supercooper View Post
5spd i assume?

Yes, I really cant afford to buy a 6 Speed.

or else i would lol
Mr.Spiker123 is offline   Reply With Quote
Old 06-30-2013, 02:30 PM   #5
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

well, 5speeds are cheap... just know that you will be replacing lots of them at the (assumed) power you are making at those boost levels... the 5 speed is vulnerable around 250 or so according to experienced people on here. its the torque that breaks them. if you wanna stick with the 5 speed, i would turn the boost down quite a bit
supercooper is offline   Reply With Quote
Old 06-30-2013, 02:54 PM   #6
Newb
Thread Starter

Join Date: Mar 2013
Posts: 7
Total Cats: 0
Default

Quote:
Originally Posted by supercooper View Post
well, 5speeds are cheap... just know that you will be replacing lots of them at the (assumed) power you are making at those boost levels... the 5 speed is vulnerable around 250 or so according to experienced people on here. its the torque that breaks them. if you wanna stick with the 5 speed, i would turn the boost down quite a bit

well i guess ill turn down my boost and change a transmission...
Mr.Spiker123 is offline   Reply With Quote
Old 06-30-2013, 03:29 PM   #7
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

yeah.. the 6 speed isnt cheap... but in many cases you can find them for less than 1K. replace this one, turn the boost down... save the money, do the 6speed swap, then crank that shiz back up, and have fun. lol
supercooper is offline   Reply With Quote
Old 06-30-2013, 03:57 PM   #8
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Drag racing I assume? Blowing up on launch?
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-30-2013, 05:38 PM   #9
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

Came in here for blowing trannys.. Dissapoint :(
bikersam717 is offline   Reply With Quote
Old 06-30-2013, 05:38 PM   #10
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Quote:
Originally Posted by bikersam717 View Post
Came in here for blowing trannys.. Dissapoint :(
+1... i think theres another thread for that though... lmao
supercooper is offline   Reply With Quote
Old 06-30-2013, 06:00 PM   #11
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

I went through two 5 speeds in a month. Went 6 speed about a month and a half ago and never looked back. Gotta ball hard
RyanRaduechel is offline   Reply With Quote
Old 06-30-2013, 06:21 PM   #12
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Came here expecting an admission to sucking tranny dick. I was disappointed.
triple88a is offline   Reply With Quote
Old 07-01-2013, 01:37 AM   #13
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

5spd seems to be ticking time bombs if you are making any sort of power. 6spds seem to work better but it seems you still need to be gentle.

Last edited by FRT_Fun; 07-07-2013 at 01:44 PM.
FRT_Fun is offline   Reply With Quote
Old 07-01-2013, 02:14 AM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

If you're too cheap for a 6 speed I got bad news for you.......That's the cheapest upgrade option.
18psi is offline   Reply With Quote
Old 07-01-2013, 08:58 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by 18psi View Post
If you're too cheap for a 6 speed I got bad news for you.......That's the cheapest upgrade option.
Or you install a turbo with a smoother power onset and don't drive like an ***...
Braineack is offline   Reply With Quote
Old 07-01-2013, 10:33 AM   #16
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I killed 2 5spds with a JRSC45 lol....but I was driving it like a jackass and knew it...knew it was coming too. 6spd in current car has never given me a problem *knocks on wood*

Go 6 or buy 5spd spares for the future.

If you want to experiment, see if you can find a way to externally brace the 5spd case. The whole things distorts under load and that's what kills them. Just weld a bunch of bracing to the outside and see what happens
Doppelgänger is offline   Reply With Quote
Old 07-01-2013, 10:39 AM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by Braineack View Post
Or you install a turbo with a smoother power onset and don't drive like an ***...
btdt

It seriously sucks because you still know in the back of your mind that you're walking the line and never sure which money shift is gonna take the gear with it.

also 18psi on a 70mm turbo should be well into the mid-high 300's and no 5sp is gonna last up there for a long time even with good driving.
18psi is offline   Reply With Quote
Old 07-01-2013, 12:08 PM   #18
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

time is money. a transmission change in y8s dollars is very expensive. y8spec shop rate is well over $100/hour. A ~3 hour trans change plus a new trans and you're half way to the cost of a 6 speed. if you buy the 6 speed, you not only save the cost of transmission #2 (because you bought the 6er instead) and #3, but you save the labor of trans #3.

Count those toward the cost of a 6 speed.
y8s is offline   Reply With Quote
Old 07-01-2013, 01:44 PM   #19
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Y8s, i think hes gotten used to the tranny press move by now.
triple88a is offline   Reply With Quote
Old 07-01-2013, 02:15 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I perfomed the tranny press last weekend; I have the bruises to prove it.
Braineack is offline   Reply With Quote
