Default I read my spark plugs

As stated I pulled my plugs out and took a close look. I compared them to the NGK page. The plugs are Bkr7e VX. I'm replacing with Bkr7e. My #2 plug came out with my hands, so that explains the slight miss I've had.

#1: Light gray tip, looks fine
#2: Brown tip, because it was loose, otherwise fine
#3: Dark gray tip, looks fine
#4: Dark gray tip, looks fine

What I noticed is the darker color of 3 and 4. Does this mean they are hotter? I wonder because of the coolant re route. I'm just wondering if this is a sign that I should do the reroute or if this is all normal.
miataspeed1point6 is offline   Reply With Quote
Old 05-08-2007, 07:03 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

hotter would be more white.
Braineack is offline   Reply With Quote
Old 05-08-2007, 07:05 PM   #3
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

So that means #1 was hotter than the rest. Should I not worry about it? It isn't a huge difference, just something I noticed right away.
miataspeed1point6 is offline   Reply With Quote
Old 05-08-2007, 07:17 PM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Take a couple of pics, save them as bitmaps, upload to a hosting site, and linkey to here.
Ben is offline   Reply With Quote
Old 05-08-2007, 07:43 PM   #5
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Well here they are. As previously stated #2 was not in all the way, hence the oil all over it. The pictures don't show the miscoloring quite as well as I had hoped. I suppose the fact that you can't see the difference here is a good enough sign they are ok.

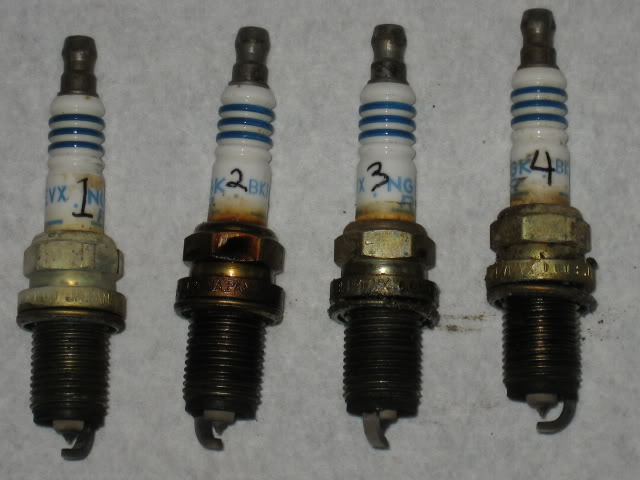

Overview
Name:  IMG_0904.jpg
Views: 2
Size:  44.9 KB

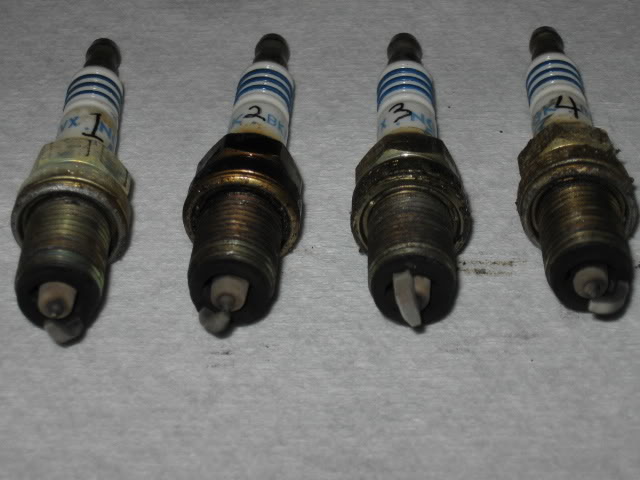

The tips
Name:  IMG_0903.jpg
Views: 2
Size:  45.9 KB

I took a peek at the pistons while the plugs are out. Should they have a blackish oil film on them? And #2 has black rings on the top of it (not carved in it). They are perfectly round and are spaced like a target. Is that something I should worry about?
miataspeed1point6 is offline   Reply With Quote
Old 05-09-2007, 08:24 AM   #6
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I tune my race scooter by reading the plugs, and I want them coffee-with-milk brown..

(however, that's a 50cc, 14k revving 2-stroker putting out 14 whp..so I might be talking bollocks for that matter...)
Oscar is offline   Reply With Quote
Old 05-09-2007, 08:28 AM   #7
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I asked you for bmps, not jpgs. They're less compressed.

Plugs look fine to me, except the obvious loose one. You have some compression getting past in 3 & 4. Get a new set.

Ben
