Default ideal lc-1 controller location?

i was just about to install my LC-1 controller but want to know where everyone is mounting them. i already have the gauge installed and the wires running through the firewall. please help. thanks.
budget racer is offline   Reply With Quote
Old 01-10-2008, 07:56 PM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

I'd like to know too, as I ordered my LC-1 yesterday.
patsmx5 is offline   Reply With Quote
Old 01-10-2008, 08:20 PM   #3
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

i zip-tied mine under brake fluid reservoir
UrbanSoot is offline   Reply With Quote
Old 01-10-2008, 08:26 PM   #4
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

i considered that, however my o2 bung is about 3ft downstream from the turbo. i don't think the cables are long enough.
budget racer is offline   Reply With Quote
Old 01-10-2008, 08:41 PM   #5
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I used some 1/2" thick zip ties and stuck it on the PPF next to the trans. There are little notches on the controller for the ties to hold on and not slide off. I also wrapped all my wires in some thick rubber heater hose to protect them from any debris flying under the car.

EDIT: I ran my wires through the shifter boot (I already had a rip, so what the hell?). I'm not sure if the wires are long enough for you to mount it there.
miataspeed1point6 is offline   Reply With Quote
Old 01-10-2008, 08:59 PM   #6
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Quote:
Originally Posted by miataspeed1point6 View Post
I used some 1/2" thick zip ties and stuck it on the PPF next to the trans. There are little notches on the controller for the ties to hold on and not slide off. I also wrapped all my wires in some thick rubber heater hose to protect them from any debris flying under the car.

EDIT: I ran my wires through the shifter boot (I already had a rip, so what the hell?). I'm not sure if the wires are long enough for you to mount it there.
Nice.
patsmx5 is offline   Reply With Quote
Old 01-11-2008, 10:26 AM   #7
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

My downpipe doesnt have a bung welded so I plan to measure off 36 inches as per Innovates instructions and see where that leaves the controller. Hopefully it wont be far enough to not let me use the shelf under the break fluide reservoir.

I dont like the idea of it being under the car, and I dont want to run the plug wires through the shifter boot. The less rewiring I have to do the happier i'll be.
Saml01 is offline   Reply With Quote
Old 01-11-2008, 04:02 PM   #8
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
I dont like the idea of it being under the car
I thought that at first, but it really isn't that bad. On the PPF it is pretty safe, and the water doesn't splash up there that much. The plug is also has a gasket on it. I was afraid of it overheating by the down pipe under the brake master. I also like having the plug near the sensor for when I do free air calibrations.

That being said it is safer under the brake master. Just make sure to protect it from the heat and it should be fine. I really wanted it inside the cabin, but the wires weren't long enough because it wouldn't fit under the center console.
miataspeed1point6 is offline   Reply With Quote
Old 01-11-2008, 04:05 PM   #9
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

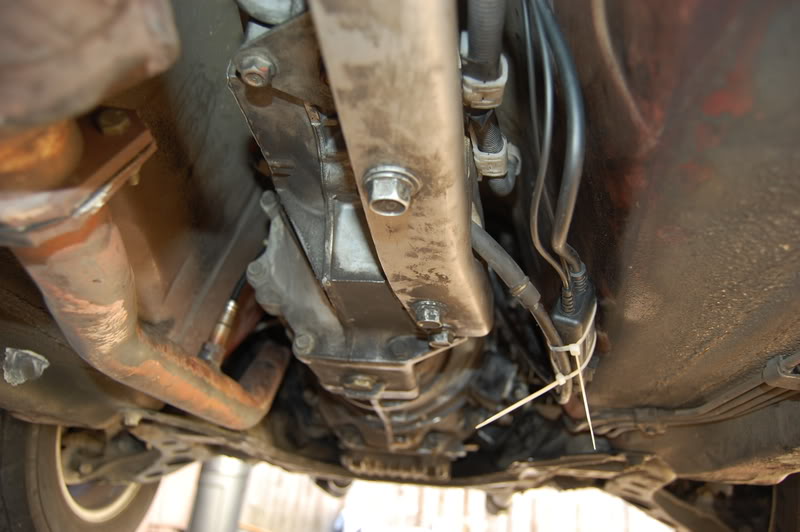

I ziptied mine to the speedometer cable against the PPF and ran the cables through the shifter boot.
Bryce is offline   Reply With Quote
Old 01-11-2008, 04:12 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

behind my radio.
Braineack is offline   Reply With Quote
Old 01-11-2008, 04:16 PM   #11
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Name:  DSC_1030.jpg
Views: 1
Size:  87.2 KB
Bryce is offline   Reply With Quote
Old 01-11-2008, 04:21 PM   #12
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
behind my radio.
Did you make a hole in your transmission tunnel for the sensor?
Saml01 is offline   Reply With Quote
Old 01-11-2008, 04:25 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

there's a big one already for the shifter....o2 wire under the shift boot.
Braineack is offline   Reply With Quote
Old 01-11-2008, 07:04 PM   #14
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

bend a lil ridge in the shift boot metal bottom and you have the perfect way to run the wiring through. my AEM WBO2s are fed that way too.
paul is offline   Reply With Quote
