Default Identify these connectors?

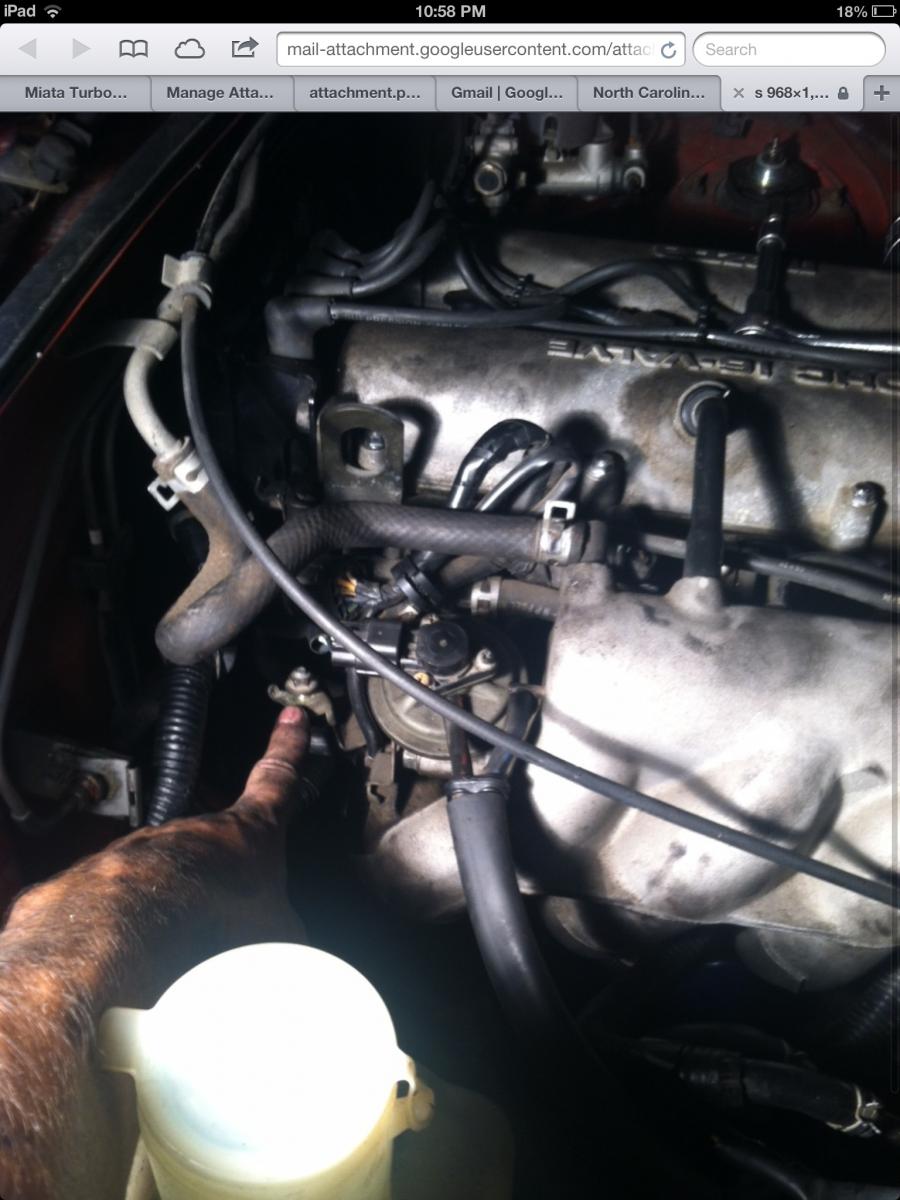

Just finished getting my engine back in and I can't remember what these two connections are. I am thinking the white connector wasn't hooked to anything anyways? And the metal stud I feel like was for a ground but I a, thinking maybe it was just a bolt down for a harness p-clip. This is on a 94.

Anyone bored enough to check for me?
Attached Thumbnails
Identify these connectors?-image.jpg
rigidbigelsworth is offline   Reply With Quote
Old 08-16-2013, 12:02 AM   #2
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

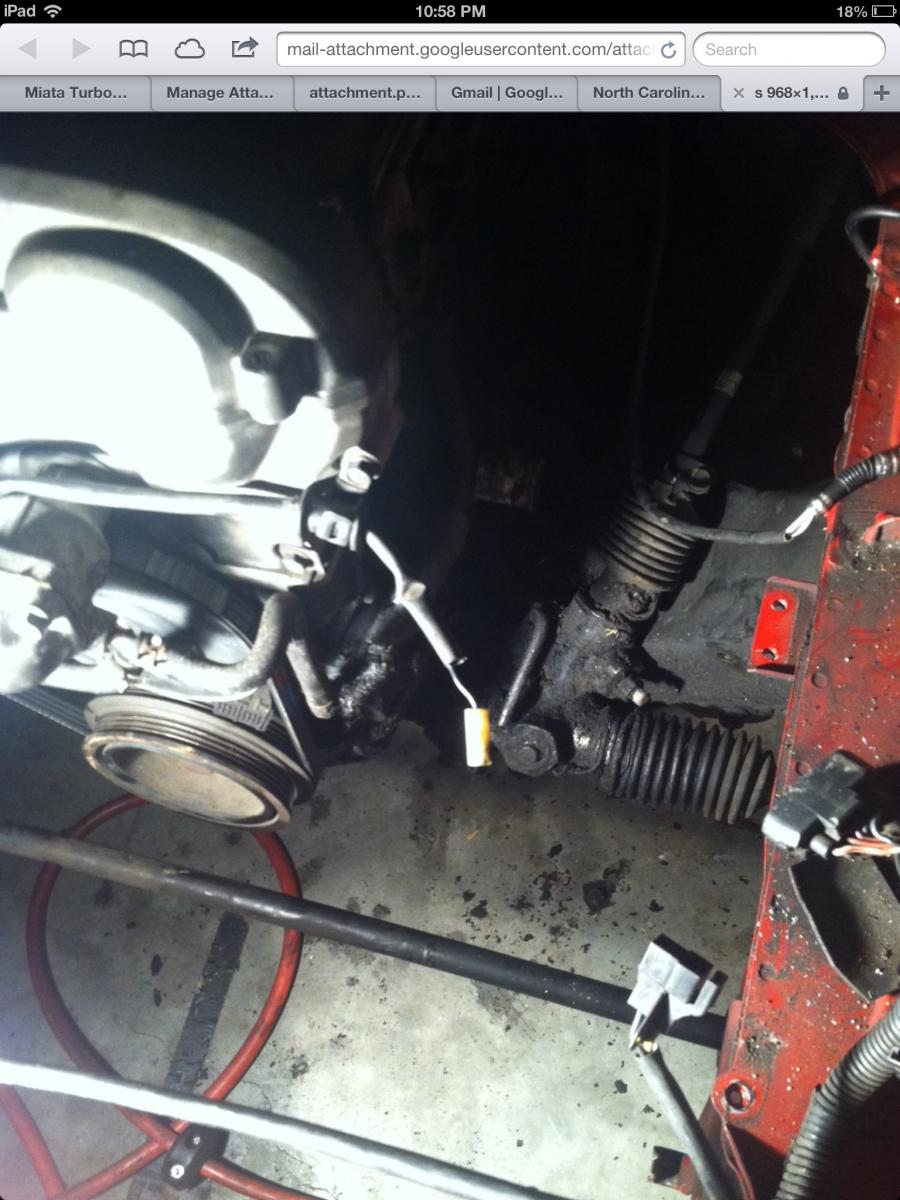

White connector
Attached Thumbnails
Identify these connectors?-image.jpg
rigidbigelsworth is offline   Reply With Quote
Old 08-16-2013, 06:50 AM   #3
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

White one is power steering.
rleete is offline   Reply With Quote
Old 08-16-2013, 07:08 AM   #4
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,020
Total Cats: 114
Default

White connector is PS indeed. The stud might be for the ground wire out of the coil harness. Single black wire IIRC.
Oscar is offline   Reply With Quote
Old 08-16-2013, 09:05 AM   #5
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

Thanks guys. Now that I think about it, I remember there being one ground on a stud and one ground on a bolt, both near each other on the passenger side over there. I didnt see any grounds though... One should be for coil packs and one should be from alternator/starter bundle right?
rigidbigelsworth is offline   Reply With Quote
