Default if you had an RB bumper, how would you mount the oil cooler and brake ducts?


I'm perplexed. I want to stick the oil cooler right behind the passenger side "big hole," but where do I put that brake duct afterward?
hustler is offline   Reply With Quote
Old 08-18-2009, 09:38 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

brake ducts in turn signal holes? You could probably easily plumb a hose down through the fender...
Braineack is offline   Reply With Quote
Old 08-18-2009, 09:40 PM   #3
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
brake ducts in turn signal holes?
That's all I can come up with, and not sure that its possible.
hustler is offline   Reply With Quote
Old 08-18-2009, 09:46 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

something like this:



or this:




probably stuff real naca ducts up in there somehow:




these are cool:

Braineack is offline   Reply With Quote
Old 08-18-2009, 09:50 PM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Pozmatron, get an Rx7 cooler and put it up in the bumper. No airflow needed (I saw temps of 160-170 in 80 degree ambient with *no* airflow to the cooler). Stick the ducts in the big holes, block off the small holes.
Savington is offline   Reply With Quote
Old 08-18-2009, 09:51 PM   #6
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Would it be possible to over cool with the oil cooler there? Why not just put it above the IC with some ducting or a hole in the nose?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-18-2009, 09:53 PM   #7
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
or this:

I could stick those in the mouth, on the top. hmmm
hustler is offline   Reply With Quote
Old 08-18-2009, 09:54 PM   #8
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
Pozmatron, get an Rx7 cooler and put it up in the bumper. No airflow needed (I saw temps of 160-170 in 80 degree ambient with *no* airflow to the cooler). Stick the ducts in the big holes, block off the small holes.
I need pics of your bumper, with the cooler or you're a dead ************.

Doesn't the rx7 cooler have a 140* t-stat? I want one without a t-stat built in.
hustler is offline   Reply With Quote
Old 08-18-2009, 09:57 PM   #9
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by levnubhin View Post
Would it be possible to over cool with the oil cooler there? Why not just put it above the IC with some ducting or a hole in the nose?
Because its too hard to get air out, through the oil cooler, from above. Also, my fmic touches the bumper support.
hustler is offline   Reply With Quote
Old 08-18-2009, 10:02 PM   #10
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
Because its too hard to get air out, through the oil cooler, from above. Also, my fmic touches the bumper support.
Um, through the oil cooler then through the rad, just like the fmic.

Works for Sav....

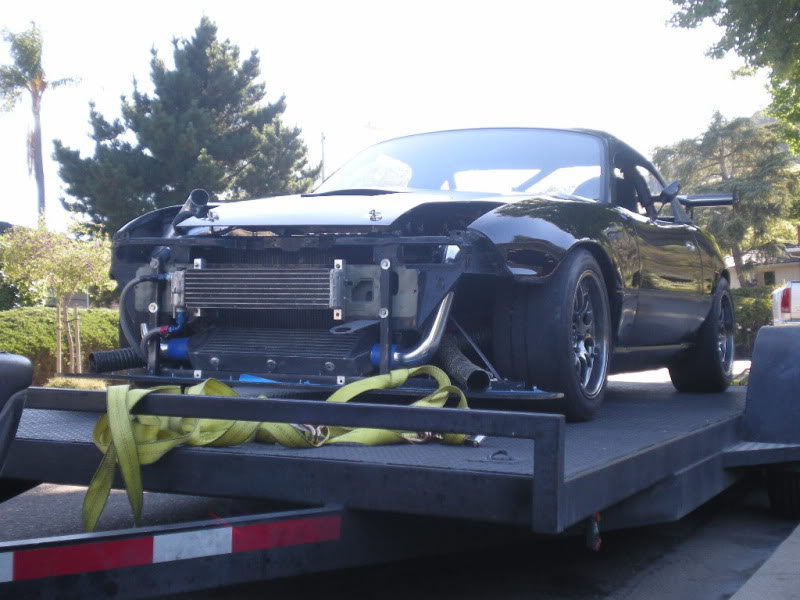

Name:  DSCN1596.jpg
Views: 56
Size:  117.3 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-18-2009, 10:05 PM   #11
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

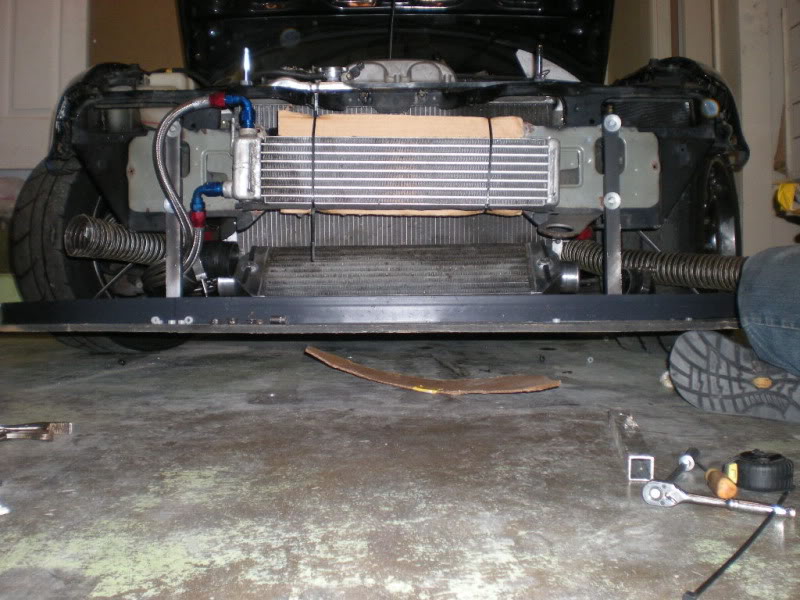

Name:  DSCN1542.jpg
Views: 12
Size:  134.5 KB
thesnowboarder is offline   Reply With Quote
Old 08-18-2009, 10:07 PM   #12
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by thesnowboarder View Post
I'm not taking the hole-saw to my street car.
hustler is offline   Reply With Quote
Old 08-18-2009, 10:08 PM   #13
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Sav, do you have any pics of how the splitter is attached?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-18-2009, 10:08 PM   #14
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by levnubhin View Post
Um, through the oil cooler then through the rad, just like the fmic.

Works for Sav....
um...no heat-exchangers share air on his set-up. I'd love to cut that **** in the middle out of my bumper...but its a street car and I have to mount a license plate there.
hustler is offline   Reply With Quote
Old 08-18-2009, 10:12 PM   #15
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
um...no heat-exchangers share air on his set-up. I'd love to cut that **** in the middle out of my bumper...but its a street car and I have to mount a license plate there.

You're mounting your license plate between the bumper lights?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 08-18-2009, 10:33 PM   #16
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

There are no holes in his bumper. No direct airflow. Works flawlessly.

Mount it there and be done, only bad part is if you hit someone or something, so don't.
crashnscar is offline   Reply With Quote
Old 08-18-2009, 10:35 PM   #17
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by hustler View Post
um...no heat-exchangers share air on his set-up. I'd love to cut that **** in the middle out of my bumper...but its a street car and I have to mount a license plate there.
So mount it, Monsieur Virgin. My bumper is unmolested. The cooler sees absolutely no airflow. Oil temps are actually too low. (this confuses me, too.)
Savington is offline   Reply With Quote
Old 08-18-2009, 10:39 PM   #18
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by levnubhin View Post
Sav, do you have any pics of how the splitter is attached?

Sure. You just posted them. It's the 4 bolts into the main support right there, and then a frame that goes across the wood. It's bolted into the subframe in the back (where the stock plastic undertray mounts).
Savington is offline   Reply With Quote
Old 08-19-2009, 12:23 AM   #19
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

I like how two people posted pictures of your car sav, I guess we're all to your car at night.

Hustler, sounds like the RX-7 cooler is a good bet. My only worry is the not infrequent cooler track days in the PNW (probably not a problem for you in Texas). There was an Autocross earlier this year in Washington with an inch of snow. That's an extreme, but you get the point. With that RX-7 oil cooler, although it doesn't need airflow, you're unable to block airflow to help keep oil warm. If you do have a cooler track day (even you Sav, if you ever wanna visit ORP), you're kinda screwed.

Slight thread jack, which side of the oil filter sandwich plate should I be taking temperatures? I'm assuming the cooler, post oil cooler, side, but is the filter fed from the center stud, or is that the return from the filter?
curly is online now   Reply With Quote
Old 08-19-2009, 12:59 AM   #20
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by curly View Post
I like how two people posted pictures of your car sav, I guess we're all to your car at night.
You should have seen the crowd it drew at the autox a few weeks ago.
kotomile is offline   Reply With Quote
