Default Installing a car lift - need some clever ideas

We're building a new house and the plan is to install a car lift in the basement so that I can drive in the garage, lower the lift and drive into the basement. Problem is that my lift is designed to be in the lowered position at rest (kinda like a 4-pole car lift). I cannot leave the lift in the raised position because this would stress the hydraulic system too much (my car will be on it most of the time). Anyone have a clever idea so I can leave the lift in the raised position while being able to release the pressure?





WestfieldMX5 is offline   Reply With Quote
Old 04-14-2012, 04:44 PM   #2
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Incorporate something similar to the safety locks on normal automotive lifts. This will require you to raise it higher than your garage floor level, engage locks, and lower it on them so the hydraulics aren't loaded anymore. You will again have to raise, disengage locks, and lower.
crashnscar is offline   Reply With Quote
Old 04-14-2012, 05:57 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

raise lift, shove bars across span, lower lift...watch the bottom of the lift up off the ground and hang folded onto the ceiling.

Braineack is offline   Reply With Quote
Old 04-14-2012, 06:07 PM   #4
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

Walked passed this guys complex last christmas when I was at the future inlaws place in lake tahoe. I was like wow when I saw this on tv.




http://now.msn.com/money/0413-$5M-car-elevator.aspx
Pitlab77 is offline   Reply With Quote
Old 04-14-2012, 06:22 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

he has shitty cars inside. caution.
Braineack is offline   Reply With Quote
Old 04-14-2012, 06:39 PM   #6
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
he has shitty cars inside. caution.
That is an understatement.
Pitlab77 is offline   Reply With Quote
Old 04-15-2012, 11:40 PM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I bet he pulled out any expensive cars he had as to not attract unwanted attention.
falcon is offline   Reply With Quote
Old 04-16-2012, 08:47 AM   #8
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

I like Brain's idea, but what about cutting some holes in the rails and having large pins lock into them from the sides? Like a bank vault door.
skidude is offline   Reply With Quote
Old 04-16-2012, 08:59 AM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Pitlab77 View Post
Walked passed this guys complex last christmas when I was at the future inlaws place in lake tahoe. I was like wow when I saw this on tv.




http://now.msn.com/money/0413-$5M-car-elevator.aspx
WTF? Where are all his racecars?
hustler is offline   Reply With Quote
Old 04-16-2012, 09:29 AM   #10
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

Quote:
Originally Posted by skidude View Post
I like Brain's idea, but what about cutting some holes in the rails and having large pins lock into them from the sides? Like a bank vault door.
This is what I was thinking - If you wanted simple, the lock pins would be slid in/out by hand (think bolt action rifle) If you wanted effortless, the lock pins would activate with a switch on the wall next to the elevator control.
fooger03 is offline   Reply With Quote
Old 04-16-2012, 10:40 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

i mean it was kinda a joke.
Braineack is offline   Reply With Quote
Old 04-16-2012, 10:48 AM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

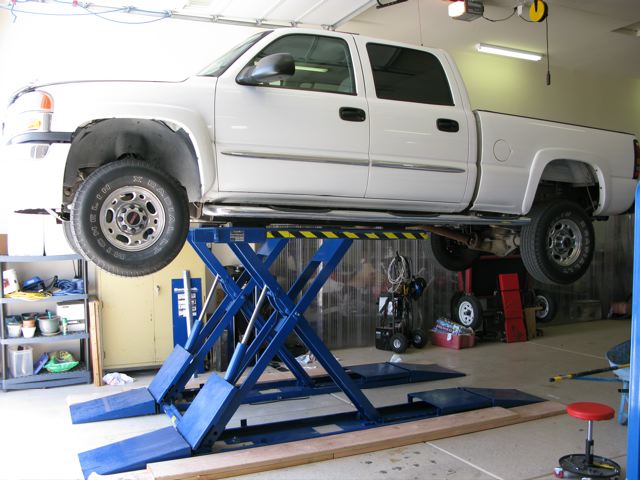

I'd have a look at the locking mechanism for other "portable" scissor lifts. For example Bendpak's SP-7x. That's rated at 7k and the lift in your pics looks far more robust.
Attached Thumbnails
Installing a car lift - need some clever ideas-sp7x-scissor-lift-mark-landon-3.jpg
m2cupcar is offline   Reply With Quote
Old 06-11-2012, 08:38 PM   #13
Newb

Join Date: Jan 2011
Location: Murray, Ky
Posts: 44
Total Cats: 2
Default

Quote:
Originally Posted by crashnscar View Post
Incorporate something similar to the safety locks on normal automotive lifts. This will require you to raise it higher than your garage floor level, engage locks, and lower it on them so the hydraulics aren't loaded anymore. You will again have to raise, disengage locks, and lower.
Yes, exactly. I work with hydraulics with my job working on construction, industrial and farm equipment. Cylinder locks are COMMON, especially when needing to relieve pressure from certain hydraulic lines, to disconnect and pressurize other lines.

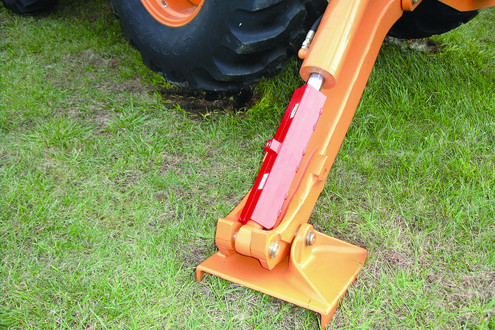

Lock example:
Attached Thumbnails
Installing a car lift - need some clever ideas-equipmentlockstabalizerlock_10223374.jpg
beansrown is offline   Reply With Quote
Old 06-11-2012, 10:27 PM   #14
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

I left cars (well range rovers) on 4 post lifts all the time over night, or for weeks at a time raised... they have safety locks but never do they self leak onto them.
fwMiata is offline   Reply With Quote
Old 06-11-2012, 11:39 PM   #15
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

That man has an awesome garage but needs to be shot. What a stupid, stupid, stupid collection of motorcycles all put to waste.
