Default jealous of your engine bays

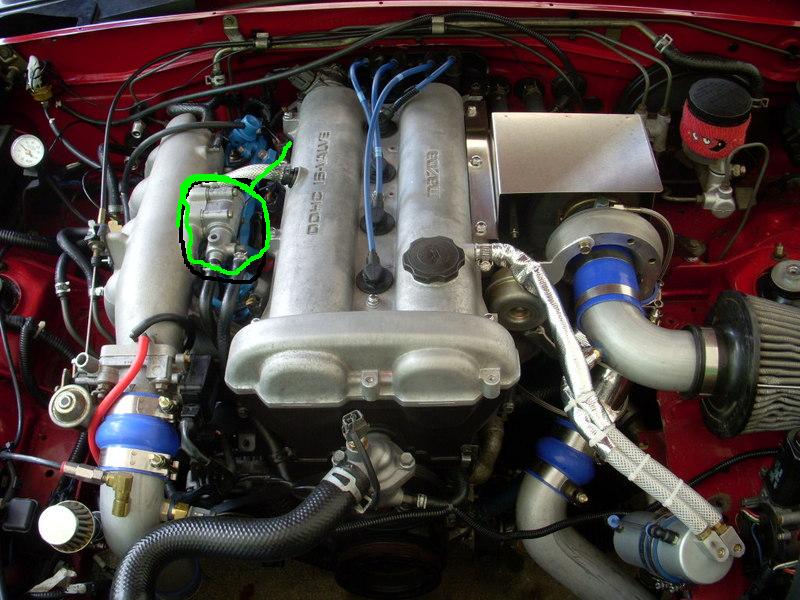

Well now that its getting warm here in IL, I'm looking at all these pictures you guys post, and think why does mine look so cluttered, and yours so empty. So here's were I get to the point, which is..... what things are no longer needed when running MS. Here in my town in IL there are no emission laws. Ive heard of people removing the charcoal canister which is alot of space taken up. and I've seen where braineak has this on the intake manifold blocked off (circled in pic below) what is the function of this? any bad effects with it blocked off. I also plan on getting my A/C Evacuated so I can drop that.
Attached Thumbnails
jealous of your engine bays-1.jpg
turbobluemiata is offline   Reply With Quote
Old 05-09-2008, 07:47 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

The device you have circled is part of the warmup system. It's an air valve that permits more air to bypass the throttle plate when the engine is cold, thus raising the idle slightly and preventing the engine from stalling.

You might be able to compensate for its removal by increasing the duty cycle of the IAC valve, or you might not. I've never tried it, since I like my engine to idle properly when cold.
Joe Perez is online now   Reply With Quote
Old 05-09-2008, 07:47 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

it has nothing to do with emissions or ms or a/c

its an air valve. when the clt temp is below 70*F, it's open to allow air to bypass the TB for higher and smoother idle. the end. before the coolant reaches the air valve, it passes throught the idle valve to help prevent frost inside the pipes.
Braineack is offline   Reply With Quote
Old 05-09-2008, 07:48 PM   #4
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

That just so coolant can circulate threw your intake mani.

I think your engine bay looks good.
mike_671 is offline   Reply With Quote
Old 05-09-2008, 07:49 PM   #5
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

lol i was wrong about what it was.
mike_671 is offline   Reply With Quote
Old 05-09-2008, 07:50 PM   #6
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Here's a diagram of how the system works:

Joe Perez is online now   Reply With Quote
Old 05-09-2008, 07:51 PM   #7
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by mike_671 View Post
That just so coolant can circulate threw your intake mani.

I think your engine bay looks good.
Not his engine bay, thats kotomiles.

Vash-
Vashthestampede is offline   Reply With Quote
Old 05-09-2008, 07:55 PM   #8
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

yea i didn't have any pics of mine trust me alot more **** I want mine as empty as his? so are you saying i shouldn't block it off?
turbobluemiata is offline   Reply With Quote
Old 05-09-2008, 08:03 PM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

I should take a picture of my engine may to make you feel better. It's about the most cluttered space imaginable.
Joe Perez is online now   Reply With Quote
Old 05-09-2008, 08:13 PM   #10
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
I should take a picture of my engine may to make you feel better. It's about the most cluttered space imaginable.
You should see Stephanie's Her car is the BEGi test mule, so it's got all sorts of interesting gizmos under there.
Arkmage is offline   Reply With Quote
Old 05-09-2008, 08:17 PM   #11
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Brain, confirm that MS in no way uses the air valve on the intake manifold... and I can fab up a blockoff plate and cap off the coolant lines at their source. I too am a fan of "neat".
samnavy is offline   Reply With Quote
Old 05-09-2008, 08:20 PM   #12
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
Brain, confirm that MS in no way uses the air valve on the intake manifold... and I can fab up a blockoff plate and cap off the coolant lines at their source. I too am a fan of "neat".

thank you I just like neat If it has no "REAL" importance then away with clutter I was just gonna make a blockoff plate from scrap aluminum
turbobluemiata is offline   Reply With Quote
Old 05-09-2008, 08:20 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by samnavy View Post
Brain, confirm that MS in no way uses the air valve on the intake manifold... and I can fab up a blockoff plate and cap off the coolant lines at their source. I too am a fan of "neat".
It's a passive system, controlled by the temperature of the coolant, not by the ECU. Therefore, the MS doesn't use it, the engine uses it.
Joe Perez is online now   Reply With Quote
Old 05-09-2008, 08:21 PM   #14
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

mine's gone. all is has is like a thermostat in it, no wires or sensors. So there shouldn't be any reason why you couldn't adjust your tune to act normally without it...even though i changed nothing and it's been fine
Mach929 is offline   Reply With Quote
Old 05-09-2008, 08:39 PM   #15
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

You want a pretty engine bay or comfort? My car has power steering, AC, Cruise, all the emissions gear, big radiator, stock fans, etc. It would be a whole lot cleaner looking getting rid of the comfort items but I'm old and it's a daily driver. Giving up all that comfort isn't worth having a tidy engine bay to show off!
cueball1 is offline   Reply With Quote
Old 05-09-2008, 10:03 PM   #16
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

+1 for neater engine bay, but I too am a fan of comfort....
That said I'm keeping my AC (Miami), and PS (*****), but since i have no emissions and I do have MS, I'll be following along to see what can be taken out, and how...

On a side note that charcoal canister looks like a possible spot for a catch can...
TonyV is offline   Reply With Quote
Old 05-09-2008, 10:29 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by samnavy View Post
Brain, confirm that MS in no way uses the air valve on the intake manifold... and I can fab up a blockoff plate and cap off the coolant lines at their source. I too am a fan of "neat".
I did it a long time ago. he asked me about it in PM and i forgot to respond.



Braineack is offline   Reply With Quote
Old 05-10-2008, 12:45 AM   #18
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

As promised, the "yes, there truly is an incredible amount of **** under my hood" picture:



Ignore the Vortech FPR on the firewall. Its only job is to accompany the CARB sticker right next to it.
Joe Perez is online now   Reply With Quote
Old 05-10-2008, 01:04 AM   #19
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

I considered removing the charcoal canister until I realized the hardline going to the canister and the hardline going away from it are different sizes, making it difficult to loop the line securely. Something about having a potential gas vapor leak near my alternator didn't set well with me.
Trent is offline   Reply With Quote
Old 05-10-2008, 01:37 AM   #20
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Brain, I know there's a shaped rubber gasket on the valve that fits in a groove carved into both the valve and the manifold. Did you leave that gasket in place? If not, what did you use to ensure a tight seal.

When I remove this thing tomorrow, any suggestions on what I may have to do to get it to idle right if it messes anything up?
samnavy is offline   Reply With Quote
