Old 05-10-2008, 06:00 AM   #21
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Sam when I removed mine I cut a piece of paper gasket to cover the holes completely and then bolted on the block off plate I made. I saw no change in idle after.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 05-10-2008, 06:19 AM   #22
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

Jason C, if you're reading this, post a photo of your engine bay and put Joe to shame.
Savington is online now   Reply With Quote
Old 05-10-2008, 07:17 AM   #23
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Damn, that first bay looks like crap.
kotomile is offline   Reply With Quote
Old 05-10-2008, 12:00 PM   #24
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

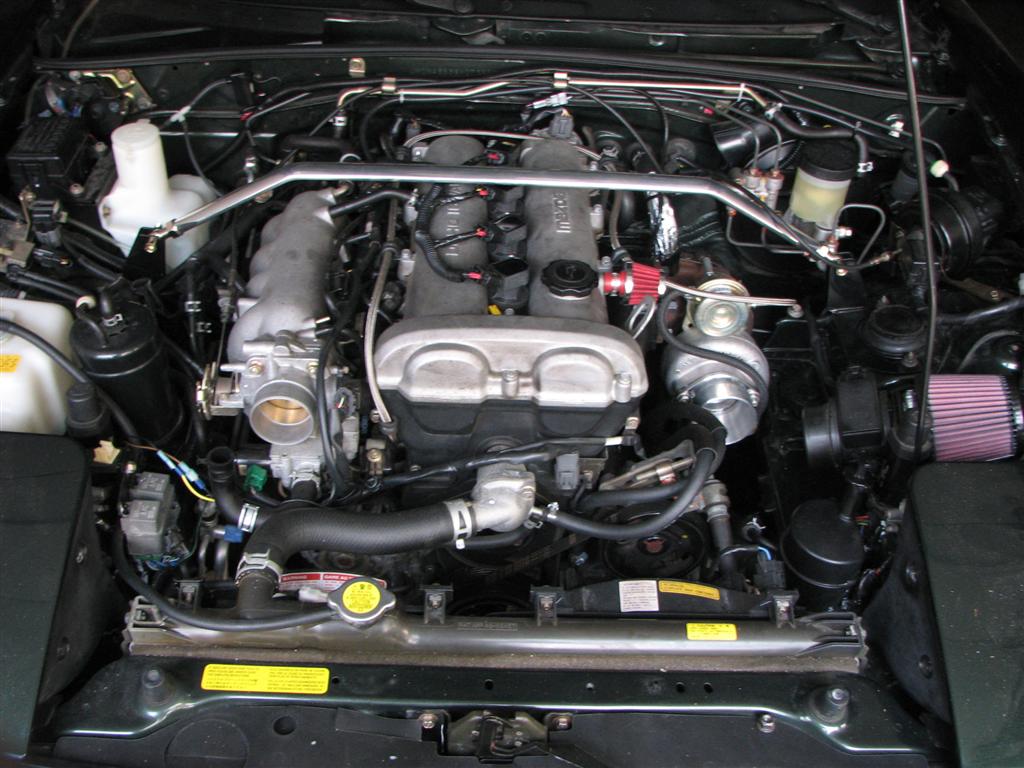

Heres mine. I think its pretty good, still missing IC pipes. Technically I have the pipes, but my couplers are locked up in a Jewish organization thats closed on Saturdays.
Attached Thumbnails
jealous of your engine bays-img_3258-large-.jpg
Saml01 is offline   Reply With Quote
Old 05-10-2008, 02:36 PM   #25
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

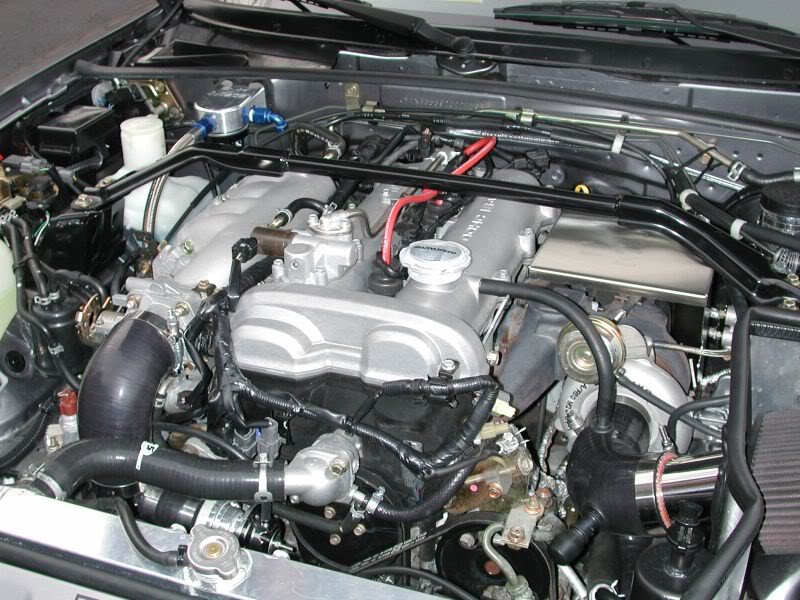

Here's my cluttered-but-clean engine bay...

Name:  96e06516.jpg
Views: 0
Size:  106.7 KB
Doppelgänger is offline   Reply With Quote
Old 05-10-2008, 02:48 PM   #26
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

Quote:
Originally Posted by Saml01 View Post
but my couplers are locked up in a Jewish organization thats closed on Saturdays.
Your parent's garage?
Savington is online now   Reply With Quote
Old 05-10-2008, 04:09 PM   #27
Senior Member
iTrader: (3)

Join Date: Mar 2007
Posts: 567
Total Cats: 1
Default

heres my dirty engine bay, dont worry Ill have a turbo in there soon enough.
slutz4 is offline   Reply With Quote
Old 05-10-2008, 04:16 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

shaped groove is only on the valve itself, block is flat iirc. i used silicone to seal it.
Braineack is offline   Reply With Quote
Old 05-10-2008, 04:26 PM   #29
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

^Gotcha... like some black RTV silicone like I use on the valve cover humps.
samnavy is offline   Reply With Quote
Old 05-12-2008, 12:27 PM   #30
Junior Member
iTrader: (7)

Join Date: Oct 2007
Location: Gainesville, FL
Posts: 87
Total Cats: 0
Default

But what about AC? My air valve has been replaced with a block off plate as well. It idles OK, but it dies when I switch on the AC. What would normally bump up the idle to compensate for the compressor? For those with MS (or other EMS), what do you do to keep the car from stalling while idling with the AC on?
bradlee is offline   Reply With Quote
Old 05-12-2008, 12:37 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

i have no issues idling with a/c. its the CLT temp that dictates whether or not the valve is open, that's it. otherwise the stock ecu controls the idle valve itself, which should compensate for the extra load by the a/c...any chance you severed the small wire into the a/c compressor? this lets the ecu know the a/c is on.
Braineack is offline   Reply With Quote
Old 05-12-2008, 12:46 PM   #32
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Hey Scott, Any chance you have a pic of said wire? On my compressor I see a wire that goes to the fans and another that goes to the compressor clutch.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 05-12-2008, 01:03 PM   #33
Senior Member

Join Date: Mar 2006
Location: Ireland
Posts: 534
Total Cats: 0
Default

Quote:
Originally Posted by Doppelgänger View Post
Here's my cluttered-but-clean engine bay...


What type of injector inlet/manifold is that ?
I hate the standard 'curved' one as it's always a strain to get a coupler onto it. Has a habit of popping off to.
Fergus is offline   Reply With Quote
Old 05-12-2008, 01:11 PM   #34
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

you mean the elbow coming off the throttle body? It's a FM piece.
Doppelgänger is offline   Reply With Quote
Old 05-12-2008, 01:28 PM   #35
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Fergus View Post
What type of injector inlet/manifold is that ?
I hate the standard 'curved' one as it's always a strain to get a coupler onto it. Has a habit of popping off to.

standard 2001 manifold and throttle body.


hooray for scott and his camera!

y8s is offline   Reply With Quote
Old 05-12-2008, 01:31 PM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by levnubhin View Post
Hey Scott, Any chance you have a pic of said wire? On my compressor I see a wire that goes to the fans and another that goes to the compressor clutch.
I'm dumb, im thinking of the P/S wire. either way, when the a/c relay is triggered the ecu should know and adjust the idle accordingly.
Braineack is offline   Reply With Quote
Old 05-12-2008, 01:39 PM   #37
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,320
Total Cats: 1,918
Default

Quote:
Originally Posted by Braineack View Post
any chance you severed the small wire into the a/c compressor? this lets the ecu know the a/c is on.
Eh?

In all the Miata wiring diagrams I've looked at, the one wire going between the A/C compressor and the ECU isn't a sense line telling the ECU that the A/C is on, it's a control line going from the ECU to cause the A/C clutch to engage.

All Miatas from the 1.6 to the NB are pretty much the same. The "safety" switches (refrig pressure and temp, etc) very from year to year and the NBs have an outboard "AC Amplifier" but logically here's how they work:

1- The user pushes the A/C button on the dash. Assuming the interior fan is on, this sends a closure to ground to the ECU, telling it that the user requests A/C.

2- The ECU then puts out closures to ground on a couple of lines, which cause the A/C Clucth relay and the fan relay(s) to engage, thus turning on the A/C.

So, the ECU doesn't need feedback to tell it the A/C is on, as it's the one that commanded it to turn on in the first place. In fact, when I had the stock ECU and EMU in my car, even after the entire A/C system was ripped out, pushing the A/C button still caused fastidle.

Perhaps you are thinking of the power steering pump? There is indeed a pressure switch on it which tells the ECU whether the PS pump is placing a load on the engine. (eg: turning the wheel while stopped).


Edit: Beat me to it while I was researching wiring diagrams.
Joe Perez is online now   Reply With Quote
Old 05-12-2008, 01:42 PM   #38
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

So what would keep the idle up when the a/c is on? I thought it was the IAC.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 05-12-2008, 01:49 PM   #39
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,320
Total Cats: 1,918
Default

Quote:
Originally Posted by levnubhin View Post
So what would keep the idle up when the a/c is on? I thought it was the IAC.
Yes, it's the electrical IAC, which is separate from the thermo-valve that's being discussed here.

With a stock ECU, it senses the A/C being turned on and raises the idle setpoint. With an MS, it reacts to the dip in idle, and tries to compensate for it by scaling up the IAC.

Either way will work without the thermovalve. It's only in the picture when the coolant is stone-cold. The problem you may face with removing it is that your idle and starting may suck slightly more when it's really cold outside.
Joe Perez is online now   Reply With Quote
Old 05-12-2008, 01:54 PM   #40
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Ok, so if my idle dosent correct with the a/c on is it safe to assume my IAC is no good? I have unplugged it with the car running and nothing changes. Is there anything else that could be bad? I ask because I have tried 3 different IAC's and still have the same problem.

If anyone prefer I start a new thread just say so.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
