Default Making sportmaxxxx wheels work

Ok so I've read the threads on cr.net before about rolling/pulling the fenders to make them fit, but I wanted to clarify. I'm in a financial fuckhole that I cant seem to escape right now, so it looks like ordering 6UL's is out of the question for me (I still have a 5% chance I might bite the bullet, but its not the best idea right now).

I was talking with my bodyshop guy about just spraying my 16" sportmaxx wheels all black and I'll just run those for another year. Only problem is every time I get on it and the *** end squats down the tire rubs the fender, thus making it smoke and throw chunks of tire. And when I put the 16" ones on the front they hit the fender and pull on it. Right now I have them staggered with 15"s in the front and the 16"s in the rear, but I have another pair of 16"s to make a full set.

I have KYB/FM springs combo with the FM mounts in the rear if that matters. But can any of you guys give me some pointers on how to make these ******* work? It'll help me save some cash and get me back on the road.
Vashthestampede is offline   Reply With Quote
Old 06-14-2009, 11:21 PM   #2
Junior Member

Join Date: Feb 2009
Location: Miami, FL
Posts: 61
Total Cats: 0
Default

I have 15's with 225/50/15 all around. They rub on front but on the back they're great!
rogezeus2003 is offline   Reply With Quote
Old 06-14-2009, 11:43 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

I had to remove the front liners and bend the tabs away. I took the rear liners out but I've heard the suspension will bottom out before it hits them. I ended up using a pipe (aka, bat) to "roll" the fenders. On top of all this I still had to make some spring spacers to raise my suspension up a tad. FCM had them on his site when I originally made mine, and he was kind enough to send me the drawings so I didn't have to engineer any myself. They don't seem to be on his site now though.
curly is offline   Reply With Quote
Old 06-14-2009, 11:53 PM   #4
Senior Member
iTrader: (3)

Join Date: Mar 2007
Posts: 567
Total Cats: 1
Default

any pics of the 15" 16" stagger?
slutz4 is offline   Reply With Quote
Old 06-14-2009, 11:59 PM   #5
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

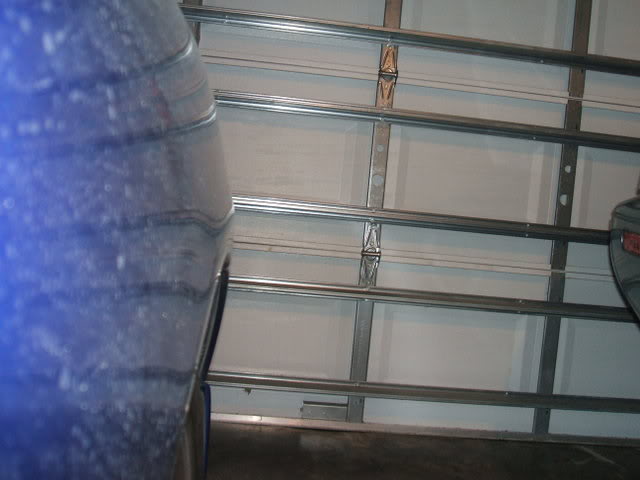

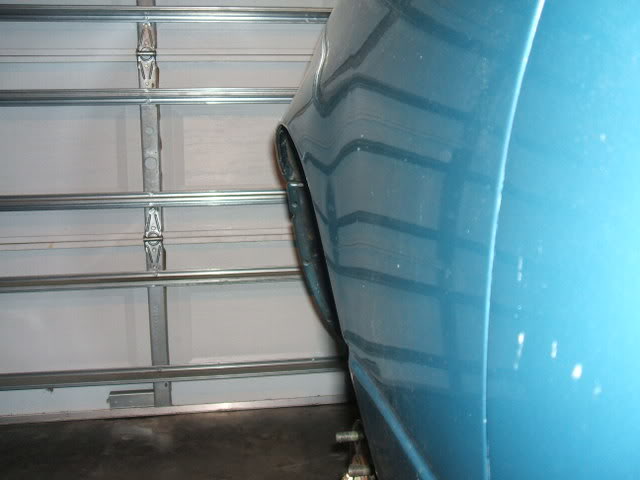

Try to find someone close by that has a fender roller you can borrow. Or I'll sell you mine for $200 shipped, haha. I've seen people mess up fenders pretty bad with a baseball bat. I'd try a rubber mallet on the lip of the fender before I went that route. Here's a picture of my rolled 90 fenders vs my stock 99 fenders:

Name:  DSCF0705.jpg
Views: 1
Size:  32.7 KB

Name:  DSCF0706.jpg
Views: 1
Size:  35.2 KB
pdexta is offline   Reply With Quote
Old 06-15-2009, 12:08 AM   #6
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by slutz4 View Post
any pics of the 15" 16" stagger?

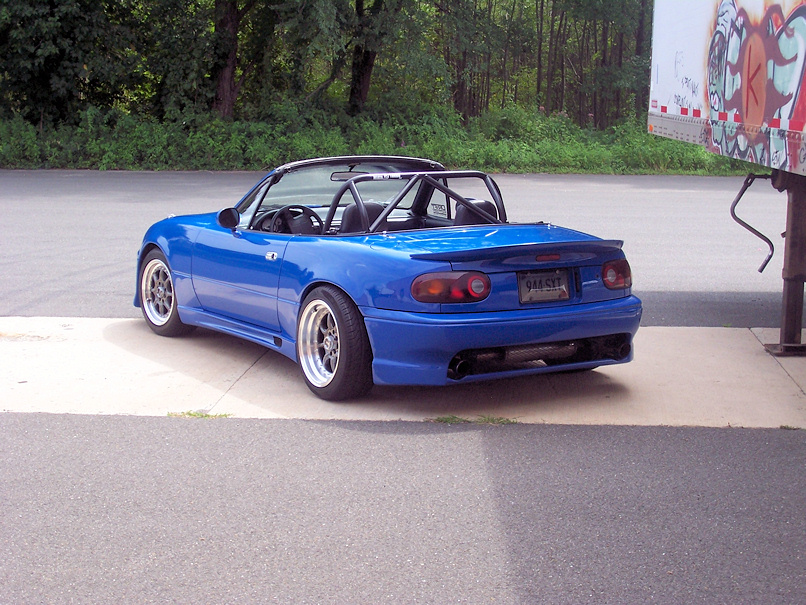

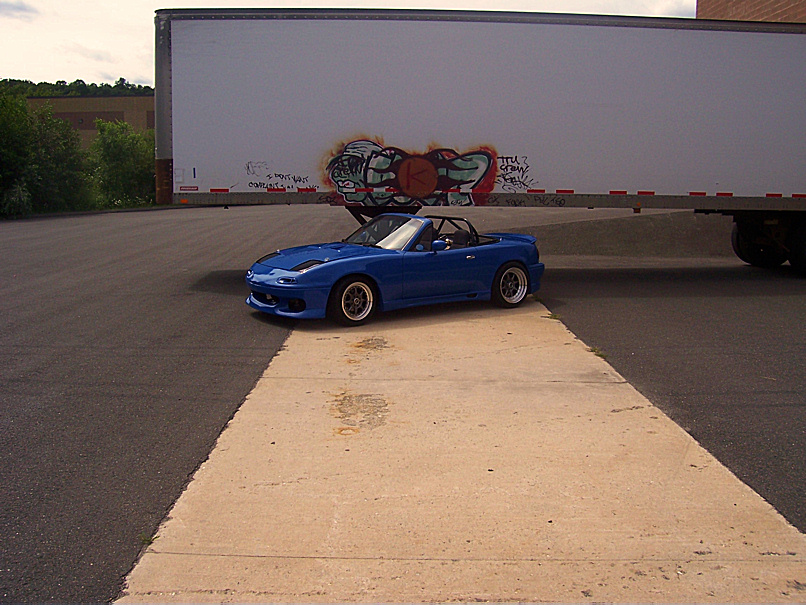

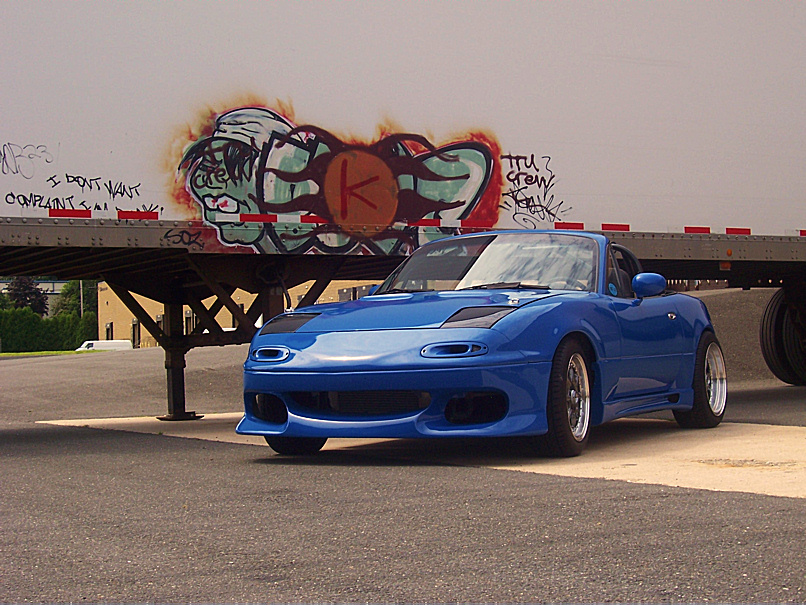

This is pretty much what the car looked like when I took it off the road over a year ago. I didn't do the stagger by choice, it just happened. I originally got the 16" set, but the fronts didn't fit at all, so I ordered a pair of 15"s to put there instead.

I'd much rather put a set of black 6UL's on, but like I said money is ******* tight right now. So if I can make these work I plan on just painting them all black.
Attached Thumbnails
Making sportmaxxxx wheels work-sm01.jpg   Making sportmaxxxx wheels work-sm02.jpg   Making sportmaxxxx wheels work-sm03.jpg
Vashthestampede is offline   Reply With Quote
Old 06-15-2009, 12:13 AM   #7
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by pdexta View Post
Try to find someone close by that has a fender roller you can borrow. Or I'll sell you mine for $200 shipped, haha. I've seen people mess up fenders pretty bad with a baseball bat. I'd try a rubber mallet on the lip of the fender before I went that route. Here's a picture of my rolled 90 fenders vs my stock 99 fenders:
I was almost going to buy one awhile back but I couldn't justify spending so much on one for just a one time use. I might look into renting one if its even possible.

The bodyshop used a towel and rubber mallet like you said. I was actually surprised he didn't have a roller and was doing it so caveman like. In any case I don't think they are rolled/pulled enough. Or am I running 16" and everyone else is using 15"?
Vashthestampede is offline   Reply With Quote
Old 06-15-2009, 10:24 AM   #8
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Guys that usually eff up their fender with a bat don't need to be doing any body work period. Not that hard, just needs patience and finesse.
First try ever, and I wouldn't do it any other way....and the bat was free.
Attached Thumbnails
Making sportmaxxxx wheels work-normal_hand_rolled_fender___.jpg
Machismo is offline   Reply With Quote
Old 06-15-2009, 10:43 AM   #9
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

I'm running 15s with 225/50/15. That tire simple won't fit in the front due to diameter, where I'm sure a 225/45/15 would. I ended up running a 205/50/15 in the front in the interim. I understand your running 16s, but if you could specify what tire size/profile you are running it may make it easier for people to help.
Newbsauce is offline   Reply With Quote
Old 06-15-2009, 10:59 AM   #10
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by Newbsauce View Post
I'm running 15s with 225/50/15. That tire simple won't fit in the front due to diameter, where I'm sure a 225/45/15 would. I ended up running a 205/50/15 in the front in the interim. I understand your running 16s, but if you could specify what tire size/profile you are running it may make it easier for people to help.
Yea good point, I'll check what size tires I have on today. I'm actually going down to the shop now to pull the plastic off it and start it up. God only knows the last time this dickface started the car and let it run for a minute.
Vashthestampede is offline   Reply With Quote
Old 06-17-2009, 03:51 PM   #11
Newb

Join Date: May 2009
Posts: 3
Total Cats: 0
Default

you need 205/40/16's some guys even go 195/40/16 "stretched". you will have to roll and pull your fenders (get a roller). For tires i would buy from Tires easy they have the best deals.

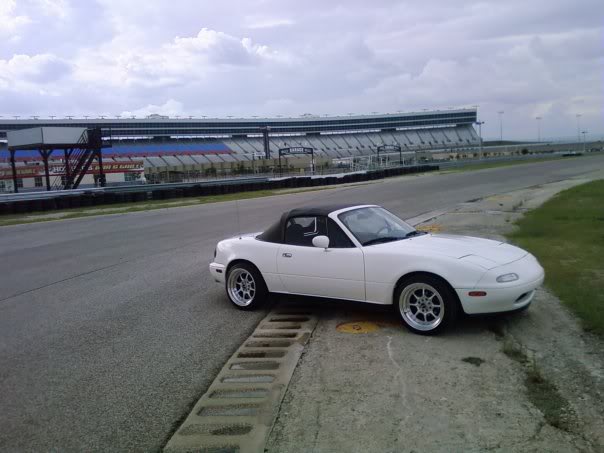

Here is my car Name:  miata2.jpg
Views: 42
Size:  40.0 KB
moosemonkey is offline   Reply With Quote
Old 06-17-2009, 05:13 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

my avatar > mad strizzzzetch
hustler is offline   Reply With Quote
Old 06-17-2009, 05:20 PM   #13
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by hustler View Post
my avatar > mad strizzzzetch
Hustler, you got the matt blacks?

Mine arrive tomorrow


Vash, ditch the sport maxipads sell some extra **** you have lying around and get some 6uls, used if possible.
thesnowboarder is offline   Reply With Quote
Old 06-17-2009, 06:09 PM   #14
Newb

Join Date: May 2009
Posts: 3
Total Cats: 0
Default

^ i am with him 9 inches of wheel with the "correct" offset very nice! I am a college student so the $400 shipped maxipads are heavy and great for me. I am ready to get some safety goin on i need a rollbar next.......
moosemonkey is offline   Reply With Quote
Old 06-17-2009, 06:36 PM   #15
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Vash, I have a pair of those spacers curly mention if you end up needing them in the rear. They were made by FCM for the Tein crowd as the rake goes rearward on a lot of the chassis with the S-Tech springs. Mine is fine without them.
gospeed81 is offline   Reply With Quote
Old 06-17-2009, 07:19 PM   #16
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by moosemonkey View Post
I am a college student so the $400 shipped maxipads are heavy and great for me.

I am full time college student too as is a large portion of people on these forums.
thesnowboarder is offline   Reply With Quote
Old 06-17-2009, 08:54 PM   #17
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Yea guys, I really want the 6UL's but keeping these was my cheapest, easiest solution.

However.....I just went back to work yesterday and between those hours and today I'm already at 26hrs.....so with things looking up I just might be able to grab a set of 6UL's in no time!

Now seeing they are sold out of the black 15x8, is there any reason I should not go to 15x9 on a daily driven car? I'm trying to avoid any issues I'm currently having....like rubbing and smoking the wheels on the fender.
Vashthestampede is offline   Reply With Quote
Old 06-17-2009, 11:32 PM   #18
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

i didn't notice if it was posted but take out your front fender liners, and then your airbag sensors(assuming you have an aftermarket steering wheel), my fronts no longer rub, and my rears never have...then again i have 15x7's
disturbedfan121 is offline   Reply With Quote
Old 06-18-2009, 12:22 AM   #19
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Quote:
Originally Posted by Vashthestampede View Post
This is pretty much what the car looked like when I took it off the road over a year ago. I didn't do the stagger by choice, it just happened. I originally got the 16" set, but the fronts didn't fit at all, so I ordered a pair of 15"s to put there instead.

I'd much rather put a set of black 6UL's on, but like I said money is ******* tight right now. So if I can make these work I plan on just painting them all black.
Get rid of those bicycle wheels, **** looks goofy. Your car is way too nice for that setup. As for the 15x9s I say go for them. From what I read there is minimal work to keep them from rubbing.
rccote is offline   Reply With Quote
