Old 12-02-2006, 07:21 PM   #21
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Quote:
Originally Posted by jayc72 View Post
Isn't the ACT street disk the just an OEM disk?
I dunno?


On topic: what would cause that clutch to fail the way it did? Just shoddy craftsmanship?
miatamania is offline   Reply With Quote
Old 12-02-2006, 07:24 PM   #22
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

pretty sure act's street disk is oem or oe specs, they use heavier pressure plates to get their torque capacities instead of different friction materials
Mach929 is offline   Reply With Quote
Old 12-02-2006, 07:26 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Quote:
Originally Posted by jayc72 View Post
Isn't the ACT street disk the just an OEM disk?
Most likely, it's an Exedy disc, and looks the exact same.


My HD kit is holding at 12psi, slipping just ever so slightly at 6k. Going to kit the disc and go witha new Xtreme PP and I should be good.
Braineack is offline   Reply With Quote
Old 12-02-2006, 07:29 PM   #24
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Yeah I am not sure why they don't list power levels. If I was going to recommend a disc and pressure plate for a street car making 300 wtq or less I would go for this disc
http://www.clutchnet.com/product.php...0&cat=0&page=1

And this Pressure Plate
http://www.clutchnet.com/product.php...4&cat=0&page=1

The pedal pressure is a lot lighter than the ACT while still holding well.
I will be using this same combo on the Gti to hold near 400 whp.
I have had that disc paired to a stock pressure plate holding 350 wtq with no issues.
Kelly is offline   Reply With Quote
Old 12-02-2006, 07:29 PM   #25
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I went with a Spec setup based on favorable reviews from the non-miata circles. I was going to go with ACT but the there seemed to be a lot of people having trouble with noise, chattery engagement and a heavy pedal. I love the way the Spec feels and drives, hopfully it lasts.
jayc72 is offline   Reply With Quote
Old 12-02-2006, 07:35 PM   #26
Senior Member
iTrader: (3)

Join Date: Apr 2006
Location: Northern Michigan
Posts: 898
Total Cats: 0
Default

I kept crunching up clutches with my 84 rx7 gsl-se until I realized that my flywheel was warped. thank goodness we had a box of them because it was 11pm and I had to work the next morning 235 miles away. Oh to be young again.
rotaryjunky is offline   Reply With Quote
Old 12-02-2006, 09:03 PM   #27
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

My Spec install should be complete tomorrow. Stage II running 10psi, should be around 200rwhp or less, and way under the ftlb rating for it. After install and religious 450mile recommended break-in, I plan to abuse it terribly until the rear-end breaks, then go with a Torsen upgrade and abuse it some more... we'll see. I'll get back to y'all in about 6 months with the results.
samnavy is offline   Reply With Quote
Old 12-02-2006, 09:05 PM   #28
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Spec strikes again. A buddy of mine back home just had his pressure plate come apart at the rivets on his Vr6 turbo Cabriolet and Spec told him he was SOL. He was only making around 275 wtq.
Kelly is offline   Reply With Quote
Old 12-02-2006, 11:36 PM   #29
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

The disk I had was from Spec before they got "big". They don't sell anything that looks like it now, but at that time it was the highest sprung disk they had.

re: Clutchnet- the next level up disk, sprung 6 puck looks exactly like the same disk sold by about ten other manufacturers. Know anything about it?
m2cupcar is offline   Reply With Quote
Old 12-03-2006, 02:09 AM   #30
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

So sad RPS isnt making the MAX anymore. I honestly love this clutch to death. The pedal pressure is maybe 50% over stock and it grabs HARD and never slips. Holds 360 ft/lb so says RPS. I am going to email them and tell them to keep making it. Soon I may go with a better disk and retain the magic RPS PP.
F20turbo is offline   Reply With Quote
Old 12-03-2006, 02:59 AM   #31
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

I know that the Clutchnet 6 puck was not my cup of tea for daily driving. I ran one for about 8 months. I do remember hearing about it holding up well in another Miata that was making over 400 whp. Its also a popular disc for some pretty high power Volkswagens. The Gti that I just bought has the Clutchnet 6 puck in it actually but I haven't recieved the car yet to see if I will be keepign it or swapping it out for the Carbon Pro. Also I am pretty sure that Clutchnet manufactures discs for a lot of other companys.
Kelly is offline   Reply With Quote
Old 12-03-2006, 12:45 PM   #32
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

my theory on copper pucks is that they shouldn't be used on a sprung hub. they dont slip so the moment the clutch engages, ALL the impact and impulse forces smash those springs. it's a pretty brutal setup generally speaking and i'm sure the springs dont like it much.

with an organic or kevlar disk, the clutch wont fully engage unless you do a clutch drop so the stress on the springs is way lower.
y8s is offline   Reply With Quote
Old 12-03-2006, 12:46 PM   #33
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

what's the MAX clutch disk built like? kevlar? copper/ceramic? puck? sprung?

one thing I noticed about the clutchnet sprung discs is how well the springs are enclosed. Matt- what you're saying looks fairly obvious in one of my pics that shows where the springs hammered the disc. That looked to be another failure point in the future, if not contributing to the problem. Looks like clutchnet has tried to address that my enclosed the springs ends in a cup.

Last edited by m2cupcar; 12-04-2006 at 11:15 AM.
m2cupcar is offline   Reply With Quote
Old 12-03-2006, 04:01 PM   #34
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
My Spec install should be complete tomorrow. Stage II running 10psi, should be around 200rwhp or less, and way under the ftlb rating for it. After install and religious 450mile recommended break-in, I plan to abuse it terribly until the rear-end breaks, then go with a Torsen upgrade and abuse it some more... we'll see. I'll get back to y'all in about 6 months with the results.
I put my clutch in on a friday and then on saturday morning, me a my buddie drove up to D.C. Walked around for the day and then drove home. Round trip from here to D.C with all the little side stops was right around 450 miles. Then on Sunday, I had a broke in clutch and got to beat it up. The reason I did this is because I have no self control and there is no way I would have been able to drive around town to break that clutch in.
getsidewaysd1 is offline   Reply With Quote
Old 12-07-2006, 10:23 PM   #35
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

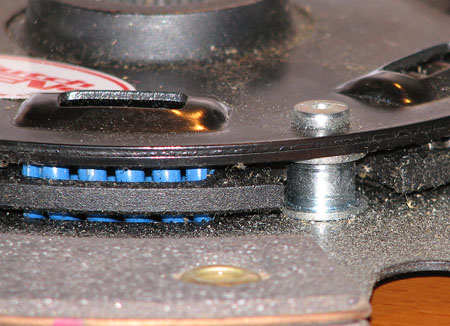

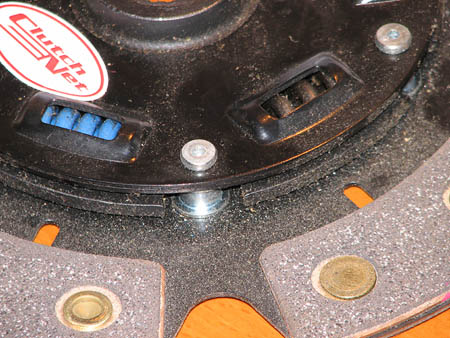

I went with the clutchnet sprung 6 puck. I don't drive the car in traffic so the on/off 1st gear from a stop over and over wasn't an issue. I mentioned the pucks with the sprung hub and the clutchnet guy assured me they had addressed the "shock" issue Y8s mentioned. Looking at the photos it appeared so, and after receiving the disc there's no doubt it's built like a tank. It probably weighs more the twice the Spec unit I had.
Attached Thumbnails
My new clutch-sclutchnet2.jpg   My new clutch-sclutchnet1.jpg
m2cupcar is offline   Reply With Quote
Old 12-18-2006, 08:10 PM   #36
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Wideopentuning View Post
Clutchnet has never failed me in any of the cars I have used them in
I blew up 2 in my vw.



hustler is offline   Reply With Quote
Old 12-18-2006, 11:09 PM   #37
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

If you've been able to get this bad boy installed, I'm curious to know how you like it.


Quote:
Originally Posted by m2cupcar View Post
I went with the clutchnet sprung 6 puck. I don't drive the car in traffic so the on/off 1st gear from a stop over and over wasn't an issue. I mentioned the pucks with the sprung hub and the clutchnet guy assured me they had addressed the "shock" issue Y8s mentioned. Looking at the photos it appeared so, and after receiving the disc there's no doubt it's built like a tank. It probably weighs more the twice the Spec unit I had.
Ben is offline   Reply With Quote
Old 12-19-2006, 11:57 AM   #38
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Not yet. Maybe over the holiday break. Clutchnet uses the same sprung hub for their organic and carbon based disks. Ultimately I plan on running more power than the 300fltbs their carbon disk was rated for so I went with the cerametallic.

Hustler- your disk is built differently than mine. Looks like you wore the rivet heads off the plate that was holding the friction pads? I don't see any friction pads for a second side- just one.

They now rivet the pads to the plate, so there's not an extra ring like on your disk. The part that came apart on mine was the sprung hub and that's still intact on your disk.
m2cupcar is offline   Reply With Quote
Old 12-19-2006, 03:15 PM   #39
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by m2cupcar View Post
They now rivet the pads to the plate, so there's not an extra ring like on your disk. The part that came apart on mine was the sprung hub and that's still intact on your disk.
The clutch was only two weeks old too, and had plenty of friction surface. here is another pic:


With that said, I'd still probably take the clutchnet kit over the ACT kit if pedal position is better.
hustler is offline   Reply With Quote
Old 12-19-2006, 06:03 PM   #40
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Well- I still don't get their thinking behind those friction surface rings. You'd think that it's just one more point of failure. No doubt the torque ripped the rivets right through on those rings.
m2cupcar is offline   Reply With Quote
