NB HVAC in an NA


Old 10-05-2009, 09:39 PM
  #1
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default NB HVAC in an NA
So I'm swapping an 99 interior into my NA (I know the dash is heavier) but I'm stuck with wiring the HVAC. I found this thread on m.net but I just don't understand it. Hopefully someone here does.

NB HVAC controls INSTALLED in NA - MX-5 Miata Forum
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-05-2009, 10:35 PM
  #2
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default
So far I've got the lights to work and the fan to work in all 4 speeds. The a/c compressor isn't kicking on though.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-05-2009, 10:39 PM
  #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,659
Total Cats: 134
Default
The a/c switch completes a ground. Add a ground jumper and see what happens.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-05-2009, 10:45 PM
  #4
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default
Originally Posted by Ben
The a/c switch completes a ground. Add a ground jumper and see what happens.


To which of the 3 wires? There's a pink, black/blue and blue/yellow one.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-05-2009, 10:48 PM
  #5
Elite Member
iTrader: (12)

neogenesis2004's Avatar

Join Date: Aug 2006
Posts: 4,413
Total Cats: 20
Default
Hablas espanol?
neogenesis2004 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-05-2009, 10:54 PM
  #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,338
Total Cats: 573
Default
http://neomiata.com/garage/1999_Miat...20Diagrams.pdf

page 2. nothing goes directly to gnd. they are all interlocked.
y8s is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-05-2009, 11:30 PM
  #7
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default
I'm stumped. The directions on m.net say to connect AP5 to BP3, but there is no P3 if I'm looking at it correctly.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 08:07 AM
  #8
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,659
Total Cats: 134
Default
Originally Posted by y8s
http://neomiata.com/garage/1999_Miat...20Diagrams.pdf

page 2. nothing goes directly to gnd. they are all interlocked.
True. But if you follow the diagram, the Pink is V+ for the a/c on LED and is hot key-on. When you push the a/c button, the pink and the black/blue are connected to blue/yellow. blue/yellow is a (shitty) ground.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 09:43 AM
  #9
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default
Originally Posted by Ben
True. But if you follow the diagram, the Pink is V+ for the a/c on LED and is hot key-on. When you push the a/c button, the pink and the black/blue are connected to blue/yellow. blue/yellow is a (shitty) ground.
According to the instructions on m.net the blue/yellow wire needs to go through a diode, should I still try grounding it?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 09:56 AM
  #10
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,338
Total Cats: 573
Default
Originally Posted by Ben
True. But if you follow the diagram, the Pink is V+ for the a/c on LED and is hot key-on. When you push the a/c button, the pink and the black/blue are connected to blue/yellow. blue/yellow is a (shitty) ground.
confusing at the least because there's two blu/yel and one goes to a 30A fan fuse!?

but yeah it looks like the Blu/yel out of the AC circuit goes to ground via the fan speed switch.

ben, do you call it shitty because it only goes directly to gnd in fan 1, otherwise it's thru a resistor?
y8s is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 09:59 AM
  #11
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,659
Total Cats: 134
Default
Originally Posted by levnubhin
According to the instructions on m.net the blue/yellow wire needs to go through a diode, should I still try grounding it?

That makes sense. No, don't touch the blu/ylw

Ground the blk/blu and the a/c comp should kick on. Ground the pink and the diode should light up.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 10:11 AM
  #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,659
Total Cats: 134
Default
Originally Posted by y8s
confusing at the least because there's two blu/yel and one goes to a 30A fan fuse!?

but yeah it looks like the Blu/yel out of the AC circuit goes to ground via the fan speed switch.

ben, do you call it shitty because it only goes directly to gnd in fan 1, otherwise it's thru a resistor?
Took me a minute to find what you're looking at. Yes, you are correct. There are (2) blue/yellow wires that provide power to relays. We're ignoring those. The blue/yellow wire we're looking at is between the a/c button and the fan switch. It's the ground for the a/c switch, run through the fan speed controller as an AND gate. For a/c to activate, the button must be depressed AND the fan speed controller must not be in the off position.

And phil, yes, you will need a diode on this blue/yellow.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 10:18 AM
  #13
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default
****, I was wrong. If I'm reading the instructions right the diode is supposed to be on the blk/blue wire.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 10:24 AM
  #14
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,659
Total Cats: 134
Default
The purpose of the diode is to prevent the blower motor from grounding through the a/c amp, so it wouldn't matter which wire you put it on.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 10:26 AM
  #15
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default
Originally Posted by Ben
The purpose of the diode is to prevent the blower motor from grounding through the a/c amp, so it wouldn't matter which wire you put it on.
So which wire should I ground?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 10:28 AM
  #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,659
Total Cats: 134
Default
To test operation? Ground the black/blue.

BTW, I'm looking at the 99 schematic.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 10:36 AM
  #17
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default
A refers to the plug on the car-side of the harness.
B refers to the NB pigtail.

A-P1 -- AC3 & B-P4 (fan speed 1)
A-P2 -- B-P5 (fan speed 2)
A-P3 -- AC1
A-P4 -- diode* (inline) to AC2
A-P5 -- B-P3 My problem is here, there is no P3 on the plug that goes to the HVAC

A-S1 -- B-S2 (fan speed 3)
A-S2 -- B-S3 (fan speed 4)
A-S3 -- B-S1 (ground)

L1 -- B-P1
L2 -- B-P2
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 10:37 AM
  #18
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default
Originally Posted by Ben
To test operation? Ground the black/blue.

BTW, I'm looking at the 99 schematic.

Even with the Diode on it? The dash and HVAC I have are from a 99.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 10:45 AM
  #19
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,659
Total Cats: 134
Default
Originally Posted by levnubhin
A refers to the plug on the car-side of the harness.
B refers to the NB pigtail.

A-P1 -- AC3 & B-P4 (fan speed 1)
A-P2 -- B-P5 (fan speed 2)
A-P3 -- AC1
A-P4 -- diode* (inline) to AC2
A-P5 -- B-P3 My problem is here, there is no P3 on the plug that goes to the HVAC

A-S1 -- B-S2 (fan speed 3)
A-S2 -- B-S3 (fan speed 4)
A-S3 -- B-S1 (ground)

L1 -- B-P1
L2 -- B-P2
This is gibberish. Needs pictures.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-06-2009, 10:51 AM
  #20
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default
Originally Posted by Ben
This is gibberish. Needs pictures.

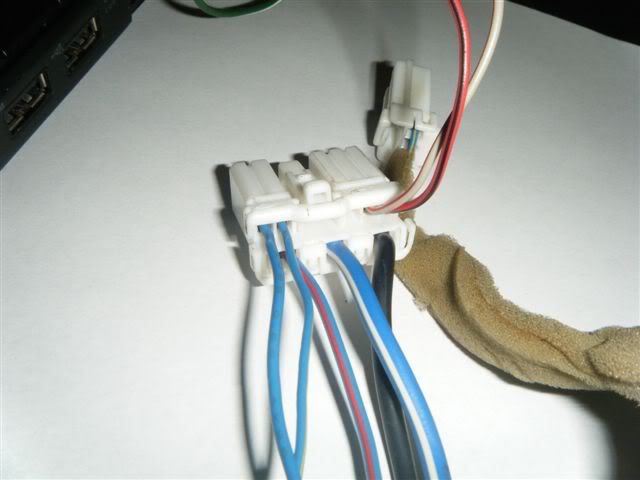

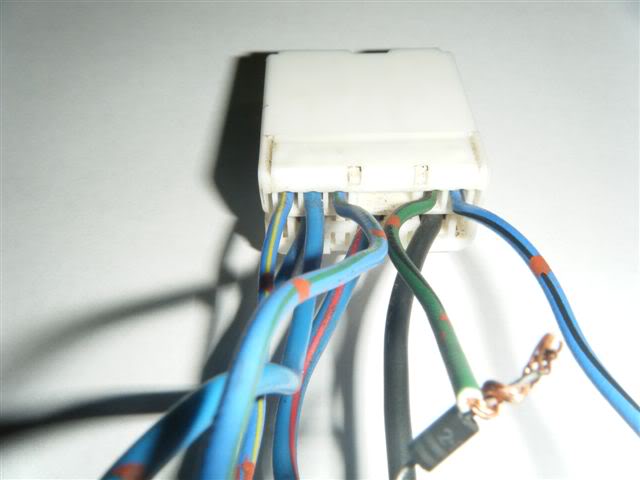

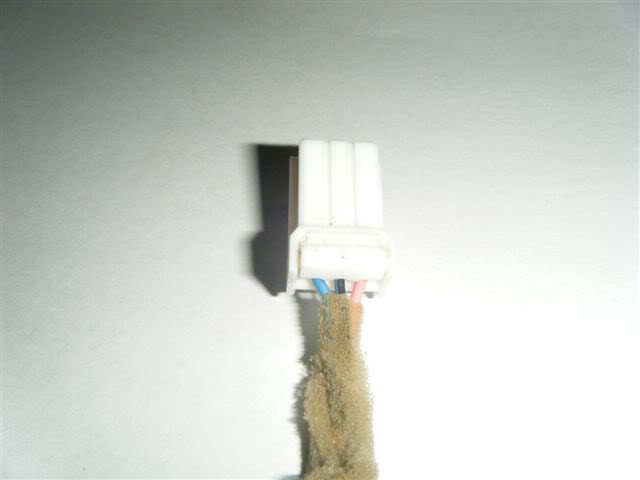

1st pic is the NA pig tail, second two plug into the NB HVAC. The 3 wire plug is the a/c button.

Name: DSCF5119.jpg Views: 1186 Size: 26.9 KB

Name: DSCF5122.jpg Views: 1268 Size: 29.9 KB

Name: DSCF5123.jpg Views: 1032 Size: 14.7 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
Last edited by levnubhin; 10-06-2009 at 11:22 AM.
levnubhin is offline
Reply
Leave a poscat 0 Leave a negcat

Thread Tools
Search this Thread
Search this Thread:

Advanced Search

Advanced Search
Quick Reply: NB HVAC in an NA


Reply Closed Thread Share

All times are GMT -4. The time now is 07:28 PM.
