Old 10-06-2009, 12:28 PM   #21
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 10-06-2009, 01:31 PM   #22
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default







Bottom diagram depicts a 99 climate control connector, and how it must be wired to a 93 dash harness. 99 position 1 to 93 position 4 and so on.

I didn't finish the dash illumination system, since you said yours works, and it's on a different page of the workshop manual.

Last edited by Ben; 10-06-2009 at 01:42 PM.
Ben is offline   Reply With Quote
Old 10-06-2009, 01:59 PM   #23
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post


Bottom diagram depicts a 99 climate control connector, and how it must be wired to a 93 dash harness. 99 position 1 to 93 position 4 and so on.

I didn't finish the dash illumination system, since you said yours works, and it's on a different page of the workshop manual.


Do you mean 1 to 3?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-06-2009, 02:04 PM   #24
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

On the large connector,
99 position 1 is fan speed 2
93 position 4 is fan speed 2

On the small NB specific 3 pin connector, position 1 NB goes to position 3 on the NA large connector. That's +V to illuminate the a/c on indicator.

I assume the R/B and G/W 2 position connector you have pictured is the NA dash illumination harness.
Ben is offline   Reply With Quote
Old 10-06-2009, 02:12 PM   #25
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Ok, I think I understand and If I do then I have it all wired correctly. I think all I need to do is ground the NB3 wire which is blue/yellow?

And where should the diode go?

And in case I'm reading this wrong NB2 and NB3 both go to position 2
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote

Last edited by levnubhin; 10-06-2009 at 02:29 PM.
levnubhin is offline   Reply With Quote
Old 10-06-2009, 02:30 PM   #26
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

If you ground NB3, then the a/c comp can run with the fan off.

Suggest you continue to study the diagram

Ben is offline   Reply With Quote
Old 10-06-2009, 02:46 PM   #27
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

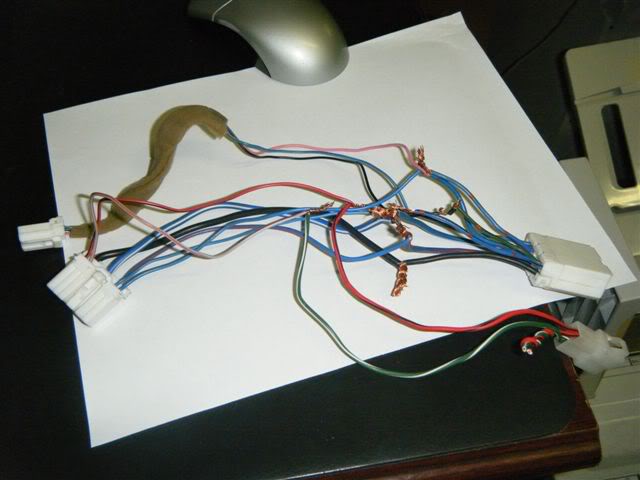

Just so I'm not mixed up I labeled the pins....

Pin 1 on the HVAC side goes to Pin 4 on the NA harness
Pin 2 on the HVAC side goes to Pin 5 on the NA harness
Pin 3 on the HVAC side is empty
Pin 4 and 5 go to the lights
Pin 6 on the HVAC side goes to Pin 7 on the NA harness
Pin 7 on the HVAC side goes to Pin 8 on the NA harness
Pin 8 on the HVAC side goes to Pin 6 on the NA harness

NB1 goes to Pin 3 on the NA harness
NB2 goes to Pin 2 with a diode on the NA harness
NB3 goes to Pin 5 on the NA harness
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote

Last edited by levnubhin; 03-12-2010 at 04:50 PM.
levnubhin is offline   Reply With Quote
Old 10-06-2009, 03:47 PM   #28
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

It probably works either way, but I think putting the diode on NB3 is a better idea, after actually looking at the diagrams.
That's why I put it there on my pinout.
Ben is offline   Reply With Quote
Old 10-06-2009, 03:52 PM   #29
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
It probably works either way, but I think putting the diode on NB3 is a better idea, after actually looking at the diagrams.
That's why I put it there on my pinout.
Put the diode before where Pin 2 joins in?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-06-2009, 03:56 PM   #30
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Does not compute.
Ben is offline   Reply With Quote
Old 10-06-2009, 03:58 PM   #31
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

NB3 goes to Pin 5 on the NA harness
Pin 2 on the HVAC side goes to Pin 5 on the NA harness

Both go to Pin 5 on the NA pig tail
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-06-2009, 04:07 PM   #32
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Got ya. You want the diode in line on the jumper between NA5 (main harness) and NB3 (a/c switch harness). You do not want the diode in the fan speed circuit.

Run the jumper from the NA harness 5 to NB3. Cut that wire, then put a diode in it. Note that the diode is directional. The banded end goes away from the a/c button.
Ben is offline   Reply With Quote
Old 10-06-2009, 04:15 PM   #33
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
Got ya. You want the diode in line on the jumper between NA5 (main harness) and NB3 (a/c switch harness). You do not want the diode in the fan speed circuit.

Run the jumper from the NA harness 5 to NB3. Cut that wire, then put a diode in it. Note that the diode is directional. The banded end goes away from the a/c button.
Will do soon as I get home. Thanks for all your help. Once this is done I WILL need help wiring the hazard switch lol.

Thanks again man.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
