Old 11-18-2015, 04:36 PM   #21
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by Ncorlis View Post
Hey everyone, I appologize for the wait. Here is what the timing belt looks like right now. This is the exact position of the belt that caused the car to not run. Or, at least I think it caused it to not run. Does it look ok? I'll use that video's tooth counting method to check.



Post a picture of looking at the head from the front. I want to see the front cam lobes on both cams.
shuiend is offline   Reply With Quote
Old 11-18-2015, 04:37 PM   #22
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,196
Total Cats: 12
Default

^ I would have said the exhaust, but I agree in principle.
2ndGearRubber is offline   Reply With Quote
Old 11-18-2015, 04:56 PM   #23
Junior Member
Thread Starter

Join Date: Jan 2014
Posts: 111
Total Cats: 0
Default

Thank you everyone. Looking at it now, maybe the exhaust cam is a tooth too low.

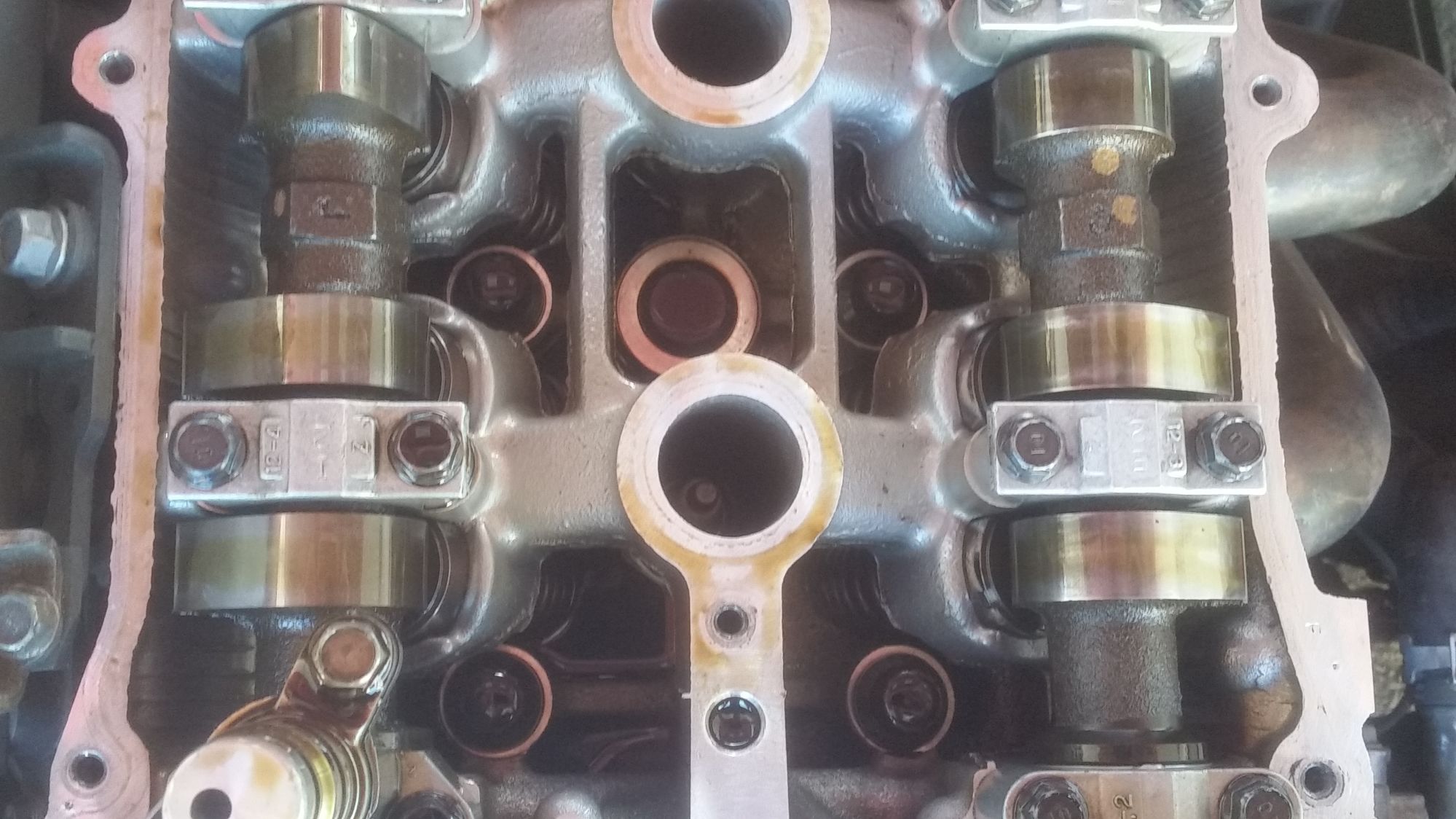

Top of cylinder 1

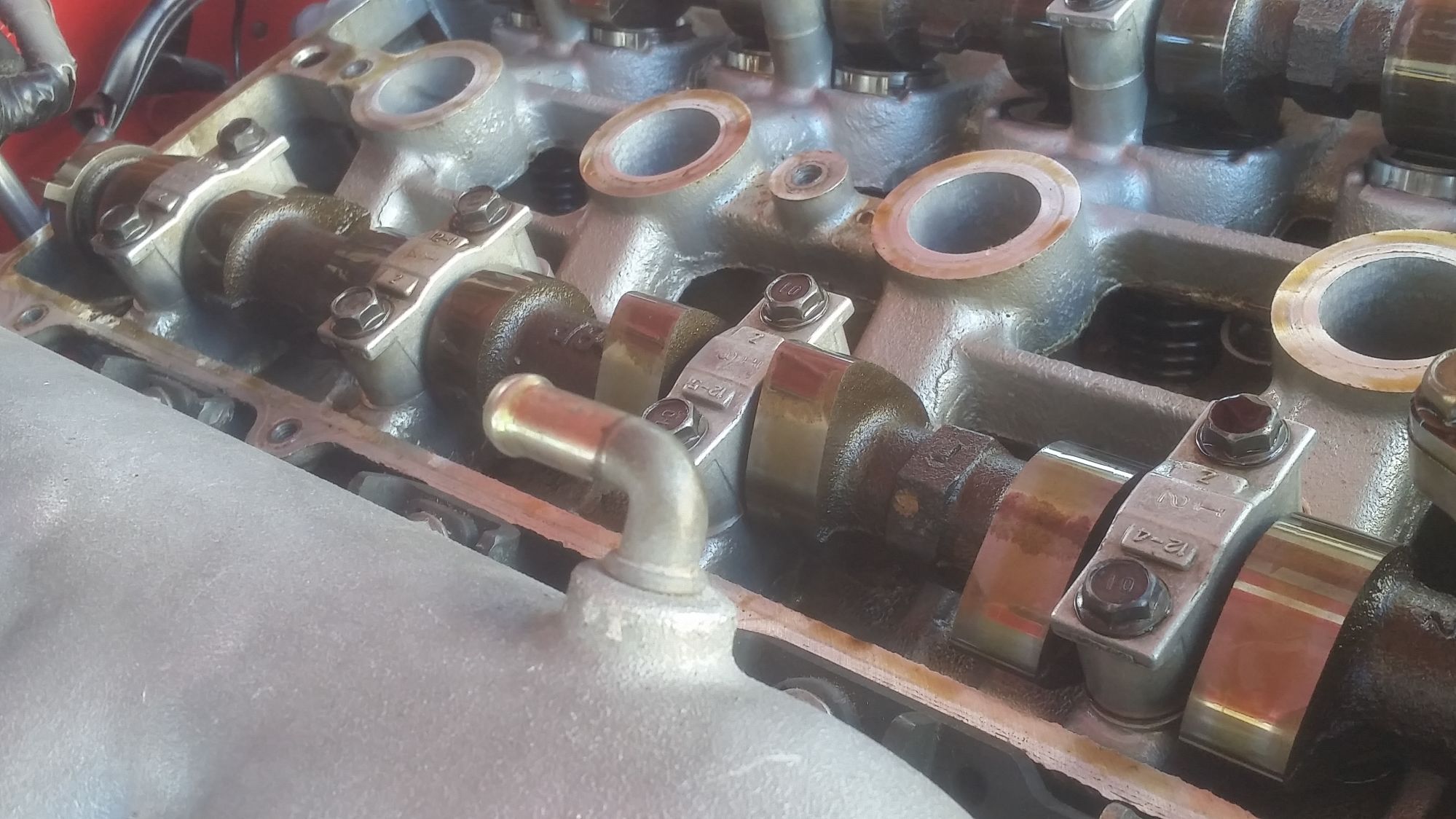

Exhaust side

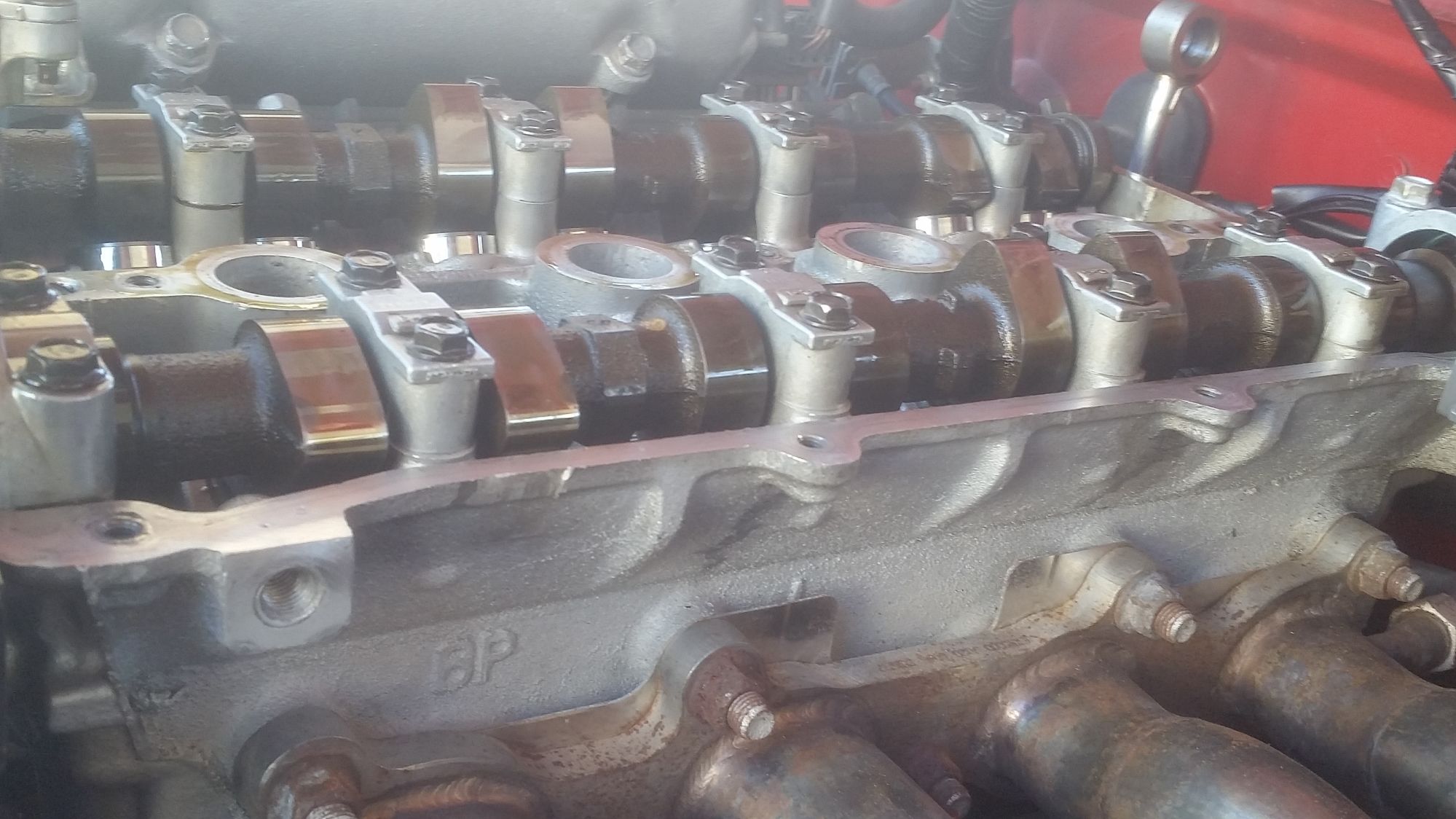

Intake side

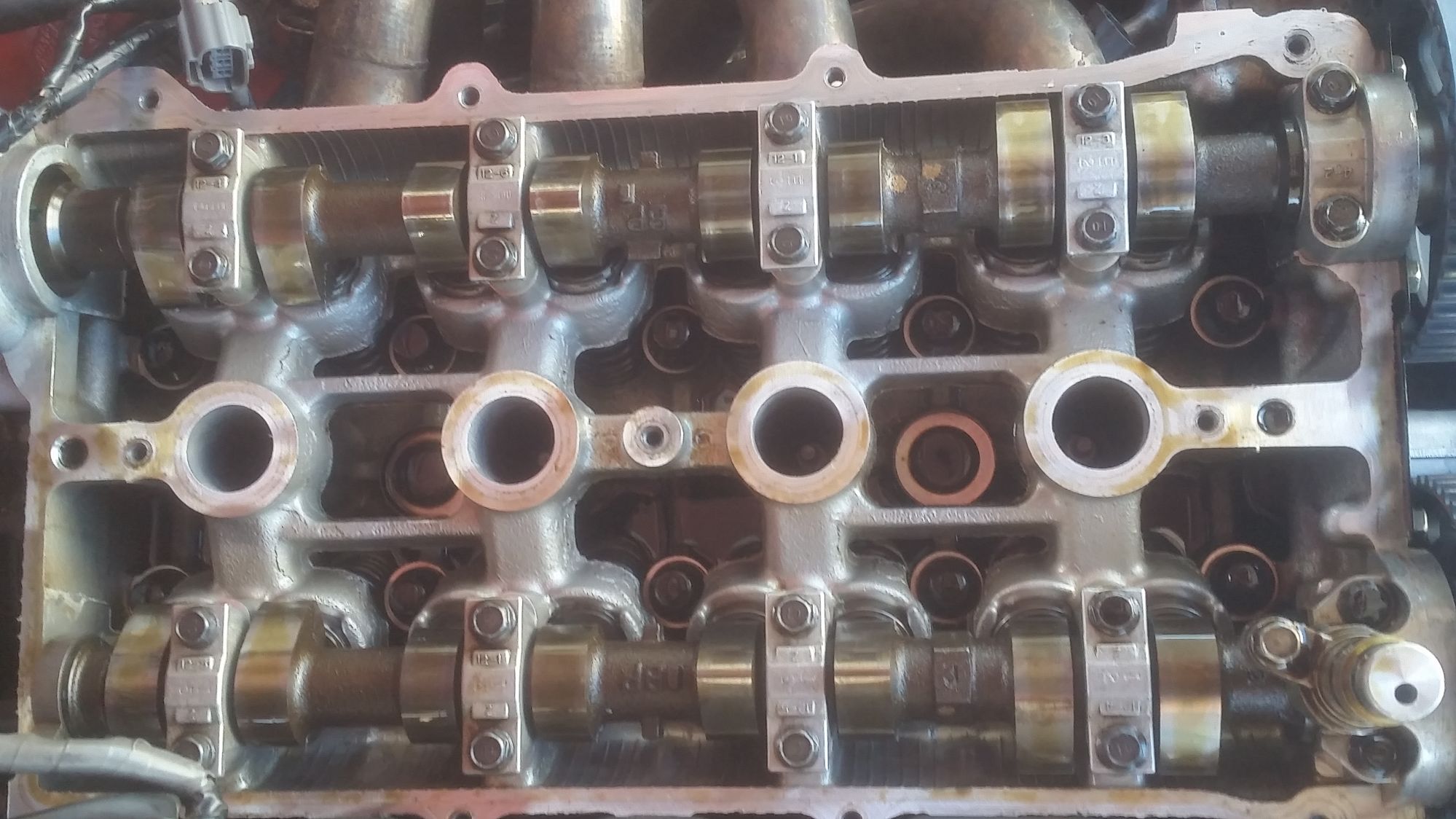

Top view
Attached Thumbnails
NB2 Won't Start After Timing Belt-80-20151118_144840_007d62fb8d6e29dbc0b0e9ef17ba1d8df33e12e1.jpg   NB2 Won't Start After Timing Belt-80-20151118_144856_af3877c1a45b6757446dc9e12ac47385854ce59e.jpg   NB2 Won't Start After Timing Belt-80-20151118_144909_475714f2f03b09f90e4c7e46b85341a5bd29ac8b.jpg   NB2 Won't Start After Timing Belt-80-20151118_144919_d79f61ad588050ba97d47de85121f32252d94c08.jpg
Ncorlis is offline   Reply With Quote
Old 11-18-2015, 05:15 PM   #24
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Cam lobes are correct. I don't see anything wrong with that.

What about clearance on the crank sensor? Did it get moved? Is it too far away?
aidandj is offline   Reply With Quote
Old 11-18-2015, 05:24 PM   #25
Senior Member

Join Date: May 2011
Posts: 549
Total Cats: 56
Default

any missing grounds? are the plugs wet after cranking?
EErockMiata is offline   Reply With Quote
Old 11-18-2015, 08:21 PM   #26
Junior Member
Thread Starter

Join Date: Jan 2014
Posts: 111
Total Cats: 0
Default

Hmm.. No, there are no missing grounds. There weren't any before the timing belt was removed. This is why I am so confused. The car ran fine before I adjusted the timing belt, and now that I have pretty much been confirmed that it is not a timing issue, I have no idea what it could be.
Ncorlis is offline   Reply With Quote
Old 11-18-2015, 08:25 PM   #27
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,513
Total Cats: 142
Default

Quote:
Originally Posted by Ncorlis View Post
Hmm.. No, there are no missing grounds. There weren't any before the timing belt was removed. This is why I am so confused. The car ran fine before I adjusted the timing belt, and now that I have pretty much been confirmed that it is not a timing issue, I have no idea what it could be.
Is the crank trigger wheel on backwards? (Sav's original #3)
Should be convex side toward the radiator.

Last edited by good2go; 11-18-2015 at 09:06 PM.
good2go is offline   Reply With Quote
Old 11-18-2015, 11:48 PM   #28
Junior Member
Thread Starter

Join Date: Jan 2014
Posts: 111
Total Cats: 0
Default

Nope, the crank trigger wheel wasn't removed from before. I honestly have no idea. I wonder if maybe exhaust cam is off a tooth, or maybe I had the crank sensor too close.
Ncorlis is offline   Reply With Quote
Old 11-19-2015, 02:31 AM   #29
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

My impression is that being off one tooth won't prevent it from starting. It may stumble and idle poorly, or it may have no top end (depending on which way you're off), but it will start.

I agree that the most likely cause is electronics. Do you have a stock ECU, or aftermarket? If aftermarket, many of those have cam/crank pulse debugging tools. If it's a stock ECU, you might be able to hook up an OBD2 scanner and see if it outputs an RPM value while cranking (not sure if the stock ECU does or not). If you get an RPM signal, you know the cam/crank pulses are good.

You say you think you smell gas -- do you actually? If so, then your cam/crank signals are good (ECU won't inject fuel without a sync) and that would suggest it's probably a spark problem.

Stupid question, but you did get the plug wires back on the right cylinders, right?

On the "missing ground" topic, the main ECU harness is grounded through a bolt at the front of the intake manifold. The harnesses are somewhat in the way for the timing covers, so it's not unusual to take that bolt out to get more flexibility in the harness, and if you forgot to put it back on, or missed one of the ring terminals that goes under it...

--Ian
codrus is offline   Reply With Quote
Old 11-19-2015, 04:06 AM   #30
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,365
Total Cats: 1,326
Default

OK, now replace your cam angle sensor
Savington is online now   Reply With Quote
Old 11-19-2015, 02:36 PM   #31
Junior Member
Thread Starter

Join Date: Jan 2014
Posts: 111
Total Cats: 0
Default

Thank goodness I have a spare engine sitting around. I'll salvage a cam sensor from it after I put my engine back together and see if that fixes it.

Ian, thank you for a very intelligent and insightful answer. I love it when people explain things so thoroughly and in a "point A leads to B, which causes C" manner. I will test the spark after everything is buttoned back up.
Ncorlis is offline   Reply With Quote
Old 11-25-2015, 08:24 AM   #32
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Subscribed.... Facing same issues.
TonyV is offline   Reply With Quote
Old 11-30-2015, 01:50 PM   #33
Junior Member
Thread Starter

Join Date: Jan 2014
Posts: 111
Total Cats: 0
Default Cam Angle Sensor didn't work

It still will just crank and crank without ever starting.
-timing is correct
-not crank sensor
-not cam angle sensor
Ncorlis is offline   Reply With Quote
Old 11-30-2015, 02:32 PM   #34
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Known working sensors or just random ones believed to have worked at some time in the past?

Connectors or ECU?

Stupid stuff like a non-clicked connector can spoil a lot.
NiklasFalk is offline   Reply With Quote
Old 11-30-2015, 02:39 PM   #35
Junior Member
Thread Starter

Join Date: Jan 2014
Posts: 111
Total Cats: 0
Default

The car literally ran absolutely fine before I removed the timing belt because it was too tight. I put the belt back on, and it won't start. I'll check the connectors, but I am pretty sure they are all clicked. The ECU hasn't been touched in a long time. All of the grounds are good too.
Ncorlis is offline   Reply With Quote
Old 11-30-2015, 02:47 PM   #36
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

Are you on the stock ECU by chance? Curious if a simple log would tell us what the computer sees. Check fuses?
psyber_0ptix is offline   Reply With Quote
Old 11-30-2015, 03:02 PM   #37
Junior Member
Thread Starter

Join Date: Jan 2014
Posts: 111
Total Cats: 0
Default

Yep, stock ECU unfortunately. I'll check the fuses in a second.
Ncorlis is offline   Reply With Quote
Old 11-30-2015, 03:12 PM   #38
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

99% of the time, if you took it apart and put it back together and it doesn't work, it's something you put back wrong.

Have you pulled the plugs? Is it injecting fuel? Is it sparking?

--Ian
codrus is offline   Reply With Quote
Old 11-30-2015, 03:20 PM   #39
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

Output test mode would be so sexy right now
psyber_0ptix is offline   Reply With Quote
Old 12-02-2015, 04:28 PM   #40
Junior Member
Thread Starter

Join Date: Jan 2014
Posts: 111
Total Cats: 0
Default

I made a Youtube video showing what the car does when I crank it. I apologize for not being the smoothest talker in the world, and the lack of turbo
Ncorlis is offline   Reply With Quote
