Old 07-03-2008, 02:42 AM   #1
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default New top and roll bar install today

Picked up a new top (on frame) and a hard dog roll bar and to day was the day to to the install. Went much better than I was expecting.

Pulled the old top off, yanked the carpeting and plates on the deck. Cut the holes for the roll bar, body saw made easy work on that...love that thing. Bolted up the bar, everything lined up perfectly.

Went to install the top and the hinge mounts went in with out and issue but the rain rail and the metal brackets were a handfull now that the roll bar was in the way. But after some cursing and a few more beers it all came together.

The new top looks great and I'm not going to miss the sound of the old one flapping the torn parts in the wind at highway speeds.

I'll get some pics up soon. Total time 4 hours.

Question, any ideas on how to make the seat belts function any better, they seem to be all stuck up behind the bar. I'll deal if I have to but looking to see if anyone else solved this.
IcantDo55 is offline   Reply With Quote
Old 07-03-2008, 03:35 AM   #2
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by IcantDo55 View Post
Question, any ideas on how to make the seat belts function any better, they seem to be all stuck up behind the bar. I'll deal if I have to but looking to see if anyone else solved this.
Sounds like a hard dog... by buddy had the same issue and we couldn't resolve it. the seat belts never worked right again until he pulled the bar so the hardtop would fit.
Arkmage is offline   Reply With Quote
Old 07-03-2008, 03:44 AM   #3
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Yep, Hard dog.
IcantDo55 is offline   Reply With Quote
Old 07-03-2008, 05:13 AM   #4
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Bristol
Posts: 442
Total Cats: 0
Default

Pics or ban. I wanna see the new shiny bits
Duckie_uk is offline   Reply With Quote
Old 07-03-2008, 05:37 AM   #5
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

bossfrog makes an adapter for the seatbelt problem, I've read mixed reviews.
http://www.deftracing.com/miata_part...t_adapters.htm
johndoe is offline   Reply With Quote
Old 07-03-2008, 09:11 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by johndoe View Post
bossfrog makes an adapter for the seatbelt problem, I've read mixed reviews.
http://www.deftracing.com/miata_part...t_adapters.htm


I have those....in a plastic bag in my trunk....one day. However, I don't believe they will solve the issue.


Hard Dog suggest doing something with the reel to help out.... http://www.bethania-garage.com/reel_guide_install.htm
Braineack is offline   Reply With Quote
Old 07-03-2008, 10:00 AM   #7
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Does any one have a picture of the rollbar, outside the car preferably.
Saml01 is offline   Reply With Quote
Old 07-03-2008, 10:04 AM   #8
Senior Member
iTrader: (4)

Join Date: May 2007
Location: Ontario
Posts: 790
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
Does any one have a picture of the rollbar, outside the car preferably.
Are you serious Sam?

I'd understand asking for a specific picture, like side profile to the latches or some **** like that, but nearly every miata with a rollbar has a harddog?
reddroptop is offline   Reply With Quote
Old 07-03-2008, 09:55 PM   #9
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I have the boss frog double hoop. The problem with mine is they are located too far back and inward. When I put them on it doesn't pull flat across the mount, it pulls on the corner.
miataspeed1point6 is offline   Reply With Quote
Old 07-03-2008, 10:08 PM   #10
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by Braineack View Post
Hard Dog suggest doing something with the reel to help out.... http://www.bethania-garage.com/reel_guide_install.htm
I did that when I installed my bar. It helped, but every so often it will get caught in the corner and I'll have to feed it back in by hand.
RotorNutFD3S is offline   Reply With Quote
Old 07-03-2008, 11:42 PM   #11
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by Saml01 View Post
Does any one have a picture of the rollbar, outside the car preferably.
This might help.
http://www.good-win-racing.com/Mazda.../Hard-Dog.html
samnavy is offline   Reply With Quote
Old 07-04-2008, 01:00 AM   #12
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by reddroptop View Post
Are you serious Sam?

I'd understand asking for a specific picture, like side profile to the latches or some **** like that, but nearly every miata with a rollbar has a harddog?
I just want to see how the bar mounts into the car. Does it look similar to the deuce bar or does it have bars that go down behind the seats?
Saml01 is offline   Reply With Quote
Old 07-04-2008, 01:54 PM   #13
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Here, from the documentation I did on my install.

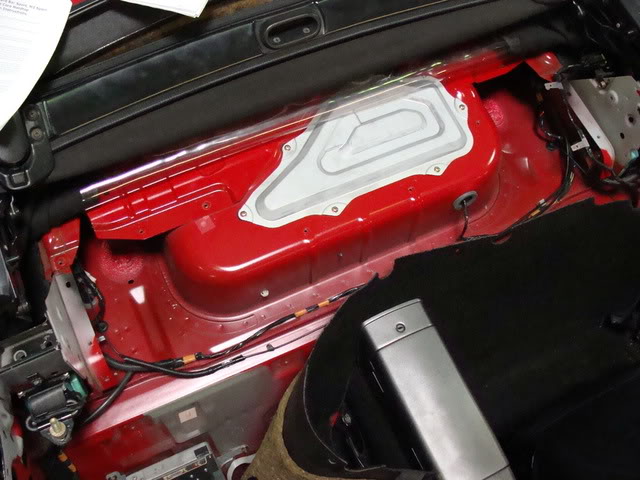

You have to cut some of the metal away (not done yet):
Name:  DSC01171.jpg
Views: 14
Size:  70.9 KB

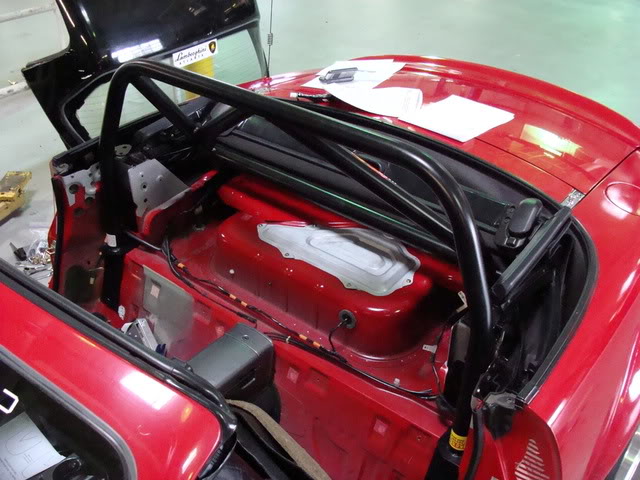

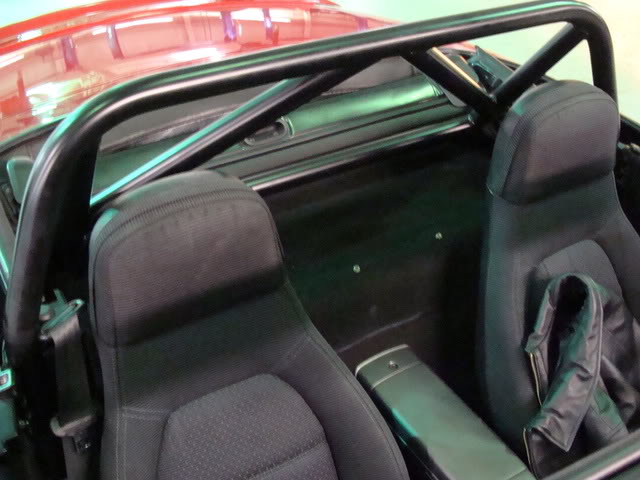

You can tell where the metal has to be cut now:
Name:  DSC01172.jpg
Views: 147
Size:  77.1 KB

Name:  DSC01173.jpg
Views: 14
Size:  79.6 KB

Name:  DSC01176.jpg
Views: 12
Size:  58.7 KB

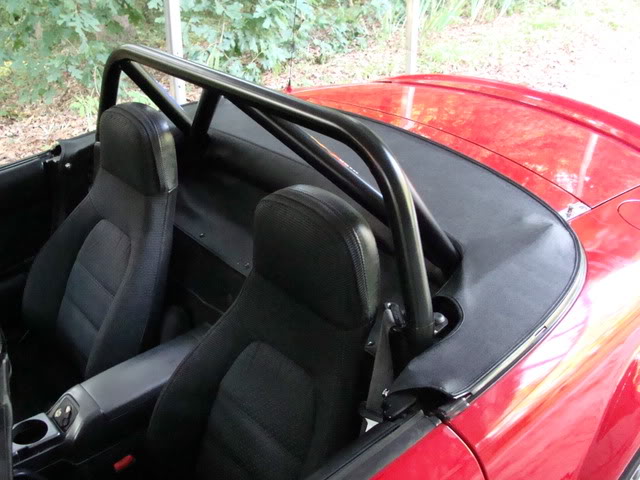

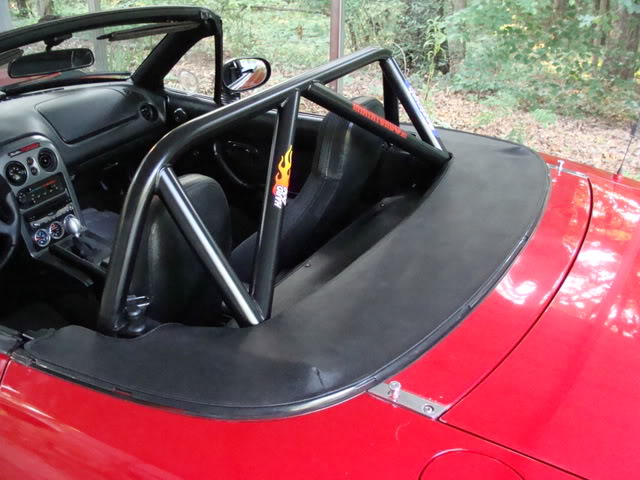

And while you're at it, if you have a boot, get brave and cut the sucker to fit around your rollbar:

Name:  DSC01681.jpg
Views: 21
Size:  75.5 KB
Name:  DSC01682.jpg
Views: 13
Size:  71.3 KB
RotorNutFD3S is offline   Reply With Quote
