No more baked right foot - Pics inside!


Old 02-03-2019, 06:41 PM
  #1
Junior Member
Thread Starter

Join Date: Oct 2012
Posts: 70
Total Cats: 0
Default No more baked right foot - Pics inside!

I got tired of having my right foot 100 degrees hotter than my left foot, so I just put up some of this DEI tunnel heat shield. Should keep from having baked right foot! Also helps not having an engine installed


ATX. is offline
Old 02-03-2019, 09:32 PM
  #2
Junior Member

Join Date: Nov 2015
Location: Western MI
Posts: 56
Total Cats: 9
Default

that stuff is great to work with, and sticks to anything.

i have found that it's great for about 20-30 minutes, but then begins to heat soak.
apexanimal is offline
Old 02-04-2019, 01:23 PM
  #3
Elite Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,586
Total Cats: 97
Default

I would recommend sealing the edges with a head resistant tape. The insulation can absorb moisture and oils and become less effective and even flammable in extreme cases.
Midtenn is offline
Old 02-04-2019, 01:57 PM
  #4
Junior Member
Thread Starter

Join Date: Oct 2012
Posts: 70
Total Cats: 0
Default

Midd tenn ty! My thoughts exactly! Ive seen turbo blankets ignite like that. Then it would really be a baked foot!
ATX. is offline
Old 02-04-2019, 09:05 PM
  #5
Junior Member

Join Date: Mar 2006
Location: Portland, OR
Posts: 92
Total Cats: 4
Default

Originally Posted by Midtenn View Post
I would recommend sealing the edges with a head resistant tape. The insulation can absorb moisture and oils and become less effective and even flammable in extreme cases.
Get a tube of B1/2 and seal the edges with that.
ElyasWolff is offline
Old 02-05-2019, 01:09 PM
  #6
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 18,909
Total Cats: 2,364
Default

If your foot is cooking, guess what the transmission oil is doing? Insulate the exhaust with metal heat shielding like they do from the factory on 100whp Miatas. The trans tunnel shielding definitely works but there is a real benefit to keeping the heat in the pipe.
sixshooter is offline
Old 02-06-2019, 06:36 PM
  #7
Senior Member
iTrader: (1)

Join Date: Jul 2014
Location: Kensington, MD
Posts: 569
Total Cats: -20
Default

Get this (or these):
huesmann is offline
Old 02-06-2019, 07:26 PM
  #8
Junior Member
Thread Starter

Join Date: Oct 2012
Posts: 70
Total Cats: 0
Default

Originally Posted by sixshooter View Post
If your foot is cooking, guess what the transmission oil is doing? Insulate the exhaust with metal heat shielding like they do from the factory on 100whp Miatas. The trans tunnel shielding definitely works but there is a real benefit to keeping the heat in the pipe.
A very good point indeed. Lol @ 100whp miatas, and true! Okay, well this material was thin enough I should still have plenty of spare clearance to add the downpipe heatshield. But... do the same concerns apply to those as such with turbo blankets? From what I have read, they can become oil saturated and ignite.

EDIT: I suppose I could fab up a heat shield that doesn't use a fabric material.

Last edited by ATX.; 02-06-2019 at 07:40 PM.
ATX. is offline
Old 02-06-2019, 07:58 PM
  #9
Junior Member
iTrader: (4)

Join Date: Apr 2011
Location: Bay Area- East Bay
Posts: 489
Total Cats: 10
Default

Insulating the exhaust pipe is going to do the most. You need air space in between each part/material otherwise it all heat soaks to a point. Then insulate the interior trans panel to catch the remaining heat that soaks through. High quality blankets are made of flame retardent material. It's the oil that will be the fuel to the fire. Just keep up on maintaining leaks and it's not a problem.
brainzata is offline
Old 02-06-2019, 08:06 PM
  #10
Junior Member
Thread Starter

Join Date: Oct 2012
Posts: 70
Total Cats: 0
Default

Yup, I understand its only the oil that burns. I'll have insulation on the inside as well, more than I already have added. My plan was to have basically a stainless sheet bent around the downpipe, with about 10mm of air between the downpipe and sheet. and then just clamped on at each end. It's also important to keep in mind that not only will leaks saturate the blanket but so can vapors, which are more difficult to avoid entirely without rerouting crankcase gasses into the engine, which will not be my crankcase ventilation/OCC solution this time around, but that's for a different thread entirely
ATX. is offline
Old 02-06-2019, 08:33 PM
  #11
Junior Member

Join Date: Mar 2015
Posts: 158
Total Cats: 14
Default

Originally Posted by huesmann View Post
Get this (or these):
Took me a while to find six's post from ~4 years ago with a
link link
to one of these. I believe the idea is to use it to isolate the exhaust from the transmission, and from the gas tank.
cpierr03 is offline
Old 02-07-2019, 09:24 AM
  #12
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 18,909
Total Cats: 2,364
Default

Originally Posted by cpierr03 View Post
Took me a while to find six's post from ~4 years ago with a
link link
to one of these. I believe the idea is to use it to isolate the exhaust from the transmission, and from the gas tank.
Yes.

Turbo blankets will make the turbo fail on a track car. The turbine side oil seal fails first and then the bearing. Ask any turbo rebuild shop what they know about blankets.
sixshooter is offline
Old 02-09-2019, 04:07 PM
  #13
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 647
Total Cats: 62
Default

https://www.miataturbo.net/race-prep...shields-90059/

That thread has the best idea ever for inexpensive, light, and effective heat shields. Moti is the man for finding this stuff.

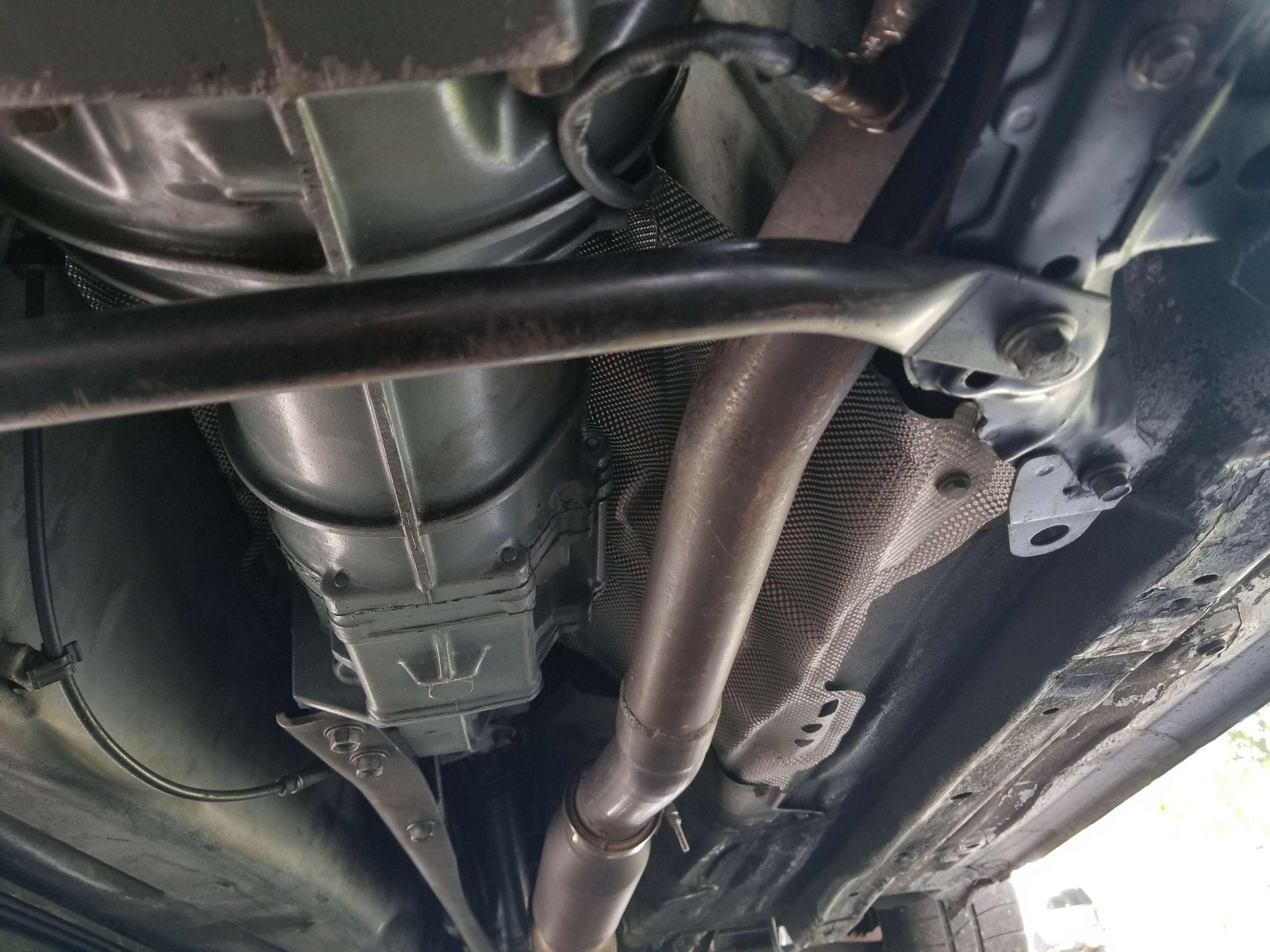

Pic is of my install of the shield without having the luxury off having the engine and trans out. It made a fantastic difference on long drives. Mind you, I live in SoFla and drive the car 2 hours one way to events in our summer heat. It was tough and I remember wedging a windshield sun visor between my leg and tunnel to keep it from baking my leg. After this shield install, no more sun visor to keep leg from baking!

hector is offline
Old 02-09-2019, 06:41 PM
  #14
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,525
Total Cats: 869
Default

I had a more "involved" approach to the problem...








See my turbo build thread here for details, specifically post #13 and 47.

(I have found that trapping the heat in the exhaust/DP throws off the EGT sensor)
Godless Commie is offline
Old 02-09-2019, 06:56 PM
  #15
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 647
Total Cats: 62
Default

Most people add heat shields to their car.

You sir, added a car to your heat shield.
hector is offline
Old 02-12-2019, 12:56 PM
  #16
Junior Member
Thread Starter

Join Date: Oct 2012
Posts: 70
Total Cats: 0
Default

Originally Posted by hector View Post
Most people add heat shields to their car.

You sir, added a car to your heat shield.
Lol and he added chassis to turbos. Thanks again for those awesome pics, that heat shielding is gonna be hard to top!
ATX. is offline
Old 02-12-2019, 10:23 PM
  #17
Junior Member

Join Date: Nov 2016
Location: Chicago
Posts: 252
Total Cats: -11
Default

That's an awesome heat shield. I smell a group buy.
stevos555 is offline
