Default How R you keeping the heat out of cabin?

Man!!! I can feel the turbo's heat radiating into the cabin !

I have a home made sheet metal heat shield over the TD04 turbo but it is sort of open on the side facing the firewall.
The DP is not covered or shielded in any way but I do have some of that shinny Mylar padded material under the carpet.

What else are you guys using that works fairly well ?

I was thinking of header tape around the DP (?)

Any ideas ?

Thanks
poobs is offline   Reply With Quote
Old 08-25-2013, 08:05 PM   #2
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

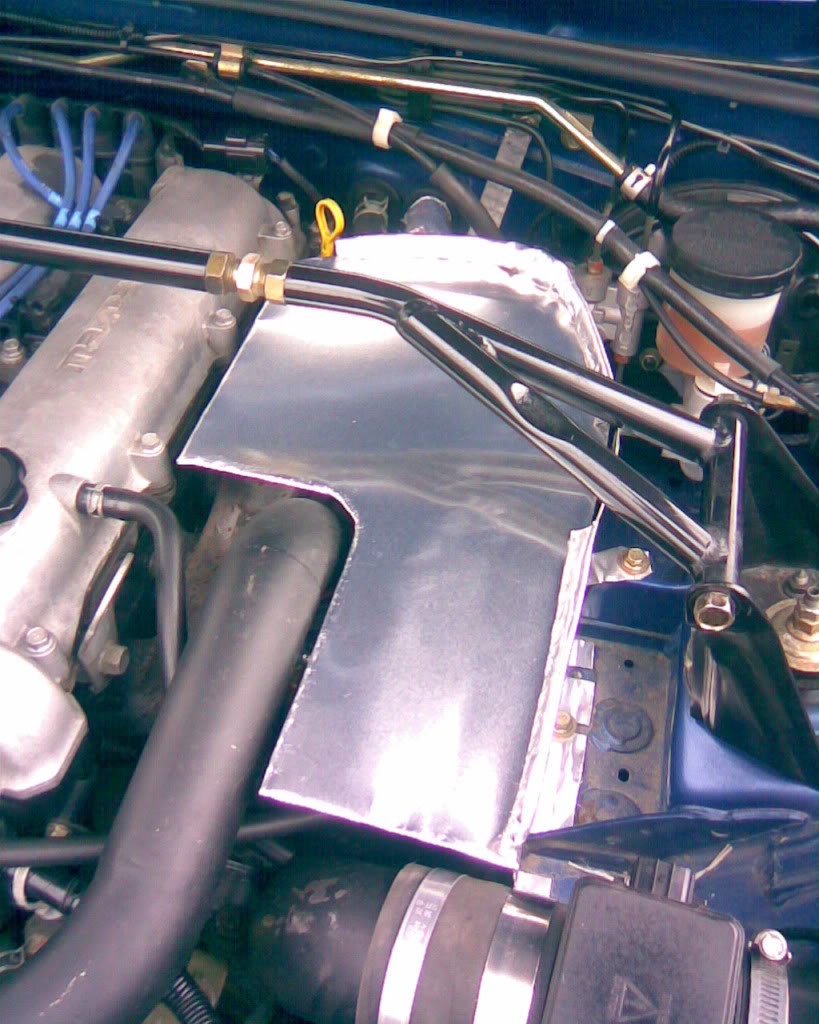

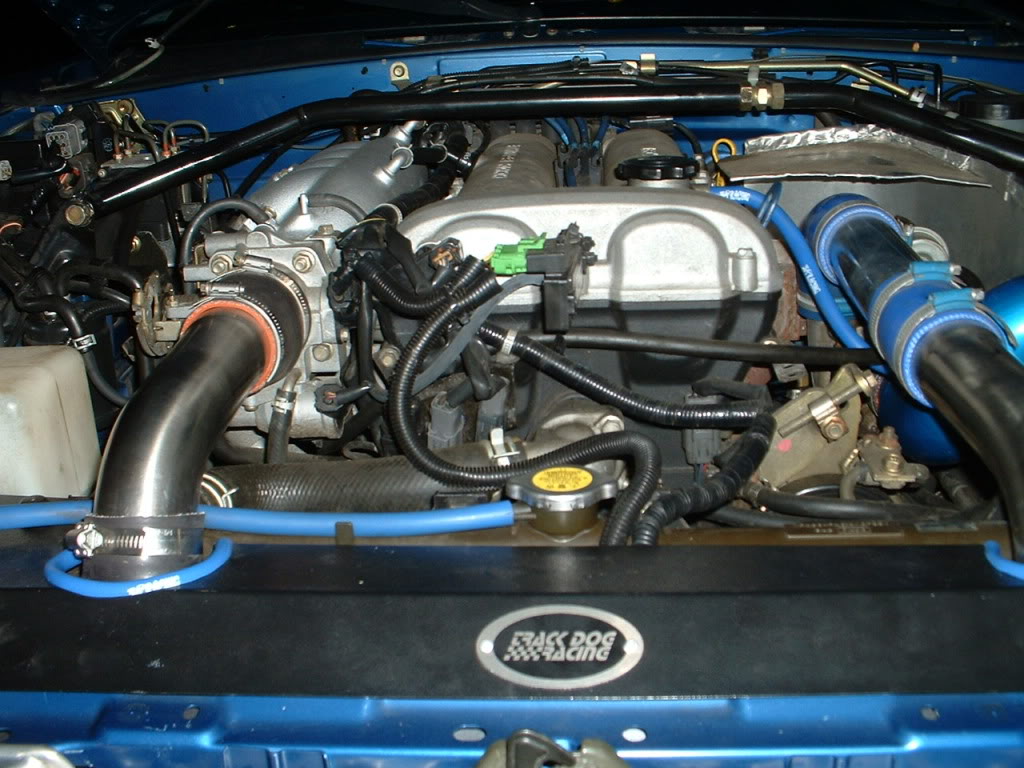

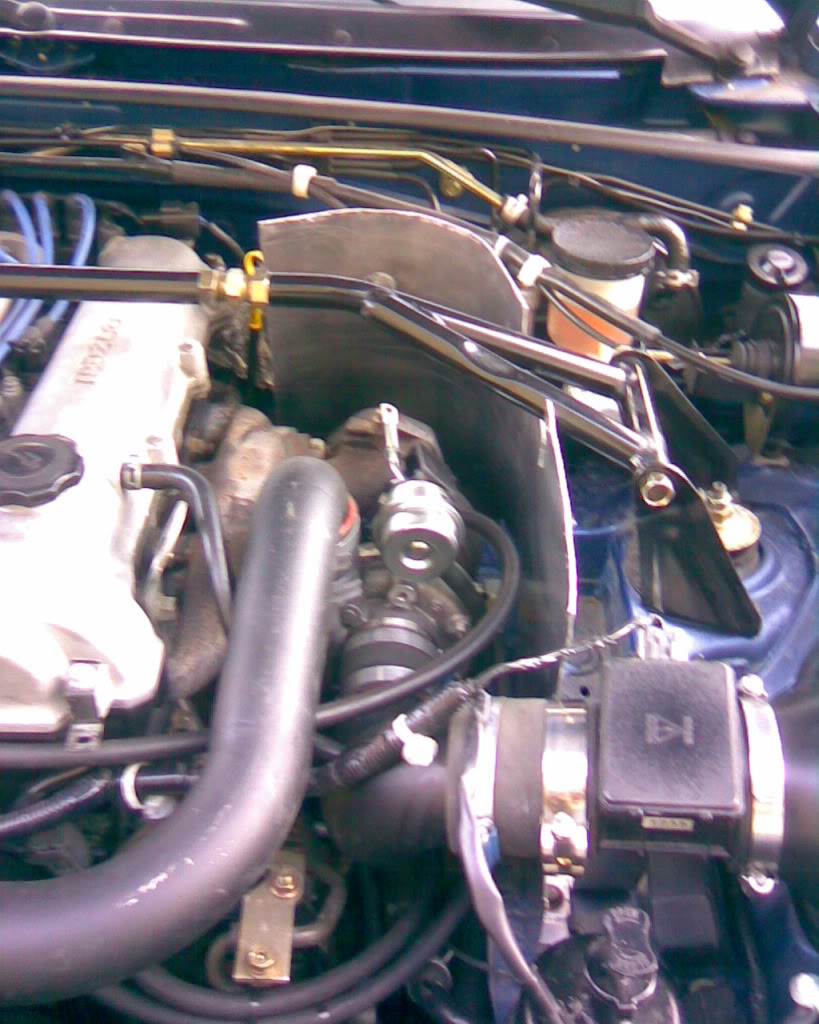

Make a good heat shield.





Attached Thumbnails
How R you keeping the heat out of cabin?-image004.jpg   How R you keeping the heat out of cabin?-image015.jpg   How R you keeping the heat out of cabin?-dscf0006.jpg
triple88a is offline   Reply With Quote
Old 08-25-2013, 08:19 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Thumbs up

Thank you very much for posting those photos. You did a good job !
I was just looking at my heat shield. It is mostly open in the back in order to avoid the heater hoses etc.
I'm going to have to start from scratch using your approach if I try to make another one.
My DP comes down in a sharp turn from the turbo close to that metal shelf thing inside the Miata engine bay.
I might try to post pics later.

Cheers

P
poobs is offline   Reply With Quote
Old 08-25-2013, 08:25 PM   #4
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

When i remake it i'll make it out of thicker metal. The one i have now works alright and its fine but thicker metal would look better and be easier to work with since it would hold shape vs relying on the crease joints.
triple88a is offline   Reply With Quote
Old 08-25-2013, 08:28 PM   #5
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

I don't have a metal heat shield, but I do have everything surrounded by some industrial boiler insulation. A few layers of it held on with some of the reflective "heat tape" stuff keeps everything nice and cool.

I figured if it's good enough for one of our boilers running at 1500 it's good enough for my engine bay.
dieselmiata is offline   Reply With Quote
Old 08-25-2013, 08:52 PM   #6
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

What's boiler insulation and where do you buy it ?

Also, I saw a greedy heat shield like the ones Bell Engineering used to sell and they had added some type of fiberglass mat to the under side ..
poobs is offline   Reply With Quote
Old 08-25-2013, 09:50 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

All my heart comes from trans tunnel...
Braineack is offline   Reply With Quote
Old 08-25-2013, 09:52 PM   #8
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Yeah I have that too but not as much cause of the insulating stuff .

Found this http://www.ptpturboblankets.com/why_turbo_blankets.php
poobs is offline   Reply With Quote
Old 08-26-2013, 12:06 AM   #9
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Quote:
Originally Posted by poobs View Post
What's boiler insulation and where do you buy it ?
Insulation for boilers.

Specifically the stuff that goes between the membrane wall and the casing.

Don't remember the name off the top of my head, but tomorrow I'll grab some and get the information. It's awesome stuff. Thin enough to be useful, and has really good insulating properties.
dieselmiata is offline   Reply With Quote
Old 08-26-2013, 12:10 AM   #10
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Maybe its just me but i dont think insulation is needed there. The fans push all the air and it hits the firewall. Having a simple heat shield acts as a guide for the air so instead of guiding it to the turbo then towards the fire wall you're guiding it through the turbo only.
triple88a is offline   Reply With Quote
Old 08-26-2013, 12:13 AM   #11
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

dieselmiata is offline   Reply With Quote
Old 08-26-2013, 12:31 AM   #12
Junior Member

ozbrock's Avatar

Join Date: Dec 2010
Location: Orlando, FL
Posts: 192
Total Cats: 19
Default

Quote:
Originally Posted by Braineack View Post
All my heart comes from trans tunnel...



Have you checked your inner and outer shifter boots? They are a major source of heat in the cabin if they are torn.
ozbrock is offline   Reply With Quote
Old 08-26-2013, 12:34 AM   #13
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Thanks for the info on boiler insulation !

My shifter boots could be damaged but I just don't feel the heat from there. It hits me in the face like from the gage cluster.

Last edited by poobs; 08-26-2013 at 12:35 AM. Reason: typo
poobs is offline   Reply With Quote
Old 08-26-2013, 12:55 AM   #14
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

If you feel it in ur face is ur hood/firewall insulation ripped or something? You sure its not flowing through the vent and to your face?
triple88a is offline   Reply With Quote
Old 08-26-2013, 01:17 PM   #15
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Thumbs up

Hey guys, what is the size comparison between the TD04 and other turbos like the T3 T4 etc ?
I find relatively cheap turbo blankets on line but they seem to cost more when they are listed for the TD04

Also, Found a square hole in my firewall where the rubber plug popped off. I had used it to run my wideband wiring. Some of the heat is coming from there.

The vents also blow a tiny amount of air when they are off.
poobs is offline   Reply With Quote
Old 08-26-2013, 01:52 PM   #16
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

I would think any T2 turbo blanket would work.
thenuge26 is offline   Reply With Quote
Old 08-26-2013, 02:04 PM   #17
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by thenuge26 View Post
I would think any T2 turbo blanket would work.
Thanks
poobs is offline   Reply With Quote
Old 08-26-2013, 02:10 PM   #18
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

I use wind. I made my Miata a convertable, then put top down and now comes the crazy part....I drive it and wind goes into the cabin.

On a moar srs thought, you can insulate your floor under the carpet. Most people don't like turbo blankets.
MicaCeli is offline   Reply With Quote
Old 08-26-2013, 02:17 PM   #19
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by MicaCeli View Post
I use wind. I made my Miata a convertable, then put top down and now comes the crazy part....I drive it and wind goes into the cabin.

On a moar srs thought, you can insulate your floor under the carpet. Most people don't like turbo blankets.
Yes, I use wind too but this is Florida and the AC is NG so the heat from the turbo makes the car less enjoyable

My floor is already insulated - two layers of loews shinny stuff.

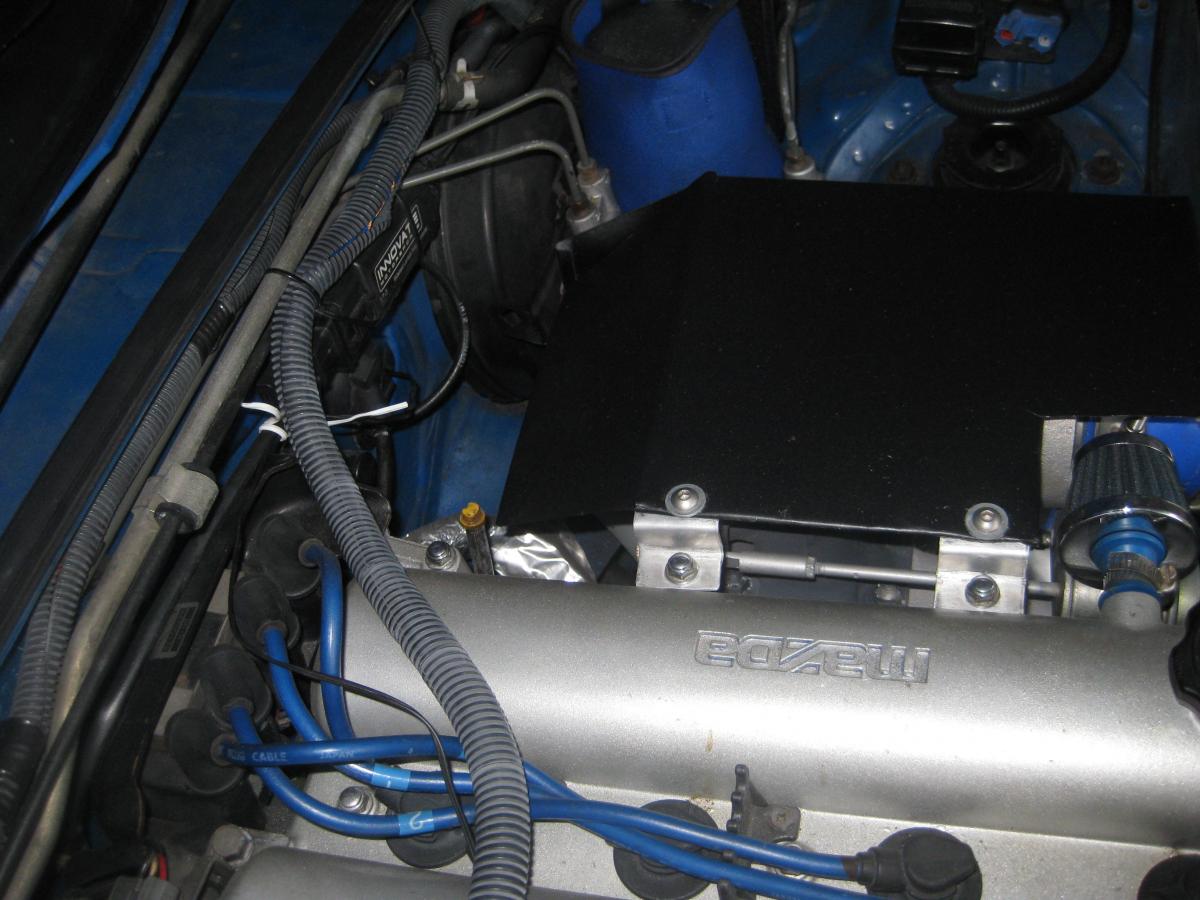

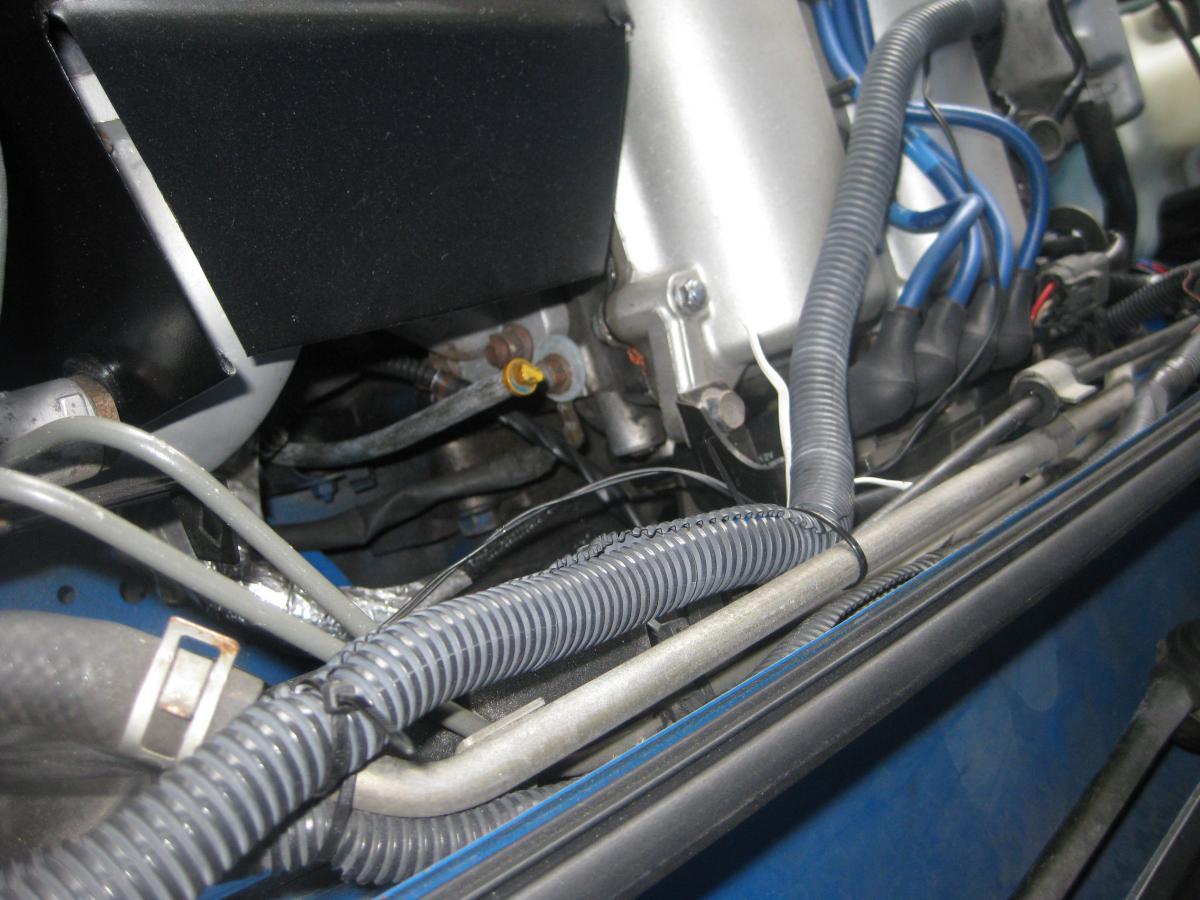

I added pics of how my **** looks like now. You can see the open back heat shield.
Seems like another heat shield behind this one and some header insulating tape on the down pipe will help.
Attached Thumbnails
How R you keeping the heat out of cabin?-img_3297.jpg   How R you keeping the heat out of cabin?-img_3299.jpg

Last edited by poobs; 08-26-2013 at 05:16 PM. Reason: Pics
poobs is offline   Reply With Quote
Old 08-26-2013, 05:03 PM   #20
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Keep in mind most turbo blankets will not cover the down pipe so you'll need to make a good heat shield regardless. I say start with the heat shield and then add a turbo blanket (which will probably crumble into nothing by the end of the year)
