Alright ive been struggling with this code (P1512 - Intake Manifold Runner Control Bank 1 Stuck Closed) for over a week. Theres not much on any Miata forum related to this issue.

I have no clue what to do next aside from replacing parts (that appear to be working fine) so before I do that I figured I should ask some of you experts.

Car is a 2001, engine was replaced and has around 120k on it. I bought it 2 weeks ago, and am starting to question how good of a deal i got.

So far I have :

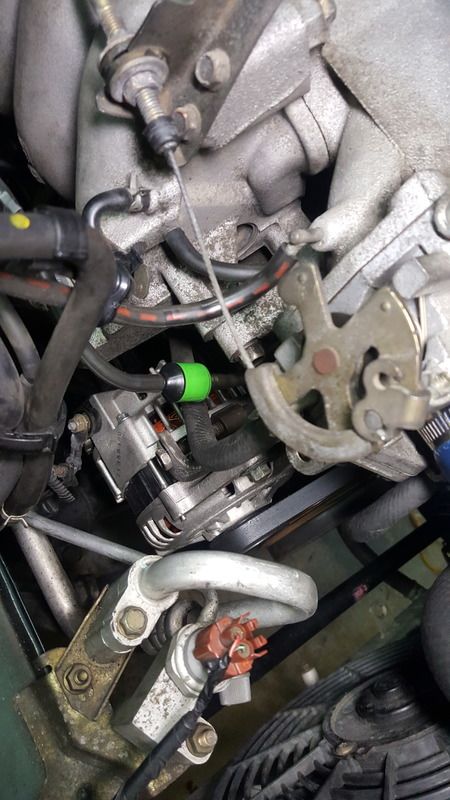

~Checked all vacuum lines going to the VVT solenoid (all of them coming from the back of the intake) and they all appear good
~Connected a high end scan tool to my ECM and manually activated the VVT solenoid (which I could hear clicking)
~Seperated the top half from the bottom half of the intake manifold and checked to see if the rod the VVT solenoid turns would move, and it does
~Tested the signal wire from the VVT solenoid to the ECM and the wire appears good


Im thinking about replacing all the vacuum lines just to rule them out completely. Then the VVT solenoid.

Could my ECM be bad? From searching about replacing the ECM, can I reprogram it or do I have to take it to a shop?

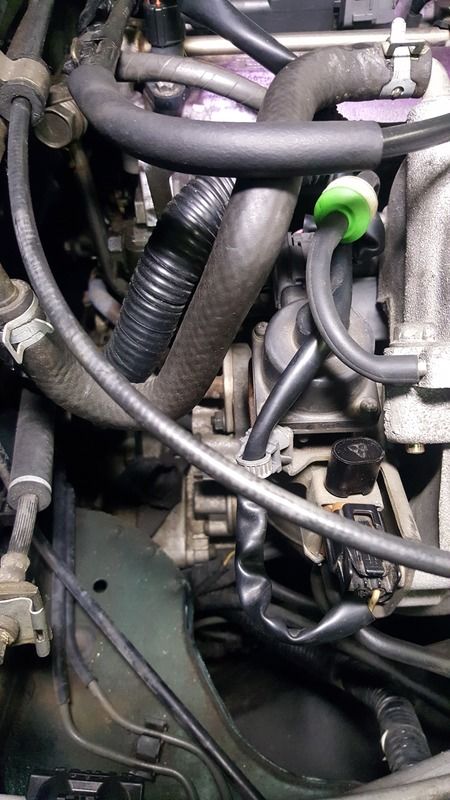

Are my check valves facing the correct direction?

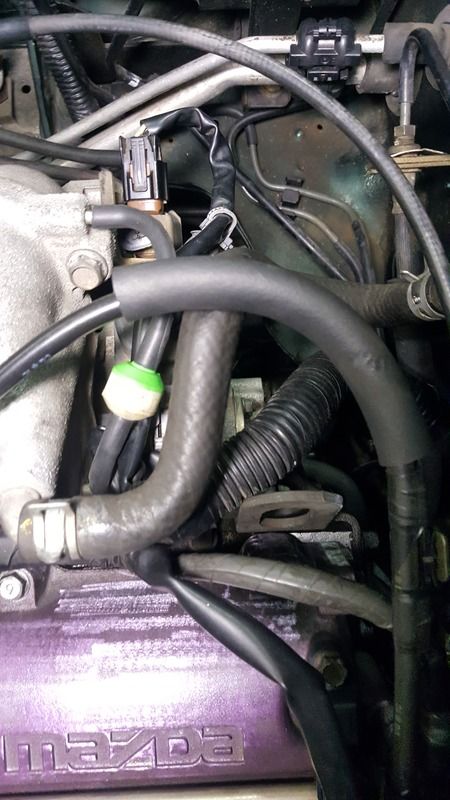

Anything look wrong? Aside from the purple valve cover...

Any suggestions?





Attached Thumbnails
P1512 CEL | VVT related issue-80-20160701_190920_bcd255810ec66ffa00869ba6ab8417728106822e.jpg   P1512 CEL | VVT related issue-80-20160701_190933_465cb37a496c8fac30e040e5791e267fb83ecd06.jpg   P1512 CEL | VVT related issue-80-20160701_191005_0950473fc28302cb7a7a5fbe69ce889edd4d4e1c.jpg
wrxnova is offline   Reply With Quote
Old 07-03-2016, 09:14 AM   #2
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

I believe i'm making progress...

Replaced all vacuum lines to no effect so I started looking over the oil control valve on the top of valve cover.

Looks like i'm missing the OCV Filter (screen) that goes into the oil control valve assembly. My oil was very dirty when I bought it (since been changed). Starting to think that the VVT actuator maybe sticking due to the dirty oil.



wrxnova is offline   Reply With Quote
Old 07-03-2016, 10:17 AM   #3
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

The error seems to be with the intake manifold plates - the VTCS system, not with the VVT.
Reverant is offline   Reply With Quote
Old 07-03-2016, 10:18 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

agreed, look into the vtcs system.
Braineack is offline   Reply With Quote
Old 07-03-2016, 10:47 AM   #5
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Sounds like Scott needs to make you a ms3x sooner rather then later.
shuiend is offline   Reply With Quote
Old 07-03-2016, 11:06 AM   #6
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Quote:
Originally Posted by shuiend View Post
Sounds like Scott needs to make you a ms3x sooner rather then later.
If that could help solve this, ill order one from him immediately. Emissions is due and this is complicating passing.

If I know that my VTCS vacuum switch works(on back of intake manifold), the bar inside the intake manifold attached to the VTCS actuator (under throttle body) rotates, and all vacuum lines are new what else should I be checking? I cant find a schematic of a miata's VTCS system anywhere online.
wrxnova is offline   Reply With Quote
Old 07-03-2016, 12:00 PM   #7
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,196
Total Cats: 12
Default

Post 43:

https://www.miataturbo.net/engine-pe...s-85172/page3/


With the info you have given, I'd be pulling off the manifold, and confirming full opening of the butterflies. Additionally, confirm that the check valve is still okay (not obviously damaged). Engine was replaced, good chance vacuum lines could be reversed. Has the code been cleared, and reappeared? What is coolant temp (approx) in the freeze frame?
2ndGearRubber is offline   Reply With Quote
Old 07-03-2016, 02:47 PM   #8
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Quote:
Originally Posted by 2ndGearRubber View Post
Engine was replaced, good chance vacuum lines could be reversed.
That was it. Vacuum lines were not routed correctly. I cant get code to come back (before this it would come back almost immediately after reving car to 3k rpms) Ill take it for a drive to confirm once I finish everything else and get it off of jack stands.

Thanks for your help
