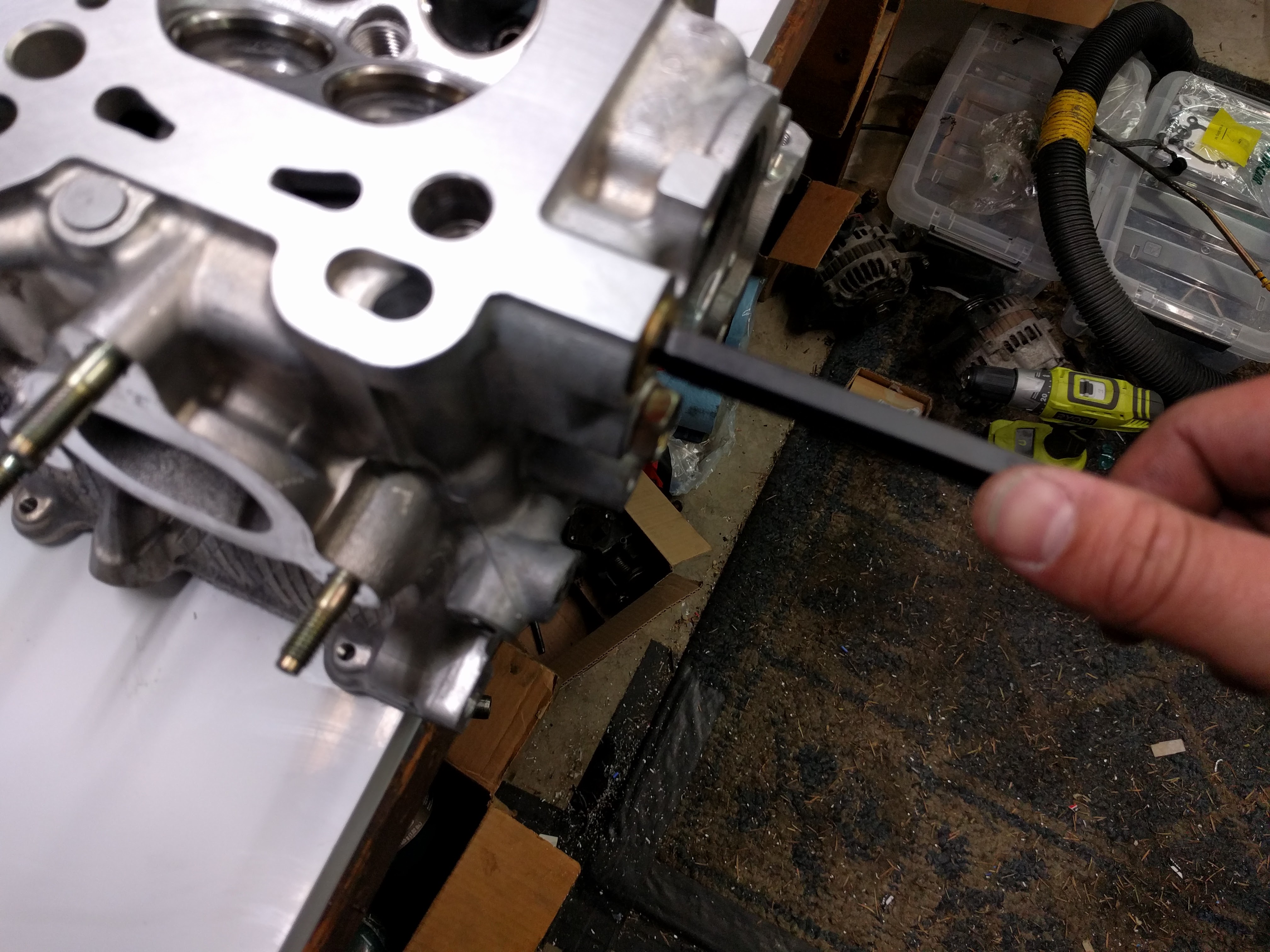

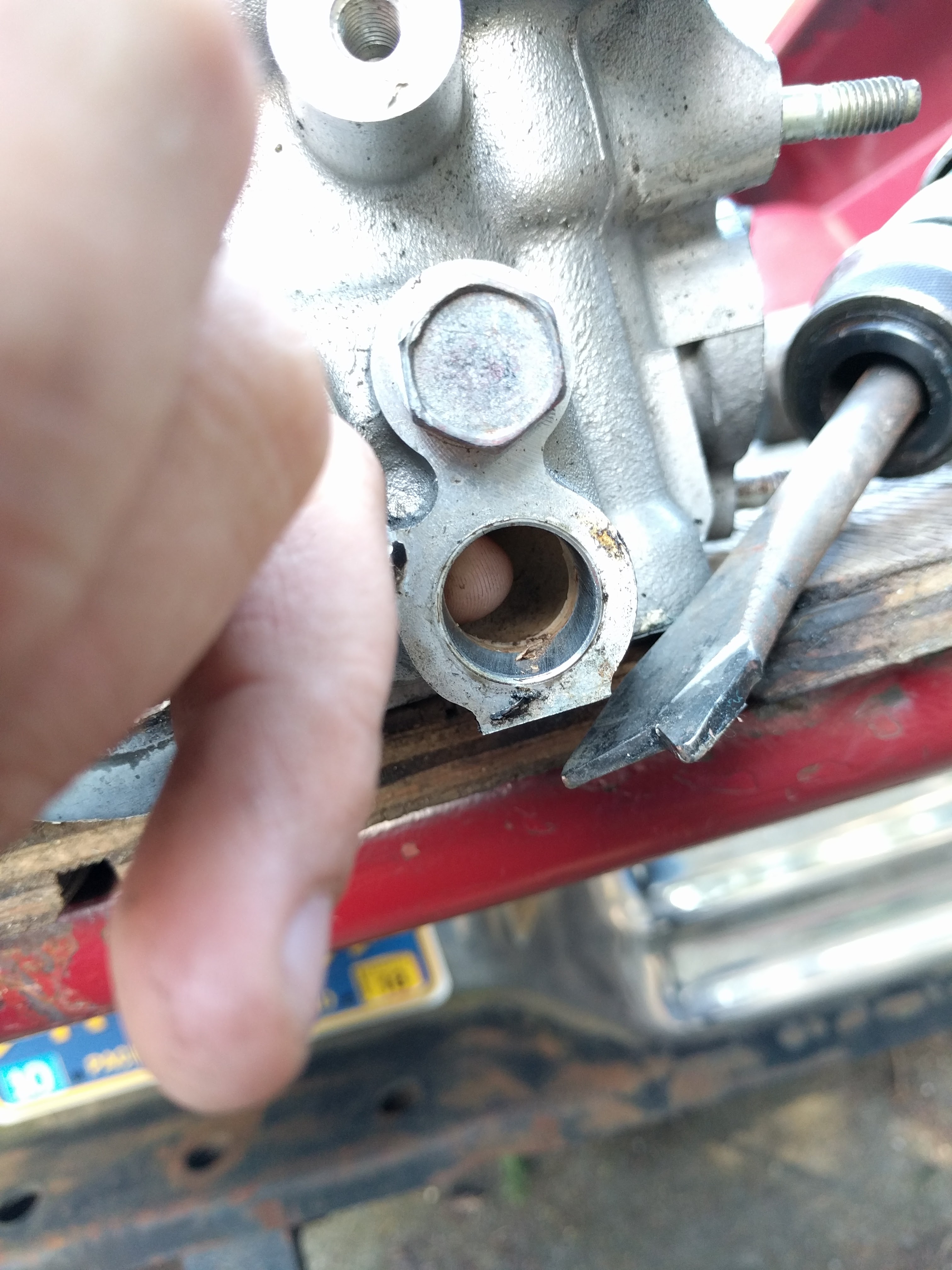

Spent some time with a trashed head today. Propane and an air hammer made short work of removing this thing.

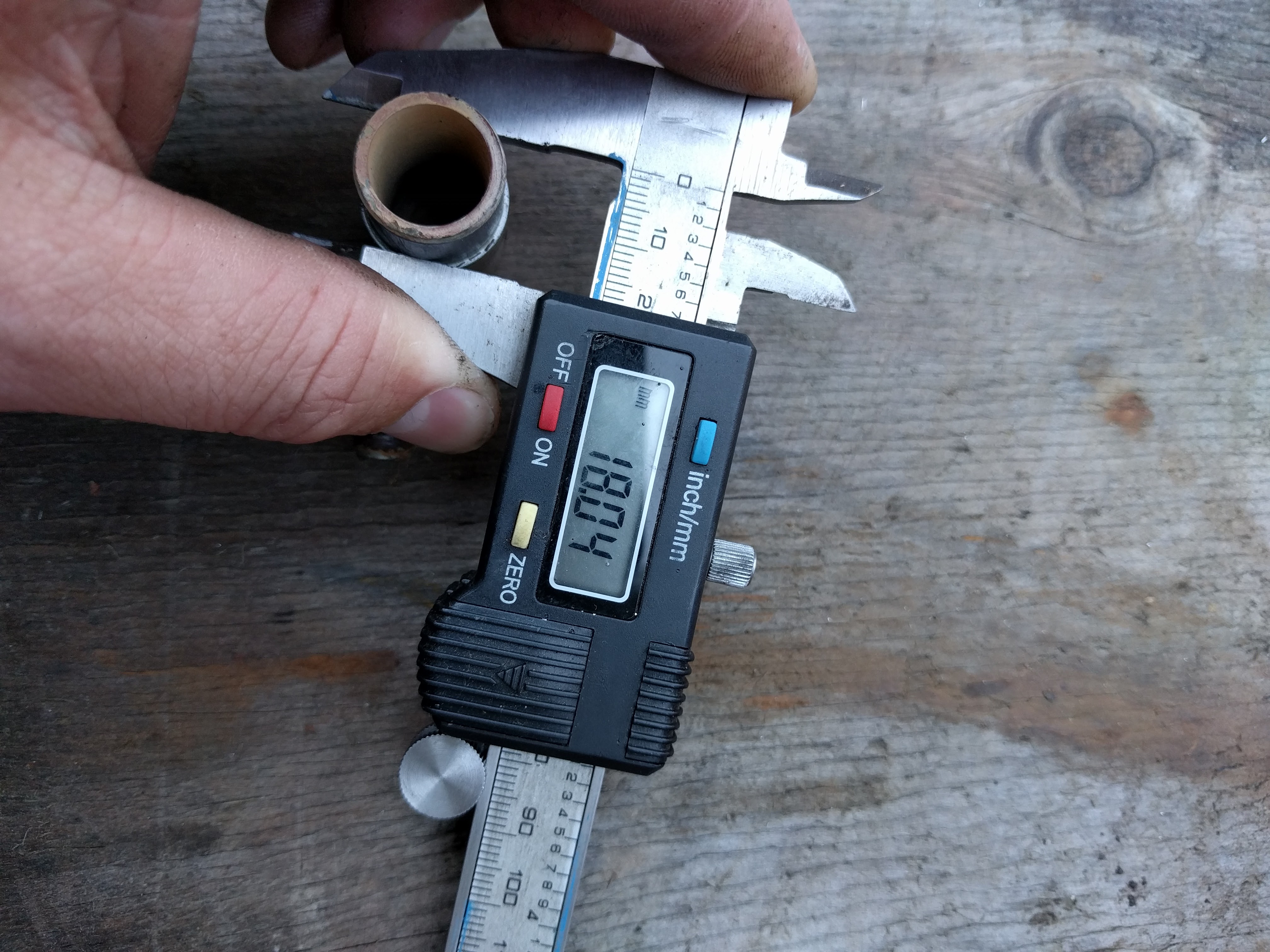

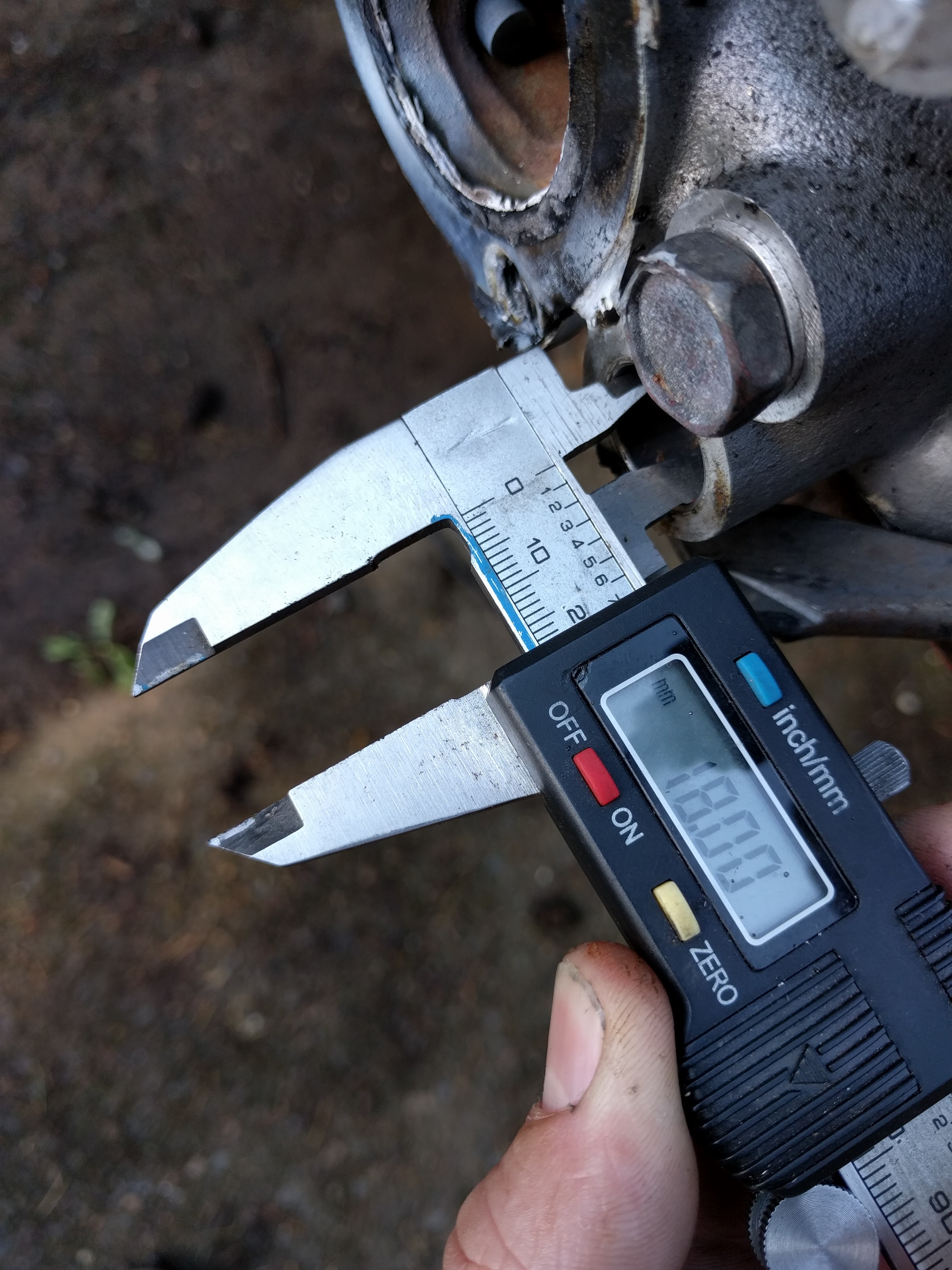

18mm hole. So either use an 18mm freeze plug (Mellings MPC-204B, Dorman 565-102) or drill it and tap for M20x1.5 (18.5mm drill bit) Or M20x2? And not have to drill

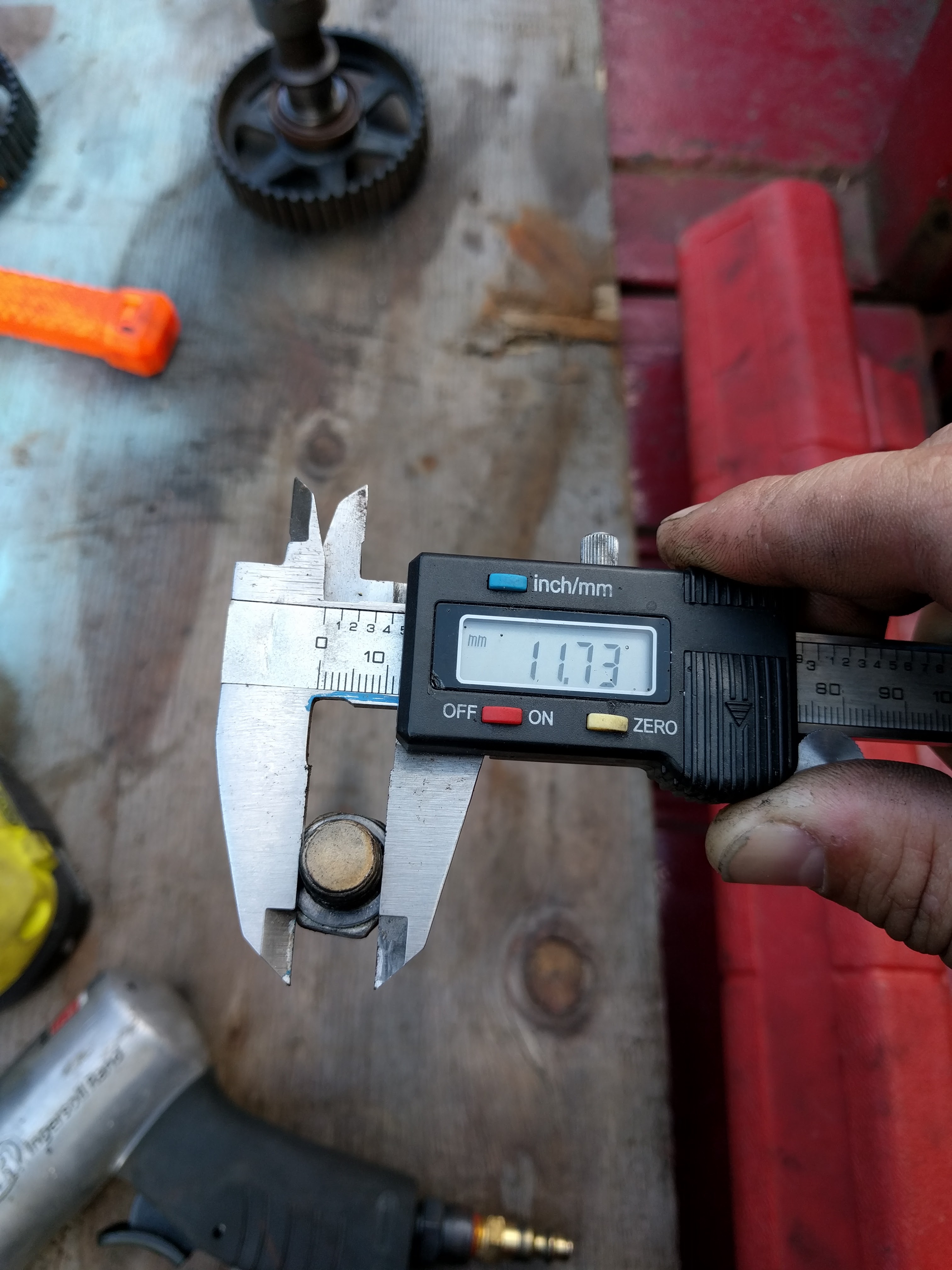

Hole above it is M12x1.5 if you want to do anything weird with that

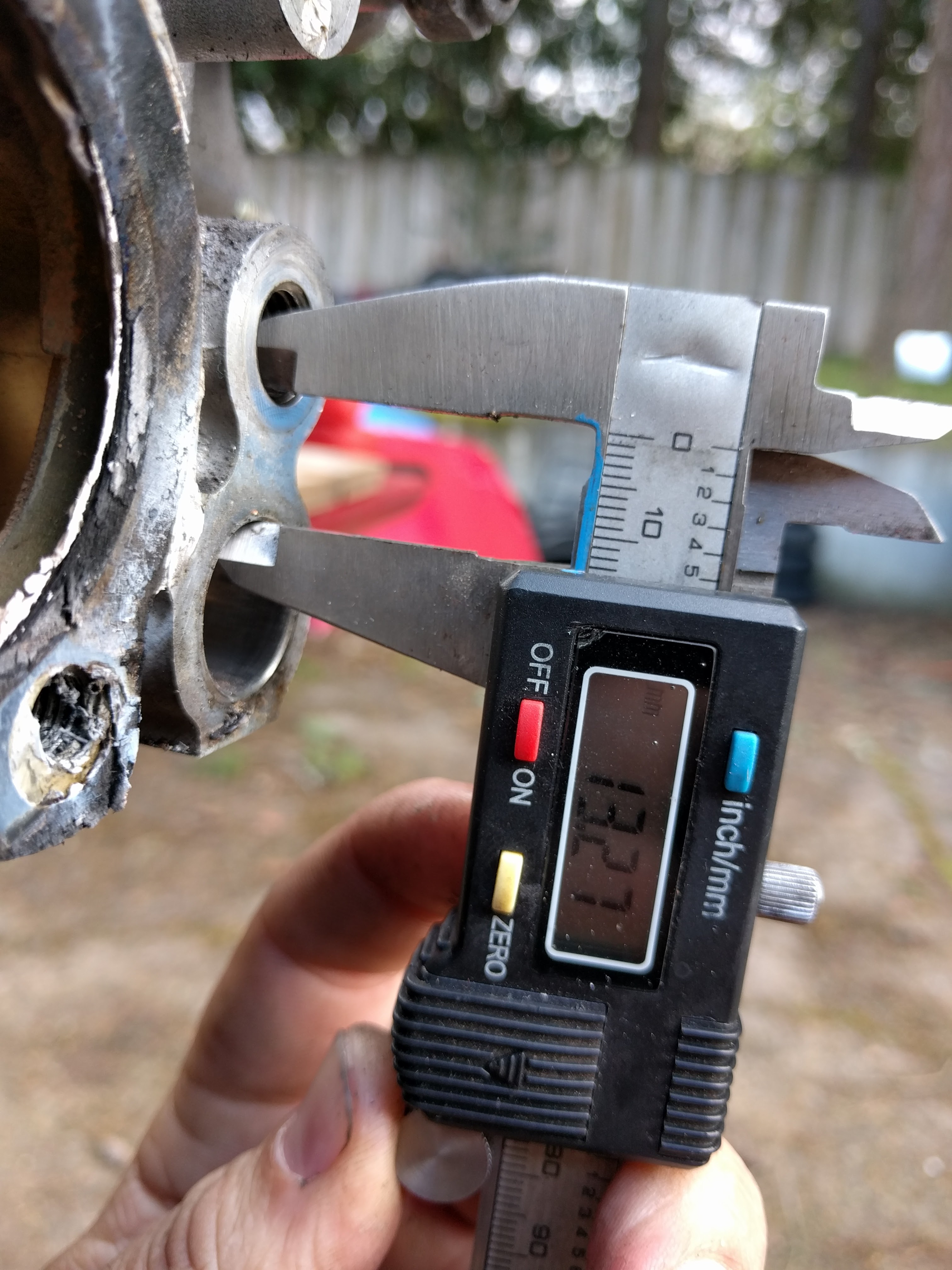

Taint size is just under 14mm



Hope this helps someone down the line. I'll update with how I plug mine.

concealer404
aidandj is offline   Reply With Quote
Old 04-18-2017, 08:59 PM   #2
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,258
Total Cats: 559
Default

Y u tag me.


Also: I told you so!
concealer404 is offline   Reply With Quote
Old 04-18-2017, 09:26 PM   #3
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 656
Total Cats: 11
Default

I used a large hex set screw with a coating of jb weld in my build:

paNX2K&SE-R is offline   Reply With Quote
Old 04-18-2017, 09:27 PM   #4
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,270
Total Cats: 1,134
Default

Any idea on thread size?
aidandj is offline   Reply With Quote
Old 04-18-2017, 09:37 PM   #5
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 656
Total Cats: 11
Default

Quote:
Originally Posted by aidandj View Post
Any idea on thread size?
Thank goodness for gmail archives saving all my previous parts orders:

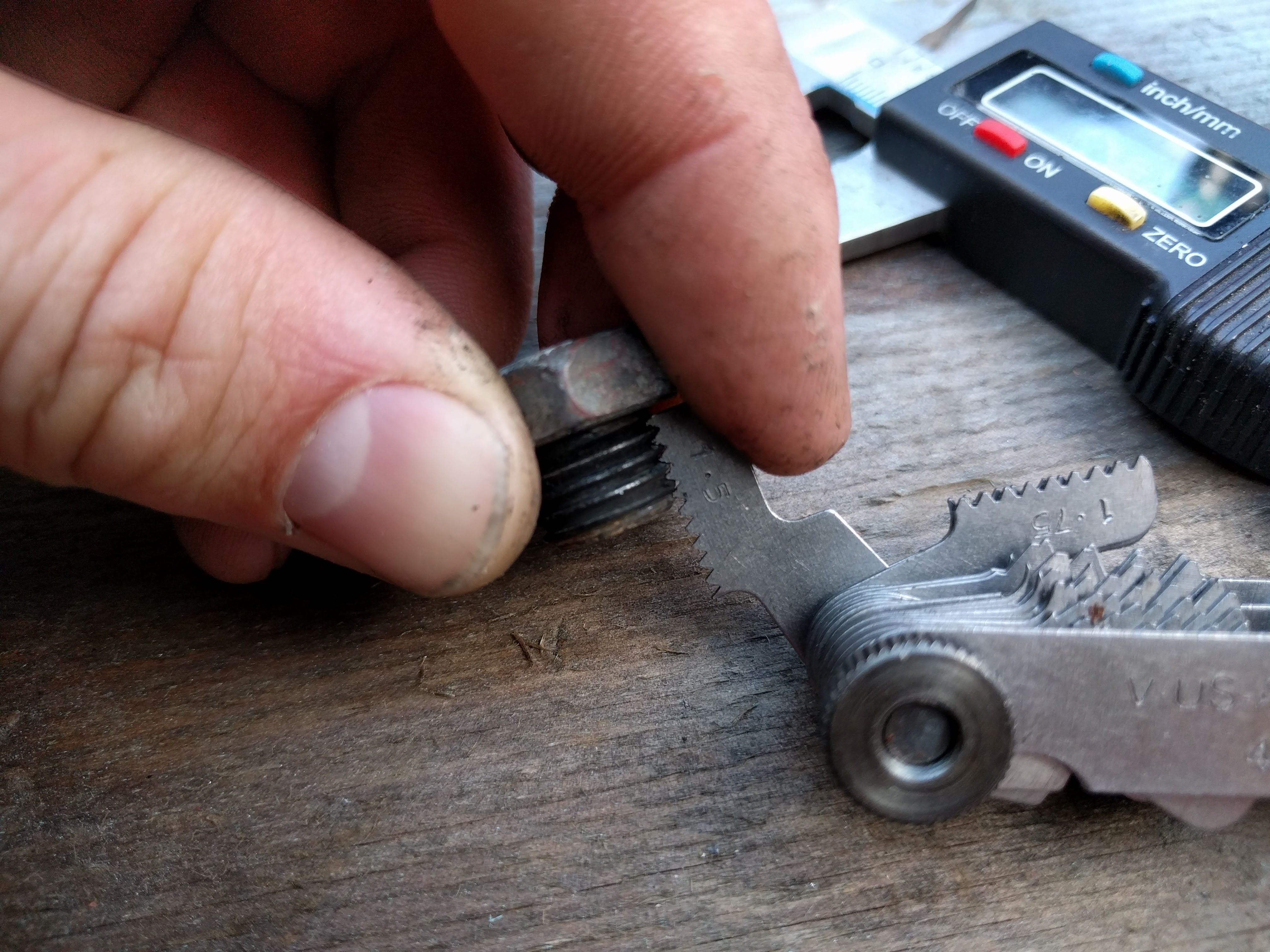

McMaster-Carr Alloy Steel Cup Point Socket Set Screw, 3/4"-16 Thread, 3/4" Length, packs of 5

IIRC it was a slightly undersized fit but the tap was a lot cheaper than the one that was a slightly better size (this was 5 years ago). I used the JB weld just to make sure it stayed in and didn't leak.
paNX2K&SE-R is offline   Reply With Quote
Old 04-19-2017, 09:36 AM   #6
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 114
Total Cats: 11
Default

quick question: why would you want to remove that barb? Doesn't it feed water to the oil warmer sandwich plate + throttle body?
Eunos91 is offline   Reply With Quote
Old 04-19-2017, 09:44 AM   #7
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,258
Total Cats: 559
Default

Quote:
Originally Posted by Eunos91 View Post
quick question: why would you want to remove that barb? Doesn't it feed water to the oil warmer sandwich plate + throttle body?
That is both the question and the answer.
concealer404 is offline   Reply With Quote
Old 04-19-2017, 09:44 AM   #8
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,270
Total Cats: 1,134
Default

I don't have either of those. And the nipple is known to leak.

It's also very close in size to 1/2npt.
aidandj is offline   Reply With Quote
Old 04-19-2017, 09:47 AM   #9
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,258
Total Cats: 559
Default

And it makes reroutes awful.
concealer404 is offline   Reply With Quote
Old 04-19-2017, 10:19 AM   #10
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 114
Total Cats: 11
Default

Quote:
Originally Posted by concealer404 View Post
That is both the question and the answer.
well, mine doesn't leak, and on my setup the water line runs from the barb at the back of the head to the oil warmer, to the throttle body, and from there to the turbo. No problems with the coolant reroute either.
Eunos91 is offline   Reply With Quote
Old 04-19-2017, 10:21 AM   #11
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,270
Total Cats: 1,134
Default

Quote:
Originally Posted by Eunos91 View Post
well, mine doesn't leak, and on my setup the water line runs from the barb at the back of the head to the oil warmer, to the throttle body, and from there to the turbo. No problems with the coolant reroute either.
Cool.

That's not the case for everyone. My TB doesn't even have water ports. And my oil warmer doesn't either.
aidandj is offline   Reply With Quote
Old 04-19-2017, 10:25 AM   #12
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,258
Total Cats: 559
Default

Quote:
Originally Posted by Eunos91 View Post
well, mine doesn't leak, and on my setup the water line runs from the barb at the back of the head to the oil warmer, to the throttle body, and from there to the turbo. No problems with the coolant reroute either.
Guess this isn't a relevant thread for you.
concealer404 is offline   Reply With Quote
Old 04-19-2017, 10:25 AM   #13
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,602
Total Cats: 476
Default

Quote:
Originally Posted by aidandj View Post
Any idea on thread size?
Quote:
Originally Posted by paNX2K&SE-R View Post
3/4"-16 Thread
Told ya, Bitch!
hi_im_sean is offline   Reply With Quote
Old 04-19-2017, 10:26 AM   #14
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 114
Total Cats: 11
Default

aye, thanks. Just wanted to clear this up before I finish the installation of my engine
Eunos91 is offline   Reply With Quote
Old 04-19-2017, 10:27 AM   #15
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,270
Total Cats: 1,134
Default

Quote:
Originally Posted by Eunos91 View Post
aye, thanks. Just wanted to clear this up before I finish the installation of my engine
Its known as the cursed nipple because if it leaks its damn near impossible to reach with the engine in the car. And if its never been replaced it could be about to blow
aidandj is offline   Reply With Quote
Old 04-19-2017, 11:46 AM   #16
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 114
Total Cats: 11
Default

ahhhh, so you guys have a rubber cap on there which fails? So it's not the metal elbow itself that's leaking? Got it. I'm running brand new silicone hoses everywhere, so as you said I'm not concerned
Eunos91 is offline   Reply With Quote
Old 04-19-2017, 11:51 AM   #17
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,270
Total Cats: 1,134
Default

Some people have a cap. Some people have a hose. I don't want either.
aidandj is offline   Reply With Quote
Old 04-21-2017, 02:33 AM   #18
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,270
Total Cats: 1,134
Default

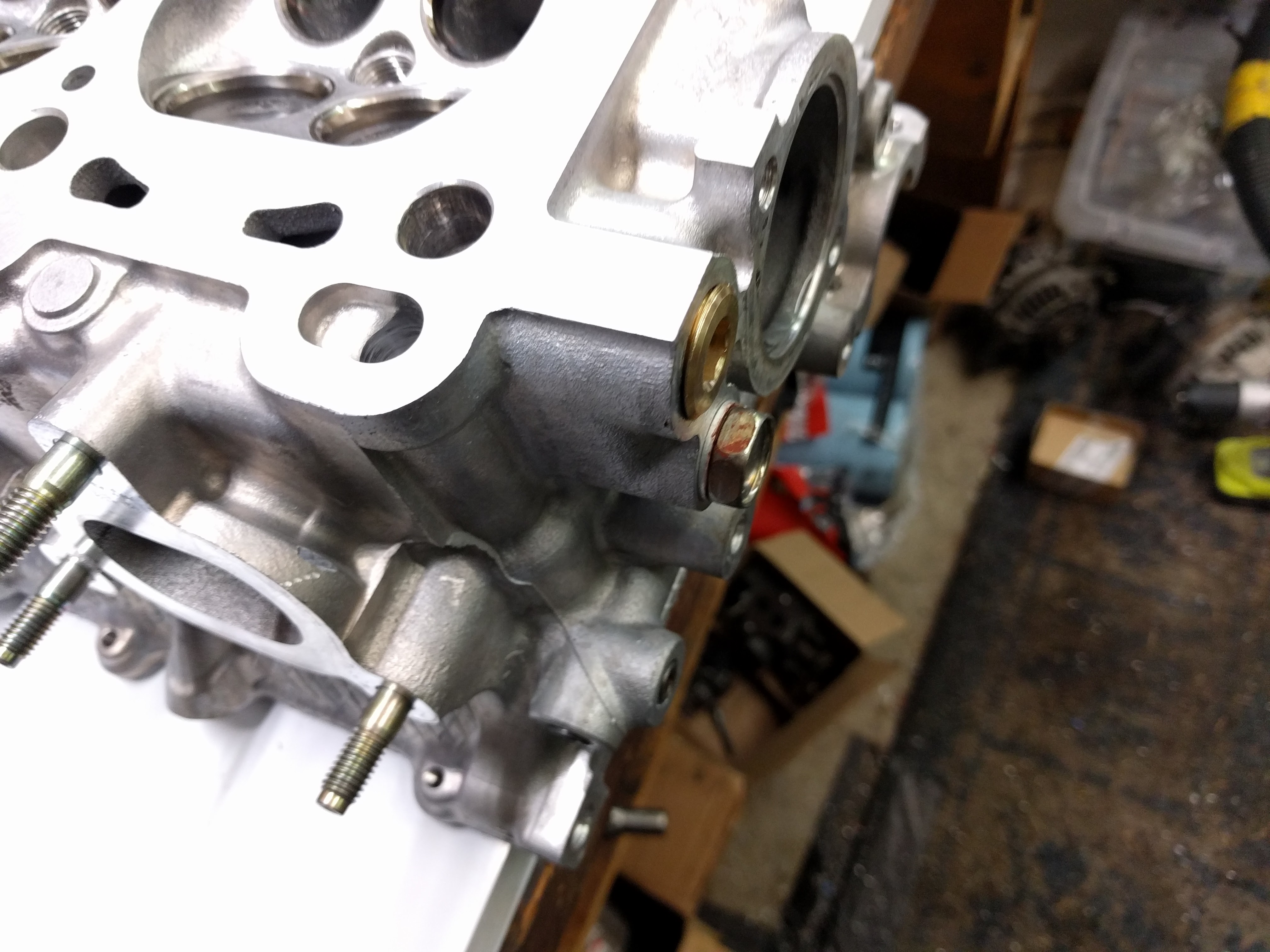

How i plugged mine. 23/32nd drill bit. 1/2npt tap.



aidandj is offline   Reply With Quote
Old 04-21-2017, 06:58 PM   #19
Senior Member
iTrader: (1)

Join Date: Aug 2016
Location: Woostuh, MA
Posts: 1,478
Total Cats: 39
Default

Aidan, this is an NA/BP05 thing right?
ridethecliche is offline   Reply With Quote
Old 04-21-2017, 07:21 PM   #20
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,270
Total Cats: 1,134
Default

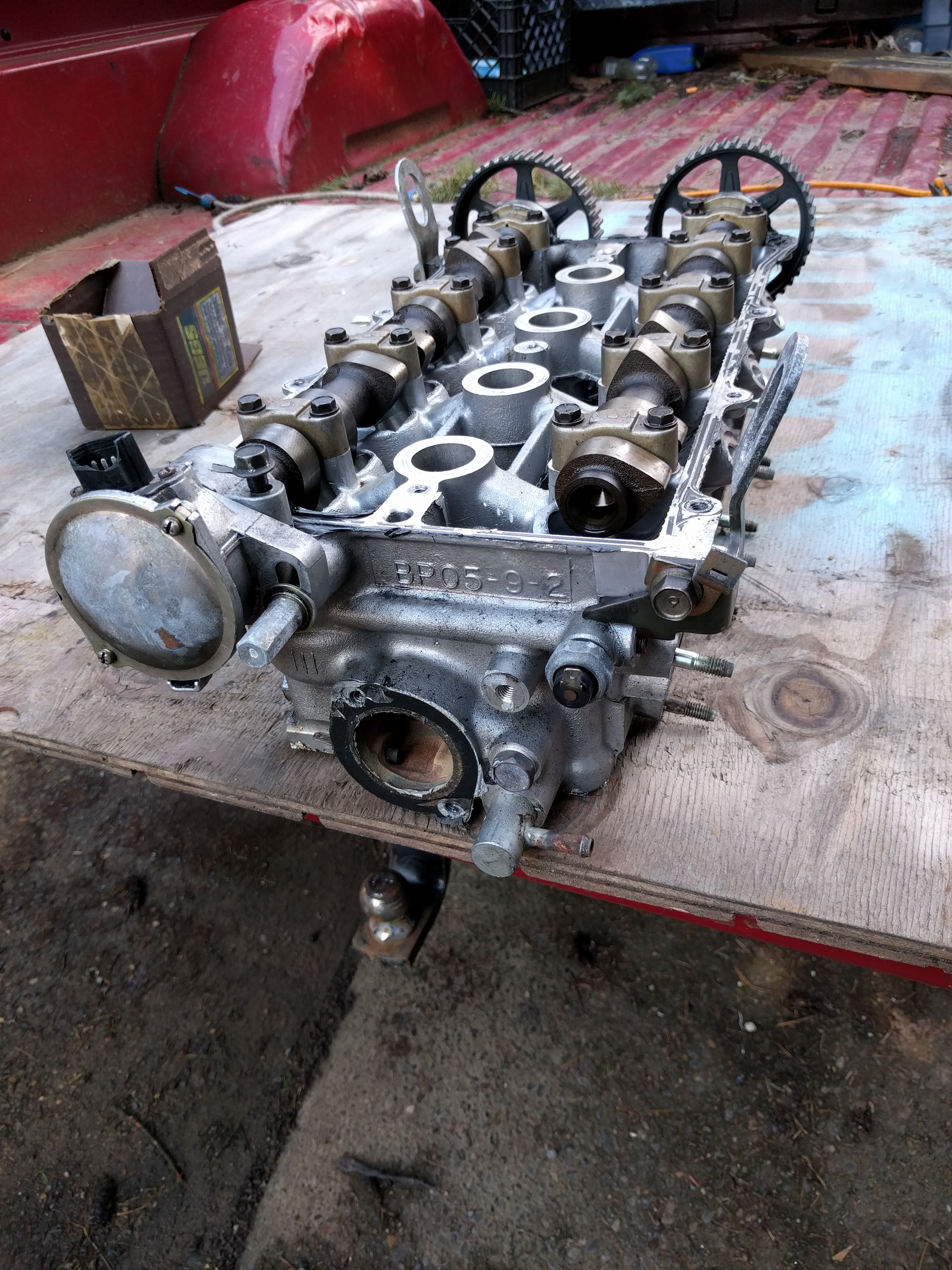

Both BP05 and BPVE are pictured in this thread
aidandj is offline   Reply With Quote
