Default Poor man's exhaust cut-out

I've been wanting to do this for years and never in my imagination did I dream it could be executed so beautifully. It almost looks like the car was supposed to come that way.

Super sleeper hidden secret lever behindish the seat


Cleaned up for that OEM look.


Up in the air


Here's the rest of my exhaust BTW.


Feast your eyes upon the glory.






you cant see if unless you're under the car...I think and it actually works perfect. Im still gonna clean up the welds and stuff and attach the throttle body on there a bit better but otherwise it's done.

The muffler is super restrictive b/c I wanted it to sound close to stock. This'll help a lot.

Other pics:
I SO need to clean the garage. It's a sad sight


ugh, tire time


I need to refinish my wheels. I usually dont care so much about nice looking wheels but the powdercoating is pitted all to hell making them get dirty real fast and a serious pain to clean. So far I've done one wheel

Before


After


And heres the lexus. It's dirty. I'll get around to it. So far I've claybarred about 12sqft.
SloS13 is offline   Reply With Quote
Old 04-11-2008, 07:17 PM   #2
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

are you able to reach that while driving? it looks like you would have to get out of the car to get to it...........GHETTO-TASTIC!
budget racer is offline   Reply With Quote
Old 04-11-2008, 07:17 PM   #3
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Me likes, that's awesome. We need video's!
patsmx5 is offline   Reply With Quote
Old 04-11-2008, 07:25 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

A thottle body? That is priceless! SloS13 wins the Ghetto Fabulous award.

If that thing is open for any length of time, you might consider trying to fabricate some kind of downpipe for it. One of the guys in LA melted his bumper cover a few years ago doing something similar.
Joe Perez is offline   Reply With Quote
Old 04-11-2008, 07:28 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

your hood is broken.
Braineack is offline   Reply With Quote
Old 04-11-2008, 07:37 PM   #6
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

What size Throttle body? What did it come off of? I keep thinking about doing something similar, but have it hooked to the gas pedal so it only open above 3/4 throttle or something. Same here, going for 100% sleeper OEM look, and sound.
patsmx5 is offline   Reply With Quote
Old 04-11-2008, 07:39 PM   #7
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

wow that's resourcefulness. i would guess ideally you'd want to put it further up in the exhaust stream
Mach929 is offline   Reply With Quote
Old 04-11-2008, 07:41 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

weld a spare wastegate on it and run a boost source into it instead of the cable.
Braineack is offline   Reply With Quote
Old 04-11-2008, 07:58 PM   #9
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Quote:
Originally Posted by Braineack View Post
weld a spare wastegate on it and run a boost source into it instead of the cable.
Si. Then I could add MBC to adjust it. Might do that. Do they make wastegates that open at like 2PSI or something? Don't answer that, I'll look it up.
patsmx5 is offline   Reply With Quote
Old 04-11-2008, 08:12 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Braineack is offline   Reply With Quote
Old 04-11-2008, 09:05 PM   #11
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

thats awesome!
coastertrav is offline   Reply With Quote
Old 04-11-2008, 09:29 PM   #12
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

went for a ride just now and it works absolutely perfect. no leaks and it sounds great open. It's still going through the resonator so it's not crazy loud. Actually sounds really good. I'll try and get a vid soon. Oh yeah and I can reach it without a problem. It's just slightly awkward.

I considered putting a wastegate actuator on there but I decided I'd rather just have a manual one.

It's some kind of Honda Civic throttle body. Either a D or B series. I removed the lip and it fit perfect in a 2.5" (with expanded end). Fit perfect.
SloS13 is offline   Reply With Quote
Old 04-11-2008, 09:46 PM   #13
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Cool. Turn up the amps on your welder, looks way too cold. I so wanna do this.
patsmx5 is offline   Reply With Quote
Old 04-11-2008, 10:29 PM   #14
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Cool. Turn up the amps on your welder, looks way too cold. I so wanna do this.
Well I had to use my shitty *** flux core. Low was too low and hot was too hot but I'd rather have bird **** welds than holes everywhere

I've been too lazy to get my gas filled for the MIG.
SloS13 is offline   Reply With Quote
Old 04-11-2008, 10:38 PM   #15
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Meh, I've done plenty of flux core welding. It works. Just gotta get the heat right. I'm no great welder but when the power's too low, you have to use more gap to get the heat to concentrate.

So what's the specs on your exhaust? I'm assuming 2.5". What muffler? You gotta go make some videos.
patsmx5 is offline   Reply With Quote
Old 04-12-2008, 12:40 AM   #16
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

all homemade 2.5. Summit resonator and summit "turbo" muffler. Sounds real quiet. Only thing I can take videos with is my digicam :(
SloS13 is offline   Reply With Quote
Old 04-12-2008, 12:57 AM   #17
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Here's something similar on a turbo SE-R.
http://www.sr20forum.com/turbo/18425...-out-done.html

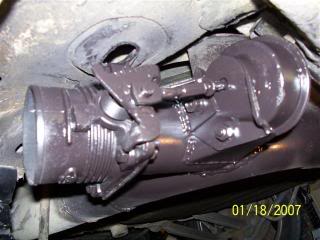

Name:  100_0659Small.jpg
Views: 56
Size:  16.0 KB
Allpictures014.jpg?t=1207972455

Quote:
ATP had a neato exhaust cut out that worked off boost pressure to open it up and close it at no boost. Of course I wasn't willing to pay around $300 for this - and they are out of stock with no in-stock date known, I made my own.

You need two things to make this work - first you will need some kind of precision made butterfly device in a housing. A throttle body off a 4.6 Ford Crown Vic was big enough (2 3/4) opening and cheap - $9.99.
Second you need a turbo wastegate actuator. Brand new Dodge SRT take-off for $40 will work just fine.

So, concept is simple - it will open up based on the wastegate you choose to use (SRT is 4 psi) and of course is closed with the same tension when driving normally. Add in a bit of creative fab/cut/weld and you my friend have a effective cutout which requires no electrical wiring, no cables and no reaching under the car to open and close. Yes, you will have to route boosted air there, but 1/4 soft copper line is cheap, easy to bend and very durable.

Does it work? Damn skippy it works - and works freaking awesome! I hesitated to post this, as it has only been on the car for a couple days and I cannot prove its long term reliability.

Just thought I would give those looking for a very stealth exhaust for normal driving and a wide-open in-your-face screaming no back pressure LOW DOUGH option.
chriscar is offline   Reply With Quote
