Default Quick/getto water temp set up

So i wasn't planning on hitting the track anytime soon but now i'm going this saterday and it will be the hottest day sense my supercharger install and i have yet to get a real temp gauge so off to the hard ware store.

want to get some feed back before i try and install.

Goal is a better then stock temp gauge for cheap. $14 gauge for orielly's and $5 in plumbing parts. i plan on cutting the exit heater core hose (thanks machismo) and installing a brass t fitting with a peace of copper wire band clapped to the fitting to run to a ground.

anyone see an issue?
2" Black Electric Water Temperature Gauge - EQUUS PRODUCTS, INC.

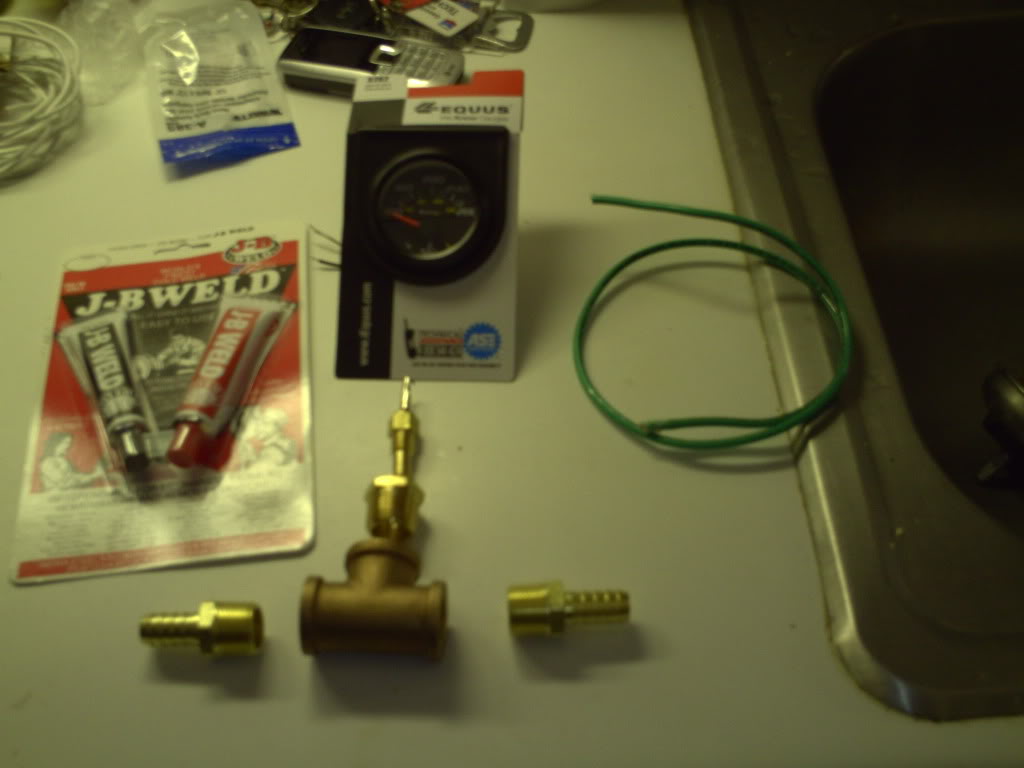

Name:  PICT0014.jpg
Views: 4
Size:  61.3 KB
Name:  PICT0019.jpg
Views: 8
Size:  53.3 KB

Last edited by jeff_man; 06-17-2009 at 01:24 AM.
jeff_man is offline   Reply With Quote
Old 06-16-2009, 11:28 PM   #2
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

I would put some jb weld, teflon tape or something on those threads to ensure they wont leak.

Have fun at the track!
thesnowboarder is offline   Reply With Quote
Old 06-16-2009, 11:32 PM   #3
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by thesnowboarder View Post
I would put some jb weld, teflon tape or something on those threads to ensure they wont leak.

Have fun at the track!
i have hi psi teflon tape read =D

also any one have any ideas on mounting the gauge without permit damage to my dash? was thinking about lots of black car duct tape
jeff_man is offline   Reply With Quote
Old 06-16-2009, 11:35 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

I assume the green wire is to somehow ground the body of the sensor. Those things usually get their return path through the engine, but since it's just floating on a couple of rubber hoses, you'll need to make sure it's grounded.
Joe Perez is online now   Reply With Quote
Old 06-16-2009, 11:43 PM   #5
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by Joe Perez View Post
I assume the green wire is to somehow ground the body of the sensor. Those things usually get their return path through the engine, but since it's just floating on a couple of rubber hoses, you'll need to make sure it's grounded.
green wire is for grounding,will stip it and jb weld it to keep it connected and the gauge has it's own ground wire also.
jeff_man is offline   Reply With Quote
Old 06-16-2009, 11:52 PM   #6
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I had mine like that for a long time. Worked perfectly.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-16-2009, 11:59 PM   #7
Junior Member
iTrader: (4)

Join Date: Dec 2006
Location: Charlotte , nc
Posts: 325
Total Cats: 1
Default

My setup is different , but might be worth a thought...

Lowes. Home depot, Iron Pipe. 1 inch diameter.

four inch section. no threads on ends, de burred, just cleaned up.

Drilled and tapped iron pipe specifically for that sensor. 5/8ths if i remember correctly.

Screwed in fitting.

Cut upper radiator hose toook out 1 inch in the middle for the sensor to have room. Installed new hose clamps on both ends.

Wired, and then had to gound the iron pipe too to give proper readings.

WORKS GREAT

just my setup.

Goodluck
jedduh01 is offline   Reply With Quote
Old 06-17-2009, 01:53 AM   #8
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by jedduh01 View Post
something and something
i was going to do that but sense this is a temp fix and oem heater hose is cheaper to replace then a silicon water hose....
jeff_man is offline   Reply With Quote
Old 06-17-2009, 10:57 AM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

jeff:

since

saturday

carry on!
y8s is offline   Reply With Quote
Old 06-17-2009, 11:13 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

pretty much how i have my oil temp sender on my oil feed for my turbo. had to ground the sensor in a similar fashion.
Braineack is offline   Reply With Quote
Old 06-17-2009, 12:38 PM   #11
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

How is an electrical gauge an upgrade? Get a mechanical gauge and do it right.

...And you won't have to screw with a ghetto ground wire setup.

...And your temperature reading won't be different every time you change the load on your electrical charging system.

My .
sixshooter is offline   Reply With Quote
Old 06-17-2009, 01:19 PM   #12
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by sixshooter View Post
How is an electrical gauge an upgrade?
And your temperature reading won't be different every time you change the load on your electrical charging system.
less dumber then the stock dumbly gauge is my thought and even with the power load it will give me a better approximation of what my true water temp is.
jeff_man is offline   Reply With Quote
Old 06-17-2009, 01:21 PM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

minus whale get enough sense to just lettuce give you advise for pizza mind. I'm still on the fents over weather my stock gage is informative enough.

I already haz an omori gauge though, just need to put it in.
hustler is offline   Reply With Quote
Old 06-17-2009, 06:12 PM   #14
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Any difference in preferred location for temp readings?

I'm referring to the 2 options above: Upper rad vs Heater

I was under the impression the heater hoses showed a better representation of where the coolant is hottest
TonyV is offline   Reply With Quote
Old 06-17-2009, 08:23 PM   #15
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by TonyV View Post
I'm referring to the 2 options above: Upper rad vs Heater
logic would say the water leaving the block would be the best place to read your true water temp. but what do i know about logic?
jeff_man is offline   Reply With Quote
Old 06-17-2009, 08:46 PM   #16
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

this thread inspired me to address my shared water temp sensor by installing a heater hose sensor. It's apparently very hard to find a 5/8 inline tee with a 3/8 bung in it. Autometer sells one but it's 30 bucks. So I got that after pricing out the equivalent hack version.

lots of places sell 1/8 bung versions or 1/2 hose versions for way cheaper but obviously that's not so useful.
y8s is offline   Reply With Quote
Old 06-18-2009, 03:33 AM   #17
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

IT WORKS!!!! let the car idea warm and roped on it a few good times. never saw anything over 220

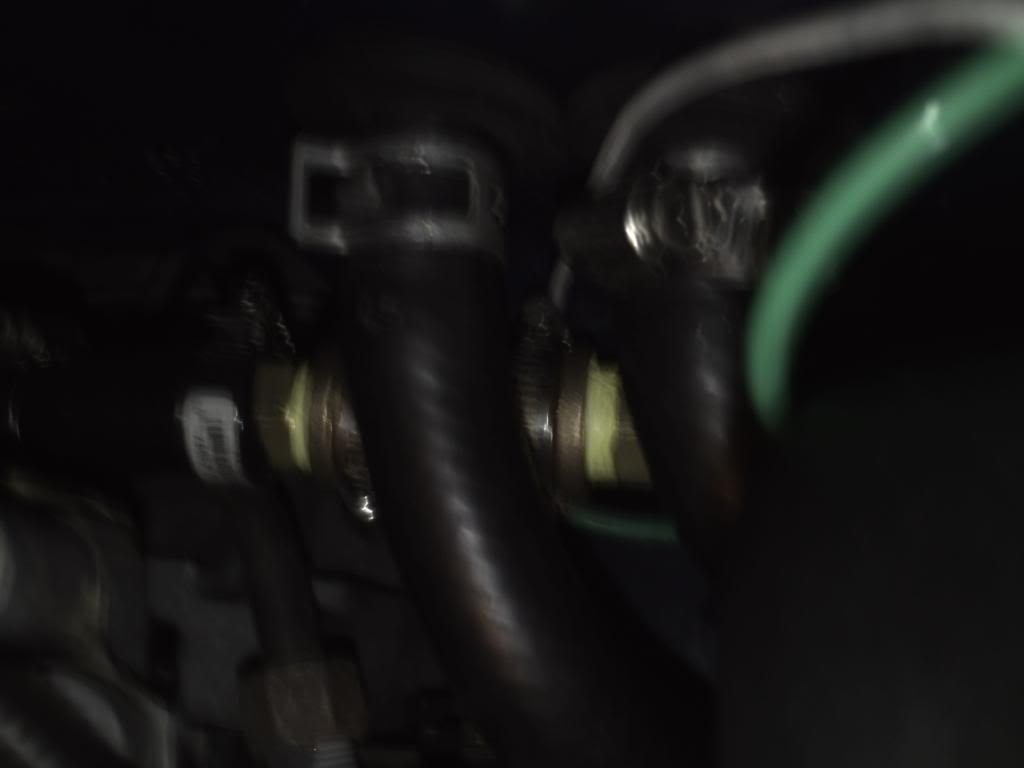

Name:  PICT0007.jpg
Views: 3
Size:  23.3 KB
Name:  PICT0009.jpg

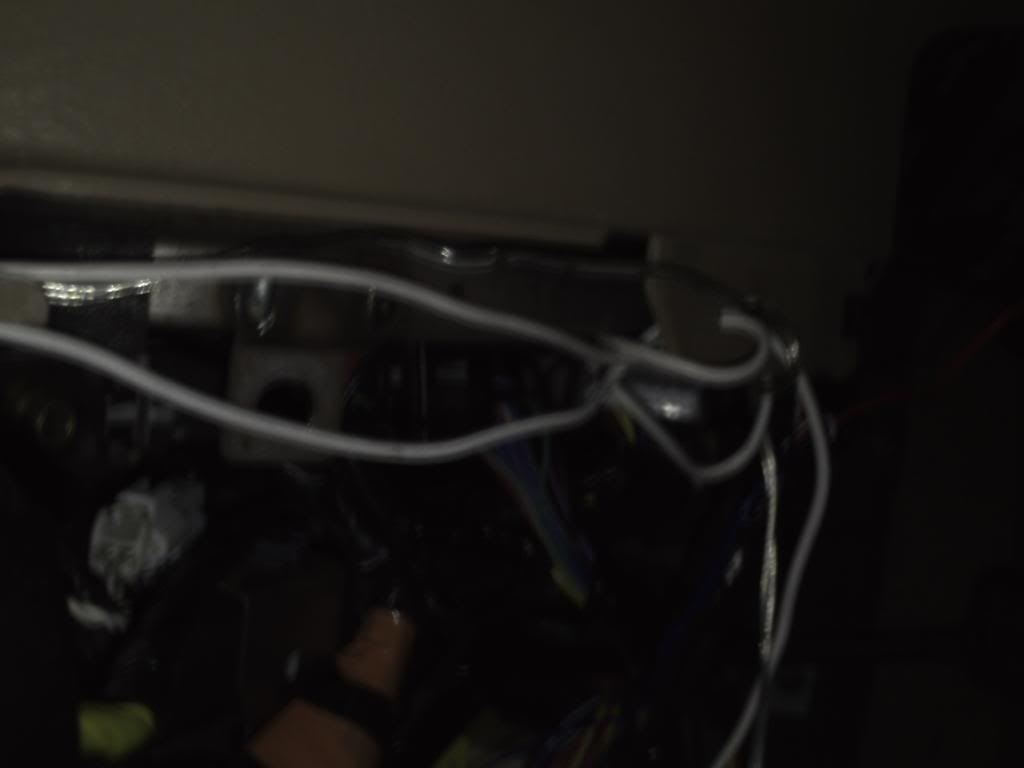

Views: 3
Size:  22.4 KB
Name:  PICT0005.jpg

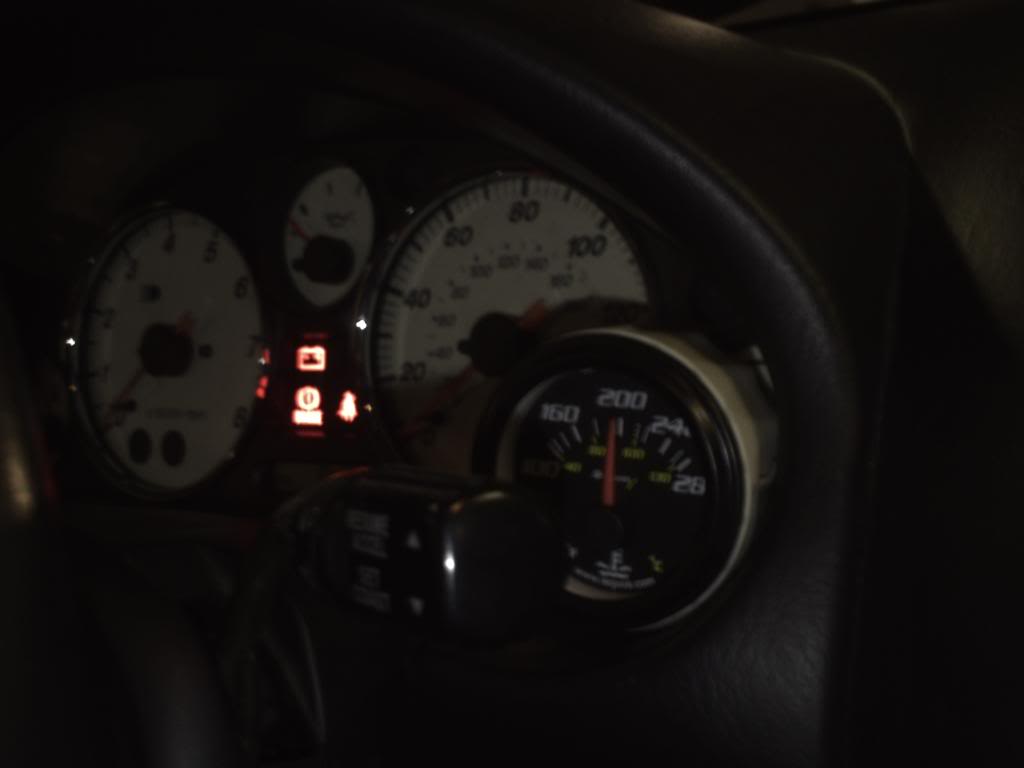

Views: 3
Size:  23.7 KB
Name:  PICT0006.jpg

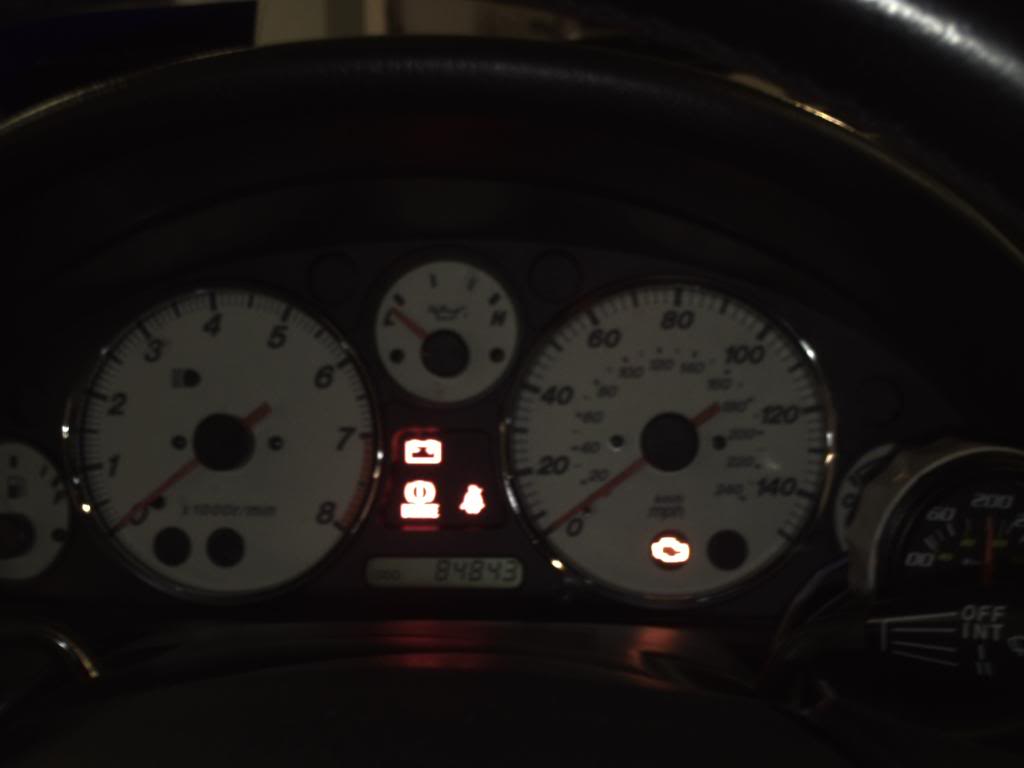

Views: 3
Size:  28.0 KB
jeff_man is offline   Reply With Quote
Old 06-18-2009, 03:50 AM   #18
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

also i used different fittings. the ones i had where to small. went with a 1/2 male to 1/2 male screw peace and then calmed the hose on to that
jeff_man is offline   Reply With Quote
Old 06-18-2009, 11:05 AM   #19
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

y8s is offline   Reply With Quote
Old 06-18-2009, 11:51 AM   #20
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I has this:
