General Miata Chat A place to talk about anything Miata

random death and now not starting

Thread Tools

Search this Thread

Old 11-05-2008, 12:45 PM
  #41
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,126
Total Cats: 0
Default

cool thanks guys

Last edited by nicacus; 11-06-2008 at 10:15 AM.
nicacus is offline
Old 11-05-2008, 01:18 PM
  #42
Senior Member
iTrader: (6)

TrickerZ's Avatar

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 850
Total Cats: 16
Default

check to make sure the woodruff key is set well in there too when you pull the gear off. You'll want to replace it (and probably the crank) if it wiggles at all. It looks good in the picture, but pictures can lie.
TrickerZ is offline
Old 11-06-2008, 10:07 AM
  #43
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,126
Total Cats: 0
Default

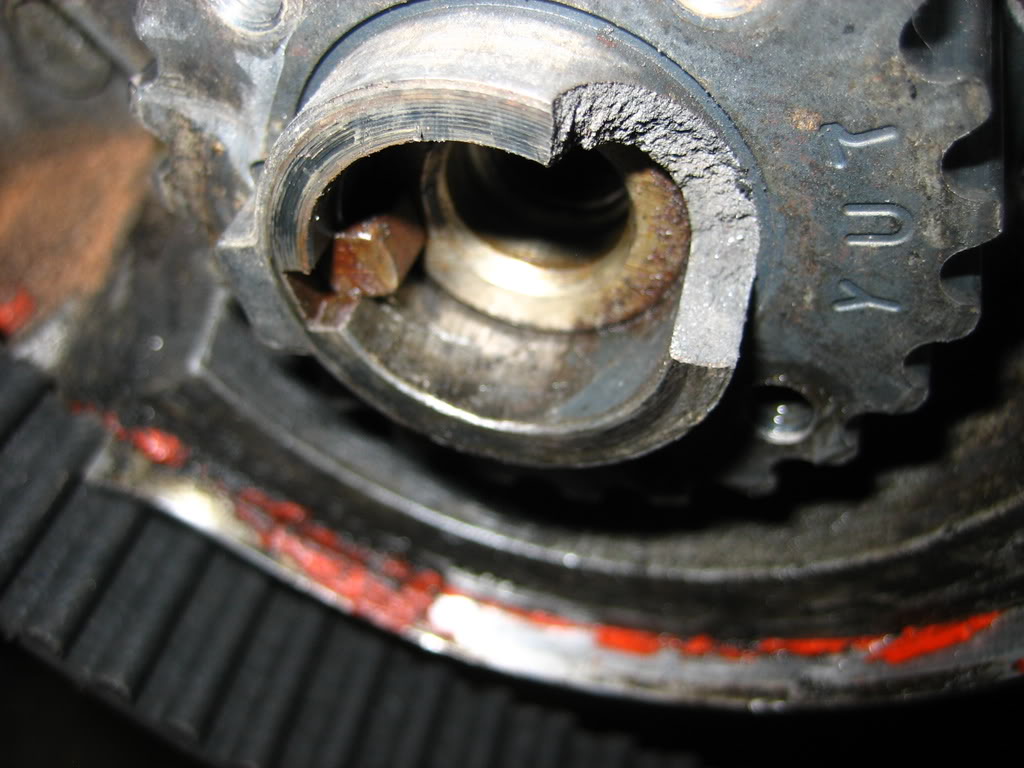

As I was attempting to pry off the sprocket I heard something fall and hit the ground...


Name:  IMG_7924.jpg
Views: 43
Size:  104.5 KB


Freaking awesome!
nicacus is offline
Old 11-06-2008, 10:37 AM
  #44
Junior Member
iTrader: (1)

greddymx5's Avatar

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

How did you do that!?
(ps you can also use the 10mm bolds to get the gear off , bu t i assume it is already off.
greddymx5 is offline
Old 11-06-2008, 10:49 AM
  #45
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,535
Total Cats: 3
Default

to get cogs off in the past, it has helped me to tap the perimeter of the gear with a hammer LIGHTLY!! in order to dislodge any rust holding it in place. Those things are always bitches though.
akaryrye is offline
Old 11-06-2008, 01:27 PM
  #46
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,126
Total Cats: 0
Default

It just broke off.. I'm guessing it was cracked already..
Still havent gotten it off
nicacus is offline
Old 11-06-2008, 02:19 PM
  #47
Junior Member
iTrader: (2)

Cpt_Slow's Avatar

Join Date: Sep 2008
Location: Sandy, Utah
Posts: 174
Total Cats: 0
Default

Nicacus...

Just noticed you're in West Valley. If you still haven't got this sorted by Saturday I'd be happy to give you a hand. PM me if you need anything.

-SC
Cpt_Slow is offline
Old 11-11-2008, 02:37 AM
  #48
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,126
Total Cats: 0
Default

Changing the timing belt fixed it.
I would have had it done on friday but, the retard at the dealer put my order in late so i had to wait until monday to get the parts.

Total cost was about $240
Changed the tensioner pulley, idler pulley, tension spring, crankshaft sprocket, and woodruff key.

Not nearly as difficult as I thought it was going to be.

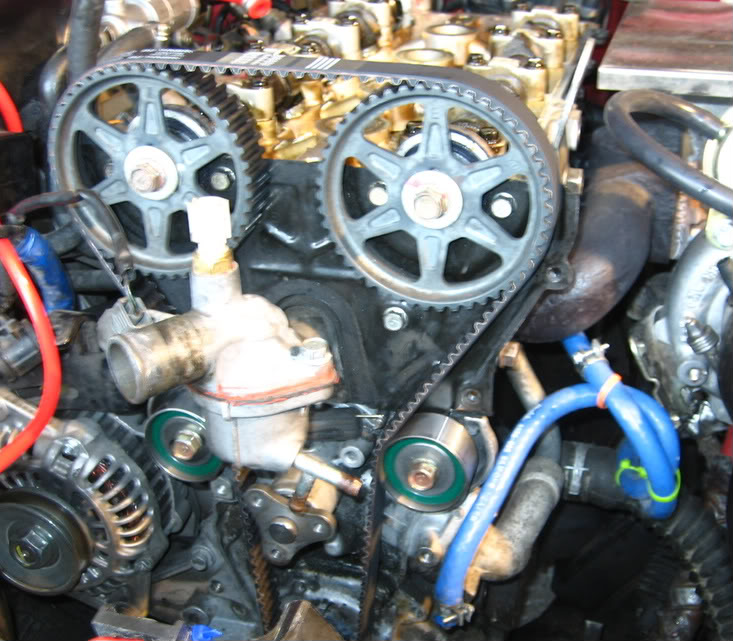

behold the array of shiny new parts!

Name:  IMG_7926.jpg
Views: 36
Size:  107.4 KB
nicacus is offline
